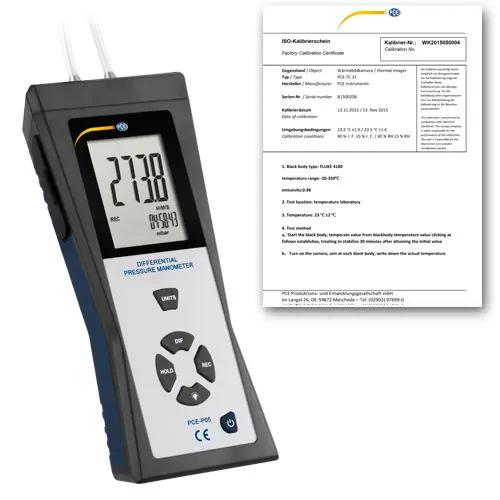

Pressure Gauge PCE-P05-ICA incl. ISO calibration certificate

Order no.: PCE-P05-ICA
GTIN (EAN): 4250348726414

US$ 494.00
ISO Calibration
ex. VAT, ex. delivery costs
:
4250348726414
PCE-P05-ICA
Available in: 10 - 14 days

Description

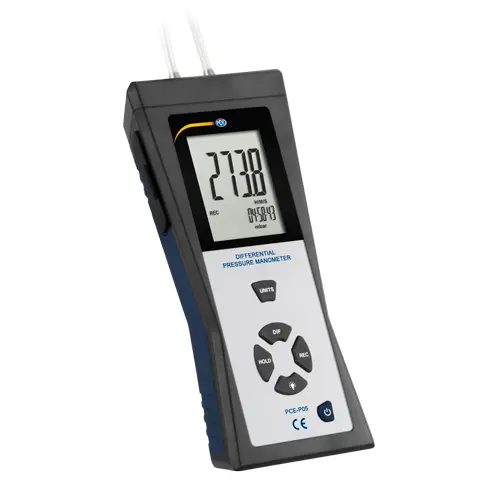

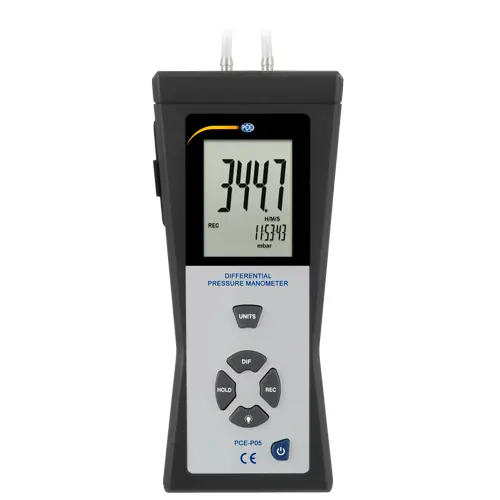

PCE-P05 Differential Pressure Gauge incl. ISO calibration certificate
Portable handheld manometer measures differential pressure from
-0.344 to 0.344 bar (-5.000 to 5.000 psi) / Features real-time data-logging capabilities using the included PC software and USB cable

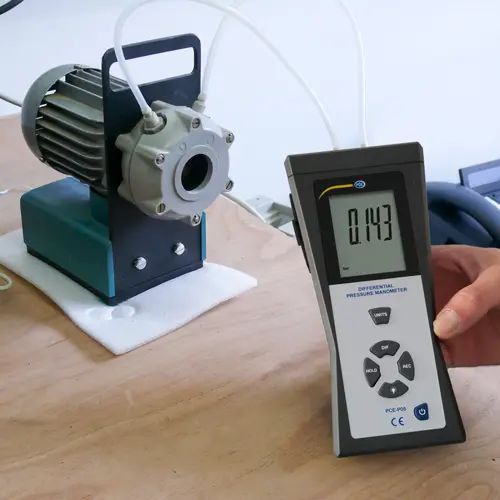

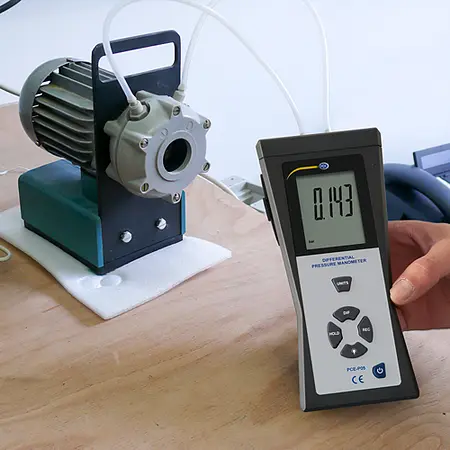

PCE-P05 is a portable handheld digital differential pressure gauge or manometer used to measure differential pressure in pneumatic, compressor and pump installations, valves, tanks and heating, ventilation and air conditioning (HVAC) systems. The PCE-P05 displays min / max / average values right on the meter's screen for comparison against current measurement values.

In addition, the PCE-P05 differential pressure manometer features real-time data-logging capabilities with an adjustable interval from 1 second to 24 hours. The device comes with 4 x 30 cm / 11.81 in silicon tubes, 1 x 9V block battery and 1 x AC power adapter. Also included in the delivery contents are PC-compatible software and a USB cable. The software can be used to detect and document pressure fluctuations, and to display the data graphically or in a table. For real-time data recording, simply connect the differential manometer via USB to your computer, and save the measured values ​​according to your selected time interval. You can then calculate average values ​​directly in the software or export the saved data to Microsoft Excel.


Highlights

- Easiest operation
- 11 selectable units: mbar, bar, psi, kPa, ...
- Measuring range from -344 ... +344 mbar / -5.000 to +5.000 psi
- Min / max and average value display
- "Hold" function
- Backlight can be switched on / off
- For long-term measurements including power supply

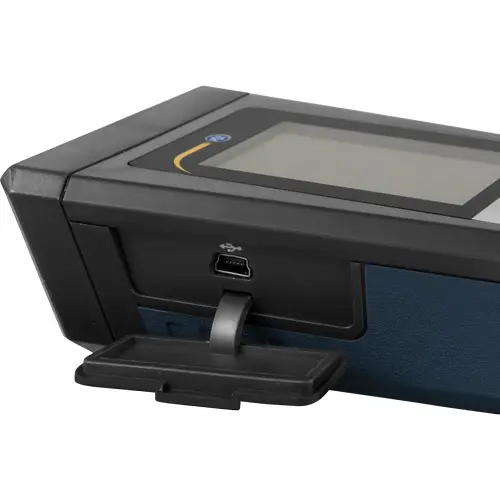

- Software with USB cable included
- Battery level indicator
- Auto-off function that can be switched off
- Zero point adjustment possible at any time
- incl. ISO Calibration Certificate

Specification

Measuring range
inH2O
psi
mbar
kPa
inHg
mmHg
ozin²
ftH2O
cmH2O
kgcm²
bar
 (±)
138.30

5.000
344.7
34.47
1.018
258.5
80.00
11.53
351.5
0.351
0.344

Resolution

inH2O
psi
mbar
kPa
inHg
mmHg
ozin²
ftH2O
cmH2O
kgcm²
bar


0.1

0.001
0.1
0.01
0.001
0.1
0.01
0.001
0.1
0.001
0.001


Accuracy (at +25 °C / +77 °F)± 0.3% of measuring range
Linearity± 0.2%
Response timeApprox. 0.5 sec.
Max. pressure1378 mbar
Operating temperature0 ... 50°C / 32 ... 122°F
Storage temperature-10 ... 60°C / 14 ... 140°F
MediaAir and non-explosive gases
Real-time data-logging interval    1 sec. to 24 h adjustable

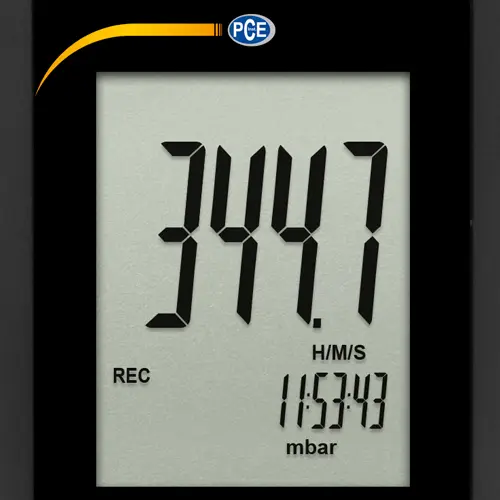

DisplayDual LCD
Dimensions210 x 75 x 50 mm / 8.27 x 2.95 x 1.97 in (H x W x D)
Weight (without batteries)650 g / 1.44 lbs
Power supplyBattery: 1 x 9V block
AC adapter: 9V DC / 500-mA


See user manual for complete technical specifications.

Delivery Scope

1 x Pressure Gauge PCE-P05
4 x 30cm / 11.8" silicone hose
1 x Software including USB cable
1 x 9V block battery
1 x 9V DC power supply
1 x Plastic case
1 x User manual
1 x ISO Calibration Certificate

Note
Overloading destroys the pressure sensor on the differential pressure meter
