Pressure Gauge PCE-P01-ICA Incl. ISO Calibration Certificate

Order no.: PCE-P01-ICA
GTIN (EAN): 4250348726407

US$ 471.00
ISO Calibration
ex. VAT, ex. delivery costs
:
4250348726407
PCE-P01-ICA
Available in: 10 - 14 days
Digital
Handheld
No
No

Description

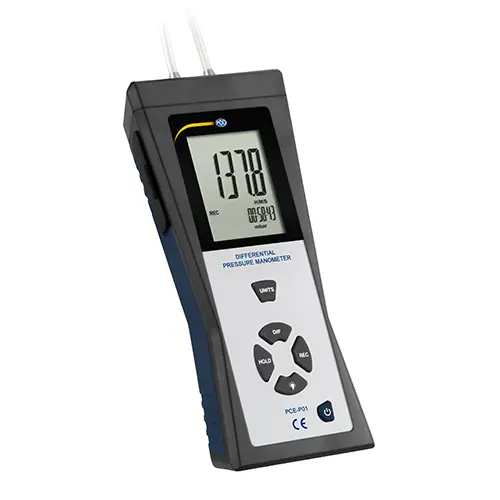

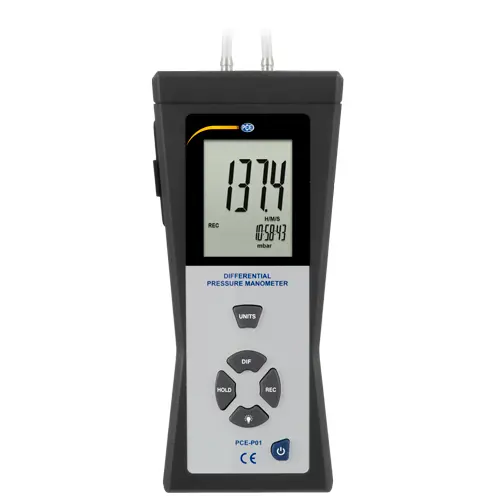

Differential Pressure Gauge PCE-P01-ICA incl. ISO Calibration Certificate
Differential manometer for the measuring range from -140 to +140 mbar, including software

The differential pressure gauge PCE-P01 is a robust, compact and comprehensive differential pressure gauge for measuring pressure in 11 adjustable units. The PCE-P01 is particularly suitable for the complete documentation of your measuring tasks. The minimum, maximum and average values of your measurement can be viewed in parallel to the current measured value on the large display of the PCE-P01 differential meter. For example, if you want to determine and document pressure fluctuations, you can use the enclosed software, with the help of which it is possible, for example, to transfer the measured values to the computer every second and display them graphically and in tabular form.

Highlights

- Easiest operation
- Measurement of differential pressure and static pressure in 11 selectable units: mbar, bar, psi, kPa, ...
- Measuring range from -140 to +140 mbar
- Min / max and average value display
- "Hold" function
- Backlight can be switched on / off
- For long-term measurements including power supply

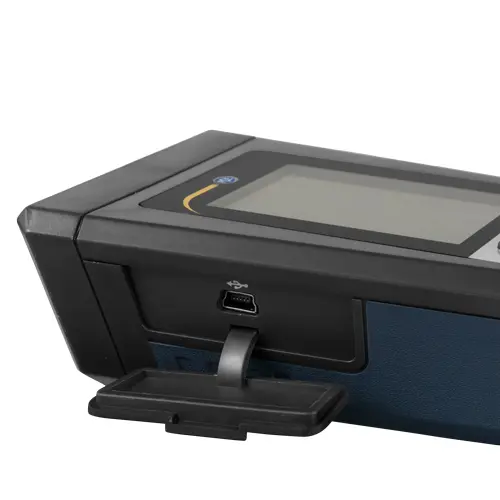

- Software with USB cable included
- Battery level indicator
- Auto-off function that can be switched off
- Zero point adjustment possible at any time

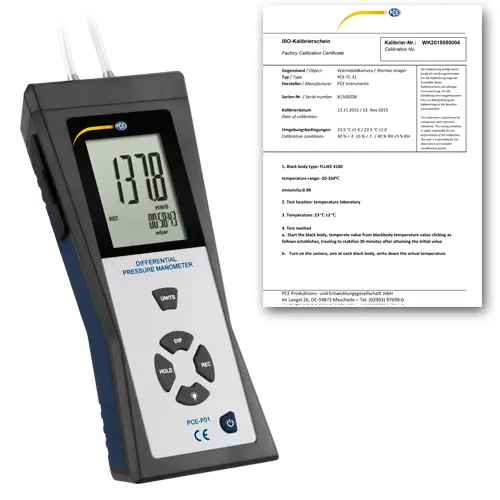

- incl. ISO Calibration Certificate

Specification

Measuring range  (±)
inH2O
psi
mbar
kPa
inHg
mmHg
ozin²
ftH2O
cmH2O
kgcm²
bar

55.40
2.000
137.8
13.79
4.072
103.4
32.00
4.612
140.6
0.140
0.137
Resolution
inH2O
psi
mbar
kPa
inHg
mmHg
ozin²
ftH2O
cmH2O
kgcm²
bar

0.01
0.001
0.1
0.01
0.001
0.1
0.01
0.001
0.1
0.001
0.001
Accuracy (at +25 °C / +77 °F)± 0.3% of measuring range
Linearity± 0.2%
Response timeApprox. 0.5 sec.
Max. pressure689 mbar
Operating temperature0 ... 50°C / 32 ... 122°F
Storage temperature-10 ... 60°C / 14 ... 140°F
MediaAir and non-explosive gases
Real-time data-logging interval    1 sec. to 24 h adjustable

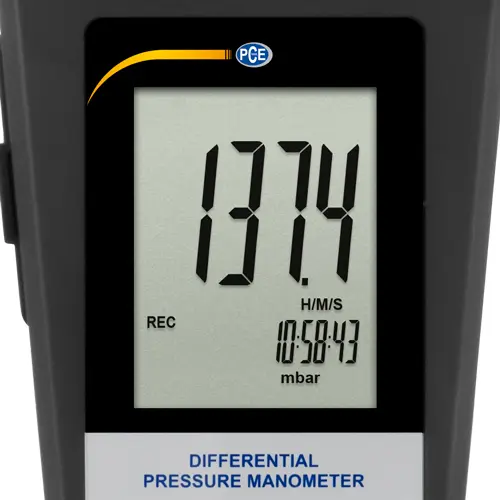

DisplayDual LCD
Dimensions210 x 75 x 50 mm / 8.27 x 2.95 x 1.97 in (H x W x D)
Weight (without batteries)650 g / 1.44 lbs

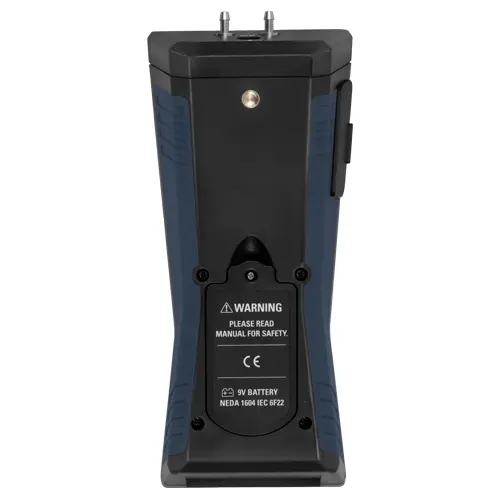

Power supplyBattery: 1 x 9V block

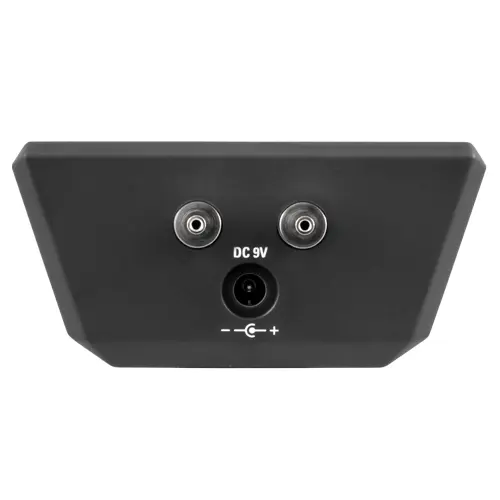

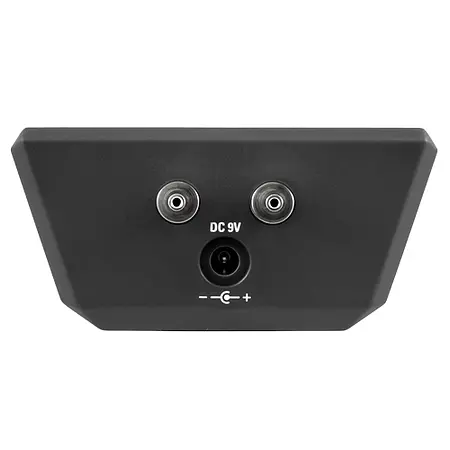

AC adapter: 9V DC / 500-mA

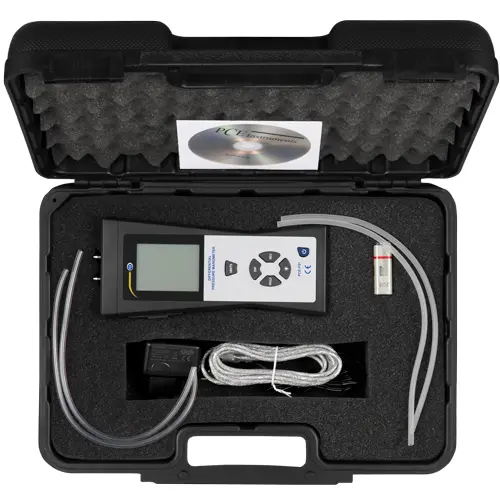

Delivery Scope

1 x Pressure Gauge PCE-P01

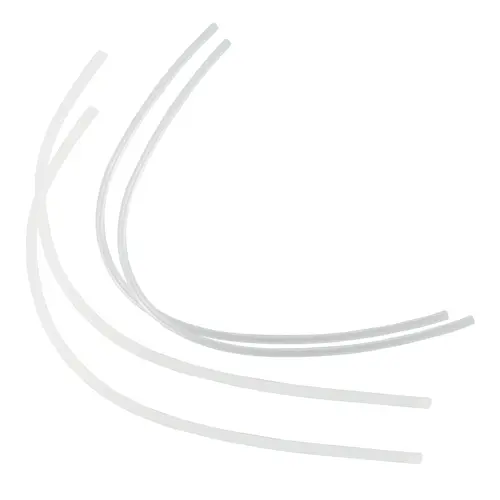

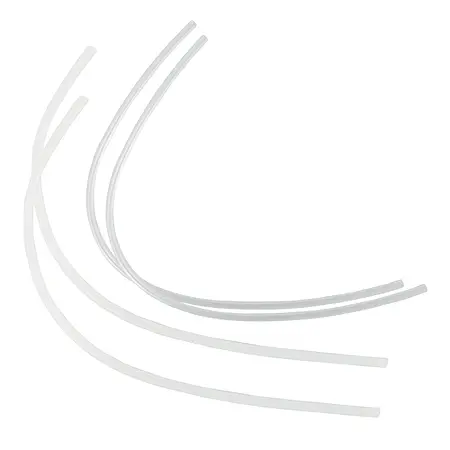

4 x 30cm / 11.8" silicone hose
1 x Software including USB cable
1 x 9V block battery
1 x 9V DC power supply
1 x Plastic case
1 x User manual
1 x ISO Calibration Certificate

Note
Overloading destroys the pressure sensor on the differential pressure meter
