Pressure Gauge PCE-DPG 3
Pressure sensor for water and gases / 1/4" NPT threaded connection / Adjustable backlight / PEAK function / Battery status indicator / Battery-operated

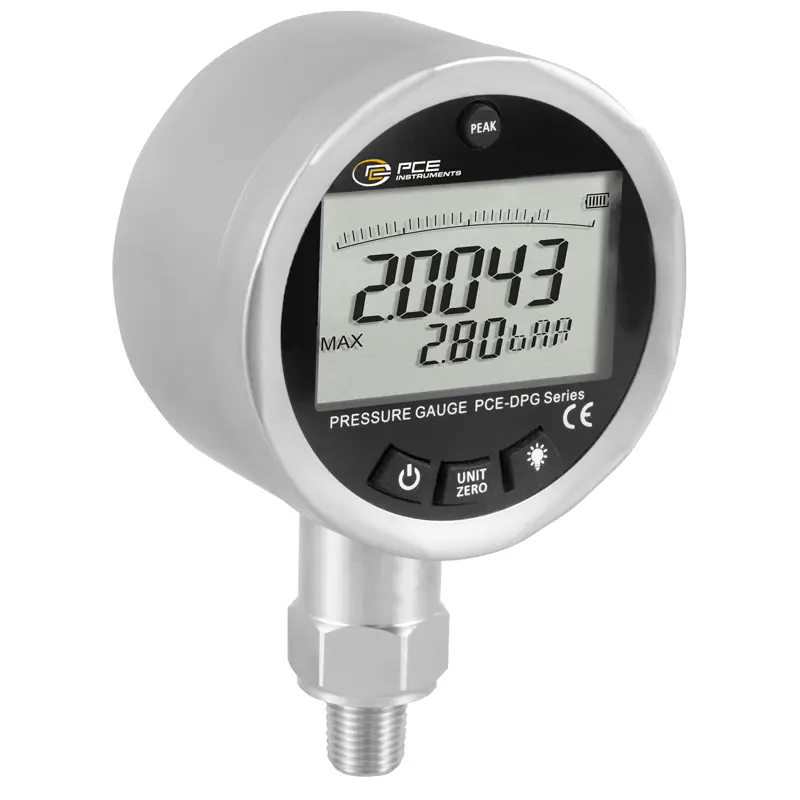

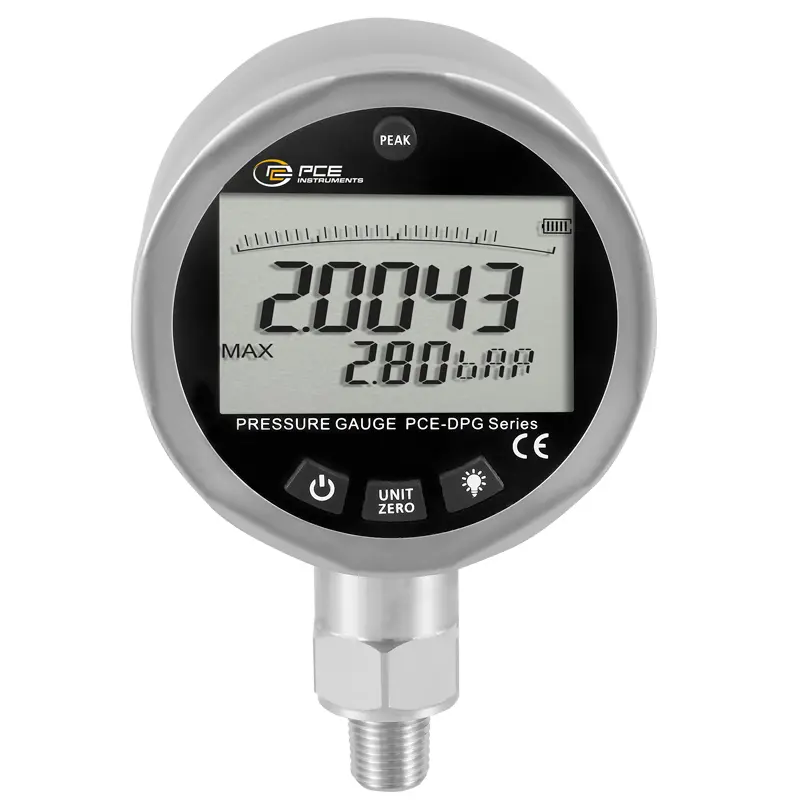

The pressure gauge of the PCE-DPG series is well suited for monitoring and displaying air pressure and water pressure. Thanks to its high measuring resolution and high accuracy, this pressure gauge is versatile. The current pressure is displayed by the pressure gauge as a value and at the same time as a bar graph. As an additional function, the pressure gauge offers a peak function. This function shows the operator the maximum and minimum pressure measured on the pressure gauge at the push of a button.

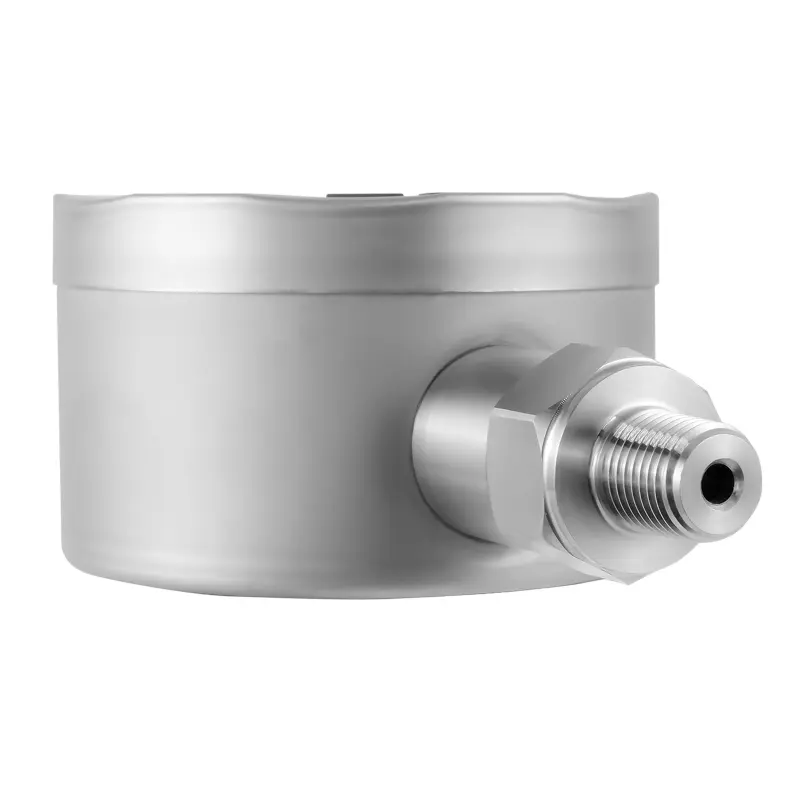

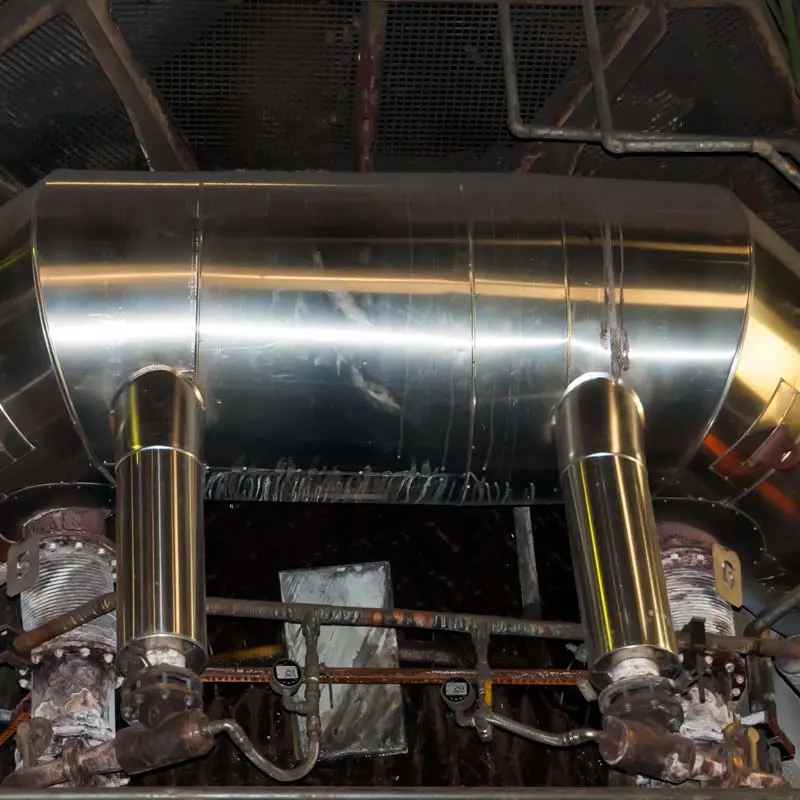

Thanks to the large display of 2.5" almost all measured values ​​can be read directly. Possible adjustable units for the pressure gauge would be Mpa, bar, Kpa, mH2o, kg / cm2, psi, mmH2o, in.WC and mbar. The response time of the pressure gauge is < 50 ms. The connection of the pressure gauge to the process is realized via a 1/4" NPT connection. Typical applications include suction control, leak testing or pressure monitoring.

- Measuring range up to 43.5 psi, 3 bar
- Scaled bar graph
- Battery powered 3 x 1.5V AAA
- Large 2.5" display
- Adjustable backlight
- 1.4" NPT connection thread
Measuring range -1 ... 3 bar
Resolution 0.0145 psi, 0.001 bar
Accuracy 0.25% FSO
Pressure relative
Overpressure 1.5 times
Measurable media gases, water
Response time < 50 ms
Housing material metal
Measurement units Mpa, bar, Kpa, mH2o, kg / cm²,
  psi, mmH2o, in.WC, mbar
Protection class IP56
Diameter display 2.5"
Dimensions (without sensor)    Ø80 x 50 mm / 3.1 x 2 in
Pressure connection 1/40" NPT

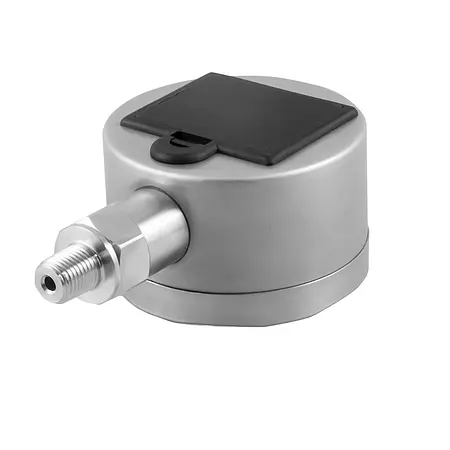

Power supply 3 x 1.5V AAA batteries
Environmental conditions -10 ... 60°C / 14 ... 140°F, < 80% RH
Weight approx. 276 g / < 1 lb (without batteries)

1 x Pressure Gauge PCE-DPG 3
3 x Batteries 1.5V AAA
1 x Operating instructions
