Pressure Gauge PCE-DPG 10-ICA incl. ISO Calibration Certificate
Pressure sensor for water and gases / 1/4" NPT threaded connection / Adjustable backlight / PEAK function / Battery status indicator / Battery-operated

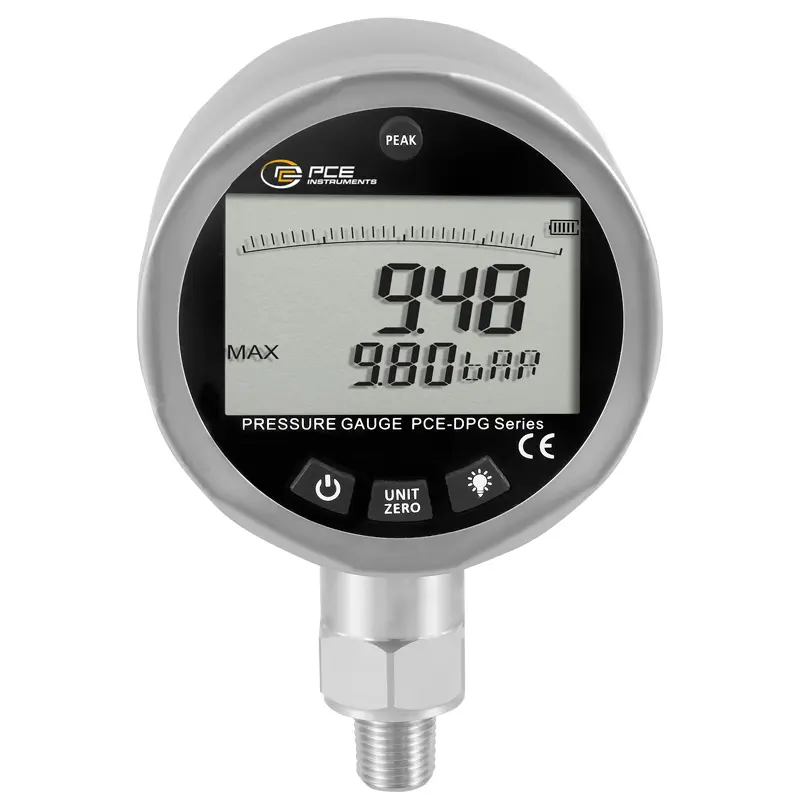

The pressure gague of the PCE-DPG series is well suited for monitoring and displaying air pressure and water pressure. Thanks to its high measuring resolution and high accuracy, this pressure gague is versatile. The current pressure is displayed by the pressure gague as a value and at the same time as a bar graph. As an additional function, the pressure gague offers a peak function. This function shows the operator the maximum and minimum pressure measured on the pressure gague at the push of a button.

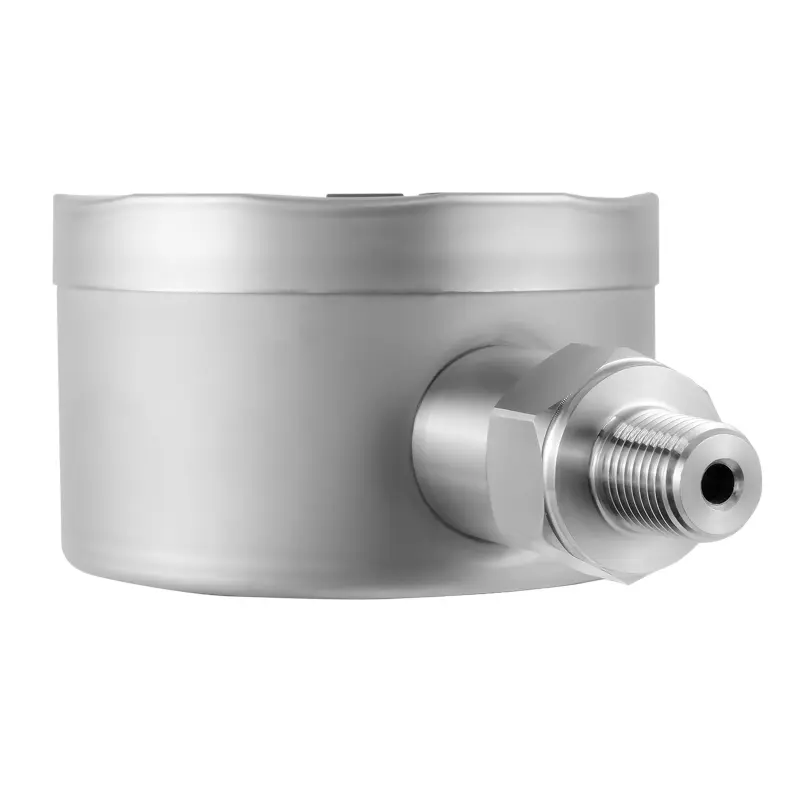

Thanks to the large display of 2.5" almost all measured values can be read directly. Possible adjustable units for the pressure gague would be Mpa, bar, Kpa, mH2o, kg / cm2, psi, mmH2o, in.WC and mbar. The response time of the pressure gague is < 50 ms. The connection of the pressure gague to the process is realized via a 1/4" NPT connection. Typical applications include suction control, leak testing or pressure monitoring.
- Measuring range up to 145 psi, 10 bar
- Scaled bar graph
- Battery powered 3 x 1.5V AAA
- Large 2.5" display
- Adjustable backlight
- 1.4" NPT connection thread

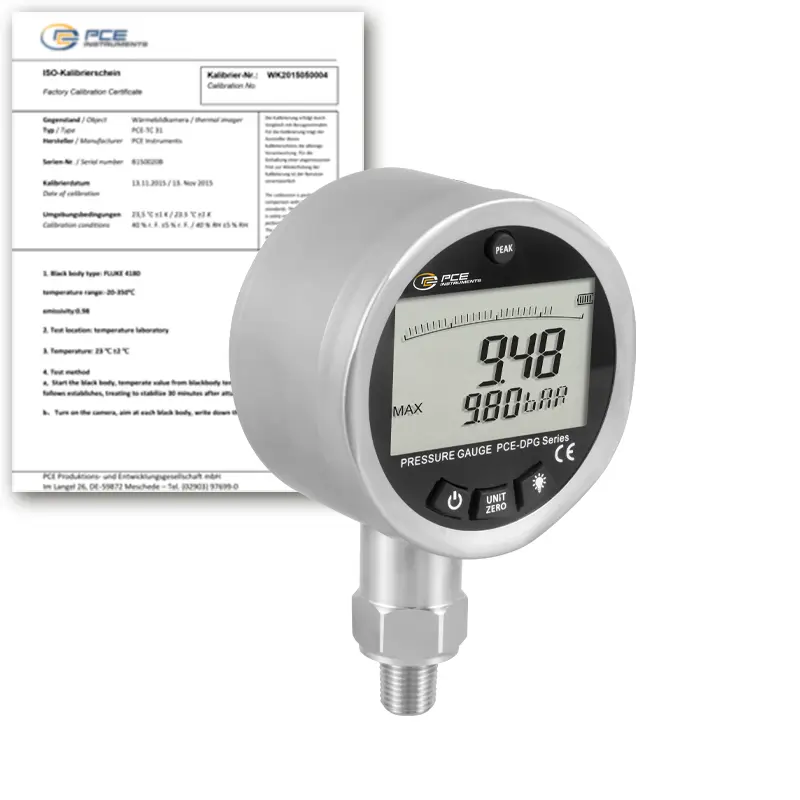

- incl. ISO Calibration Certificate
