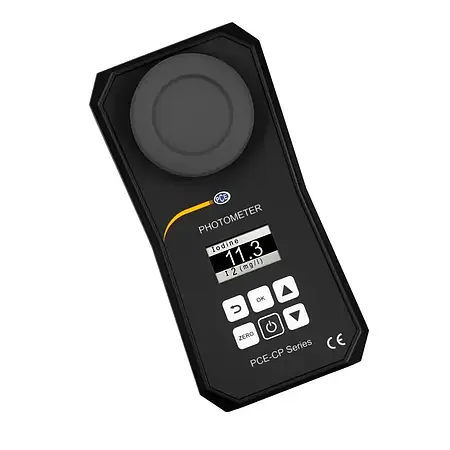

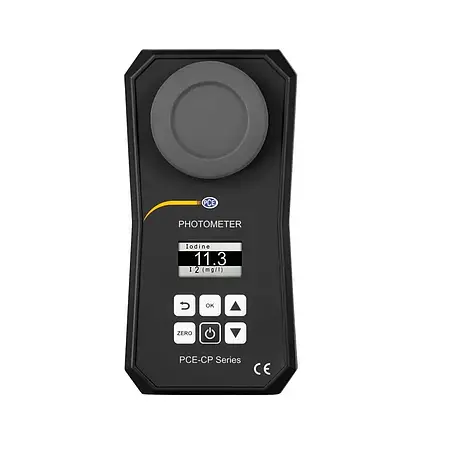

Photometer PCE-CP 21

Order no.: PCE-CP 21
GTIN (EAN): 4250348727411
US$ 504.00
Wireless
ex. VAT, ex. delivery costs
:
4250348727411
PCE-CP 21
Available in: 1-2 days
measurement in liquids

Accessory

Reagent Kit Bromine or Chlorine Dioxide in Water containing Chlorine
Reagent Kit Bromine or Chlorine Dioxide in Water containing Chlorine
US$ 28.00
Reagent Tablets for Iron Measurement
Reagent Tablets for Iron Measurement
US$ 26.00
DPD N° 3 Reagent Tablets for Free Chlorine, Total Chlorine
DPD N° 3 Reagent Tablets for Free Chlorine, Total Chlorine
US$ 12.00
Reagent Tablets for pH Value Measurement
Reagent Tablets for pH Value Measurement
US$ 12.00
DPD N° 1 Reagent Tablets for Free Chlorine
DPD N° 1 Reagent Tablets for Free Chlorine
US$ 12.00
Bromine Auxiliary Tablets PCE-CP X0 Tab Glycine
Bromine Auxiliary Tablets PCE-CP X0 Tab Glycine
US$ 16.00
Calibration Set PCE-CP X0 Cal-Set
Calibration Set PCE-CP X0 Cal-Set
US$ 226.00
Replacement Cuvette PCE-CP X0 Cuvette
Replacement Cuvette PCE-CP X0 Cuvette
US$ 28.00
Carrying Case PCE-CP X0 Case
Carrying Case PCE-CP X0 Case
US$ 91.00
Light Protection Cover PCE-CP X0 Cuvette Cover
Light Protection Cover PCE-CP X0 Cuvette Cover
US$ 25.00
Microfiber Cloth PCE-CP X0 Microfibre Cloth
Microfiber Cloth PCE-CP X0 Microfibre Cloth
US$ 5.00
PCE-CP X0 PIP
Dosing Pipette 10 ml
US$ 3.00
Plastic stirring stick (10.5 cm) for the PCE-CP Series.
Stirring Stick for the PCE-CP Series PCE-CP X0 Spurtle
US$ 6.00
Cyanuric Acid Tablets PCE-CP X0 Tab Cyanuric Acid
Cyanuric Acid Tablets PCE-CP X0 Tab Cyanuric Acid
US$ 18.00
Tablets Starter Kit PCE-CP X0 Tab Starter Kit
Starter Tablets Kit PCE-CP X0 Tab Starter Kit
US$ 25.00

Description

Multi-parameter photometer with Bluetooth interface / PC software / Cloud service / Cross-system synchronization of measured values ​​/ Up to 13 selectable parameters / For measuring e.g. pH, alkalinity, chlorine, cyanuric acid / Storage of measured values

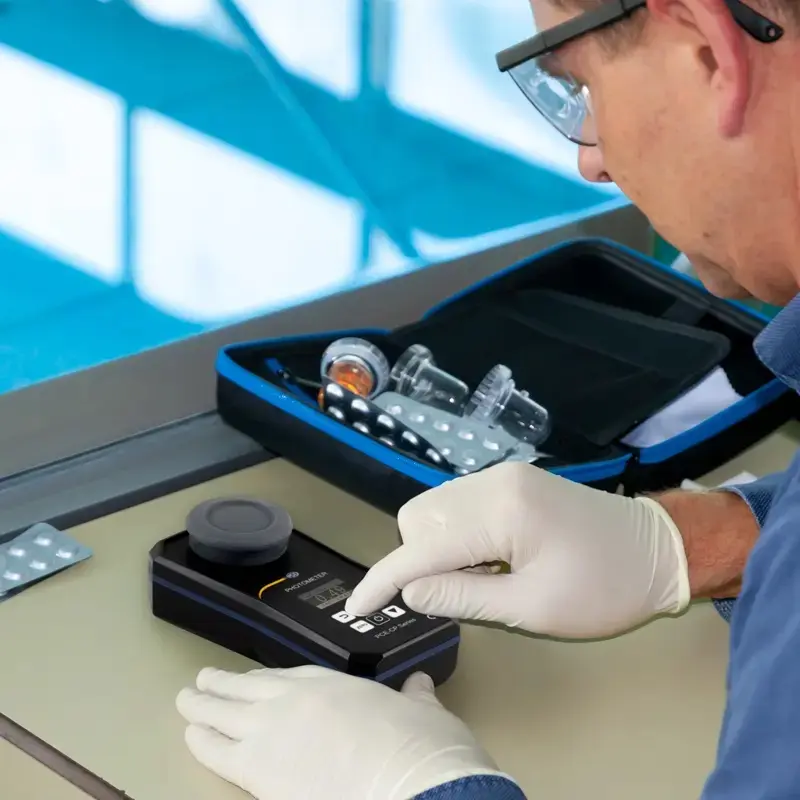

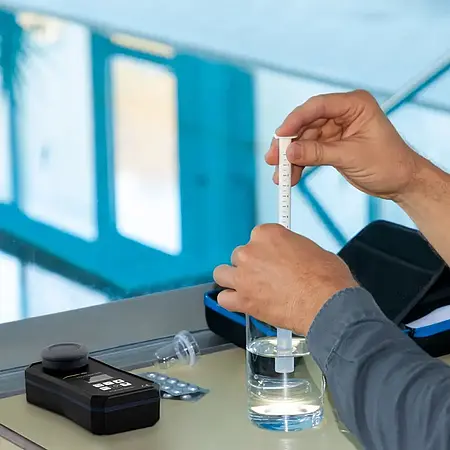

The multi-parameter photometer is a mobile measuring device for liquid analysis. This enables the most varied of measurements to be carried out with the multi-parameter photometer. With this multi-parameter photometer, for example, it is possible to determine alkalinity, chlorine, cyanuric acid or the pH value. In order to carry out a measurement with the multi-parameter photometer, a water sample of 10 ml must be placed in a cuvette. The built-in LED in the multi-parameter photometer generates a test light in the wavelength ranges of 503 nm, 570 nm and 620 nm. A photodiode now recognizes the value to be measured based on the light transmission of the sample.

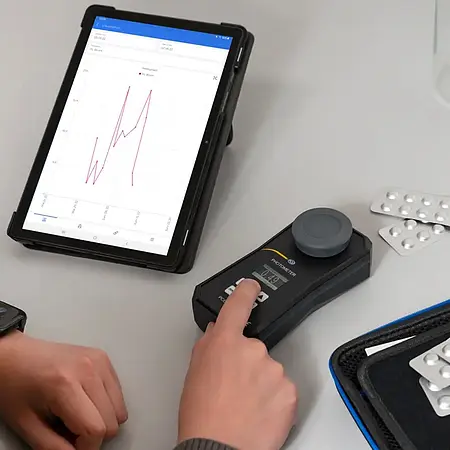

Each measurement is automatically saved by the multi-parameter photometer. The stored measured values ​​can then be read out, for example, via a mobile device via the Bluetooth interface built into the multi-parameter photometer. A free app is available to analyze the measured values ​​from the multi-parameter photometer. It is also possible to establish a Bluetooth connection between the multi-parameter photometer and a computer. Free software is also available for this, with which the measurement data can be analyzed. As another special feature of the multi-parameter photometer, the measurement data can be uploaded to a cloud using both variants and accessed from anywhere. This service for the multi-parameter photometer is also free of charge.

Highlights

- Up to 13 selectable parameters
- Bluetooth connection with app
- Exchangeable and lockable cuvette
- 503 nm / 570 nm / 620 nm LED
- Automatic shutdown when inactive
- Many different menu languages
- Light detector: photodiode
- Cuvette: 36 x ø 21 mm / 3.6 x ø 2.1 cm (10 ml)

Specification

Chlorine
Measuring range   0.00 … 2.00 mg/l
    2.00 … 3.00 mg/l
    3.00 … 4.00 mg/l
    4.00 … 8.00 mg/l

Accuracy   0.10 mg/l
    0.23 mg/l
    0.75 mg/l
    1.00 mg/l

Resolution   0.01 mg/l

pH
Measuring range 6.50 ... 8.40 pH
Accuracy 0.11 pH
Resolution 0.01 pH

Iron
Measuring range     0.00 … 0.20 mg/l
      0.20 … 0.60 mg/l
      0.60 … 1.00 mg/l

Accuracy     0.02 mg/l
      0.04 mg/l
      0.08 mg/l

Resolution     0.01 mg/l

Cyanuric acid
Measuring range     0 … 15 mg/l
    15 … 50 mg/l
    50 … 120 mg/l
  120 … 160 mg/l

Accuracy   1 mg/l
    5 mg/l
  13 mg/l
  19 mg/l

Resolution   1 mg/l

Bromine
Measuring range     0.0 … 2.5 mg/l
      2.5 … 6.5 mg/l
      6.5 … 11.0 mg/l
    11.0 … 13.5 mg/l

Accuracy   0.2 mg/l
    0.6 mg/l
    1.7 mg/l

  2.3 mg/l

Resolution   0.1 mg/l

Iodine
Measuring range     0.0 … 5.0 mg/l
      5.1 … 10.0 mg/l
    10.1 … 15.0 mg/l
    15.1 … 21.4 mg/l

Accuracy   0.5 mg/l
    0.8 mg/l
    2.7 mg/l

  3.6 mg/l

Resolution   0.1 mg/l

Further specification


Units
 mg/l, ppm
Calibration Zero point calibration
Light source
 503 nm / 570 nm / 620 nm LED
Light detector Photodiode
Power supply
 4 x 1.5V AA batteries
Dimensions of the cuvette   36 x ø 21 mm / 3.6 x ø 2.1 cm (10 ml)
Menu languages English, German, French, Spanish and Italian
Storage Automatic storage of measured values ​​and readout
Storage space 256 values
Interface Bluetooth connection with app and PC software
Automatic shutdown After 300 seconds of inactivity
Operating conditions 5… 45 °C, 20 ... 90% RH non-condensing
Storage conditions 5… 45 °C, 20 ... 90% RH non-condensing
Dimensions 165 x 95 x 50 mm / 6.5 x 3.7 x 2 in
Weight 230 g / 8.1 oz

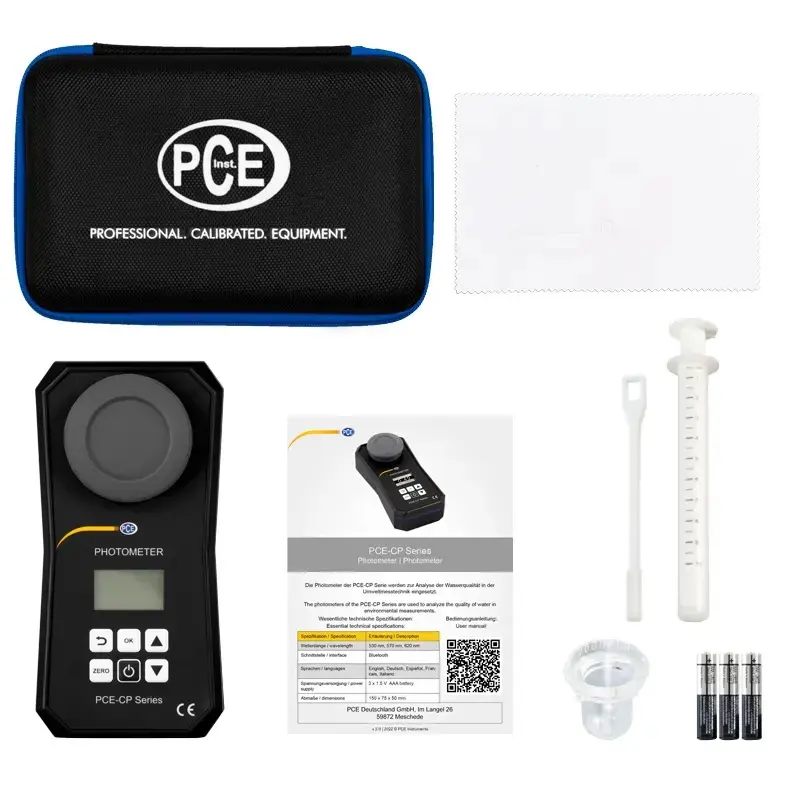

Delivery Scope

1 x Multi-parameter photometer PCE-CP 21 incl. Cuvette
1 x Replacement cuvette
1 x Light protection cover
1 x Microfiber cloth
1 x Plunger
1 x 10 ml dosing pipette
3 x AAA batteries
1 x Quick start guide
1 x Service bag
1 x Free app
1 x Free PC software
1 x Free cloud service
