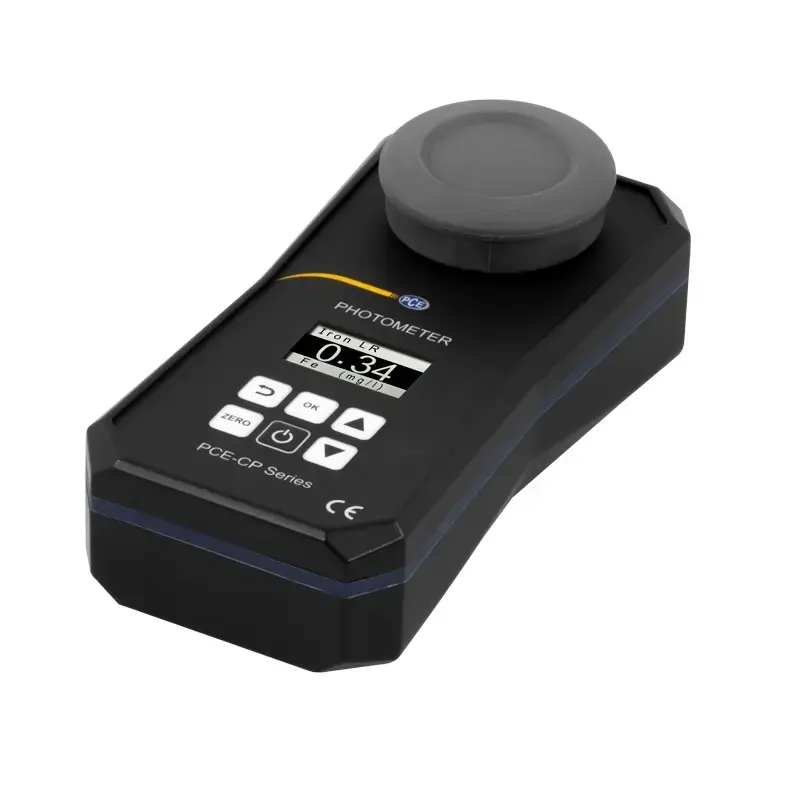

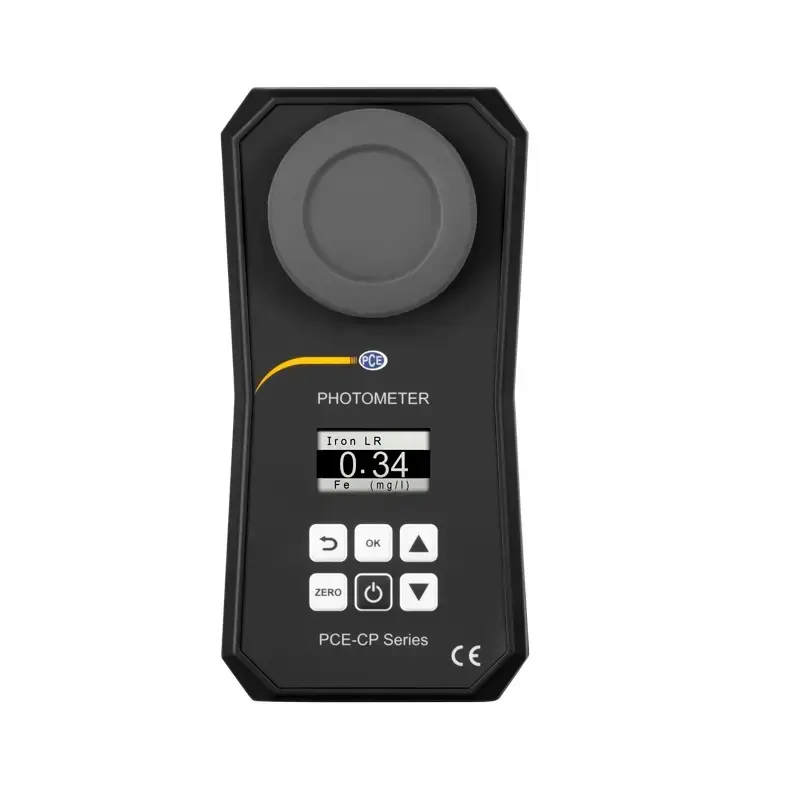

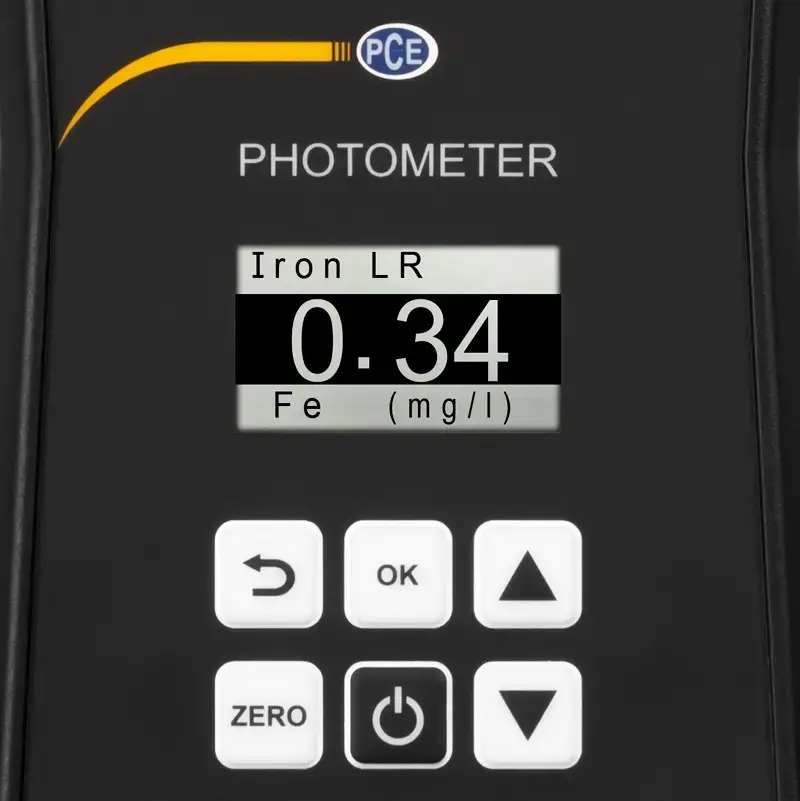

Photometer PCE-CP 11

Order no.: PCE-CP 11
Wireless
US$ 495.00
4250348727404
PCE-CP 11
ex. VAT, ex. delivery costs
measurement in liquids
Available in: 1-2 days
Multi-parameter photometer with Bluetooth interface / PC software / Cloud service / Cross-system synchronization of measured values ​​/ Up to 7 selectable parameters / For measuring e.g. pH, alkalinity, chlorine, cyanuric acid / Storage of measured values

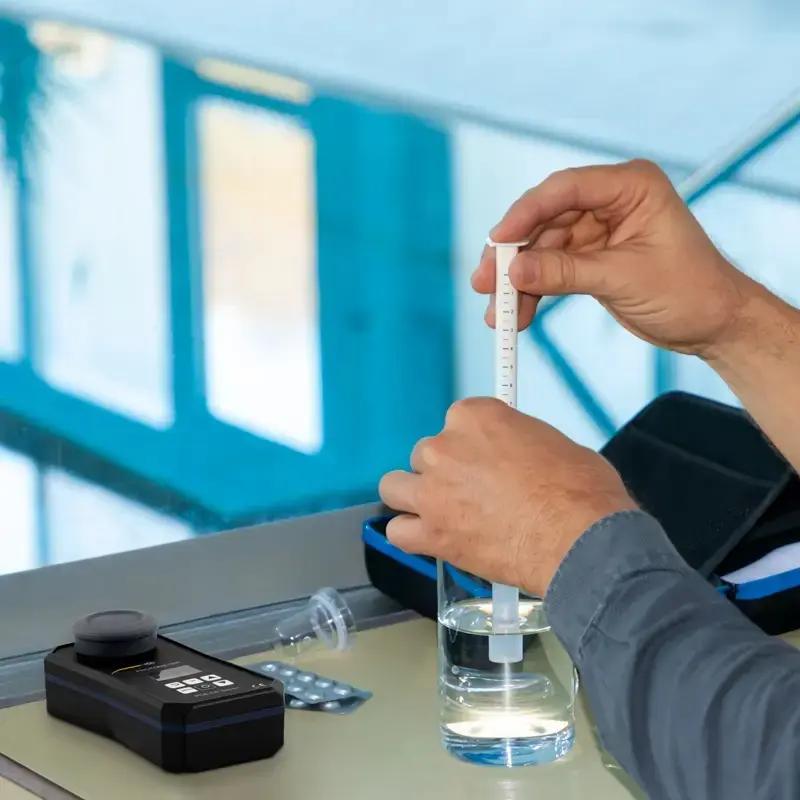

The multi-parameter photometer is a mobile measuring device for liquid analysis. This enables the most varied of measurements to be carried out with the multi-parameter photometer. With this multi-parameter photometer, for example, it is possible to determine alkalinity, chlorine, cyanuric acid or the pH value. In order to carry out a measurement with the multi-parameter photometer, a water sample of 10 ml must be placed in a cuvette. The built-in LED in the multi-parameter photometer generates a test light in the wavelength ranges of 503 nm, 570 nm and 620 nm. A photodiode now recognizes the value to be measured based on the light transmission of the sample.

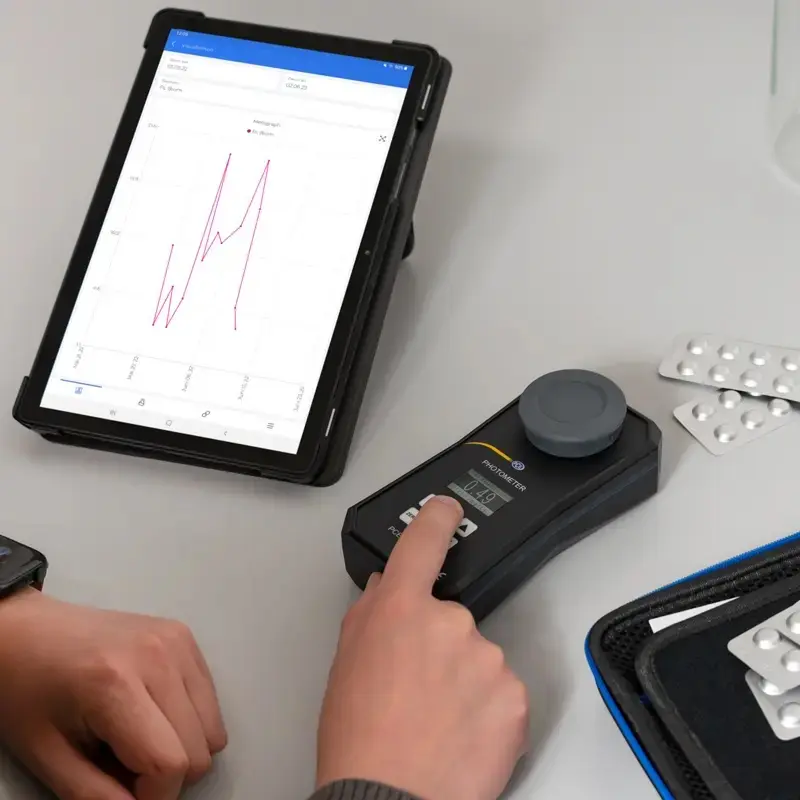

Each measurement is automatically saved by the multi-parameter photometer. The stored measured values ​​can then be read out, for example, via a mobile device via the Bluetooth interface built into the multi-parameter photometer. A free app is available to analyze the measured values ​​from the multi-parameter photometer. It is also possible to establish a Bluetooth connection between the multi-parameter photometer and a computer. Free software is also available for this, with which the measurement data can be analyzed. As another special feature of the multi-parameter photometer, the measurement data can be uploaded to a cloud using both variants and accessed from anywhere. This service for the multi-parameter photometer is also free of charge.

- Up to 7 selectable parameters
- Bluetooth connection with app
- Exchangeable and lockable cuvette
- 503 nm / 570 nm / 620 nm LED
- Automatic shutdown when inactive
- Many different menu languages
- Light detector: photodiode
- Cuvette: 36 x ø 21 mm / 3.6 x ø 2.1 cm (10 ml)
Chlorine
Measuring range   0.00 … 2.00 mg/l
    2.00 … 3.00 mg/l
    3.00 … 4.00 mg/l
    4.00 … 8.00 mg/l

Accuracy   0.10 mg/l
    0.23 mg/l
    0.75 mg/l
    1.00 mg/l

Resolution   0.01 mg/l

pH
Measuring range 6.50 ... 8.40 pH
Accuracy 0.11 pH
Resolution 0.01 pH

Iron
Measuring range     0.00 … 0.20 mg/l
      0.20 … 0.60 mg/l
      0.60 … 1.00 mg/l

Accuracy     0.02 mg/l
      0.04 mg/l
      0.08 mg/l

Resolution     0.01 mg/l

Total hardness
Measuring range     0… 30 mg/l
    30… 60 mg/l
    60… 100 mg/l
  100… 200 mg/l
  200 ... 300 mg/l
  300 ... 500 mg/l

Accuracy   3 mg/l
    5 mg/l
  10 mg/l
  17 mg/l
  22 mg/l
  58 mg/l

Resolution   1 mg/l

Further specification


Units
 mg/l, ppm
Hardness units
 mg/l CaCO3, ppm, mmol/l KS 4.3,

°dH (degree of German hardness),

°e (degree English hardness / Degree Clark),

°f (degree of French hardness)
Calibration Zero point calibration
Light source
 503 nm / 570 nm / 620 nm LED
Light detector Photodiode
Power supply
 4 x 1.5V AA batteries
Dimensions of the cuvette   36 x ø 21 mm / 3.6 x ø 2.1 cm (10 ml)
Menu languages English, German, French, Spanish and Italian
Storage Automatic storage of measured values ​​and readout
Storage space 256 values
Interface Bluetooth connection with app and PC software
Automatic shutdown After 300 seconds of inactivity
Operating conditions 5… 45 °C, 20 ... 90% RH non-condensing
Storage conditions 5… 45 °C, 20 ... 90% RH non-condensing
Dimensions 165 x 95 x 50 mm / 6.5 x 3.7 x 2 in
Weight 230 g / 8.1 oz

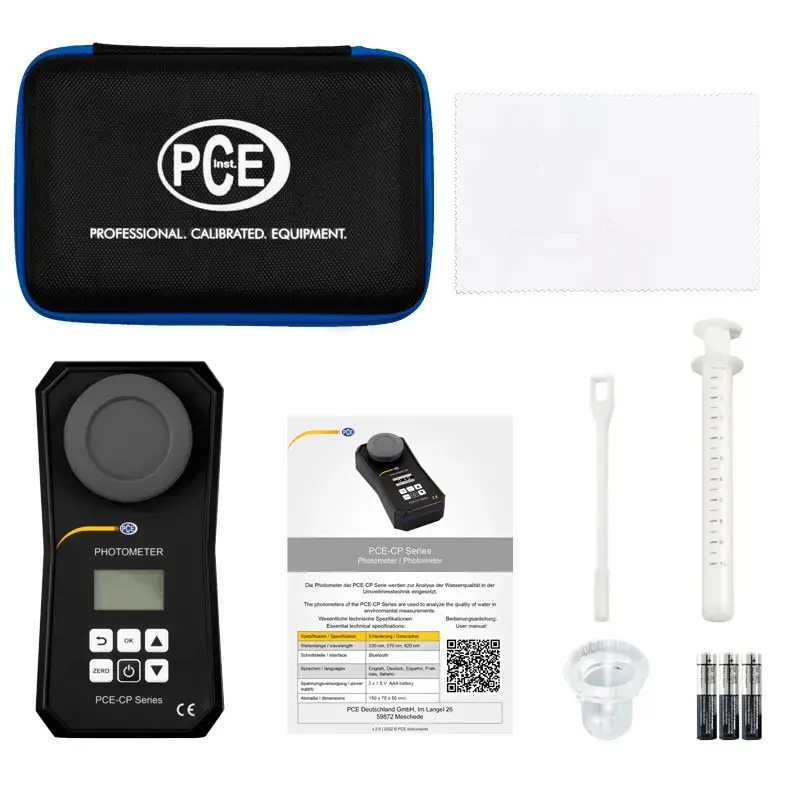

1 x Multi-parameter photometer PCE-CP 11 incl. Cuvette
1 x Replacement cuvette
1 x Light protection cover
1 x Microfiber cloth
1 x Plunger
1 x 10 ml dosing pipette
4 x AA batteries
1 x Quick start guide
1 x Service bag
1 x Free app
1 x Free PC software
1 x Free cloud service
