Particle Counter PCE-RCM 01

Particle Counter PCE-RCM 01

Order no.: PCE-RCM 01
GTIN (EAN): 4250348738615
US$ 58.00
ex. VAT, ex. delivery costs
:
4250348738615
PCE-RCM 01
Available in:1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Description

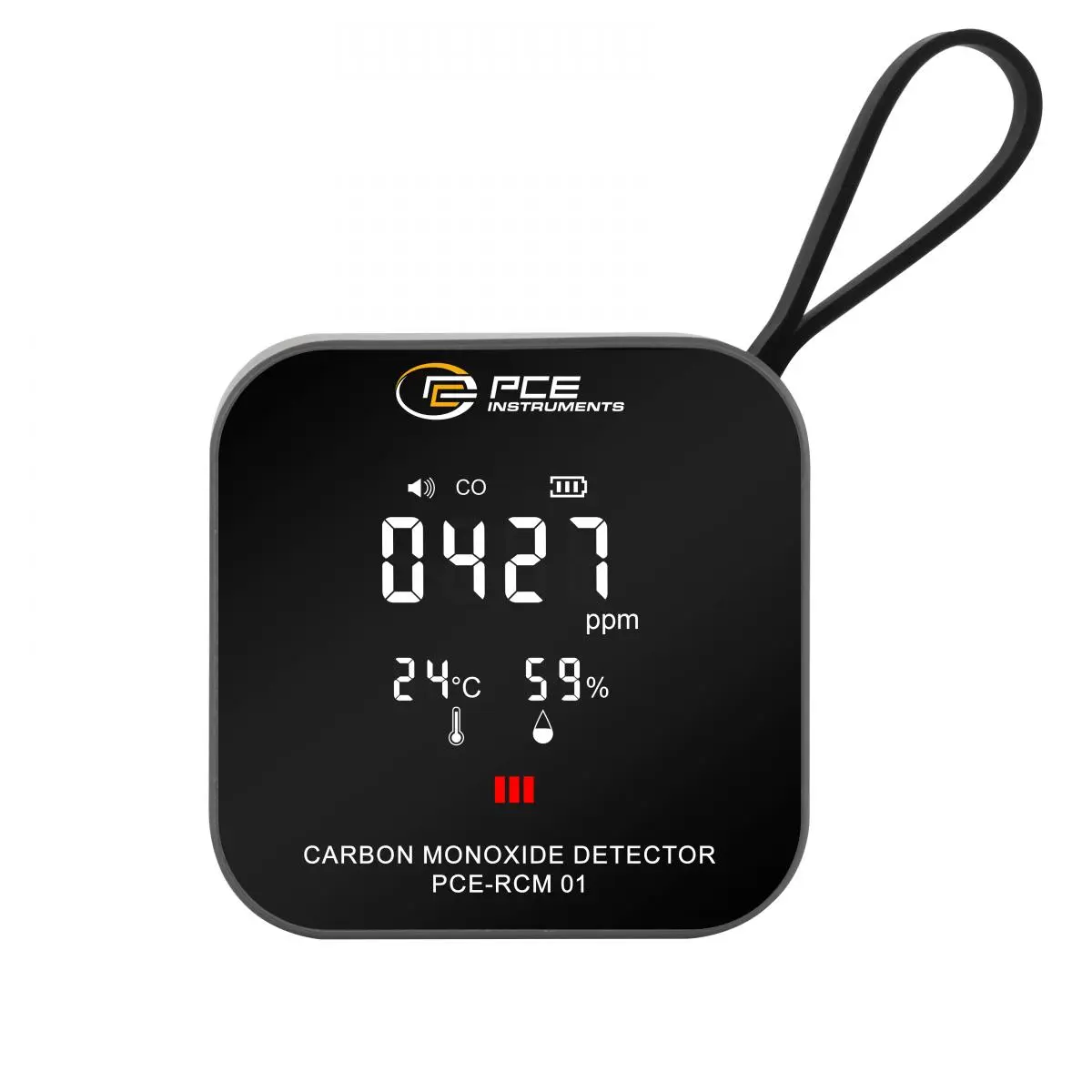

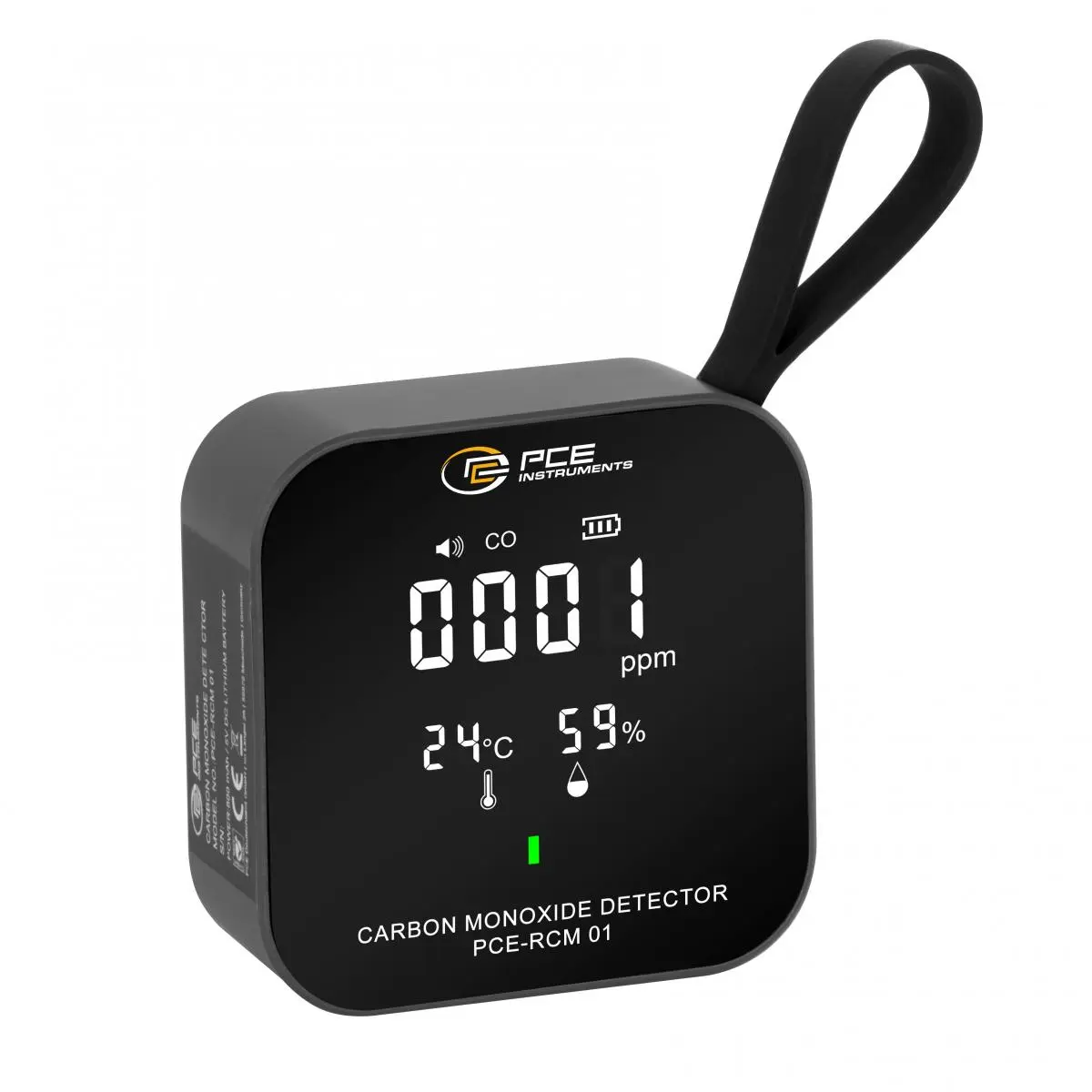

Particle Counter / Measures temperature and humidity / Visual and audible alarm / USB-C interface / Battery status indicator / Modern design and compact size

A Particle Counter is an important device for monitoring indoor air quality. It can be used in a variety of ways - whether in homes, offices, workshops, schools or public facilities. The detector reliably measures the CO content in the air and makes it possible to recognize critical concentrations at an early stage and act accordingly.

The Particle Counter detects CO values in the range from 0 ... 500 ppm with a fine resolution of 1 ppm. It also measures the relative humidity in the range from 20 ... 85% (also with 1% resolution) and the temperature from -10 ... 50°C / 14 ... 122°F. If required, the temperature display can also be switched to Fahrenheit. All measured values are shown on a 2 inch LCD display.

In the event of increased CO values, the detector emits both visual and acoustic warning signals. An integrated traffic light function clearly displays the air quality: Green stands for 0 ... 100 ppm, orange for 101 ... 200 ppm and red for 201 ... 500 ppm. If the value exceeds 100 ppm, an additional acoustic warning signal sounds to indicate a potential health hazard.

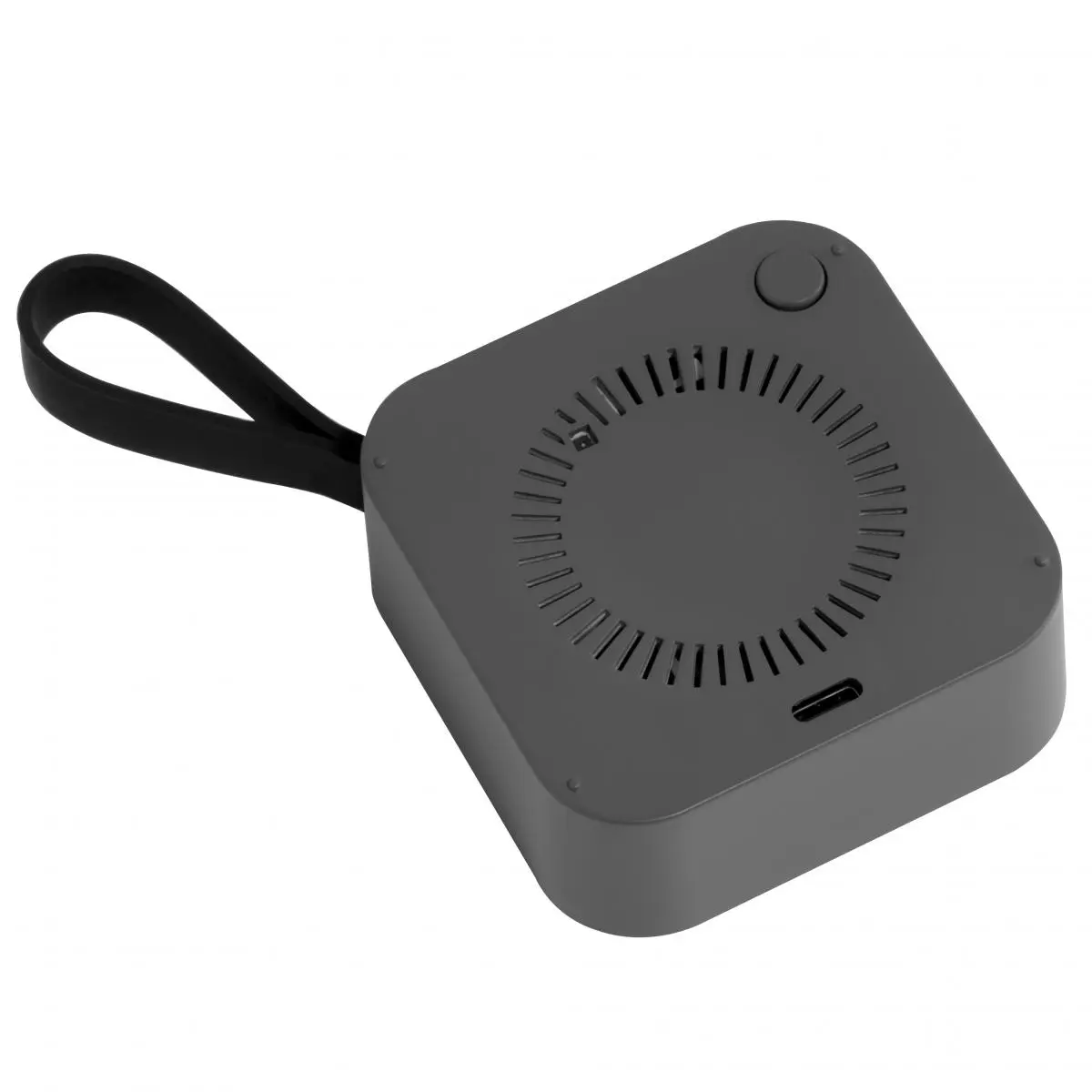

Equipped with an integrated rechargeable lithium battery that can be conveniently charged via USB-C, the detector is particularly flexible to use. An integrated rubber strap makes it easy to transport and allows the device to be carried or hung up conveniently. With its compact dimensions of 70 x 70 x 28 mm / 2.8 x 2.8 x 1.1 in, modern design and easy handling, it is a practical helper in everyday life.

The Particle Counter is suitable for both private and professional use - for example in schools, care facilities, offices or industrial environments - wherever safe indoor air quality is crucial.


Highlights

- Measurement of CO, temperature, humidity

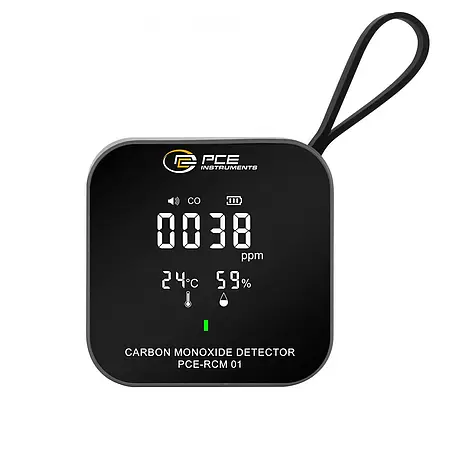

- 2 inch LCD display
- Visual and audible alarm
- Rechargeable battery via USB-C
- Practical carrying strap

Specification

Relative humidity
Measurement range up to  20 ... 85 %
Resolution  1 %
Accuracy  ±4%

CO
Measurement range up to  0 ... 500 ppm
Resolution  1 ppm
Accuracy  ±10% v.Mw.

Temperature
Measurement range up to  -10 ... +50 °C
Resolution  1 °C
Accuracy  ±1 °C

Temperature
Measurement range up to  14 ... 122 °F
Resolution  1,8 °F
Accuracy  ±1.8 °F

General technical data
Display type  LCD
Display size  2 Inch
Measuring rate  1,5 s
Interface  USB-C
Operating time  24 h
Alarm  optical, Acoustic
Menu language  English, English (GB)
Protection class (device)  IP20
Power supply  5 V DC
(Rechargeable) battery  1 x 3,7 V internal , Lithium-ion battery
Capacity  800 mAh
Operating conditions  -10 ... 50 °C , 20 ... 85 % RH
Storage conditions  -10 ... 60 °C , 20 ... 85 % RH
Dimensions ( L x W x H )  70 x 70 x 28 mm
Weight  57,5 g

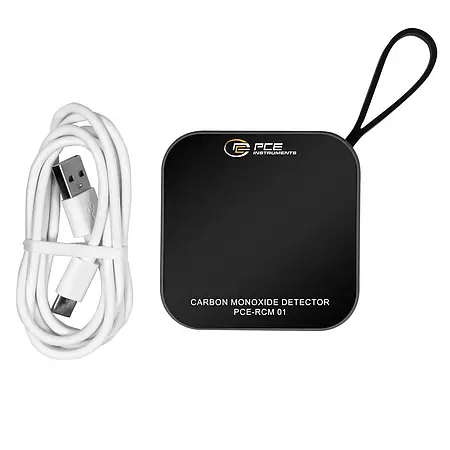

Delivery Scope

1 x Particle Counter PCE-RCM 01
1 x USB-C charging cable
1 x Operating instructions
