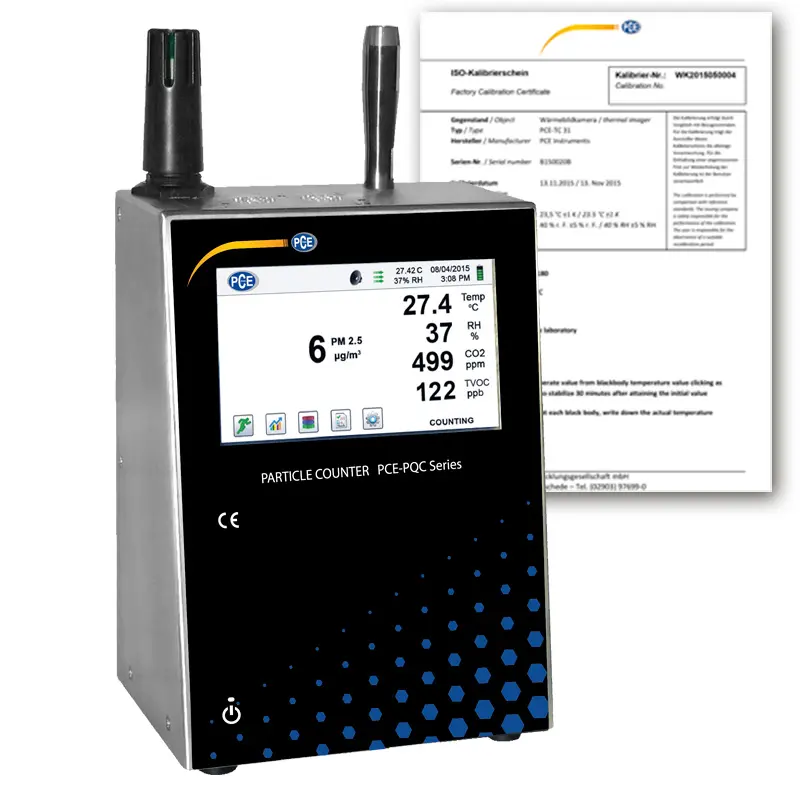

Particle Counter PCE-PQC 22US Incl. Calibration Certificate

Order no.: PCE-PQC 22US
ISO Calibration
US$ 5,595.00
ex. VAT, ex. delivery costs
Available in: 1-2 days
Air quality monitor PCE-PQC 2xUS series incl. calibration certificate
Incl. CO2 sensor / Large measuring range / PID sensor / 6 measuring channels / Factory calibrated / 2 models available

The air quality monitor of the PCE-PQC 2xUS series measures particle sizes from 0.3 μm to 25 μm with mass concentration and additionally stores the parameters temperature, relative humidity, CO2 and TVOC (PCE-PQC 23US only). This meter is the most versatile air quality monitor available with advanced power management and the industry's first sleep mode, enabling battery operation for periods that can exceed one month with a single charge. The PCE-PQC 2xUS series can be used as a stand-alone, battery-powered instrument or simply integrated into a building automation and plant monitoring system via Ethernet, USB.

The air quality monitor PCE-PQC 2xUS series can measure not only the measurement of particle sizes and mass concentrations but also the carbon dioxide content in the air. Furthermore, the air temperature and the relative humidity are measured. The air quality monitor PCE-PQC 23US also has a photoionization detector (PID), which can be used for the measurement of volatile hydrocarbons (VOC's).

- CO2 Sensor
- Temperature and humidity measurement
- Ethernet
- Wifi (optional)
Incl. calibration certificate traceable to NIST ISO 21501-4 and JIS B9921
Measuring range 0.3 ... 25 μm
Measuring channel sizes Factory calibrated at 0.3, 0.5, 1.0, 3.0, 5.0, 10.0 μm
Counting efficiency 50% at 0.3 μm, 100% at > 0.45 μm according to JIS
Particle mass display PM0.5, PM1.0, PM2.5, PM5.0, PM10 and TPM
Flow 2.83 l / min (0.1 ft3 / min)
Random loss 5% at 4,000,000 particles / ft³
Battery 10 h
Light source Long-life laser diode
Zero count <1 count / 5 min (<2 particles / ft3) according to ISO 21501-4 and JIS
Counting modes Automatic, manual, real-time, cumulative /
  differential, mass concentration
Alarms 1 ... 9999999 counts, adjustable
Calibration Traceable to NIST
Display 4.3" WQVGA color touch display, 480x272 px
Printer External thermal printer
Aspiration Internal pump with automatic
  flow control
Air outlet Internal HEPA filter
Battery pack Replaceable Li-Ion battery
Charging time About 4 hours
Reports ISO 14644-1
  EU GMP Annex 1
  FS 209E
Configuration Memory for 50 custom configurations
Standards ISO 21501-4 and JIS B9921
Dimensions 13.3 x 10.5 x 21 cm
Weight 1.8 kg
Storage 45000 data sets (ring memory) consisting of
  Particle counting, temp. and humidity, CO2, (PID),
Sample locations Places and times up to 1000 places can be deposited
Samples duration 1 s ... 99 h adjustable
Power supply 110 ... 240V AC 50/60 Hz
Operating conditions 5 ... 40°C / 41 ... 104°F
  Up to 95% RH not condensing
Storage conditions 0 ... 50°C / 32 ... 122°F
  Up to 98% RH not condensing
CO2 sensor
Measuring range 0 ... 5000 ppm
Resolution 1 ppm
Accuracy ± 1% of measuring range

Temp. / Humidity sensor intern   0 ... 50°C (32 ... 122°F), 15 ... 90% rh
Resolution 0.5°C / ± 0.9°F
Accuracy ± 0.5°C / ± 0.9°F,  ± 2% RH
Interface Ethernet, USB
Optional interfaces Wifi 802.11 b / g, RS485 or RS232
Number of measuring channels        6

1 x Particle counter PCE-PQC 22US
1 x Isokinetic probe
1 x Temperature and humidity sensor
1 x Cleaning filter
1 x Li-Ion rechargeable battery
1 x Software for data download
1 x USB cable
1 x Power supply / battery charger
1 x User manual
1 x Calibration certificate according to NIST
