Order no.: PCE-PQC 13US

Particle Counter PCE-PQC 13US Incl. Calibration Certificate

US$ 2,895.00
PCE-PQC 13US
ex. VAT, ex. delivery costs
Available in: 1-2 days

Description

Particle counter PCE-PQC 1xUS series incl. calibration certificate
Measurement of particle sizes up to 25 μm / Up to 3 parallel measuring channels / 45,000 record internal memory / Reporting according to ISO 14644-1, EU GMP Annex I, FS 209E / Extrapolation of the mass concentration in μg / m³ / Ethernet, USB or (optional) Wifi connection



The particle counters of the PCE-PQC 1xUS series measure the concentration of particles such as dust, soot, pollens, and many other aerosols in the air. These particle counters were developed to accurately determine the degree of pollution of the air. Pollution is mainly generated by combustion, material processing, manufacturing, power generation, vehicle engine emissions and the construction industry and may be invisible to the eye.



The PCE-PQC 1xUS series particle counters allows the user to measure the exact amount of dirt particles in the air. Secondarily important is the degree of air pollution with pathogenic particles such as soot, which are released by heavy industry and especially by diesel vehicles without special filtering of the air. These dispersion particles are responsible for many respiratory issues, shortness of breath, bronchitis, asthma, stroke, heart attack and thus reduced labor productivity. The particle counters of the PCE-PQC 1xUS series operate in different modes (real-time, cumulative, differential, and mass concentration) and display the results on the display with the ability to graph trends and save data remotely

Highlights

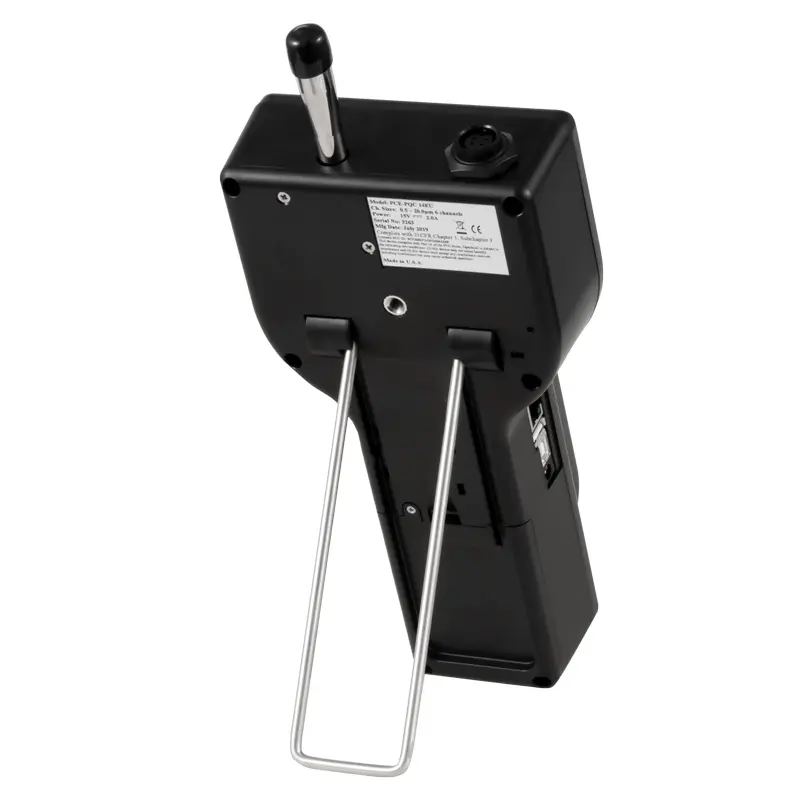

- Handheld, portable, light weight with kick stand
- Battery life >10 hours with continuous operation / Battery life >8 days in sleep mode

- Internal memory up to 45,000 records
- Particle sizes up to 25 μm

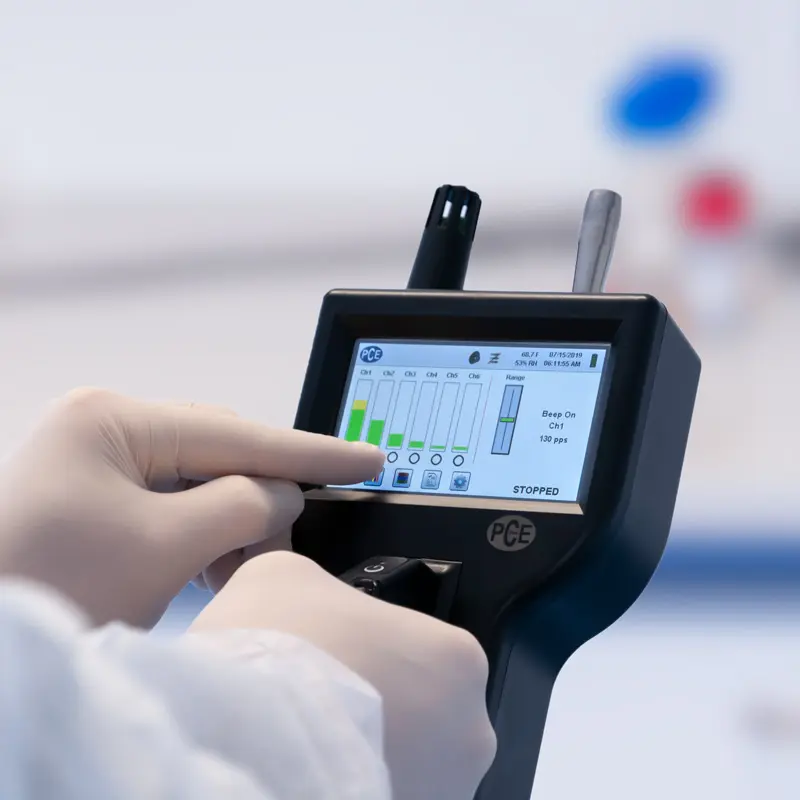

- Color display with touch screen
- 3 measuring channels, upper 2 channels can be adjusted
- ISO 14644-1, EU GMP Annex I, FS 209E

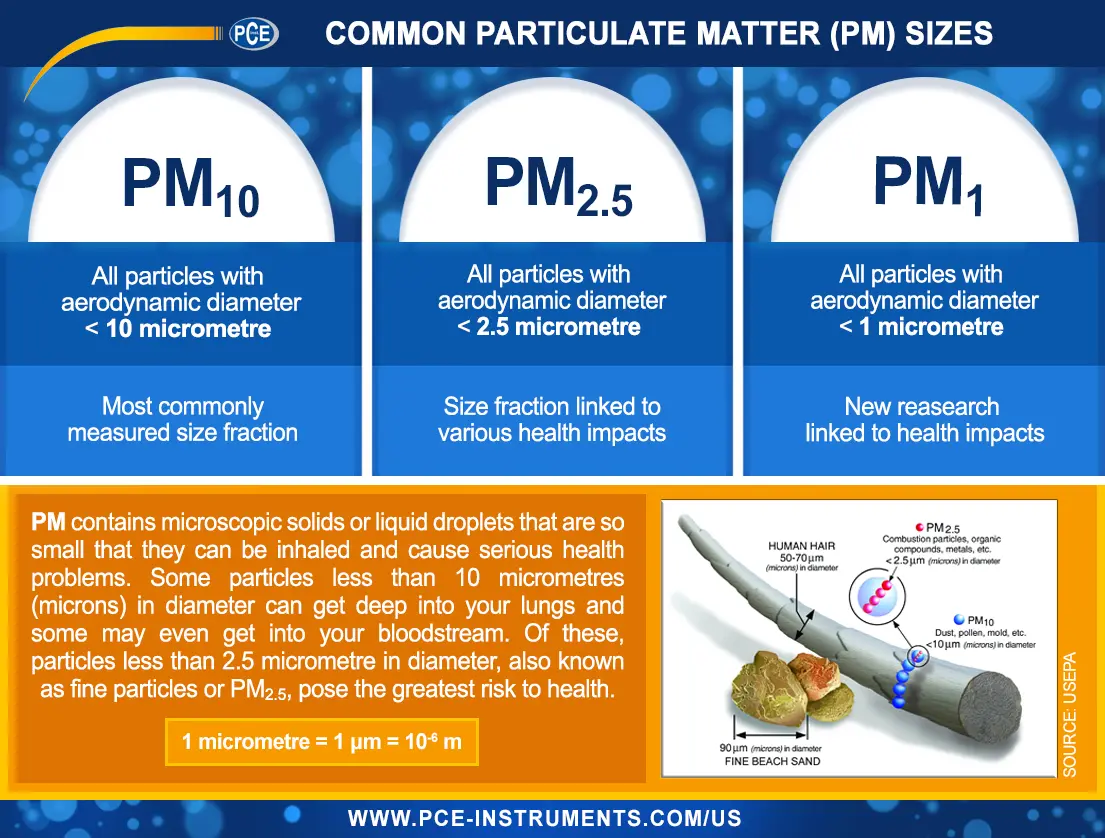

- Mass concentration mode (adjustable: PM 2.5 and PM 10 e.g.)

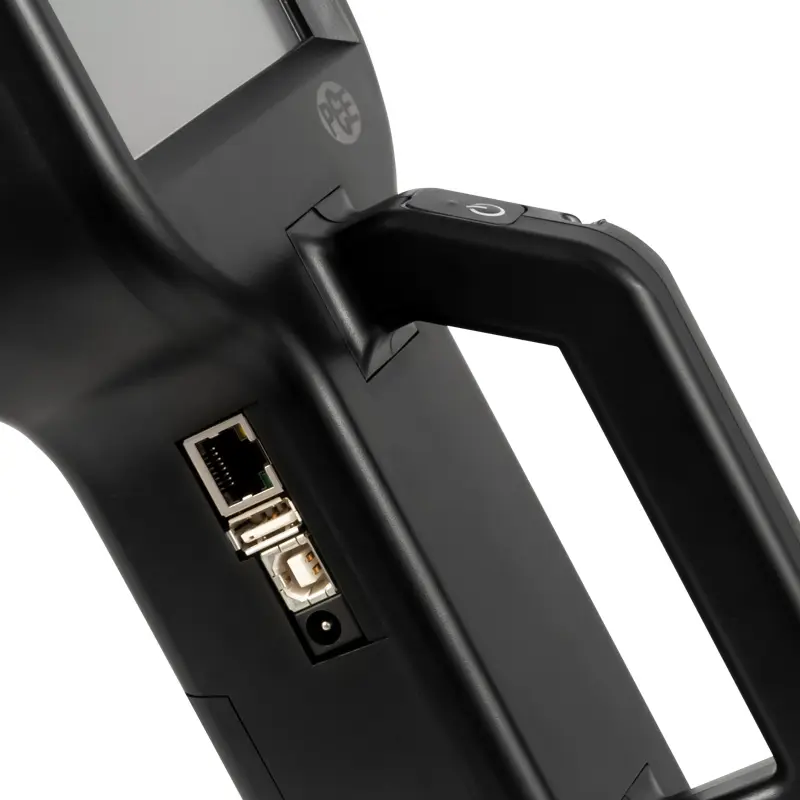

- Ethernet, USB, PC software included, and WiFi Optional

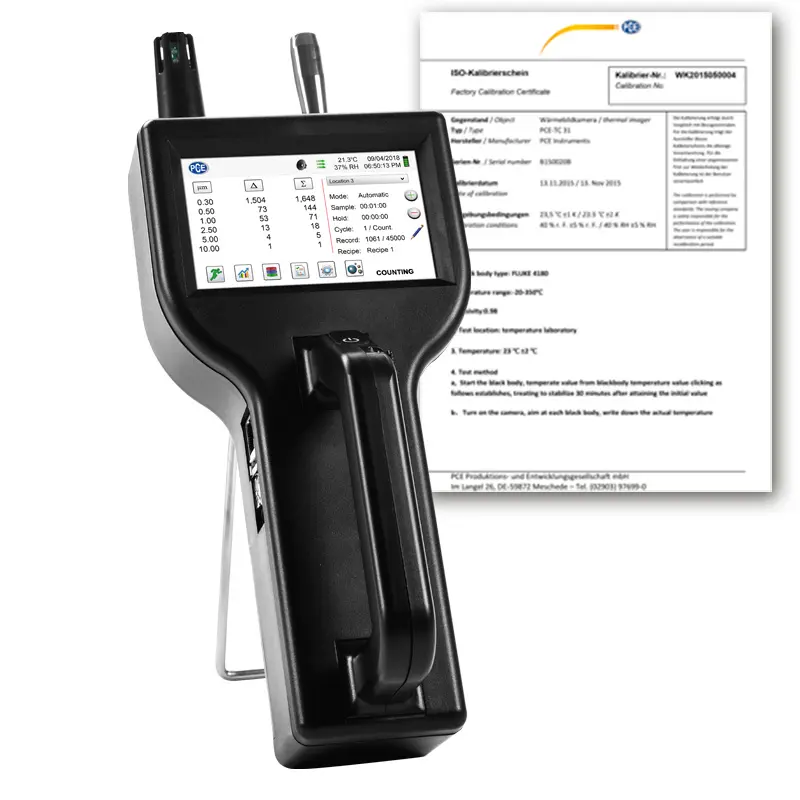

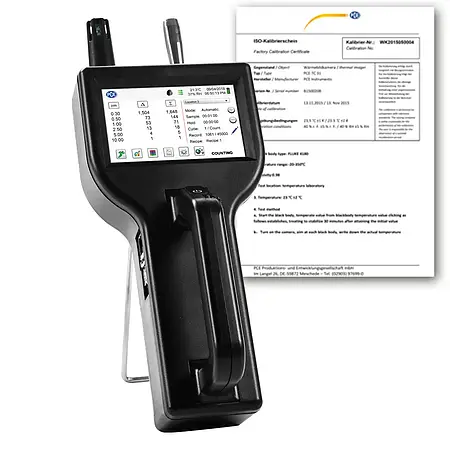

Incl. calibration certificate traceable to NIST ISO 21501-4




Specification

Measuring range 0.5 ... 25 μm
Measuring channel sizes Factory calibrated at 0.5, 1.0, 5.0 μm
Counting efficiency 50% at 0.3 μm 100% at > 0.45 μm according to JIS

Flow 2.83 l / min (0.1 ft3 / min)
Random loss 5% at 4,000,000 particles / ft³
Battery 10 h
Light source Long-life laser diode
Zero count < 1 count / 5 min (< 2 particles / ft³)
  According to ISO 21501-4 and JIS
Counting modes Automatic, manual, real-time, cumulative /
  Differential, mass concentration
Alarms 1 ... 9999999 counts, adjustable
Calibration Traceable to NIST
Display 4.3 "WQVGA color touch display, 480x272 px
Printer External thermal printer
Aspiration Internal pump with automatic
  Flow control
Air outlet Internal HEPA filter
Battery pack Replaceable Li-Ion battery
Charging time About 4 hours
Reports ISO 14644-1
  EU GMP Annex 1
  FS 209E
Configuration Memory for 50 custom configurations
Standards ISO 21501-4 and JIS B9921
Dimensions 25.4 x 12.9 x 11.4 cm
Weight 1.0 kg
Storage 45000 data sets (ring memory) consisting of
  Particle count, temp and humidity, locations and times
Sample locations Up to 1000 locations can be stored
Samples duration 1 s ... 99 h adjustable
Power supply 110 ... 240V AC 50/60 Hz
Operating conditions 5 ... 40°C / 41 ... 104°F
  Up to 95% RH not condensing
Storage conditions 0 ... 50°C / 32 ... 122°F
  Up to 98% RH not condensing

Interface USB
Optional interfaces Ethernet, WiFi 802.11 b / g, RS485 or RS232
Number of measuring channels           3

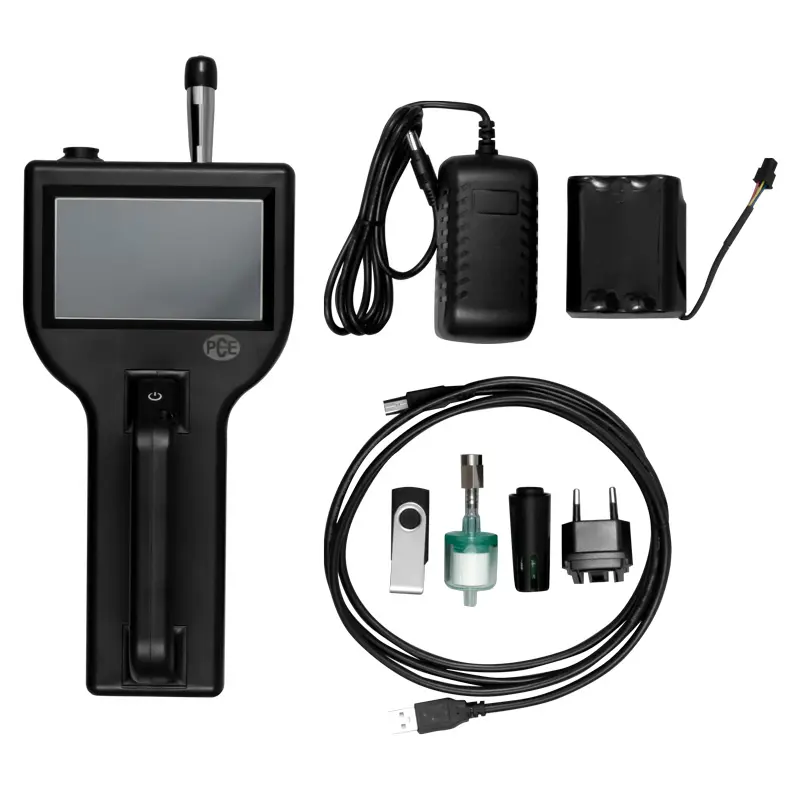

Delivery Scope

1 x Particle counter PCE-PQC 13US
1 x Isokinetic probe
1 x Cleaning filter
1 x Li-Ion rechargeable battery
1 x Software for data download
1 x USB cable
1 x Power supply / battery charger
1 x User manual
1 x Calibration certificate according to NIST
