Order no.: PCE-CPC 100

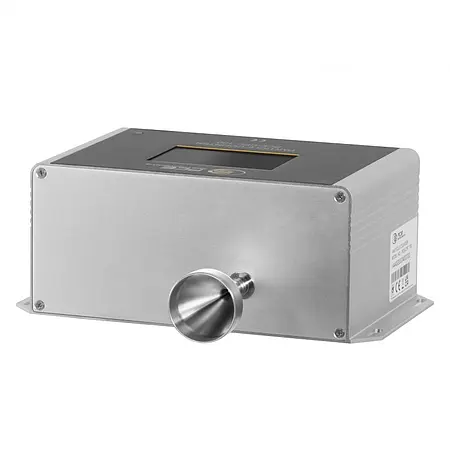

Particle Counter PCE-CPC 100

Topseller
US$ 6,146.00
:
4250348733726
PCE-CPC 100
ex. VAT, ex. delivery costs
Available in: 5-7 working days

Description

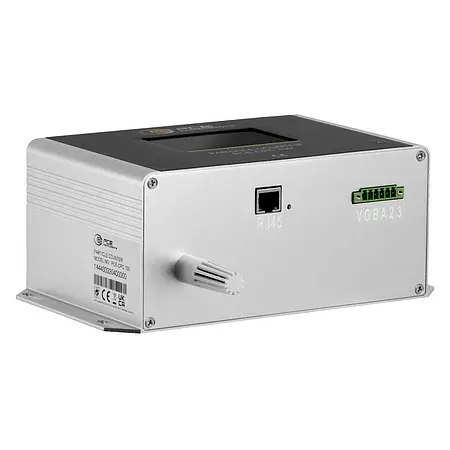

Particle Counter for fixed installation / external intake hose for sampling / touch display / Modbus and RJ45 interface / adjustable alarm

The state-of-the-art particle counter enables precise real-time measurement in the range from 0, 3 μm to 10 μm to provide a comprehensive picture of air quality. The results are presented in two units, either number per 28.3 litres or number per cubic metre. Air sampling is performed by an internal pump. When the particles pass the light source (laser), light scattering occurs; the scattered light is converted into an electrical signal (pulse) by a photoelectric transducer, and the larger the particles, the larger the pulse signal.

The particle counter offers not only a visual but also an audible alarm function. Threshold values can be set for each channel; as soon as the predefined threshold values are exceeded, the cleanroom particle counter issues a warning. The integration of Modbus and MQTT ensures seamless integration into existing networks and enables efficient data communication. The sampling time can be set from 1 to 10 min and the pause time from 1 to 1000 min.

With our real-time display of the cleanroom class according to ISO 14644-1, the particle counter always provides control over the cleanliness of the environment. This function makes it possible to continuously monitor the cleanliness level and ensure that the premises meet the required standards.


Highlights

- Real-time measurement from 0.3 μm ... 10 μm
- Output in particles/28.3L or particles/m³
- Visual and audible alarm when threshold value is exceeded
- Modbus RTU and MQTT via RS485
- Real-time display of cleanroom class ISO 14644-1
- Robust housing for wall mounting

Specification


Particle
Measuring range  0 particles/28.3 l ... 1000000 particles/28.3 litres
Measurement channel sizes  0.3, 0.5, 1.0, 5.0, 10
Counting efficiency  50 % @0.3 μm
100 % @≥0.5 μm (at 25±2 ℃, 50±10 % r.h.)
Flow rate  28.3 l/min

Temperature
Measuring range  -40 °C ... +125 °C
Resolution  0.1 °C
Accuracy  ±0.2 °C (within 5 ... 60 °C)

Moisture relative
Measurement range  0 % ... 100 %
Resolution  0.1 %
Accuracy  ±2 % v.Mw.

General technical data
Display type  Touch display
Display size  3.5 inch
Display refresh rate  1 x per second
Interface  RS485, Ethernet
Sensor  Laser scattered light
Response time  8 s
Menu language  English, Chinese
Protection class (device)  IP30
Power supply  24 VDC, 5 A
Plug type  Protective contact plug
Weight  1495 g
Depth  87 mm
Other dimensions  Tube: inner diameter: 10 mm / length: approx. 3 m
Operating conditions  0 ... 45 °C , 0 ... 95 % r.H
Storage conditions  -20 ... 60 °C , 0 ... 95 % r.H

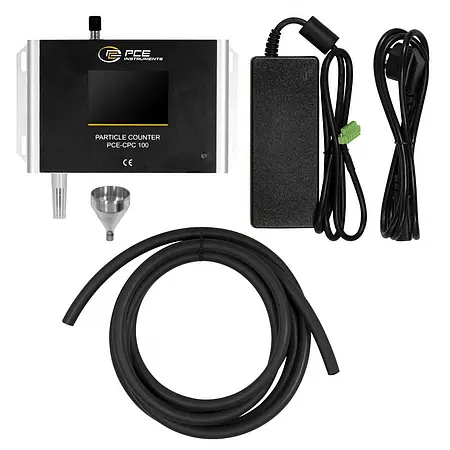

Delivery Scope

1 x particle counter PCE-CPC 100
1 x isokinetic probe
1 x hose approx. 3 m
1 x mains cable
1 x power supply unit 24 V / 5 A
1 x operating instructions
