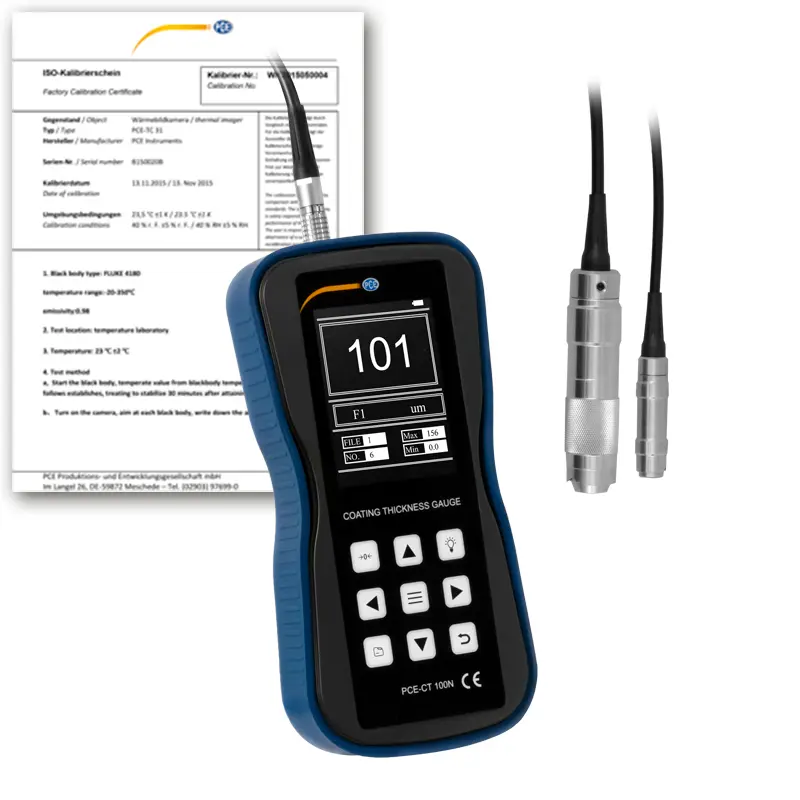

Paint Thickness Gauge PCE-CT 100N-ICA incl. ISO Calibration Certificate

Paint Thickness Gauge PCE-CT 100N-ICA incl. ISO Calibration Certificate [zoom]
Paint Thickness Gauge PCE-CT 100N-ICA incl. ISO Calibration Certificate

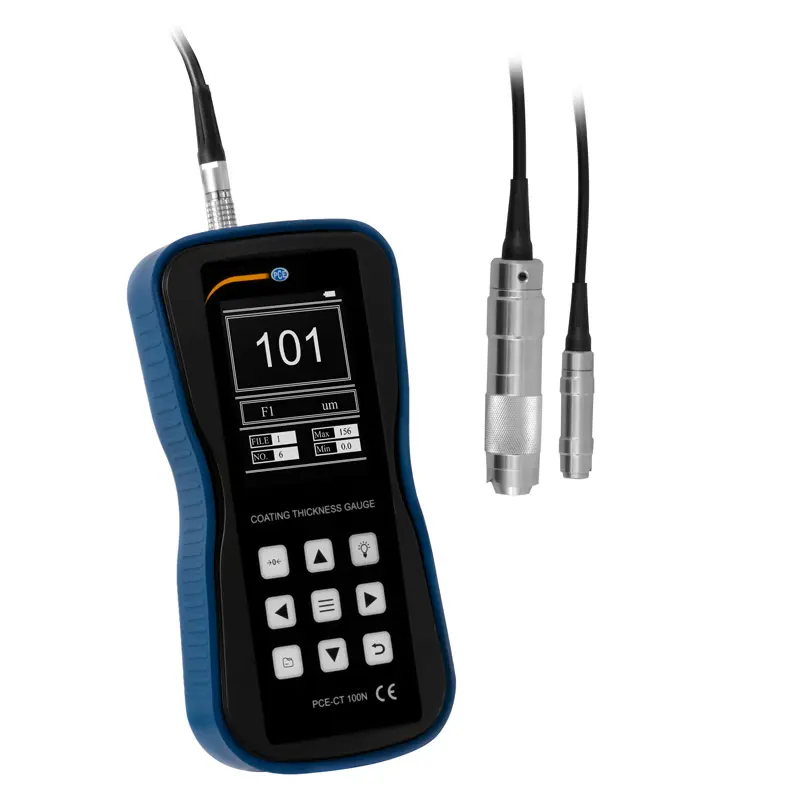

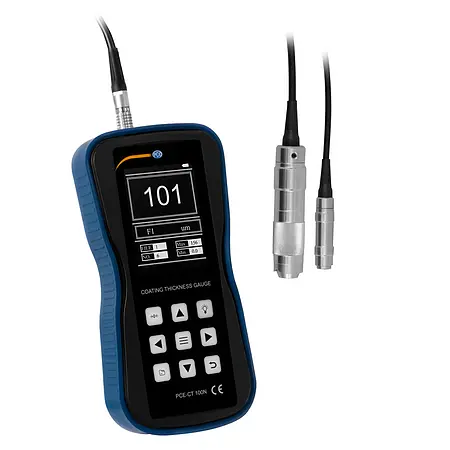

Paint Thickness Gauge PCE-CT 100N
Paint Thickness Gauge PCE-CT 100N display
Paint Thickness Gauge PCE-CT 100N connection
Paint Thickness Gauge PCE-CT 100N stand
Paint Thickness Gauge PCE-CT 100N sensor
Paint Thickness Gauge PCE-CT 100N sensor
Paint Thickness Gauge PCE-CT 100N application
Paint Thickness Gauge PCE-CT 100N application
Paint Thickness Gauge PCE-CT 100N delivery

Paint Thickness Gauge PCE-CT 100N-ICA incl. ISO Calibration Certificate

Order no.: PCE-CT 100N-ICA
GTIN (EAN): 4250348725318
US$ 2,203.00
ISO Calibration
ex. Sales Tax, ex. delivery costs
:
4250348725318
PCE-CT 100N-ICA
Available in:10 - 14 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Accessory

Description

Paint thickness gauge PCE-CT 100N-ICA incl. ISO Calibration Certificate
Surface tester for ferrous and non-ferrous metals / Very compact size / Non-destructive, precise measurements / Data transmission via USB and Wifi / Simple operation / Uncomplicated and reliable

The surface tester works according to the magnetic inductive (ISO 2178) and the eddy current method (ISO 2360). These methods supported by the surface tester are used for the non-destructive testing of materials. The surface tester is used to measure the thickness of magnetically neutral layers on a magnetic or non-magnetic base material.

The surface tester is ideal for reliable layer thickness measurements on site. With the external probe, the layer thickness can be measured quickly and easily, even in hard-to-reach places. The surface tester was developed for non-destructive, fast and precise layer thickness measurements and is easy to use. Measured data can be easily transferred to a PC using a USB data storage device or via WiFi.

The surface tester is used in particular in the finishing industry, electroplating, ship and bridge construction, aircraft construction and the machine and chemical industry.

Highlights

- Illuminated touch keyboard
- Measurement data storage for up to 1260 data
- One-point and multi-point calibration
- Single measurement and continuous measurement
- Data transfer via wifi and USB
- Two different probes for NFe and Fe
- incl. ISO Calibration Certificate

Specification

Measuring range0 ... 1250 µm; 0 ... 49.2 mil
Min. coating thickness of base material 50 µm
Smallest measuring surface (diameter) 10 mm
Min. radius of curvature convex 15 mm
Min. radius of curvature concave 15 mm
Accuracy ± (1% + 1 µm); ± (1% + 0.04 mil)
Resolution 0.1 µm (<99.9 µm); 0.004 mil (<3.9 mil)
 1 µm (> 100 µm); 0.04 mil (> 3.9 mil)
Calibration Single point, multiple point
Data storage 1260 data
Measuring modes Single measurements, continuous measurement
Interfaces Wifi , USB
Operating conditions 0 ... 50°C / 32 ... 122°F, 20 ... 90% RH non-condensing
Dimensions170 x 85 x 35 mm / 6.7 x 3.3 x 1.4 in
WeightApprox. 335 g / < 1 lb (with battery)


Delivery Scope

1 x Paint thickness gauge PCE-CT 100N
1 x NFe probe
1 x Fe probe
1 x USB data carrier
1 x Reference film set
1 x Calibration plate (ferrous)
1 x Calibration plate (non-ferrous)
2 x 1.5V AA batteries
1 x Instruction manual
1 x ISO Calibration Certificate
