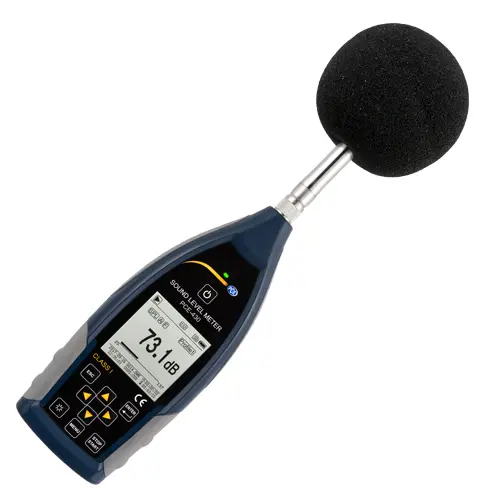

PCE-430 Class 1 Data-Logging Noise Meter / Sound Meter
Portable high-accuracy decibel meter with 1/1 octave band filter (optional 1/3 octave band filter upgrade)

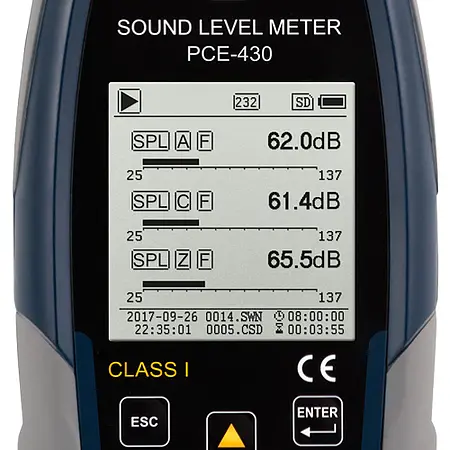

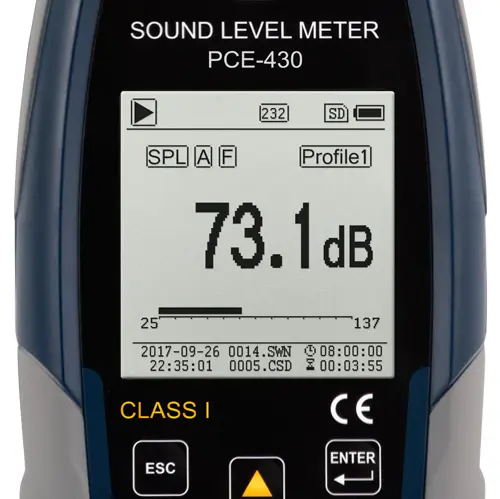

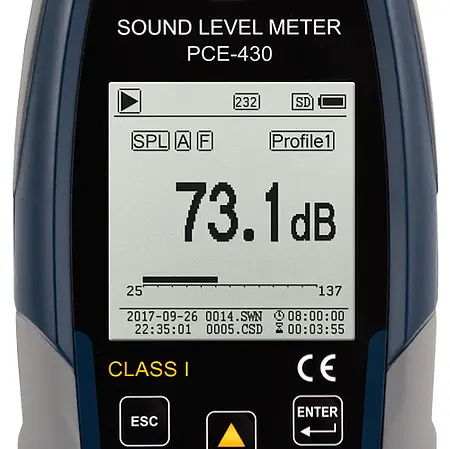

PCE-430 is a class 1 data-logging noise meter / sound meter that meets IEC 60651:1979, IEC 60804:2000, IEC 61672-1:2013, ANSI S1.4-1983 and ANSI S1.43-1997 requirements. This portable high-accuracy sound level meter has a large easy-to-read illuminated LCD screen that displays the sound pressure level (SPL) numerically and graphically in real time. Thanks to octave band filtering, even the slightest difference in frequency is detected.
The handheld meter also functions as a data logger, recording measurements at an adjustable interval from 1 s ... 24 h and storing the recorded measurement data to a micro SD card memory. The SD card can be removed from the meter and inserted into the SD card reader of a PC. Alternatively, the decibel meter can be connected directly to a PC via USB. The provided PC-compatible software allows for quick and easy data analysis.

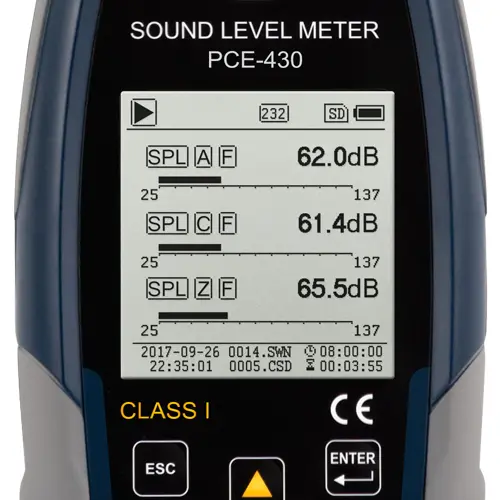

This device measures from 22 ... 136 db(A) at a frequency of 3 Hz ... 20 kHz. The meter features A, B, C and Z frequency weightings as well as fast, slow and impulse time weightings. The PCE-430 decibel meter is commonly used by professionals to ensure compliance with environmental noise regulations and workplace noise permissible exposure limits. It is also ideal for airport and air force base noise monitoring programs.
|
Measuring range |
22 ... 136 db(A) |
|
Accuracy |
Class 1 |
|
Frequency range |
3 Hz ... 20 kHz |
|
Standards |
GB/T 3785.1-2010 |
|
Frequency analysis |
1/1 Octave band filter: 8 Hz ... 16 kHz |
|
Microphone |
1/2" Microphone Class: 1 |
|
Data-logging interval |
1 s ... 24 h (adjustable) |
|
Measuring functions |

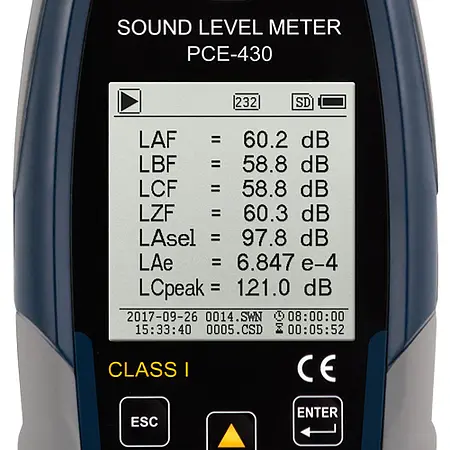

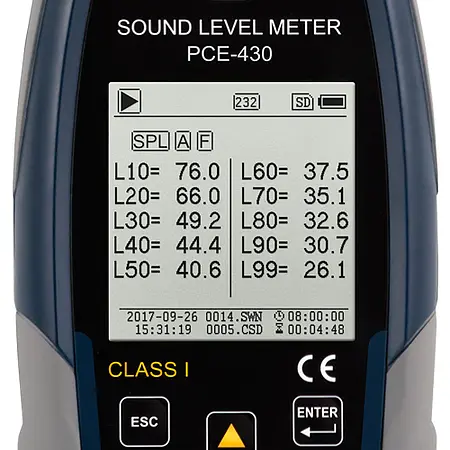

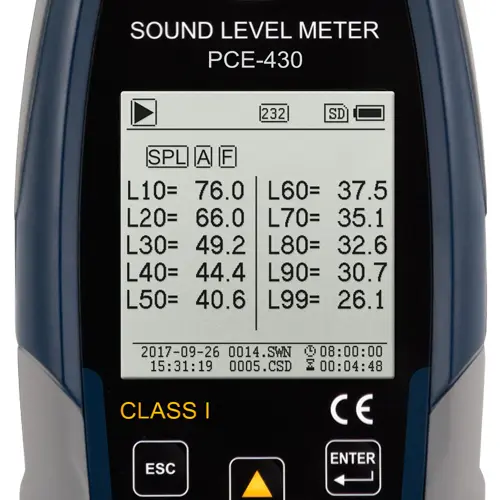

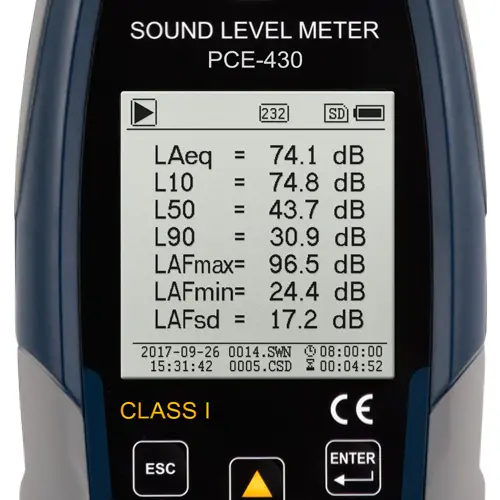

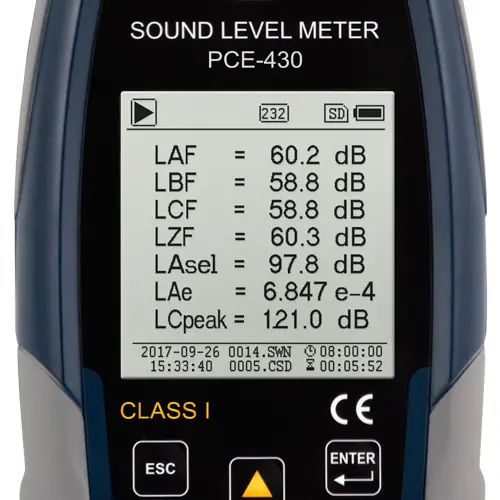

LXY (SPL), LXeq, LXYSD, LXSEL, LXE, LXYmax, LXYmin, LXPeak, LXN |
|
X = Frequency weighting: A, B, C, Z |
|
|
Frequency weightings |
A, B, C, Z |
|
Time weightings |
Fast (F) 125ms, Slow (S) 1 sec, Impulse (I) 35 ms |
|
Inherent noise |
Microphone: 19 db(A), 25 db(C), 31 db(Z) |
|
AD converter |
24 Bit |
|
AD Sample rate |
Standard: 48 kHz |
|
Measuring display |
Numerical |
|
Display |
160 x 160 pixel LCD with backlight |
|
Memory |
4 GB Micro SD card |
|
Interface |
USB (Memory readable via software or directly as mass storage) |
|
Voltage output |
AC 5V RMS |
|
Alarm |
Adjustable |
|
Power supply |
4 x 1.5 V AA Batteries |
|
Battery life |
Min. 10 h continuous use |
|
Dimensions |
70 x 300 x 36 mm / 2.76 x 11.81 x 1.42" (W x H x D) |
|
Weight |
Approx. 620 g / 1.4 lbs incl. batteries |
ex. VAT, ex. delivery costs
Kit for retrofitting outdoor capability (wind and rain protection) for PCE-428, PCE-430 and PCE-432.** Does NOT include microphone
ex. VAT, ex. delivery costs
The tripod is equipped with a 3/8" tripod thread and is suitable for many measuring devices. Ideal for precise and long-term measurements.
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
Mounting bracket for external microphone of the PCE-4xx series.
ex. VAT, ex. delivery costs
Outdoor microphone class 1 with wind and rain protection for PCE-428; PCE-430; PCE-432.
ex. VAT, ex. delivery costs
DIN rail holder for PCE-4xx series.
ex. VAT, ex. delivery costs
Power supply for PCE-428, PCE-430, PCE-432 / 12 V / 1 A
ex. VAT, ex. delivery costs
50 m / 164 ft microphone cable for PCE-4XX.
ex. VAT, ex. delivery costs
20 m / 66 ft microphone cable for PCE-4XX.
ex. VAT, ex. delivery costs
2 m / 6.6 ft microphone cable for PCE-4XX.
ex. VAT, ex. delivery costs
10 m / 32.8 ft microphone cable for PCE-4XX.
ex. VAT, ex. delivery costs
The additional kit for outdoor sound measurement PCE-4xx-EKIT can be combined with the sound level meters PCE-428, 430 or PCE-432. This useful kit makes it possible to measure the outdoor noise with a sound level meter over an extended period of time.
ex. VAT, ex. delivery costs
The additional kit for outdoor sound measurement PCE-4xx-EKIT can be combined with the sound level meters PCE-428, 430 or PCE-432. This kit makes it possible to measure the outdoor noise with a sound level meter over a long period of time.
ex. VAT, ex. delivery costs
Upgrade for the PCE-428, PCE-430 or PCE-432 sound level meter from octave band filter to 1/3 octave band filter. Normal 1/1 octave band displays 12 bands for the PCE-430 and 432. The 1/3 octave band displays 36 bands from 6.3 Hz to 20 kHz for the PCE-430/432 or 20 to 12.5 kHz for the PCE-428 and associated bar graphs. Thresholds can be set for each band.Upgrade to 1/3 octave band filterNote: New orders receive the unlock code for this feature in the meter delivery contents that is added to the device menu by the customer. For a add on order, please indicate the serial number of the sound level meter when ordering the 1/3 octave kit (enter using sound meter option field)
