NDT Tester Inspection Camera PCE-PIC 60

Order no.: PCE-PIC 60
GTIN (EAN): 4250348721631

US$ 16,623.00
ex. VAT, ex. delivery costs
:
4250348721631
PCE-PIC 60
Available in: 1-2 days

Description

NDT tester inspection camera PCE-PIC 60
Pipe camera with 60 m (196.9 ft) / IP68 camera head with PAN / TILT / Motor focus / Meter counting / Keyboard input possible / USB and HDMI / SD memory

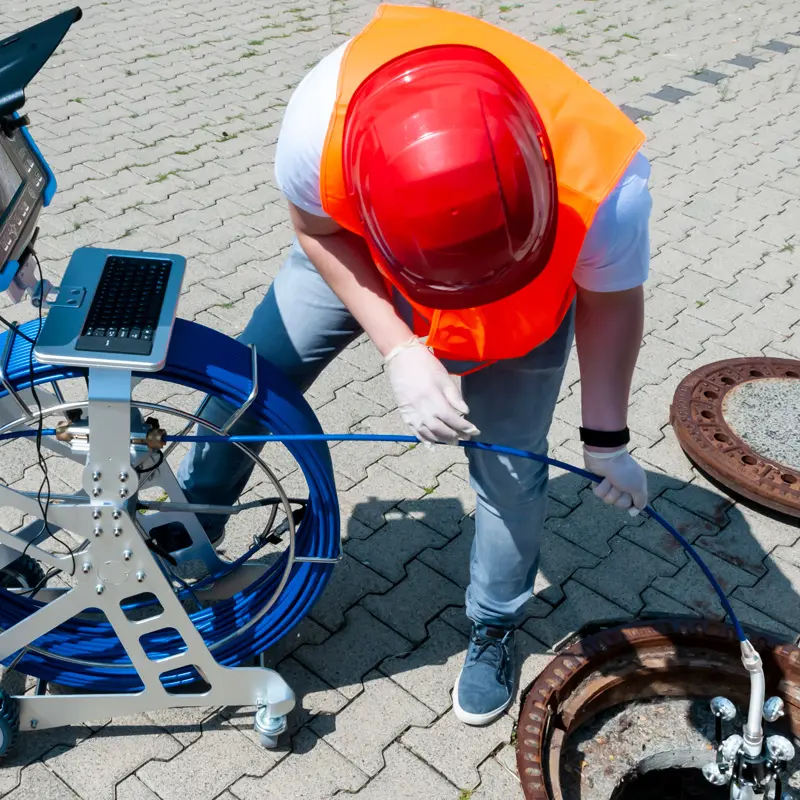

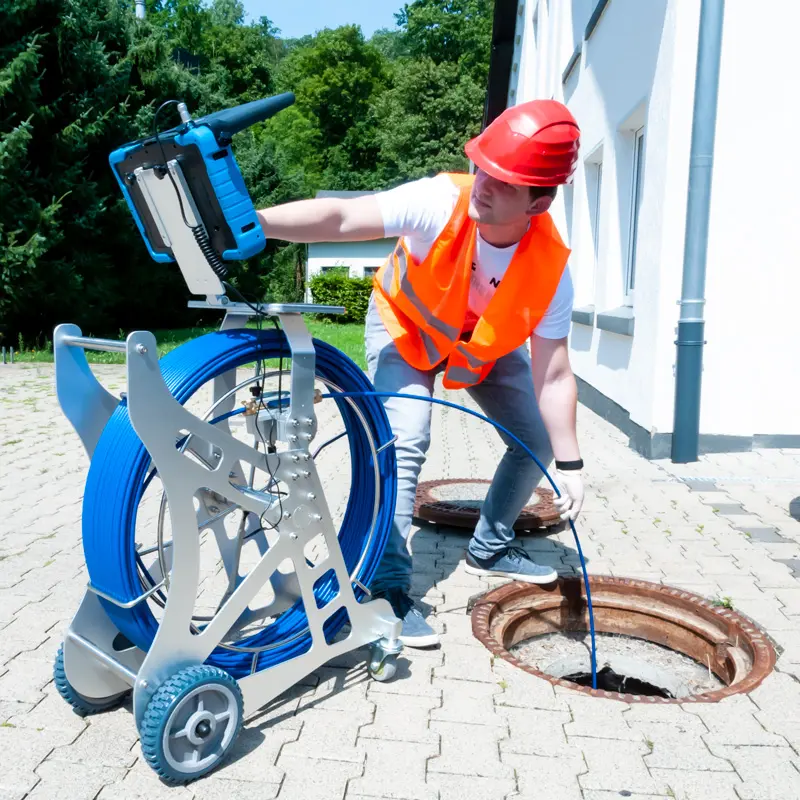

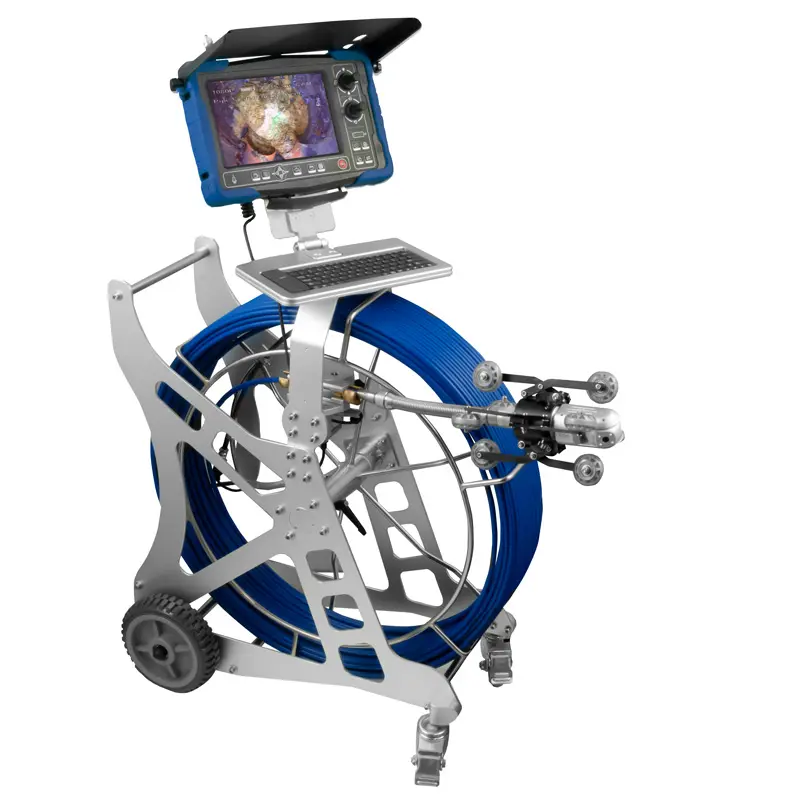

The pipe camera PCE-PIC 60/120 is used to inspect channels and pipes. Depending on the model, the pipe camera has a 60 m / 196.9 ft or 120 m / 393.7 ft fiber optic push cable. At the end of the pipe camera, a motorized camera head is mounted. This camera head is able to be moved 360° horizontally and 180° vertically. Furthermore, the camera has a motorized focus, which makes it possible to realize field of view depths between 20 and 100 cm. At the head of the pipe camera are 4 ultra-bright LEDs, which perfectly illuminate tubes and channels. The pipe camera has an electronic meter counter, which makes it easier to pinpoint damaged areas or blockages in pipes.

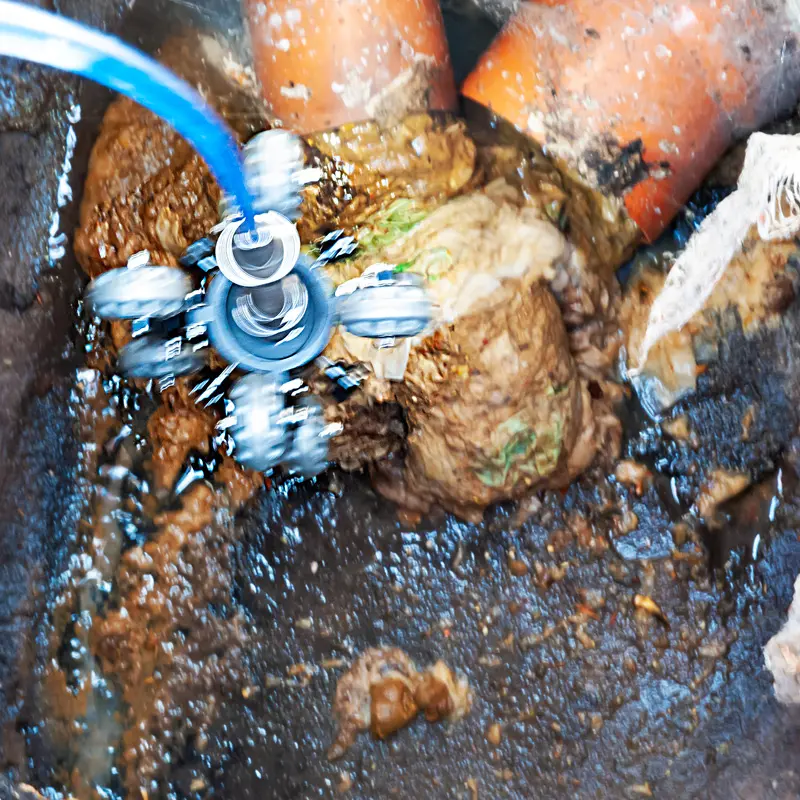

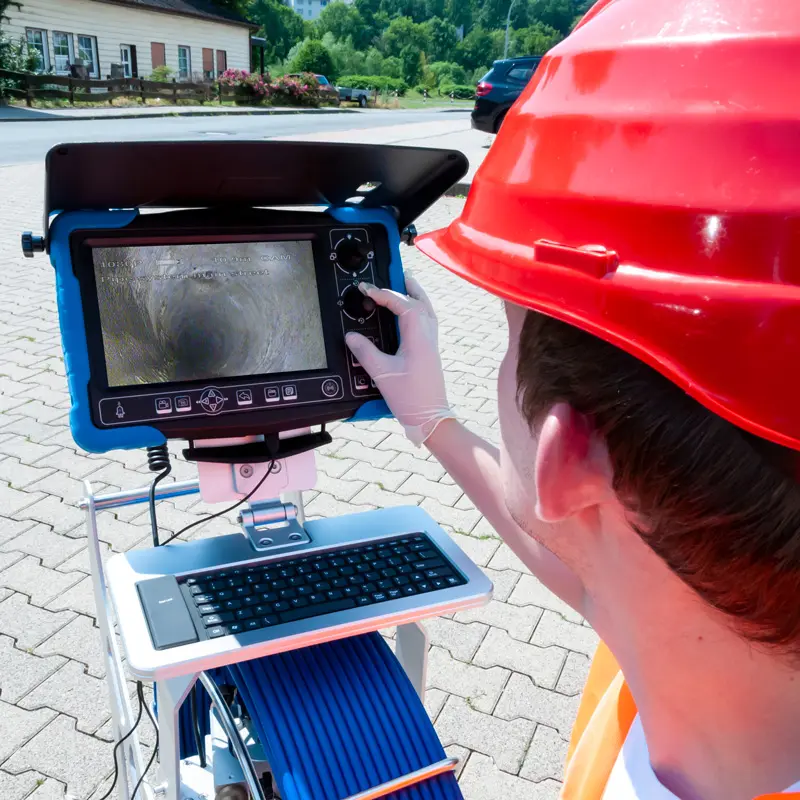

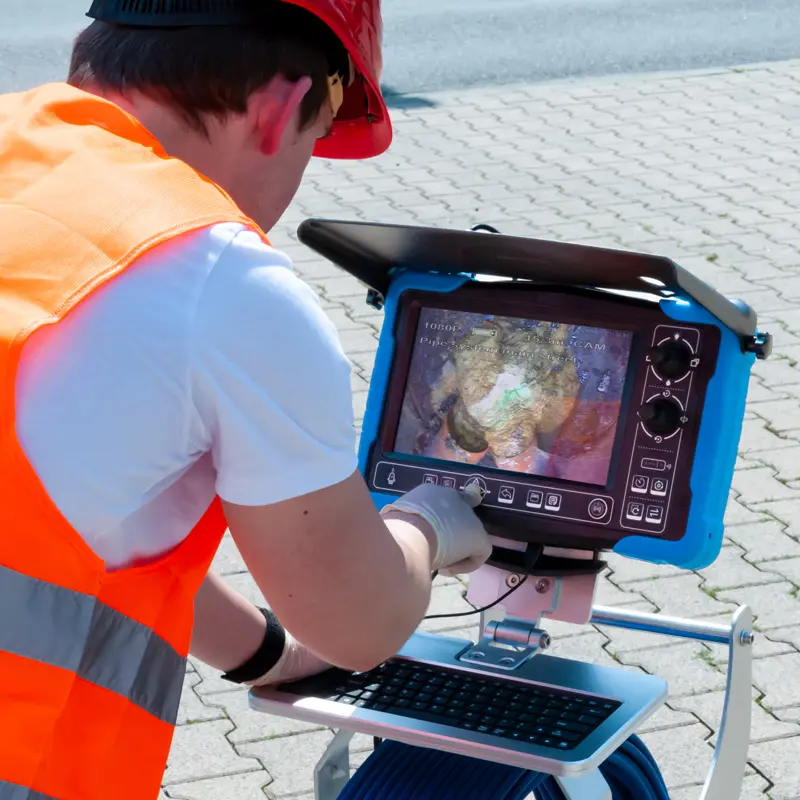

For documentation, images and videos can be recorded and saved with the pipe channel camera. For a better view of the image, the pipe camera can be connected via HDMI cable to an external monitor. The pipe camera takes pictures in 1080P, so no detail is lost. To add commentary to the scan, the USB keyboard can be used. The pipe camera is supplied on a robust, made of aluminum, trolley. Additionally included is a trolley and a roller guide for the camera, which are used to mount the camera head. As a result, pipes and ducts between 80 and 1200 mm / 3.1 ... 47.2 in can be driven.

Highlights

- 60 m / 196.9 ft channel camera
- With cable cars
- Large display
- Text input in the picture and video possible
- Motorized camera
- Engine focus
- Locator function
- ø9.5 mm fiber optic cable

Specification

Camera head diameter    60 mm / 2.4 in
Head rotation Horizontal: 360°
  Vertical: 180°
Cable length 60 m / 196.9 ft
Sight depth 20 ... 100 cm
Perspective 105°
Pipe diameter from / to            80 ... 1200 mm / 3.1 ... 47.2 in


Lighting 4 x LED (dimmable)
White balance Automatically
Image sensor 1 / 2.9" Sony CCD
  1920 x 1080 pixels

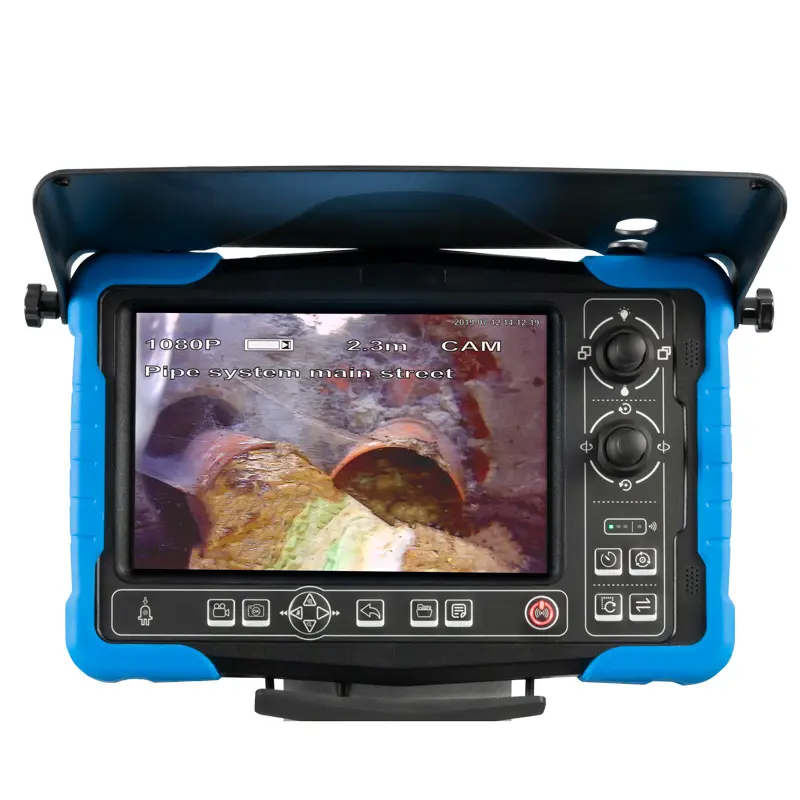

Display 10.1" LC display
  1280 x 800 pixels
Interface USB 2.0
  HDMI
Memory option Video (AVI), Photo (JPEG) and Sound
Image memory SD card up to 256 GB
Video output format PAL 1080P, 720P, CVBS
  NTCS 1080P, 720P, CVBS
Menu navigation Multilingual
Length measurement 0 ... 60 m / 0 ...196.9 ft
Data entry Possible by keyboard
Operating conditions -10 ... 50°C / 14 ... 122°F, 30 ... 90% rh
Storage conditions -20 ... 60°C / -4 ... 140°F, 30 ... 90% rh
Power supply Power supply 110V ... 240V AC / 13.5V / 5 A DC
  Li Ion battery 12V / 6000-mAh
Protection class Camera head: IP68
Dimensions Complete: 87.5 x 97.8 x 40.6 cm
  Camera head: 60 x 146 mm / 2.4 x 5.7 in (total length: 360 mm / 14.2 in)
Weight About 20 kg / 44.1 lbs

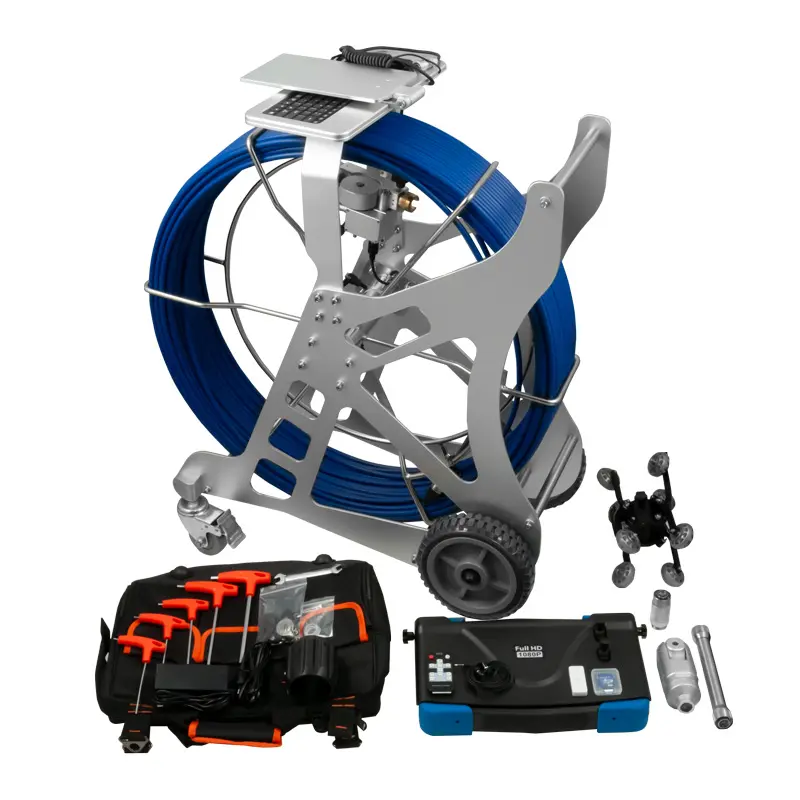

Delivery Scope

1 x NDT tester inspection camera PCE-PIC 60
1 x 60 m / 196.9 ft push cable on trolley

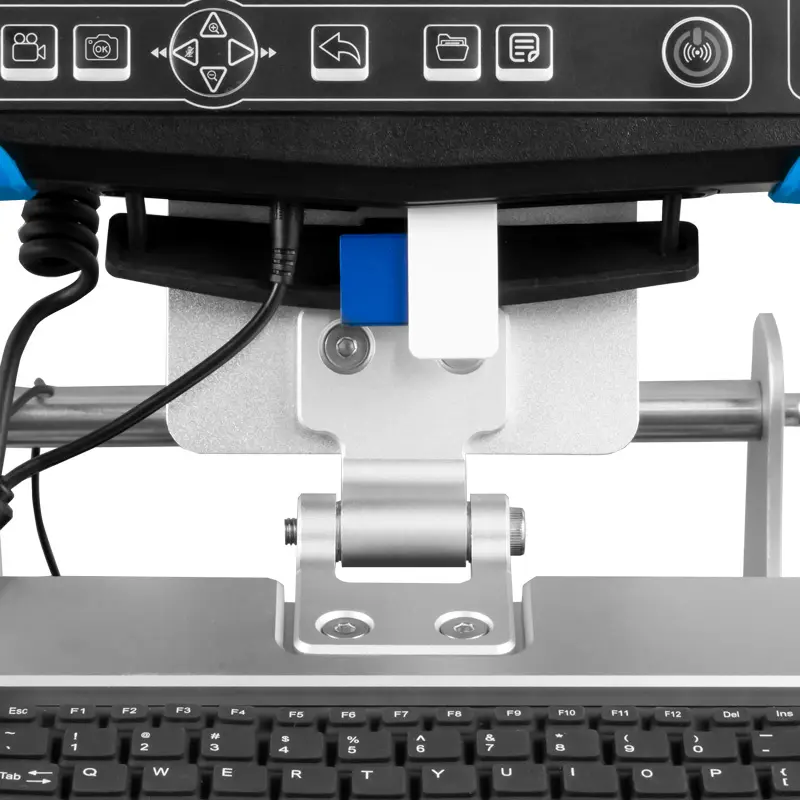

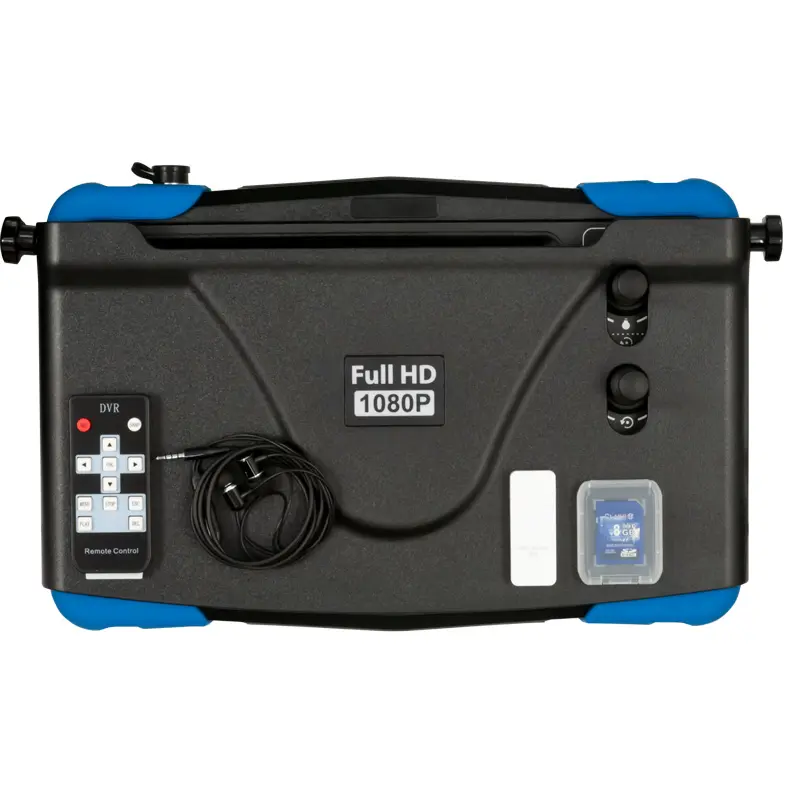

1 x Screen with keyboard

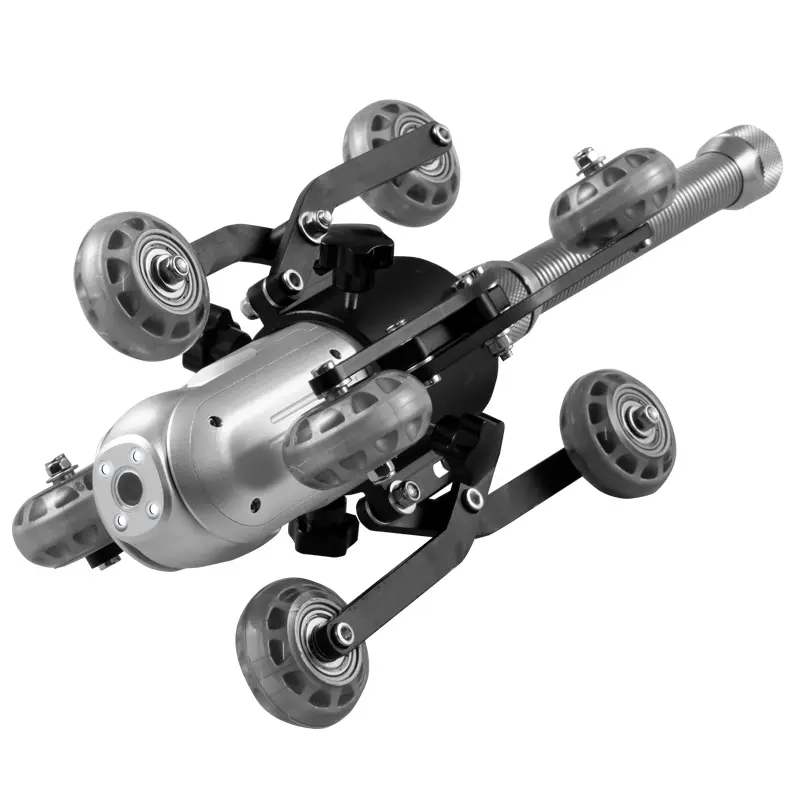

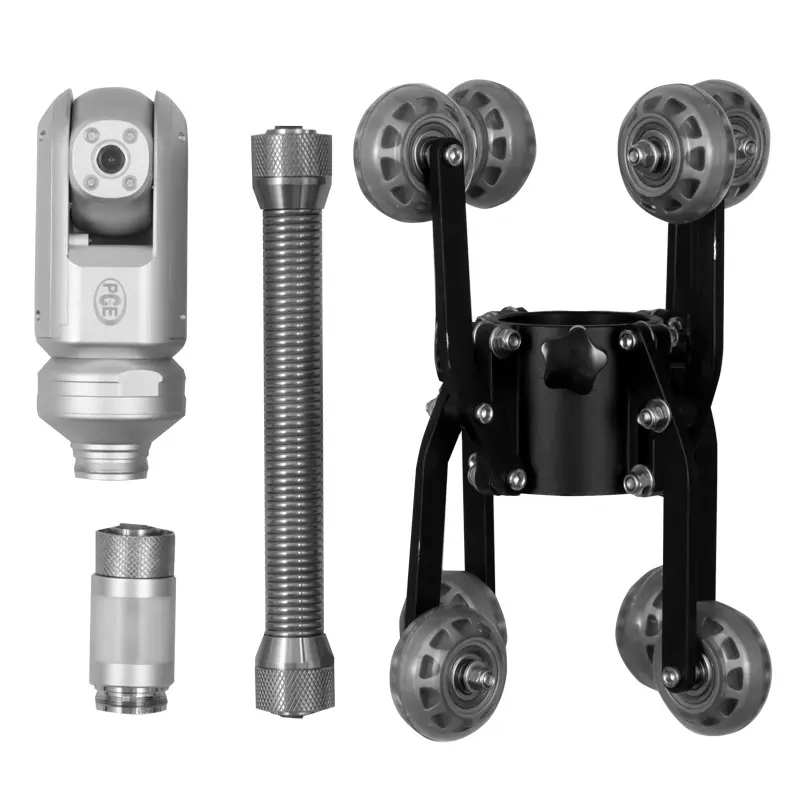

1 x Camera car
1 x Camera head

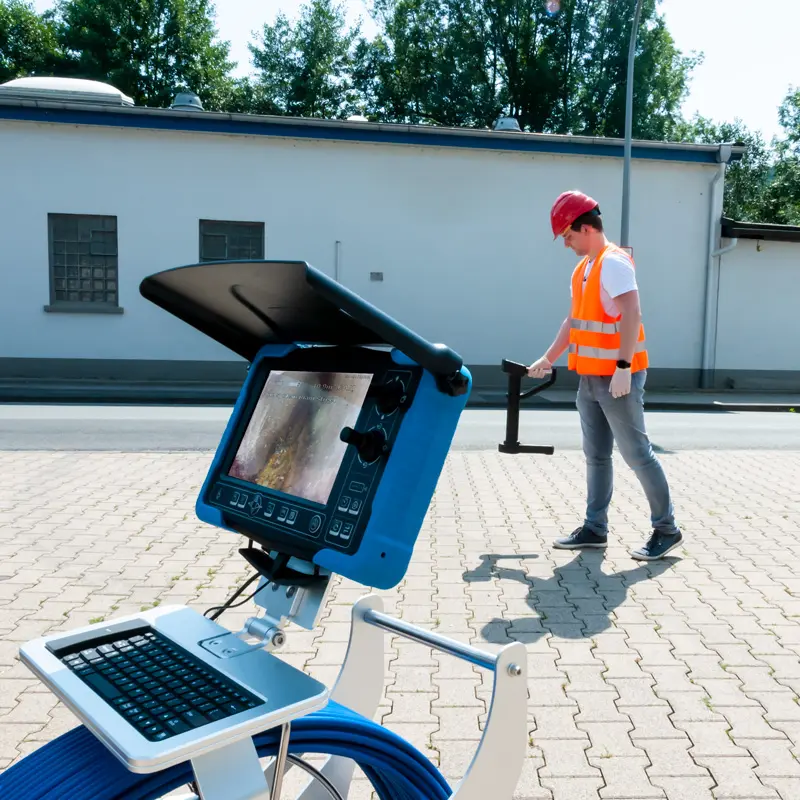

1 x Locator transmitter
1 x Camera connector with spring
1 x Roll center star

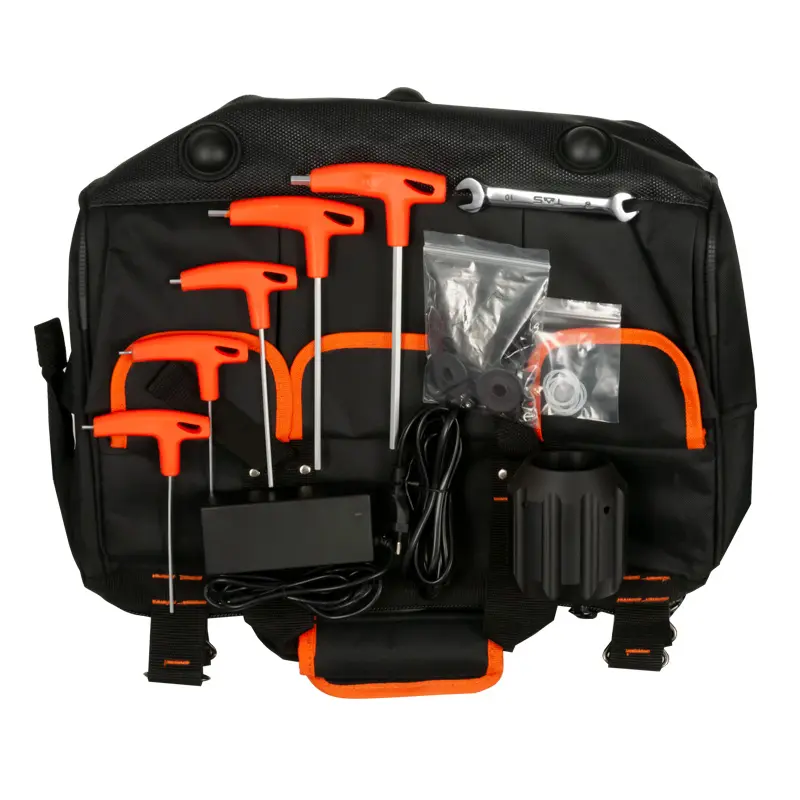

1 x Tool set
1 x Power supply
1 x User manual
