NDT Test Instruments PCE-DD-D Shore D

Order no.: PCE-DD-D
US$ 121.00
ex. VAT, ex. delivery costs
Available in: 1-2 days

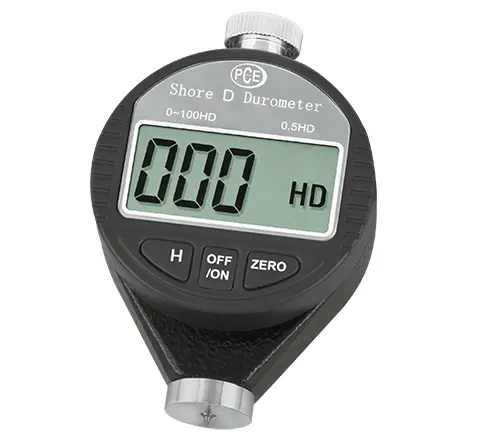

PCE-DD-D Durometer

PCE-DD-D is a Shore D durometer or hardness tester used to measure the Shore hardness of materials such as hard rubber, hard resin, acrylic, glass, thermoplastic and more. This Shore D durometer uses an impact rod with a 30º conical point and 50 Newtons (N) of force to make a surface indentation on material samples with a minimum thickness of 6 mm or 0.24 in. (Note: If a material sample does not meet the minimum thickness required, the sample should be reinforced on the back with more of the same material.)

- For Shore D hardness testing
- Ideal for use with hard rubber, hard resin, acrylic, glass, thermoplastic, etc.
- Handheld, portable, digital measuring device
- Measurement range: 0 ... 100 Shore D
- Accuracy: ± 2 Hardness - Grade
- Large, easy-to-read display
- Hold functionality
Measurement range0 ... 100 Shore D
Resolution0.5 Hardness - Grade
Accuracy± 2 Hardness - Grade
Depth of indentation  0.0 ... 2.5 mm / 0.0 ... 0.01 in
Pressure force5 kg / 11.02 lbs
Dimensions85 mm x 60 mm x 25 mm / 3.3 in x 2.36 in x 0.4 in
Power supply1 x 1.5V (SR44)
Weight300 g / < 1 lb

1 x PCE-DD-D Shore D durometer
1 x Plastic carrying case
1 x Battery
1 x User manual
