Paper Moisture Meter P2

Paper Moisture Meter P2

Order no.: P2
GTIN (EAN):
US$ 439.00
ex. Sales Tax, ex. delivery costs
P2
Available in:1-2 days
Inline
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Description

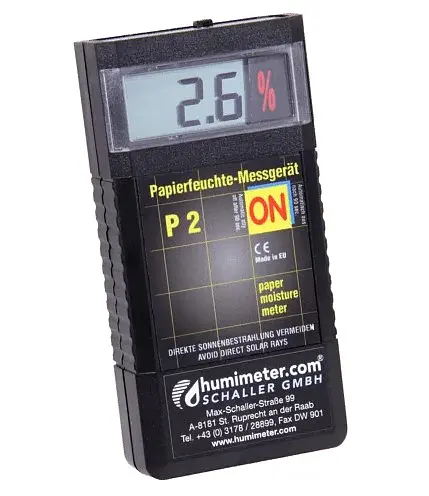

P2 Paper Moisture Meter
Handheld device for measuring the moisture content of paper rolls and stacks

The P2 Paper Moisture Meter is designed for the fast and accurate measurement of the absolute moisture content of kraft paper, packaging paper, sack paper, cardboard, and paperboard. The contact-based, non-destructive measurement makes this paper moisture meter particularly attractive for use by the papermaker at the paper machine, the employee in the paper laboratory, the shipping department staff, the printer during incoming inspection, and the field service representative when handling complaints. The paper moisture meter can be used on both paper rolls and stacks of paper on pallets. It measures the actual, absolute moisture content.

Highlights

- suitable for use on paper rolls and stacks of paper on pallets
- measures non-destructively
- Sensor on the back
- Comes complete in a carrying case, with battery, calibration standard, and instructions
- Portable (pocket-sized)
- Battery-powered
- Lightweight and easy to use
- Fast and accurate measurement
- Suitable for almost all types of paper and cardboard

Specification

Measuring Range 3% ... 10%
Display Resolution 0.1% Moisture
Measuring Principle Dielectric
Automatic Temperature Compensation 0.05% / °C
Measuring Depth 13 mm
Operating Temperature Range 5°C ... +35°C
Power supply 9V alkaline or NiCd rechargeable battery
Current consumption approx. 5 mA
Automatic shut-off after approx. 90 seconds or if the
  measuring range is significantly exceeded
Battery charge status Empty => BAT display
Display 3-digit LCD display
Dimensions 60 x 120 x 26 mm
Weight without battery approx. 140 grams




Delivery Scope

1 x Paper Moisture Meter Model P2
1 x Test Plate
1 x Battery
1 x Carrying Case
1 x Instruction Manual

Downloads
