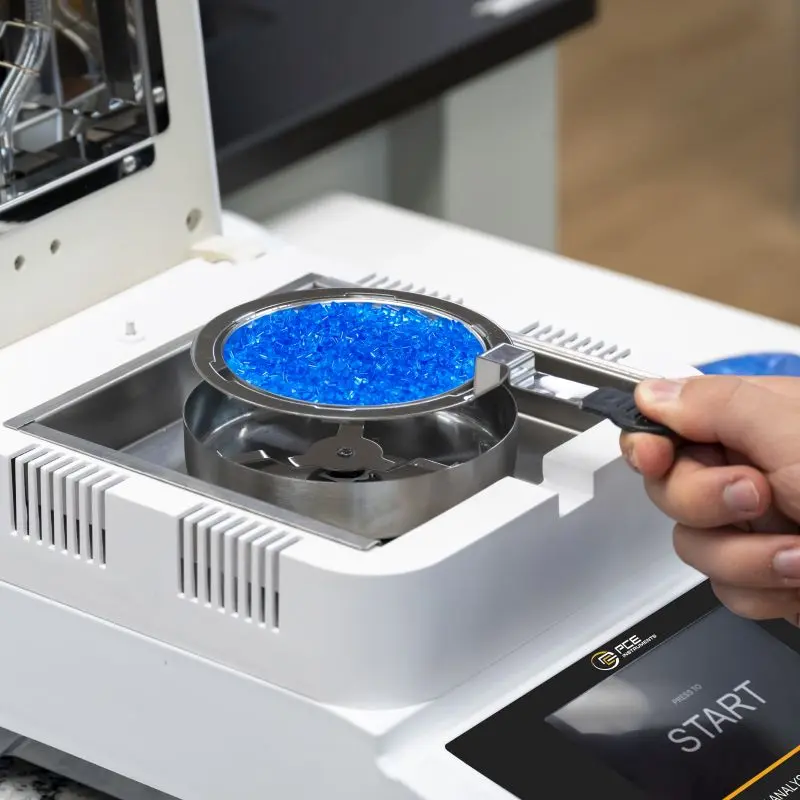

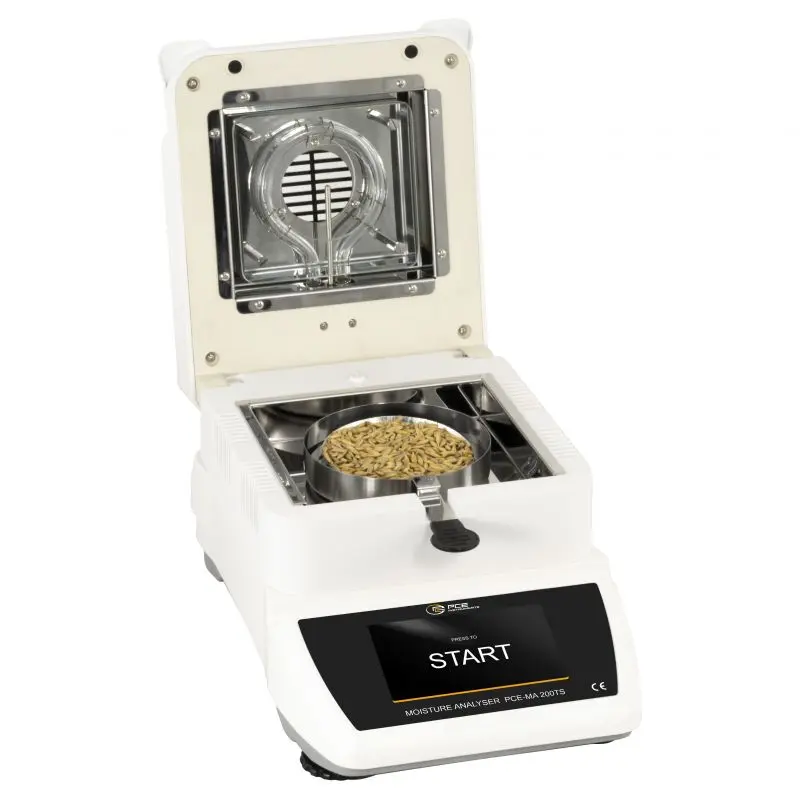

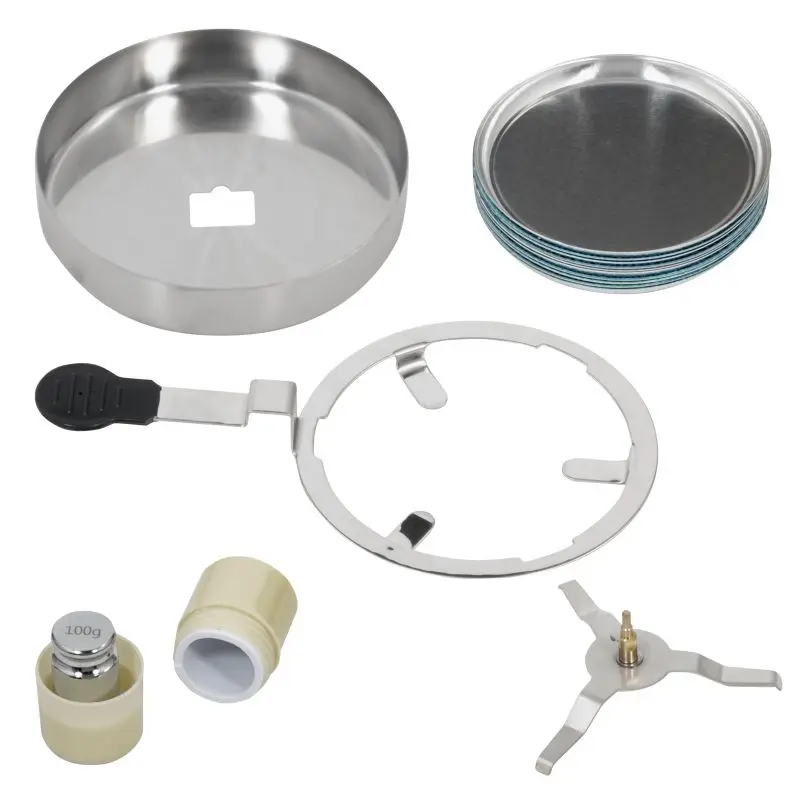

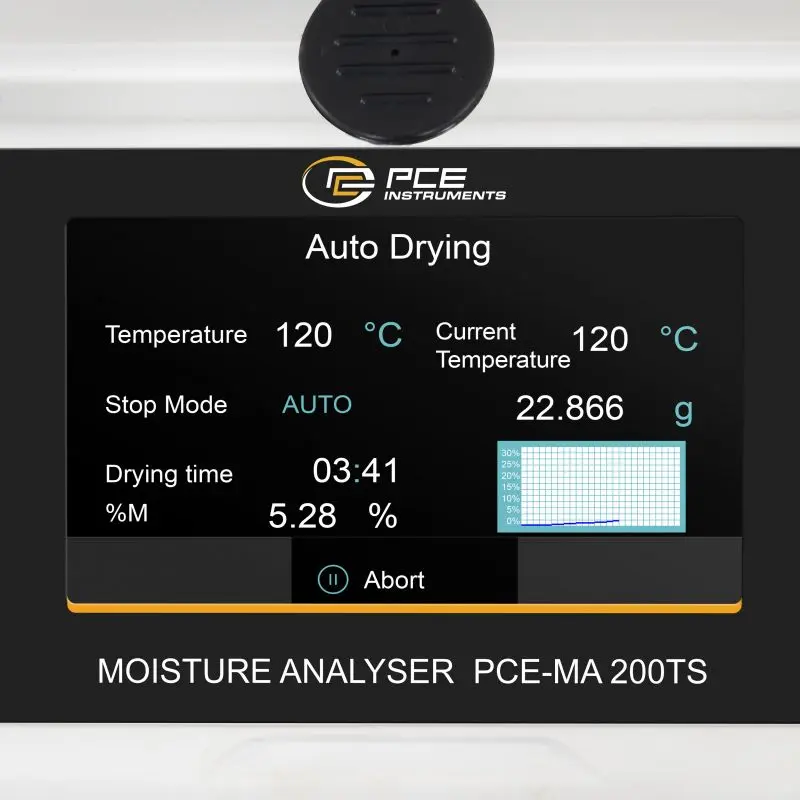

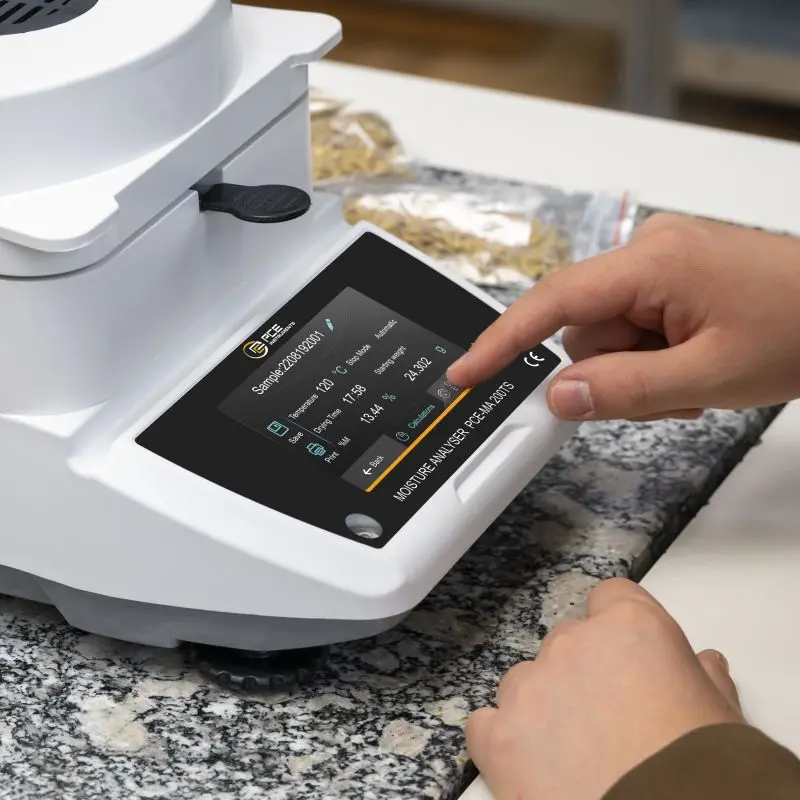

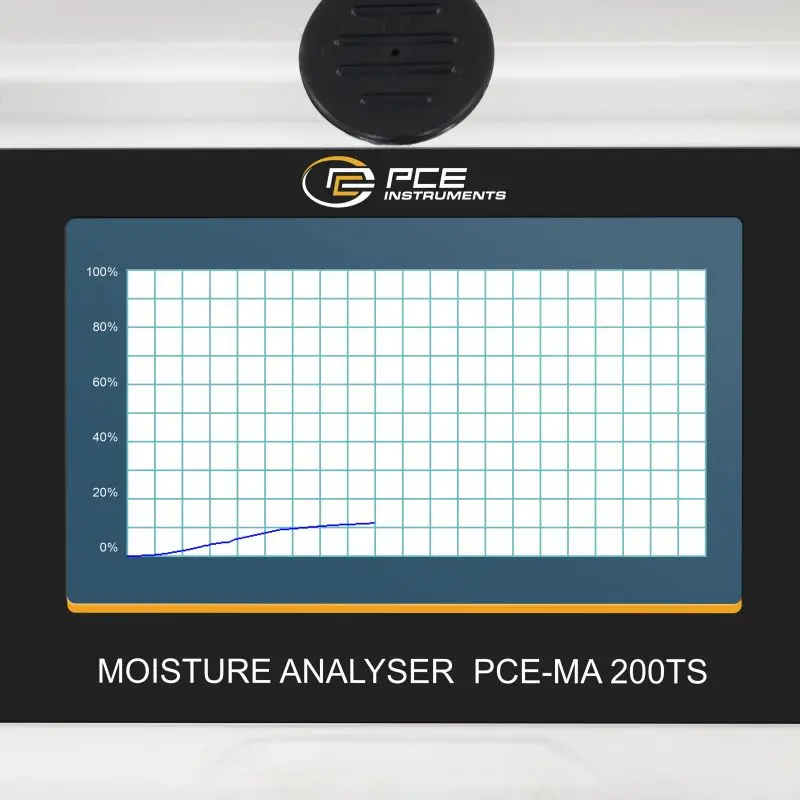

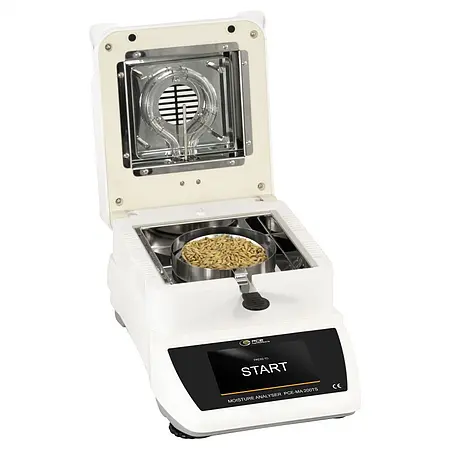

The moisture meter has a measuring range of 0 ... 100% absolute humidity. The moisture meter is operated via the 5" large touchscreen. To measure the moisture content with the moisture meter, a sample is evenly distributed on the sample pan. The sample pan is then placed and sealed in the moisture meter. After setting all parameters, the moisture meter begins the measurement.

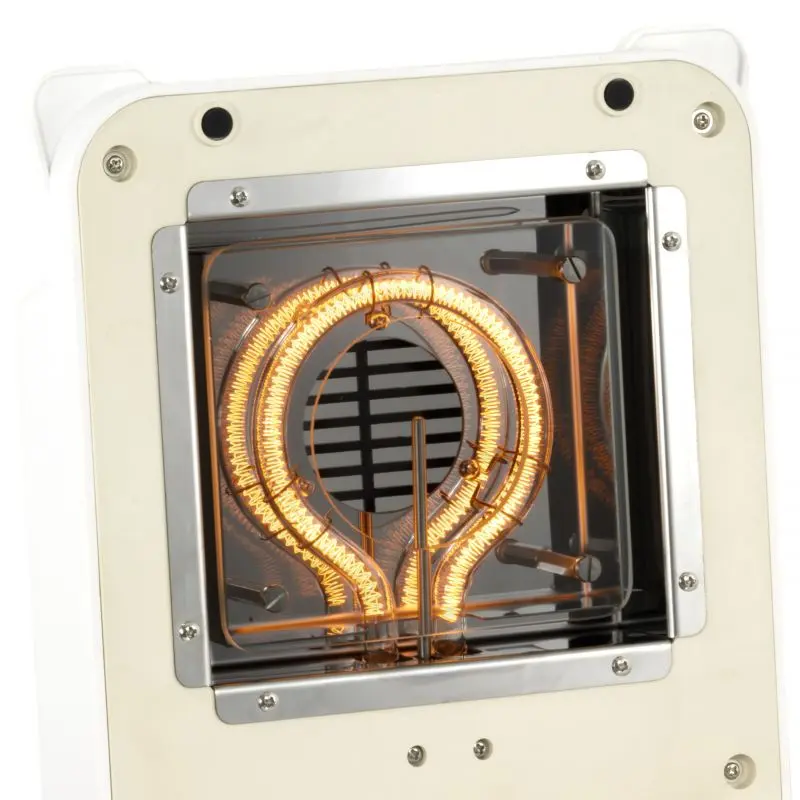

The moisture meter determines the moisture content based on the measured weight difference, relative to the weight before and after drying the sample. The adjustable temperature range for the moisture meter is between 40 ... 165 °C. Thus, a specific drying temperature for the sample can be selected with the moisture meter. The generated drying temperature is produced by a built-in halogen lamp with a diameter of 90 mm.

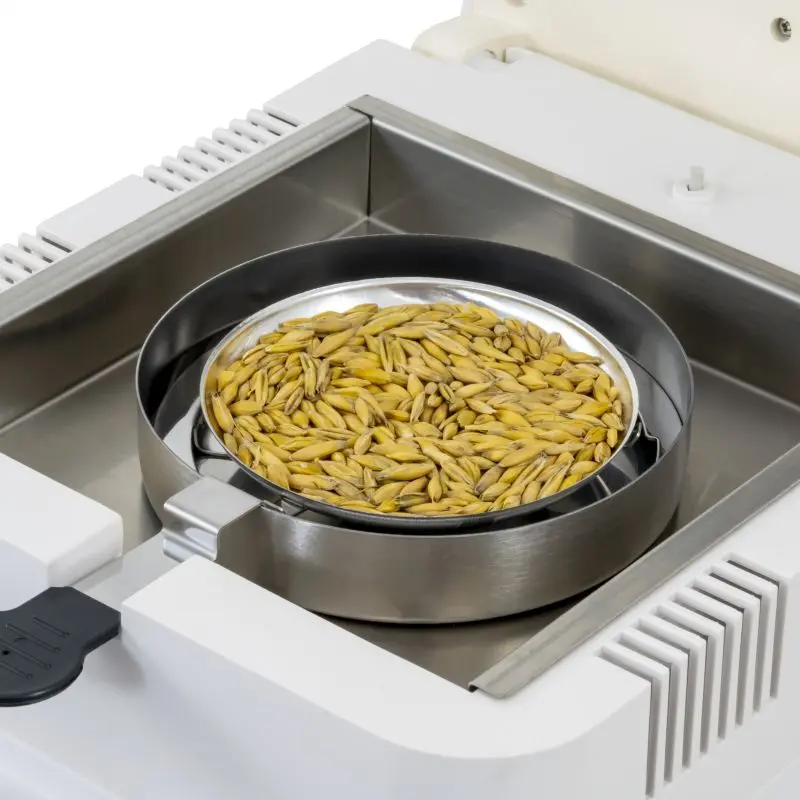

The drying process of the sample makes the moisture meter usable in various fields. Thus, the moisture meter finds its application, for example, in laboratories to measure the moisture of different powders, in quality control to determine the moisture of granules, or on farms to determine the moisture content of oats, grains, or wheat.

A major advantage over devices using capacitive measuring methods is that the moisture meter operates independently of characteristic curves and provides more accurate results.

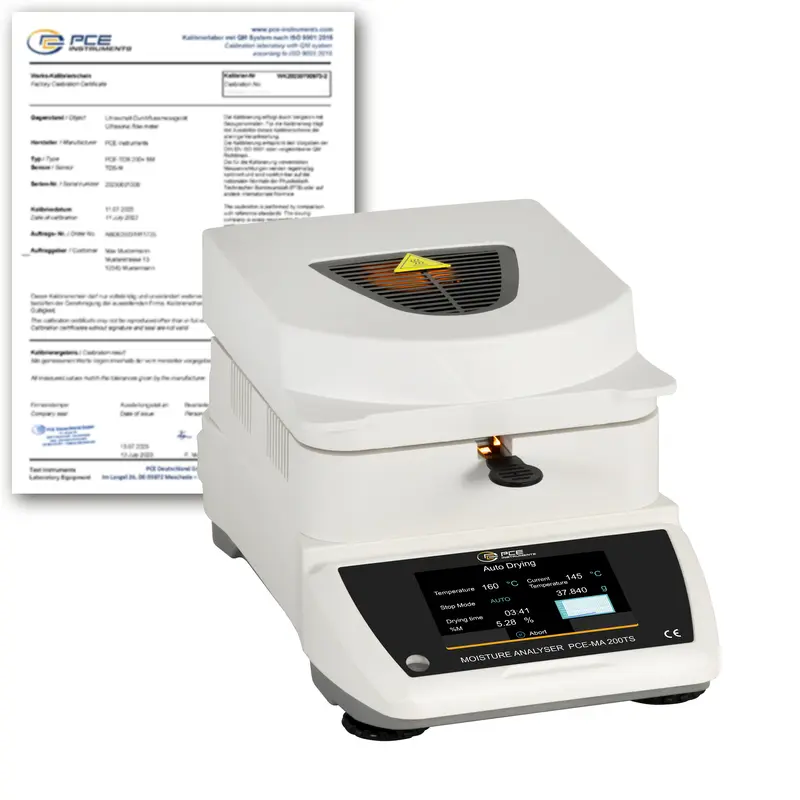

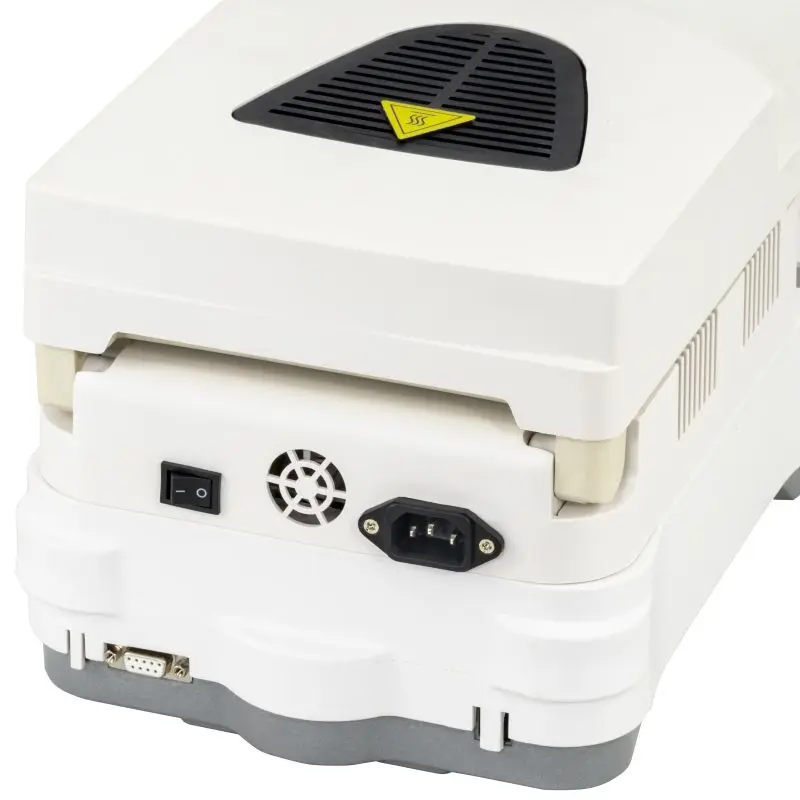

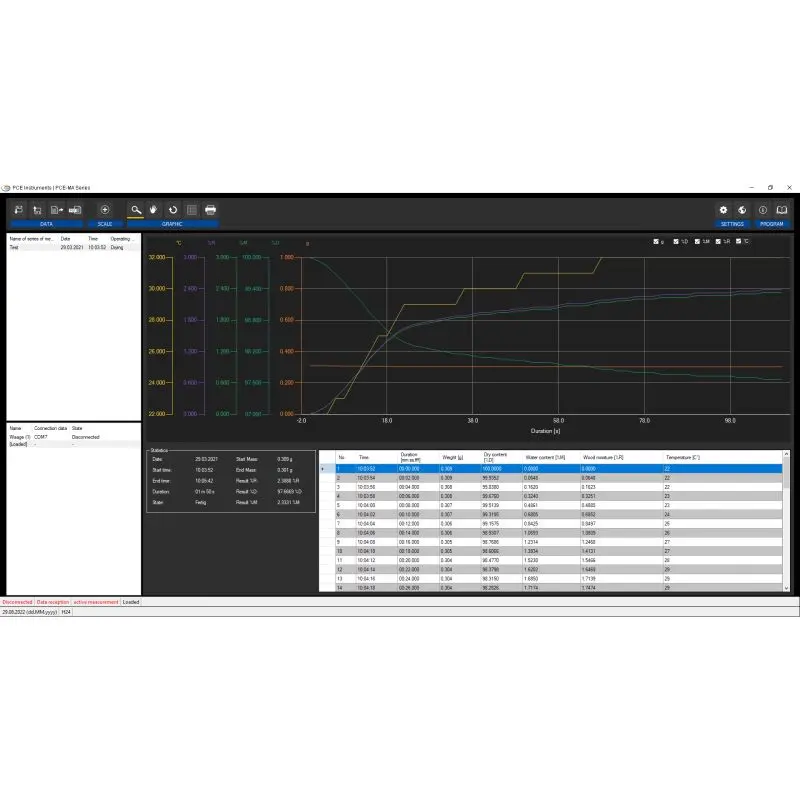

The measured values can be transferred to a PC via the Serial RS232 interface of the moisture meter for analysis. A suitable software is available optionally for the moisture meter. If required, the moisture meter can be supplied with an ISO calibration certificate.
