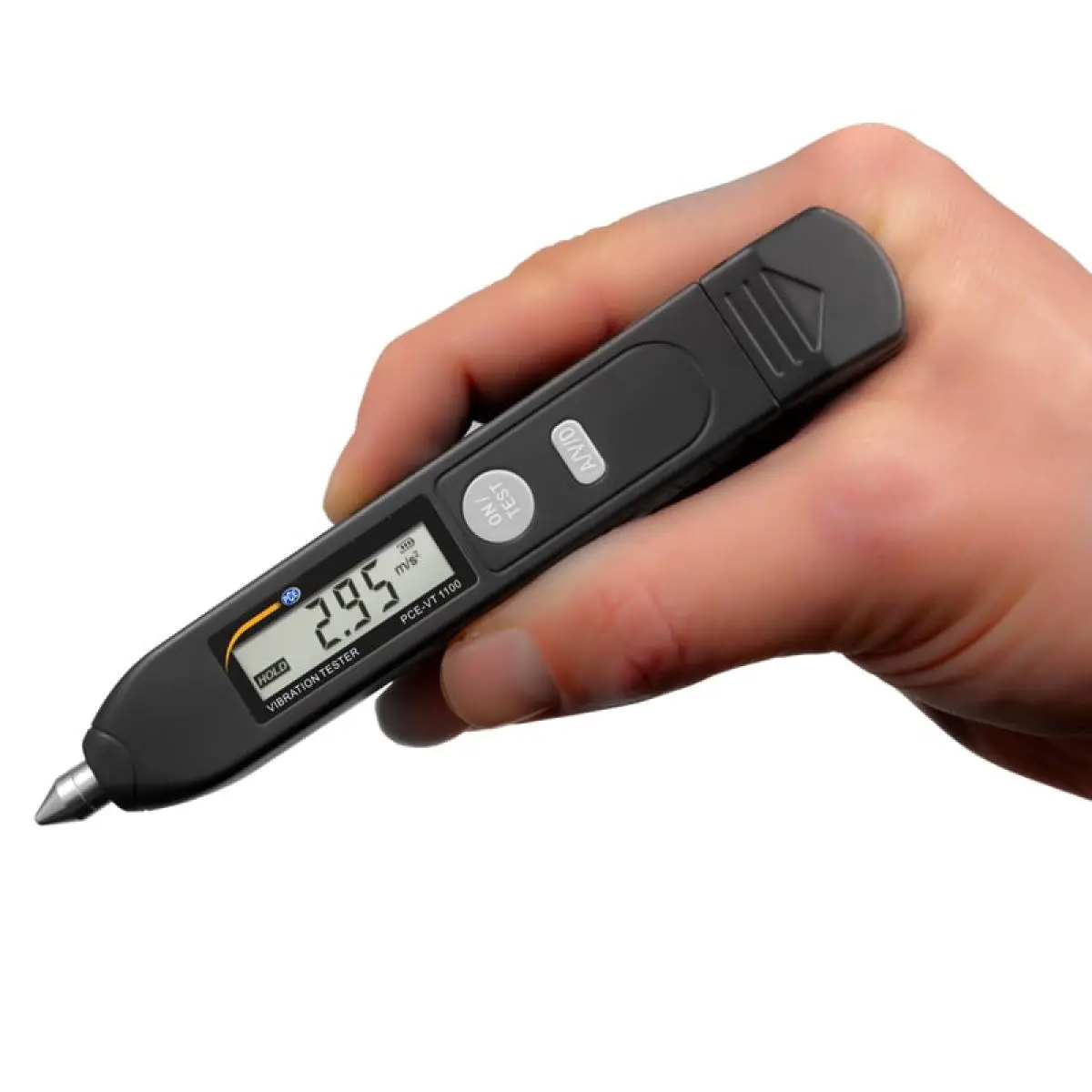

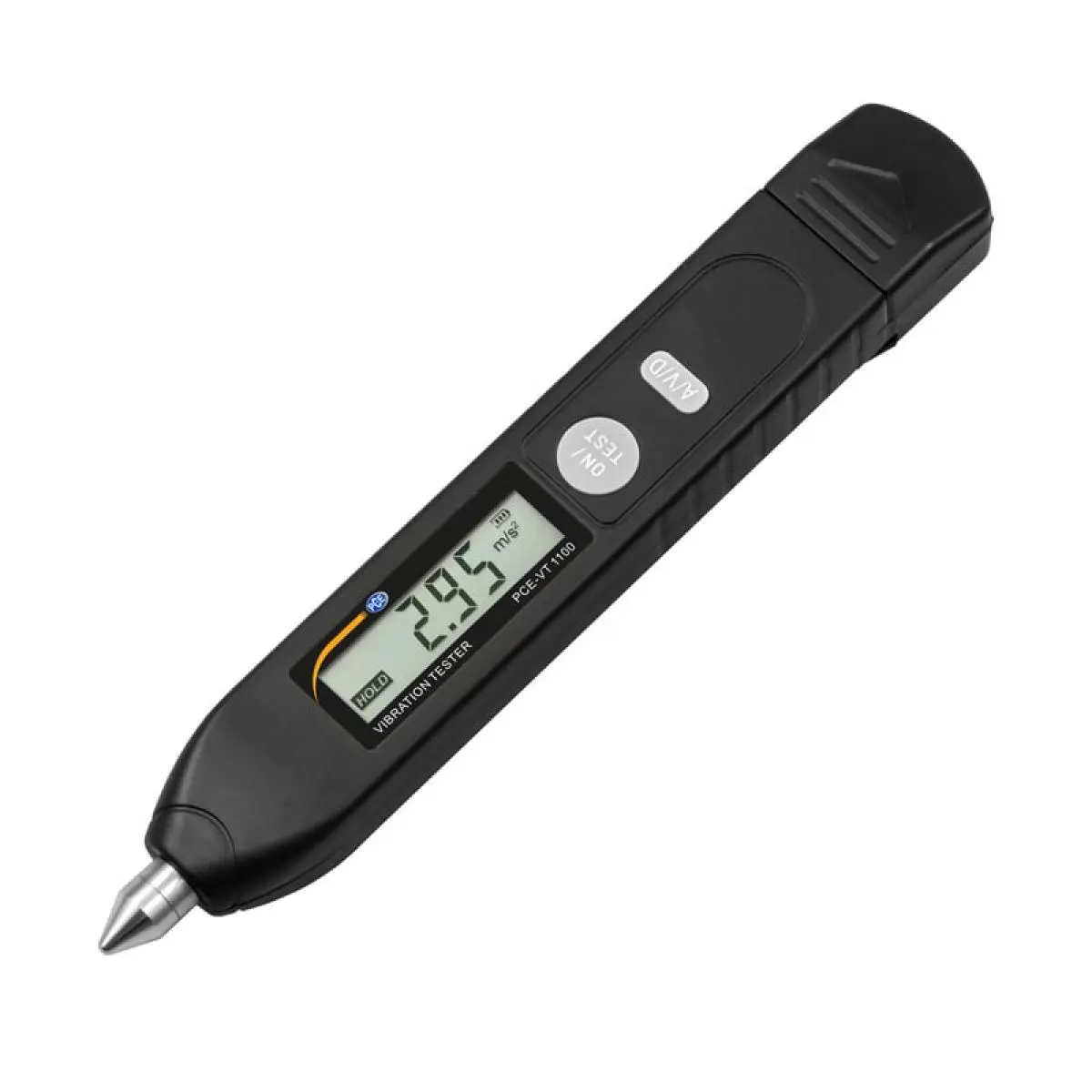

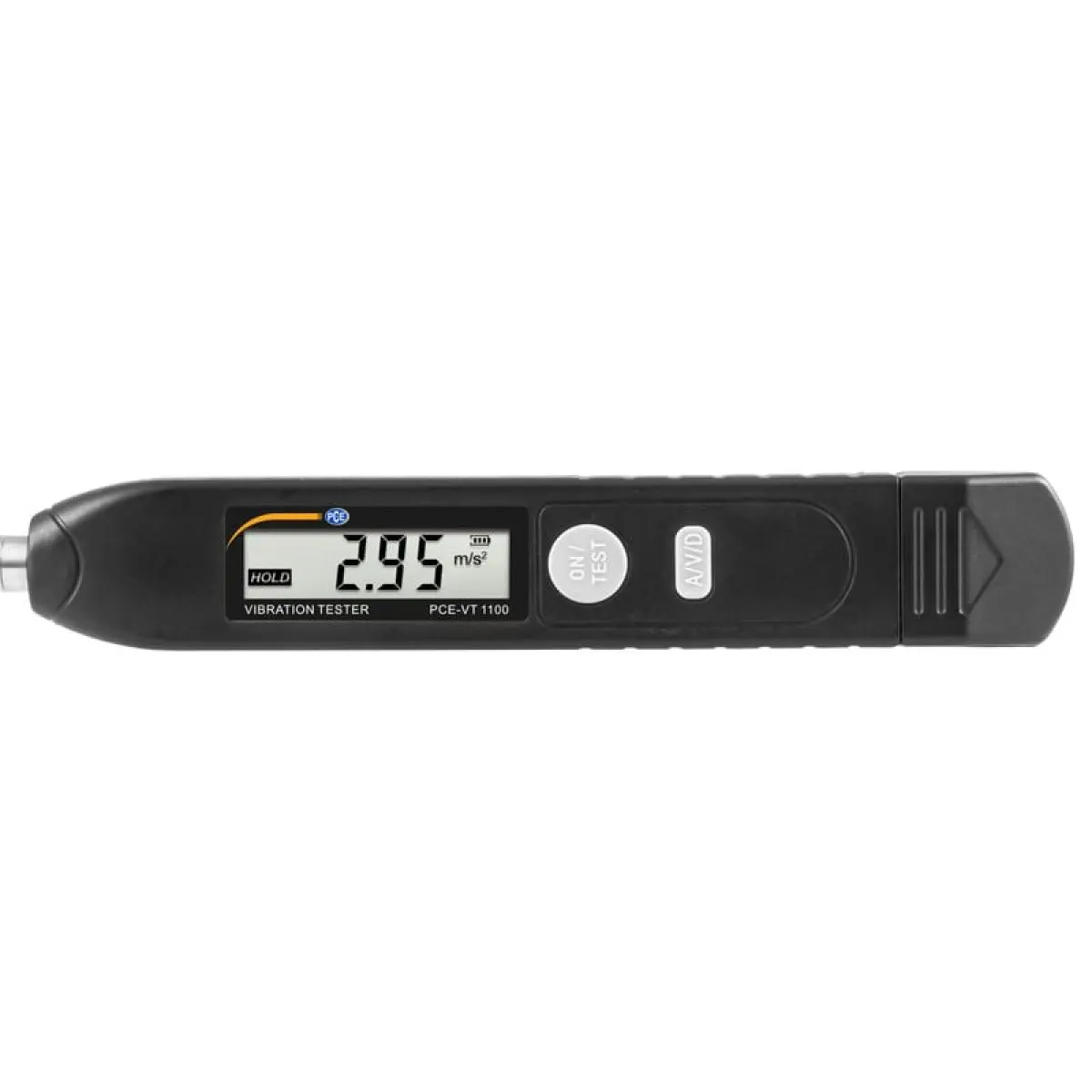

The Micro-, milli-, megohmmeter is used as a hand-held measuring device for the individual assessment of vibrations on machines and systems. With the help of this Micro-, milli-, megohmmeter, the actual state can easily be determined on site. Thus, corresponding changes can be made directly on site after the measurement. Thereafter, the new condition can be assessed. Thus, the Micro-, milli-, megohmmeter serves as a measuring device for a relative measurement on different machines.

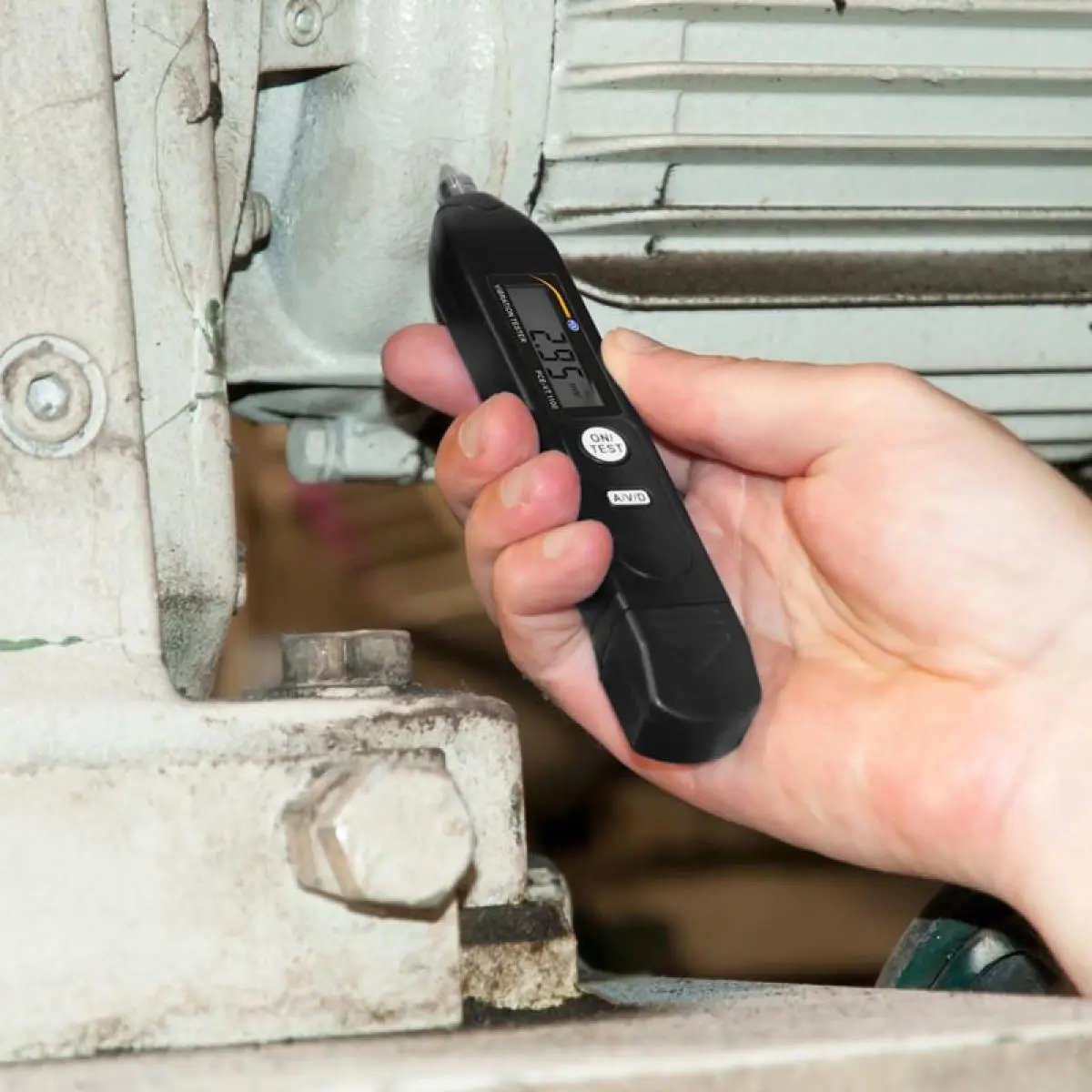

The Micro-, milli-, megohmmeter serves essentially as precautionary or preventive maintenance of production machines. Very often, the Micro-, milli-, megohmmeter is used to assess the state of smaller electric motors.
| Acceleration | |
| Measuring range | 0,01 ... 199,9 m/s² peak |
| Resolution | 0,01 m/s² peak |
| Accuracy | ≤3 % of Rd |
| Frequency range | 10 Hz ... 1 kHz |
| Speed | |
| Measuring range | 0,01 ... 199,9 |
| Resolution | 0.01 |
| Accuracy | ±(5% of measured value +2 digits) |
| Frequency range | 10 Hz ... 1 kHz |
| Displacement | |
| Measuring range | 0,001 ... 1,999 |
| Resolution | 0,001 |
| Accuracy | ±(5% of reading +2 digits); frequency-dependent: 10 ... 20 Hz: +10 / -20% and 20 ... 1000 Hz: ±5% |
| Frequency range | 10 ... 500 Hz |
| General technical data | |
| Measuring functions | HOLD |
| Display type | LCD with backlight |
| Response time | 1 s |
| Operating time | 5 h |
| Automatic power-off | 20 s |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| Power supply | batteries |
| (Rechargeable) battery | 2 x 3 V CR 2032 (button cell 3V) , lithium |
| Capacity | 230 mAh |
| Operating conditions | 0 ... 40 °C , 0 ... 84 % RH |
| Storage conditions | 0 ... 40 °C , 0 ... 84 % RH |
| Dimensions ( L x W x H ) | 155 x 24 x 18,7 mm |
| Weight | 40 g |
