Order no.: PCE-RT 11-ICA

Material Tester PCE-RT 11-ICA Incl. ISO Calibration Certificate

ISO Calibration
US$ 2,137.00
:
4250348726599
PCE-RT 11-ICA
ex. VAT, ex. delivery costs
Available in: 10 - 14 days

Description

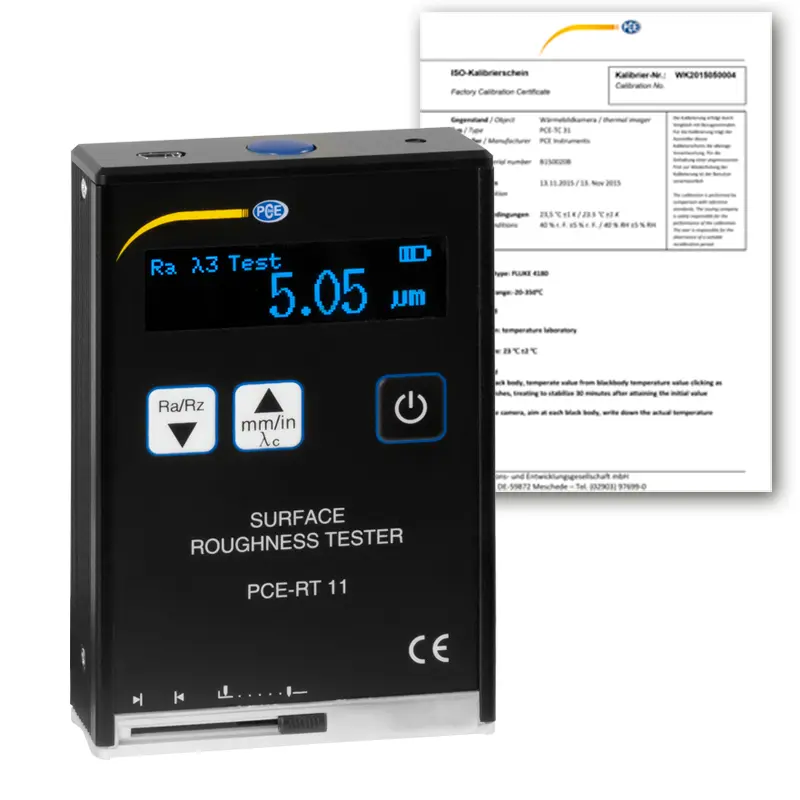

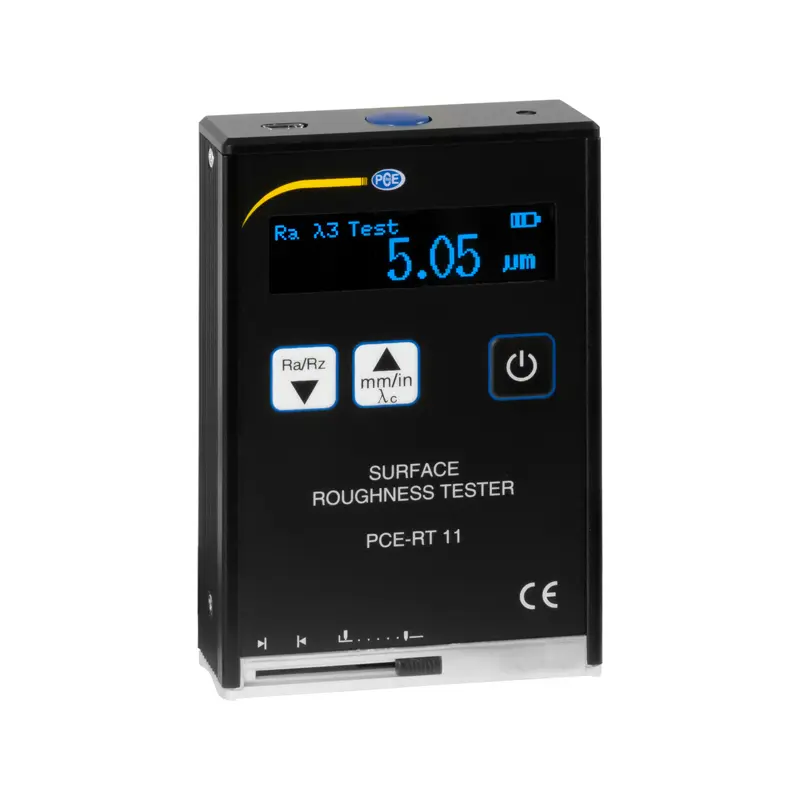

Material Tester PCE-RT 11-ICA incl. ISO calibration certificate
Material tester for accurate determination of roughness according to Ra, Rz, Rq and Rt / With piezoelectric probe / Big OLED display with backlight

The Material Tester PCE-RT 11-ICA is a portable measuring instrument for determination of surface roughness according to Ra, Rz, Rq and Rt in just one device. The small roughness tester is especially designed for fast measuring of roughness. The roughness is a term of surface physics that describes unevenness of surface height. The roughness tester works according to the same piezoelectric micro probe principle like the highly accurate laboratory measuring instruments. The easy handling of the roughness tester as well as the high repetitive accuracy characterizes this device. After touching the button the piezoelectric micro probe of the roughness tester scans the surface within seconds and shows digitally, according to the preselected cut-off length, either the value Ra, Rz, Rq or Rt.

Calibration certificates are issued specifically for the customer and are excluded from the right of return.

Highlights

- With real time battery display
- USB interface
- Simple calibration
- Also for cylinder and inclined area

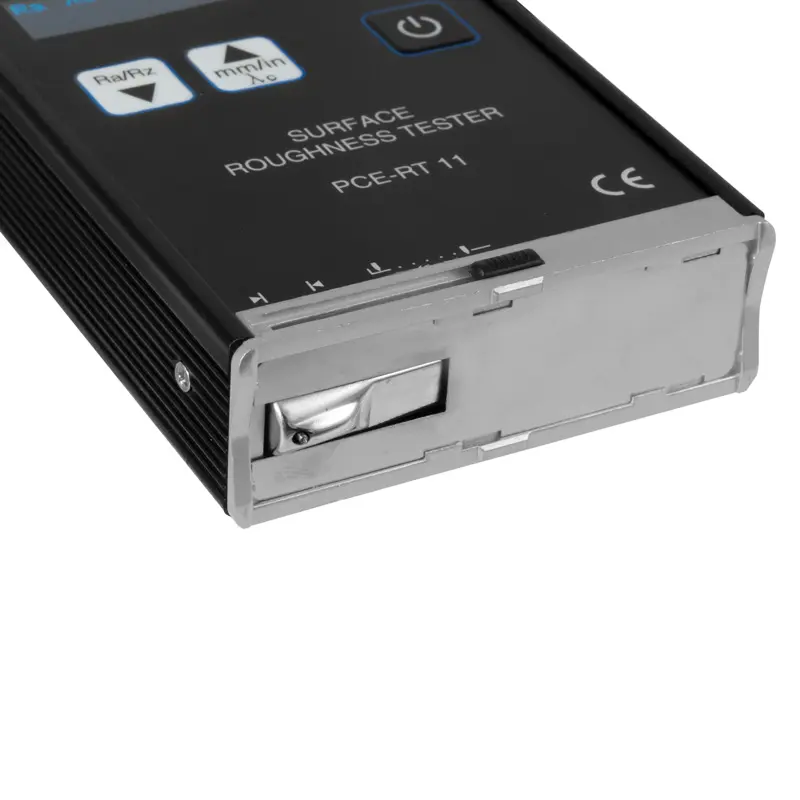

- With slider to protect the probe
- Wide measuring area
- OLED display
- With roughness standard
- Piezoelectric probe
- With backlight
- Incl. ISO calibration certificate

Specification

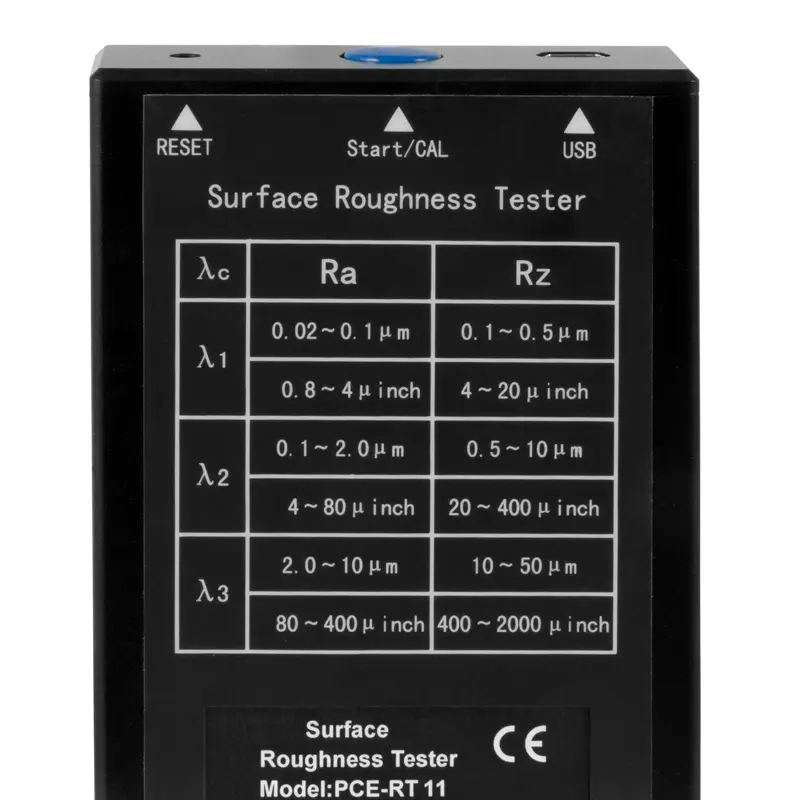

Roughness parameters    Ra, Rz, Rq, Rt
Accuracy ± 15%
Repeatability < 12%
Measuring area Rz, Rt0.1 … 50 µm
Measuring area Ra, Rq0.05 … 10 µm
Cut-off lengthf0.25 mm, 0.8 mm, 2.5 mm
Scanning path in total6 mm
Probing speed1 mm / s
Probe systemPiezoelectric probe
Probe diameter 10 µm ± 1 µm tip radius
Inclination angleOLED display
Ambient temperature-20 … 40°C / -4 ... 104°F
Humidity< 90 %
Power supply3.7 V Li-Ion battery
Load-time3 hours
Dimension 106 x 70 x 24 mm / 4.2 x 2.8 x 1 in
Weight 200 g / < 1 lb

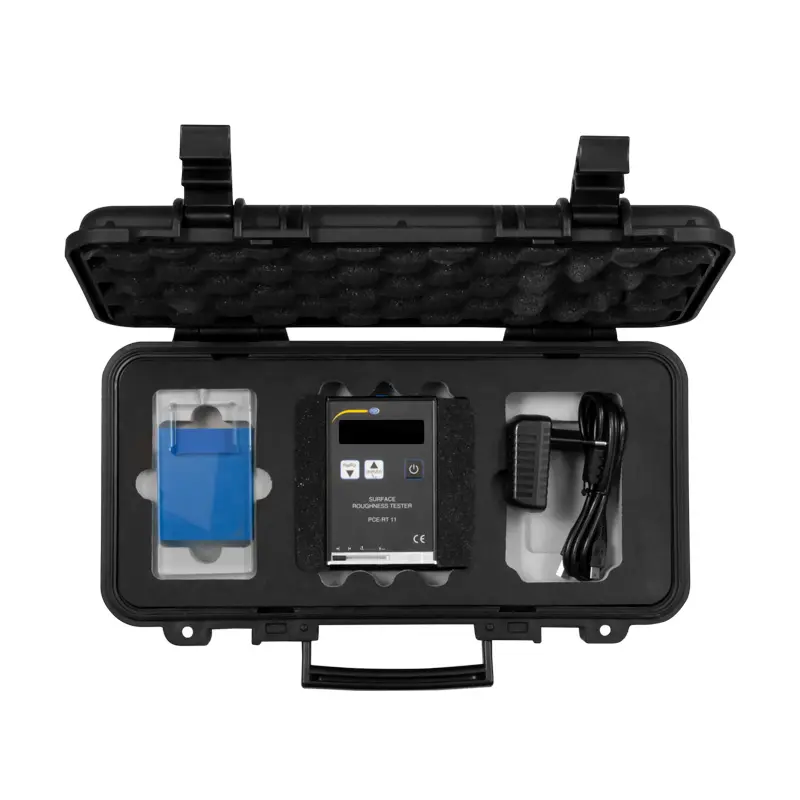

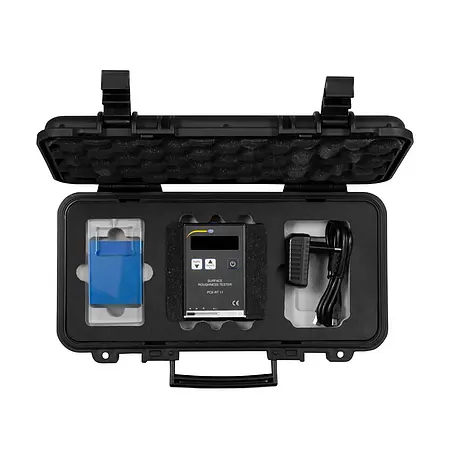

Delivery Scope

1 x Material Tester PCE-RT 11-ICA
1 x Roughness standard
1 x Charger
1 x Case
1 x User’s manual
1 x ISO calibration certificate

Downloads

Accessories

Accessories

Re-Calibration Certificate RE-CAL-PCE-RT for Roughness
US$ 334.00

ex. VAT, ex. delivery costs

  • ISO re-calibration for roughness measuring instruments is often required to comply with DIN ISO 9000. If your calibration certificate expires or has expired, you can easily return your meter for re-calibration. We carry out the calibration and send you the device with a new calibration certificate. RE-CAL-PCE-RT includes calibration of the instrument in accordance with applicable ISO standard(s), along with documentation containing all readings taken.*US calibration certificate is ISO 17025**
    Each calibration certificate is issued especially for the customer and instrument, and therefore is exempt from the right of return.
