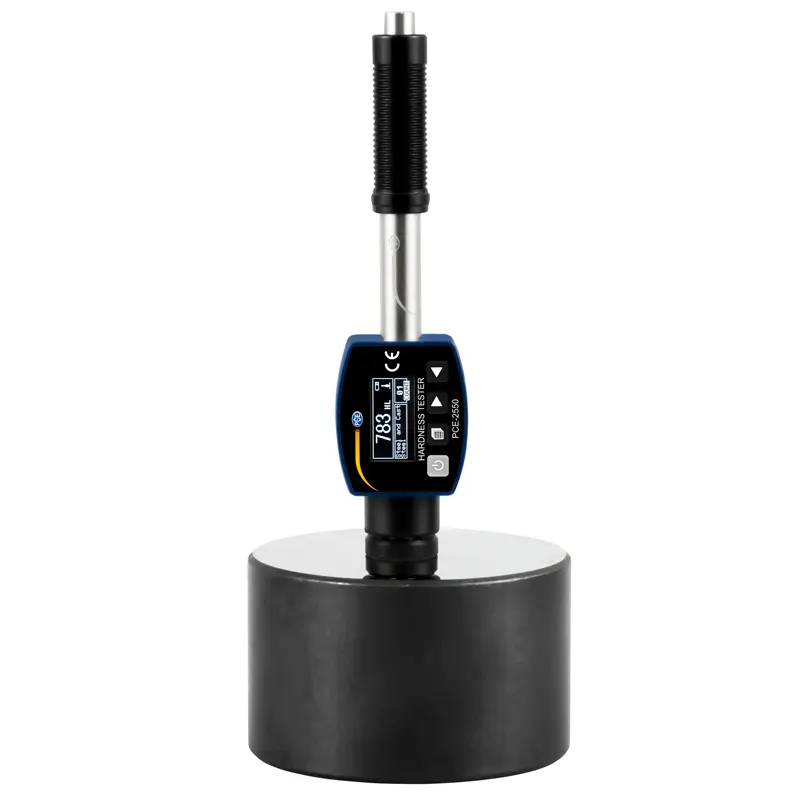

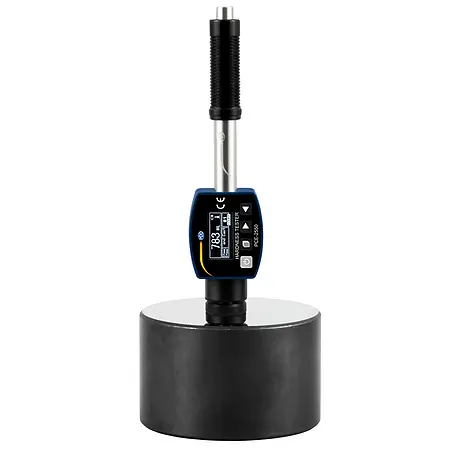

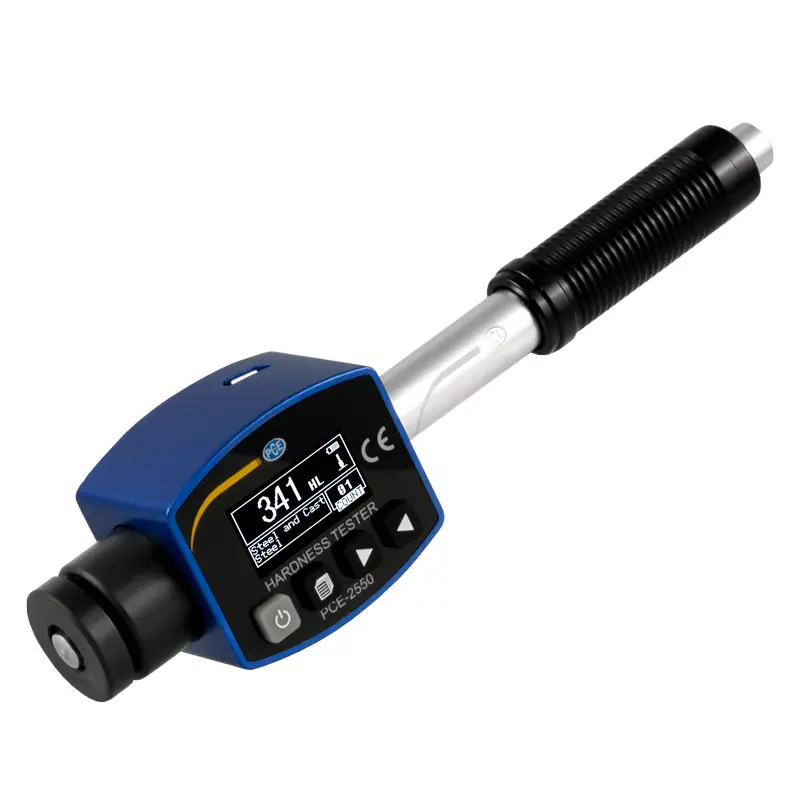

Material Tester PCE-2550-ICA incl. ISO Calibration Certificate

Order no.: PCE-2550-ICA
ISO Calibration
US$ 1,340.00
4250348724847
PCE-2550-ICA
ex. VAT, ex. delivery costs
Available in: 10 - 14 days
Material tester PCE-2550-ICA incl. ISO Calibration Certificate
Portable metal hardness tester with integrated impact mechanism / For metallic materials / Data download via USB / Measurement memory of up to 360000 points

Due to its compact design, the PCE-2550 metal hardness tester is very easy to use for incoming and outgoing inspection. Due to the adjustable hardness scales, the metal hardness tester PCE-2550 is versatile. The measuring range of the metal hardness tester PCE-2550 is sufficiently large for very soft, as well as for extremely hard surfaces.

The measured values ​​can be stored in the PCE-2550 and later read out and processed via the available software. Up to 350 data groups can be stored in the metal hardness tester. The OLED display can also be read well in dark environments.

- Determines all common hardness parameters
- High precision
- Measurement possible in any position
- Refined charge-trigger mechanism
- Internal measured value memory

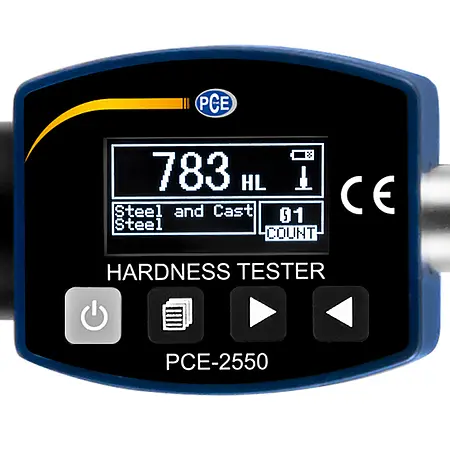

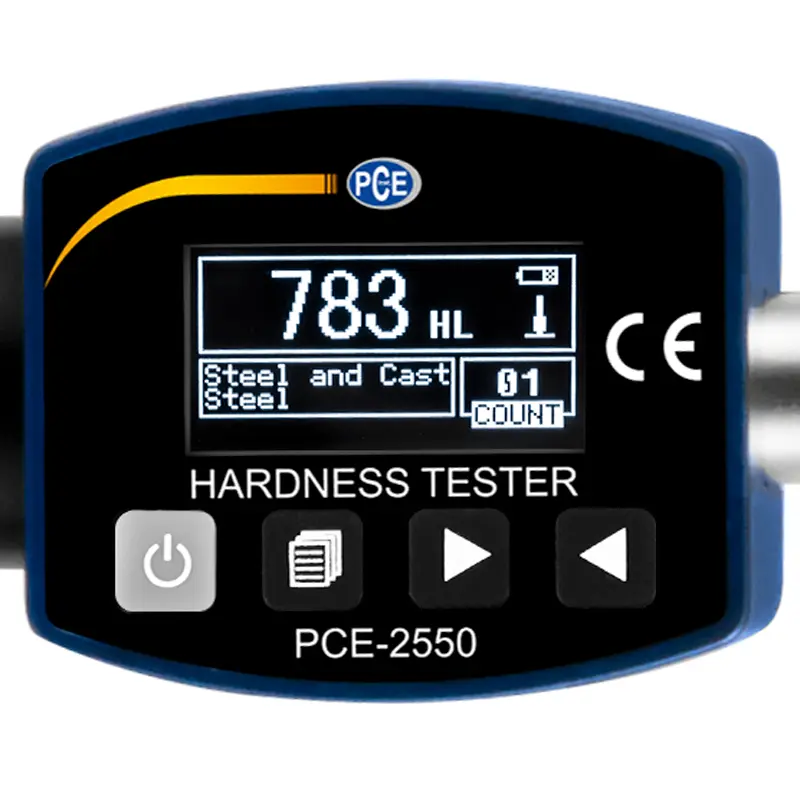

- Immediate display on a large OLED display
- incl. ISO Calibration Certificate
Measuring ranges 170 ... 960 HLD
Measuring direction 360°
Impact device
 Type D
Measurement units HL, HB, HRB, HRC, HRA, HV, HS
Selectable materials 10
Calibration On enclosed hardness test block
Minimum weight of the workpiece 2 kg (on stable support / 50 g with coupling gel)
Minimum thickness of the workpiece    5 mm with coupling paste
Display
 OLED display
Internal measured value memory 350 data groups
Alarm Maximum or minimum value
Auto. Power Off Yes
Power supply 2 x CR2016 button cells

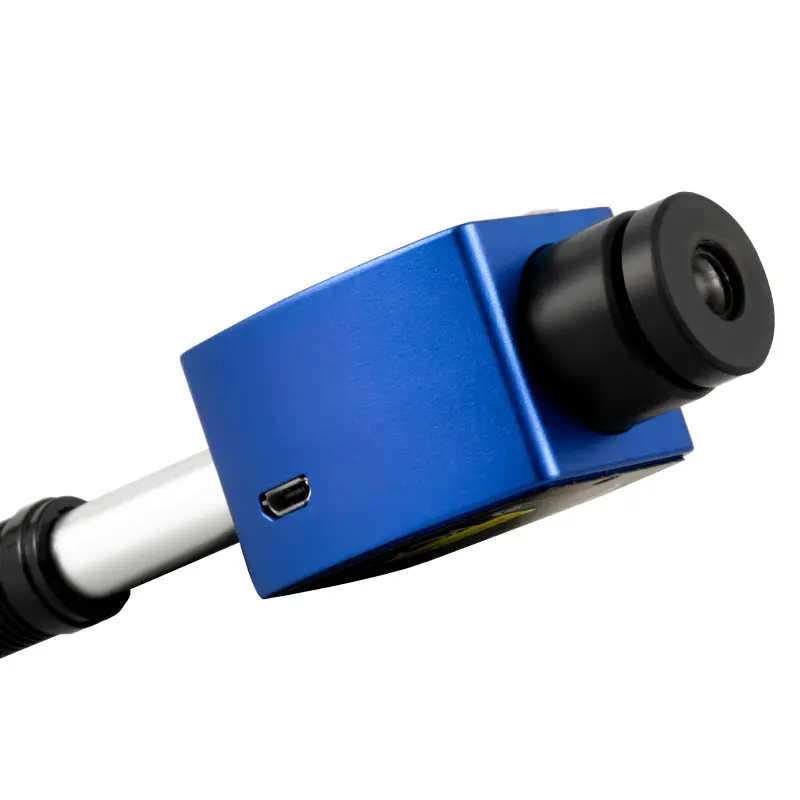

Interface USB
Ambient temperature 0 ... 40°C / 32 ...104°F
Dimensions 145.5 x 32 x 26 mm
Weight 160 g / < 1 lb

Material Steel and cast steel
Scale Rockwell, Brinell, Vickers, Shore
Measuring range HRC: 17.9 ... 68.5
  HRB: 59.6 ... 99.6
  HRA: 59.1 ... 85.8
  HB: 127 ... 651
  HV: 83 ... 976
  HS: 32.2 ... 99.5

Material Tool steel
Scale Rockwell, Vickers
Measuring range HRC: 20.4 ... 67.1
  HV: 80 ... 898

Material Stainless steel
Scale Rockwell, Brinell, Vickers
Measuring range HRB: 46.5 ... 101.7
  HB: 85 ... 655
  HV: 85 ... 802

Material Cast iron
Scale Rockwell, Brinell, Vickers
Measuring range HRC: ---
  HB: 93 ... 334
  HV: ---

Material Ductile iron
Scale Rockwell, Brinell, Vickers
Measuring range HRC: ---
  HB: 131 ... 387
  HV: ---

Material Cast aluminum alloy
Scale Rockwell, Brinell
Measuring range HRB: 23.8 ... 84.6
  HB: 19 ... 164

Material Brass
Scale Rockwell, Brinell
Measuring range HRB: 13.5 ... 95.3
  HB: 40 ... 173

Material Bronze
Scale Brinell
Measuring range HB: 60 ... 290

Material Machined copper alloy
Scale Brinell
Measuring range HB: 45 ... 315

Material Machined steel alloy
Scale Brinell
Measuring range HB: 143 ... 650

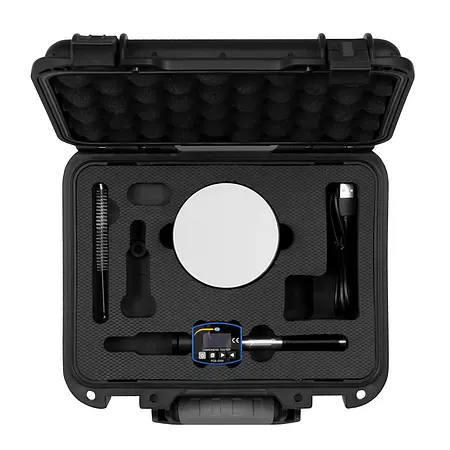

1 x Material tester PCE-2550-ICA
1 x USB connection cable
1 x Software

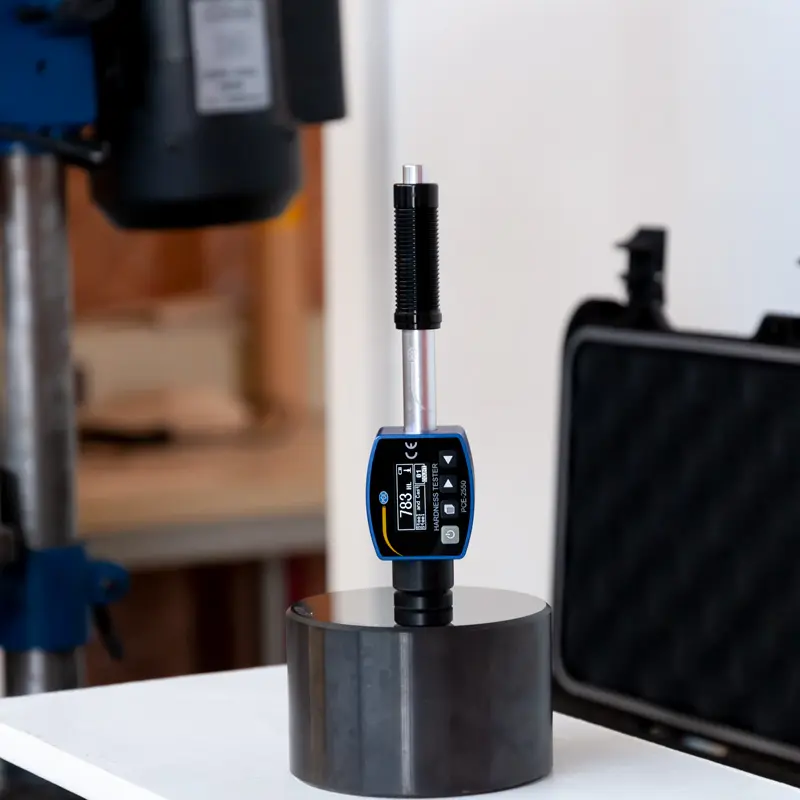

1 x Hardness test block
1 x Cleaning brush
1 x Support ring with Ø14 mm
1 x Transport case
1 x User manual

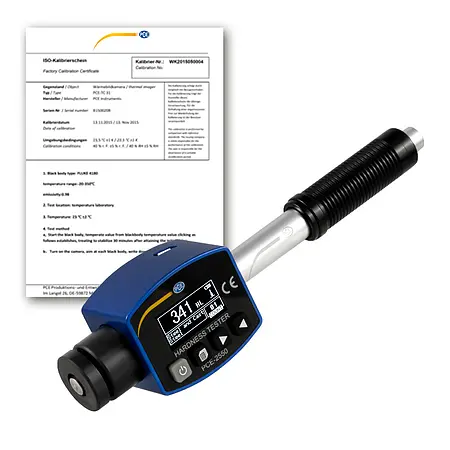

1 x ISO Calibration Certificate
