US$ 53.00
ex. VAT, ex. delivery costs
Adapters for measuring with external radii, e.g. on round bars and pipes. Allows centering and prevents slipping and thus measuring errors
Call to Order
Monday - Friday
9:00 a.m. - 5:00 p.m. ET
(561) 320-9162
Monday - Friday
9:00 a.m. - 5:00 p.m. ET
(561) 320-9162
| Measuring ranges | 170 ... 960 HLD |
| Measuring direction | 360° |
| Impact device | Type D |
| Measurement units | HL, HB, HRB, HRC, HRA, HV, HS |
| Selectable materials | 10 |

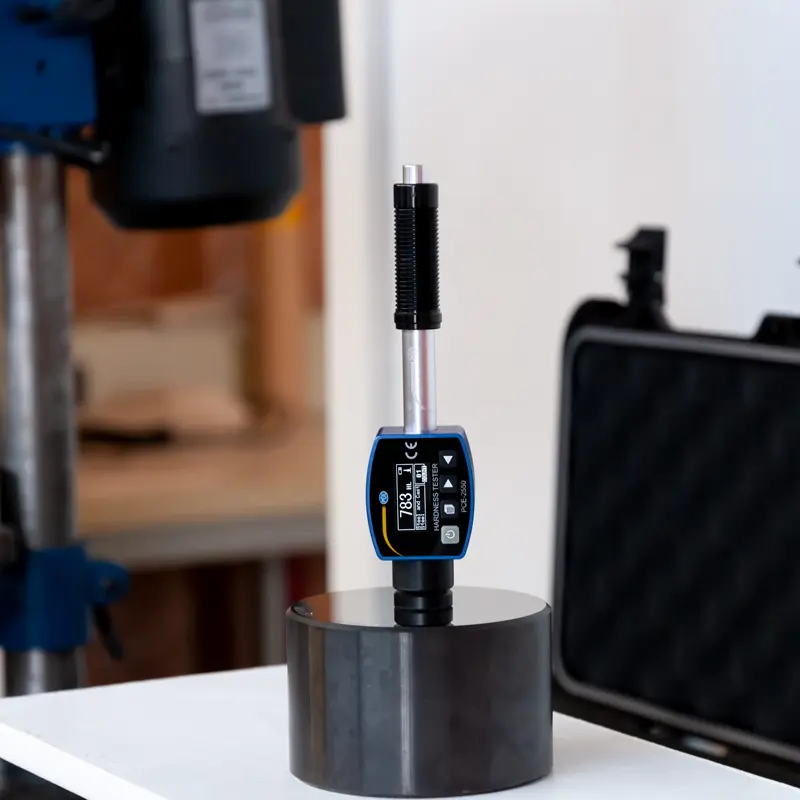

| Calibration | On enclosed hardness test block |
| Minimum weight of the workpiece | 2 kg (on stable support / 50 g with coupling gel) |
| Minimum thickness of the workpiece | 5 mm with coupling paste |

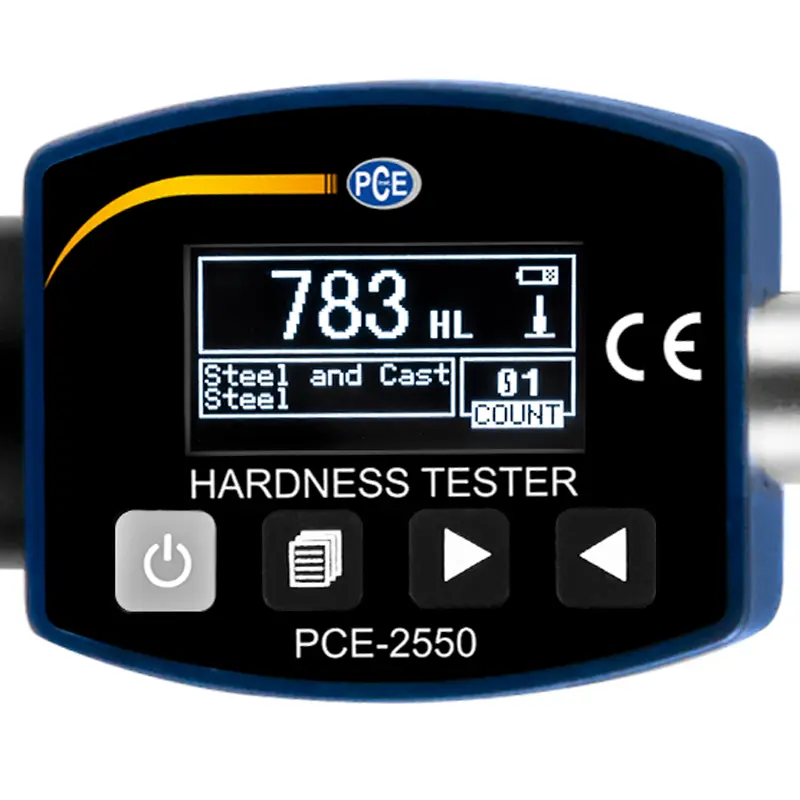

| Display |
OLED display |
| Internal measured value memory | 350 data groups |
| Alarm | Maximum or minimum value |
| Auto. Power Off | Yes |
| Power supply | 2 x CR2016 button cells |
| Interface | USB |
| Ambient temperature | 0 ... 40°C / 32 ...104°F |
| Dimensions | 145.5 x 32 x 26 mm |
| Weight | 160 g / < 1 lb |
| Material | Steel and cast steel |
| Scale | Rockwell, Brinell, Vickers, Shore |
| Measuring range | HRC: 17.9 ... 68.5 |
| HRB: 59.6 ... 99.6 | |
| HRA: 59.1 ... 85.8 | |
| HB: 127 ... 651 | |
| HV: 83 ... 976 | |
| HS: 32.2 ... 99.5 | |
| Material | Tool steel |
| Scale | Rockwell, Vickers |
| Measuring range | HRC: 20.4 ... 67.1 |
| HV: 80 ... 898 | |
| Material | Stainless steel |
| Scale | Rockwell, Brinell, Vickers |
| Measuring range | HRB: 46.5 ... 101.7 |
| HB: 85 ... 655 | |
| HV: 85 ... 802 | |
| Material | Cast iron |
| Scale | Rockwell, Brinell, Vickers |
| Measuring range | HRC: --- |
| HB: 93 ... 334 | |
| HV: --- | |
| Material | Ductile iron |
| Scale | Rockwell, Brinell, Vickers |
| Measuring range | HRC: --- |
| HB: 131 ... 387 | |
| HV: --- | |
| Material | Cast aluminum alloy |
| Scale | Rockwell, Brinell |
| Measuring range | HRB: 23.8 ... 84.6 |
| HB: 19 ... 164 | |
| Material | Brass |
| Scale | Rockwell, Brinell |
| Measuring range | HRB: 13.5 ... 95.3 |
| HB: 40 ... 173 | |
| Material | Bronze |
| Scale | Brinell |
| Measuring range | HB: 60 ... 290 |
| Material | Machined copper alloy |
| Scale | Brinell |
| Measuring range | HB: 45 ... 315 |
| Material | Machined steel alloy |
| Scale | Brinell |
| Measuring range | HB: 143 ... 650 |
ex. VAT, ex. delivery costs
Adapters for measuring with external radii, e.g. on round bars and pipes. Allows centering and prevents slipping and thus measuring errors
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
Adaptor for internal diameters in concave surfaces such as pipes and tubes. Allows centering and prevents slipping and thus measuring errors.
ex. VAT, ex. delivery costs
Adaptor for internal diameters in concave surfaces such as pipes and tubes. Allows centering and prevents slipping and thus measuring errors.
ex. VAT, ex. delivery costs
Adaptor for internal diameters in concave surfaces such as pipes and tubes. Allows centering and prevents slipping and thus measuring errors.
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
Consisting of:
HZ12.5-17 Mounting adapter concave, 12.5 … 17 mm (inside)
HZ11-13 Mounting adapter concave, 11 … 13 mm (inside)
HZ16.5-30 Mounting adapter concave, 16.5 … 30 mm (inside)
Z10-15 Mounting adapter convex, 10 … 15 mm (outside)
Z14.5-30 Mounting adapter convex, 14.5 … 30 mm (outside)
Z25-50 Mounting adapter convex, 25 … 50 mm (outside)
HK11-13 Ball mounting adapter ball, 11 … 13 mm (inside)
HK12.5-17 Ball mounting adapter ball, 12.5 … 17 mm (inside)
HK16.5-30 Ball mounting adapter ball, 16.5 … 30 mm (inside)
K14.5-30 Mounting adapter ball, 14.5 … 30 mm (outside)
K10-15 Mounting adapter ball, 10 … 15 mm (outside)
