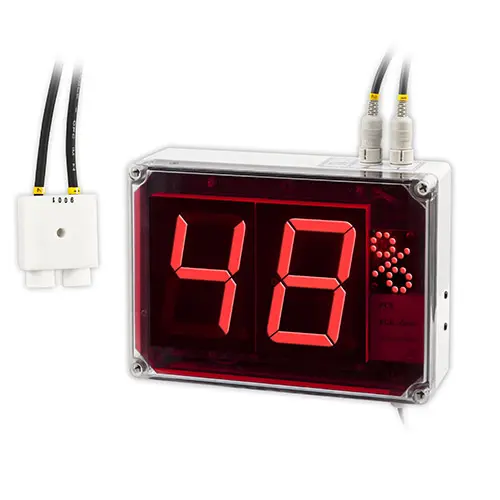

Large Display PCE-G1

Large Display PCE-G1 [zoom]
Large Display PCE-G1

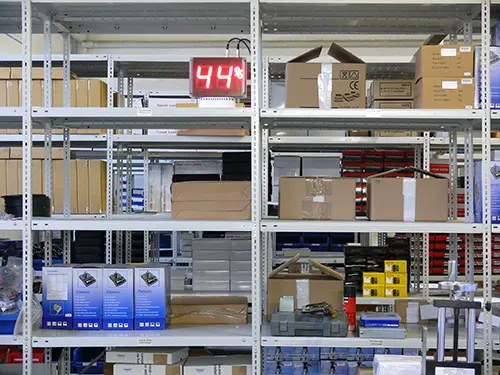

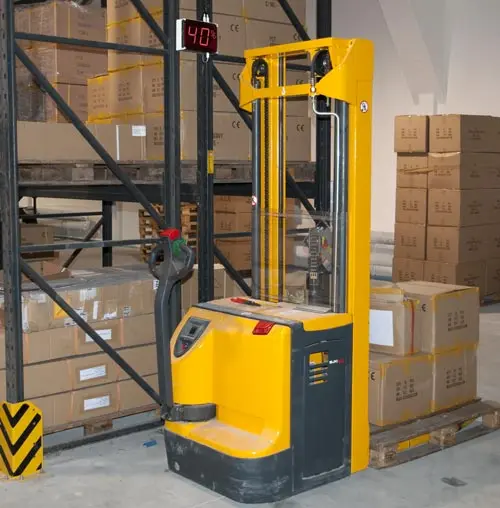

Large Display PCE-G1 application
Large Display PCE-G1 application

Large Display PCE-G1

Order no.: PCE-G1
GTIN (EAN): 4250348702746
US$ 1,452.00
ex. Sales Tax, ex. delivery costs
:
4250348702746
PCE-G1
Available in:1-2 days
* Includes a longer sensor cable + a measurement amplifier
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Accessory

Description

Large Display PCE-G1 for relative humidity and temperature with
a large display (values can be read up to 50 m)
The large display is intended for stationary measurement of relative humidity and temperature and direct display on a large screen. This large display consists of a large monochrome display and is protected according to IP 54.

The measured variables are displayed alternately: relative humidity (2 s) and temperature (2 s). The sensors of the humidity and temperature meter are calibrated at the factory. However, an ISO calibration certificate can also be ordered as an option. Simple, accurate and robust.

Specification

Technical specifications
Measurement ranges
relative humidity / temperature		 10 to 95% r.h. / 0 to 60°C
Resolution
relative humidity / temperature		 1% r.h. / 1°C
Accuracy
relative humidity / temperature		  ±2% r.h. / 1°C
Visible distancecan be read from 50m away
Sensor type
relative humidity / temperature		 capacitive / PT1000
Response time T90approx. 4 seconds
Cable length (between sensor and display)1 meter
Display 100mm high LED (alternates values)
PortRS-232
Power110V to 230V / 50 to 60Hz
DimensionsSensor: 50 x 70 x 20mm
Display: 175 x 250 x 75mm
ProtectionIP 54
Weight 1.3kg (with sensor and cable)

Delivery Scope

1 x Large Display PCE-G1
1 x Sensor for temperature and humidity with connection cable (in selected configuration)
1 x Mains power cable
1 x Instruction manual

Downloads
