IoT Sensor PCE-CP 20

Multi-parameter photometer with Bluetooth interface / PC software / Cloud service / Cross-system synchronization of measured values / Up to 7 selectable parameters / For measuring e.g. pH, alkalinity, chlorine, cyanuric acid / Storage of measured values

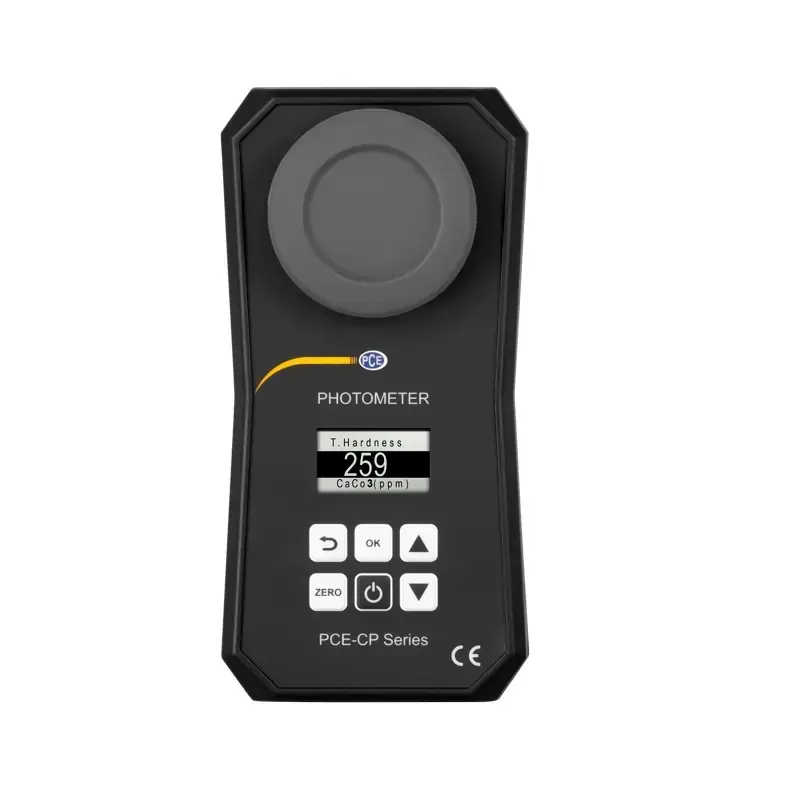

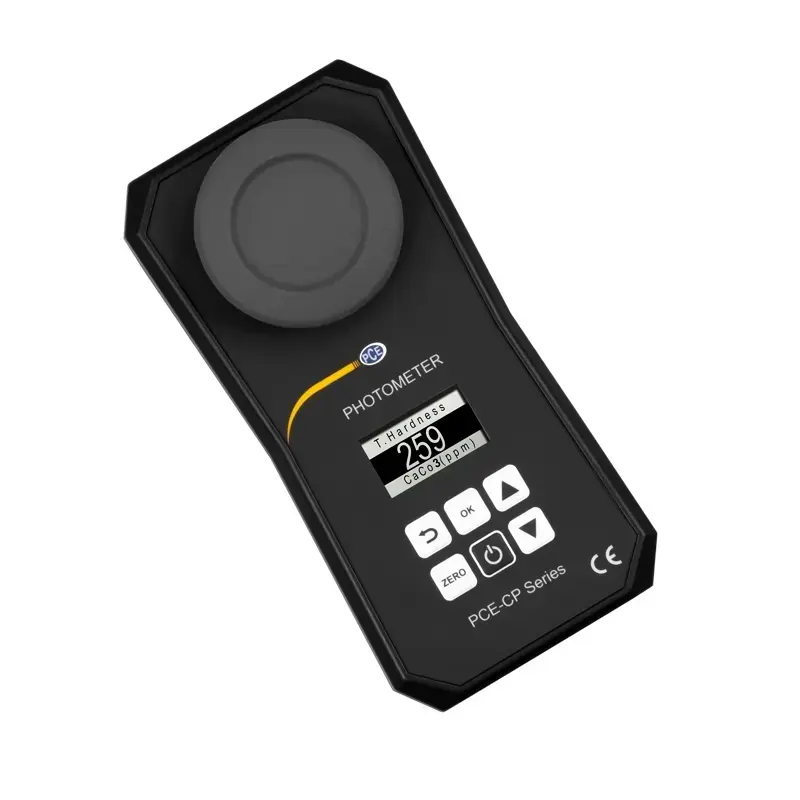

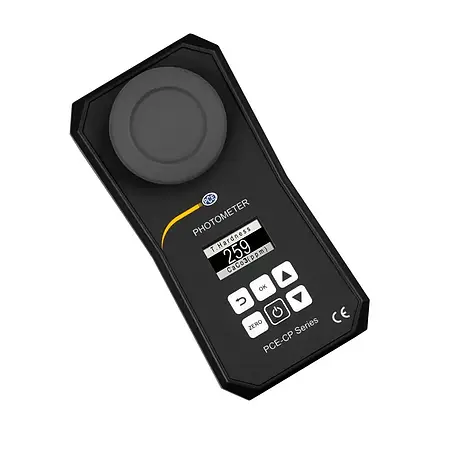

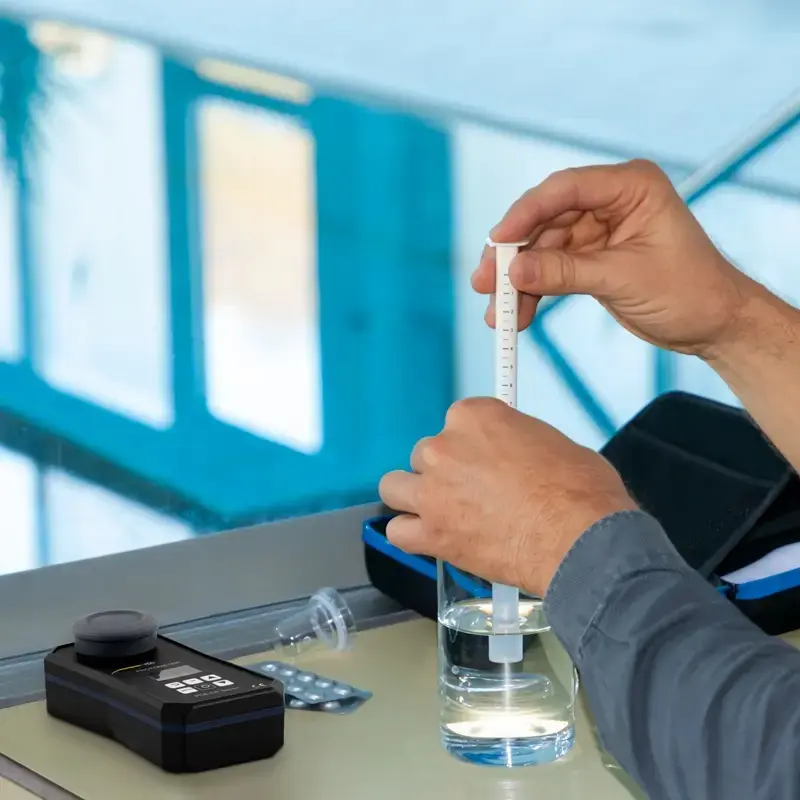

The multi-parameter IoT sensor is a mobile measuring device for liquid analysis. This enables the most varied of measurements to be carried out with the multi-parameter IoT sensor. With this multi-parameter IoT sensor, for example, it is possible to determine alkalinity, chlorine, cyanuric acid or the pH value. In order to carry out a measurement with the multi-parameter IoT sensor, a water sample of 10 ml must be placed in a cuvette. The built-in LED in the multi-parameter IoT sensor generates a test light in the wavelength ranges of 503 nm, 570 nm and 620 nm. A photodiode now recognizes the value to be measured based on the light transmission of the sample.

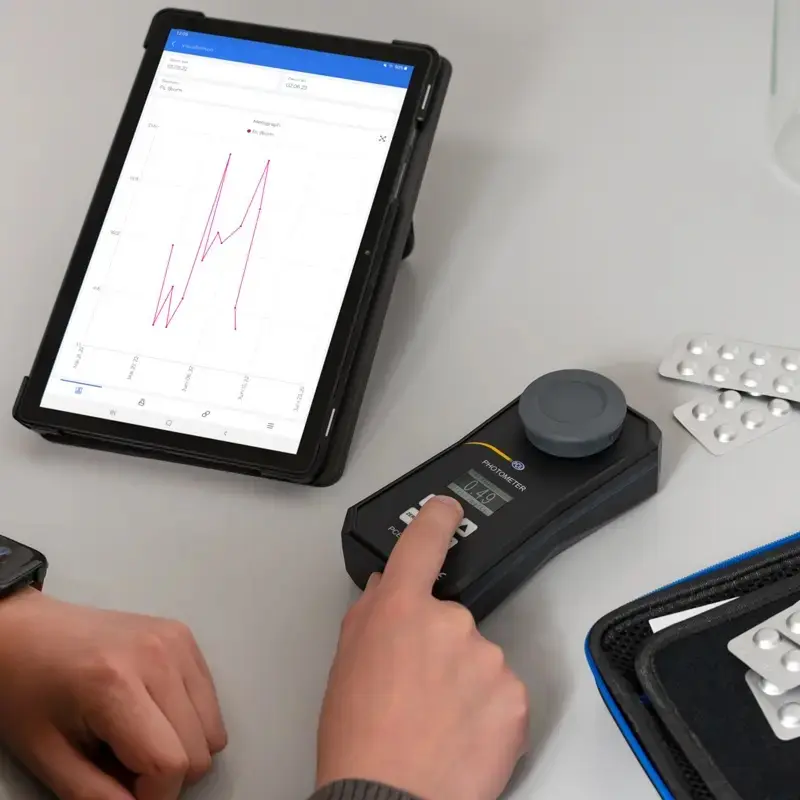

Each measurement is automatically saved by the multi-parameter IoT sensor. The stored measured values can then be read out, for example, via a mobile device via the Bluetooth interface built into the multi-parameter IoT sensor. A free app is available to analyze the measured values from the multi-parameter IoT sensor. It is also possible to establish a Bluetooth connection between the multi-parameter IoT sensor and a computer. Free software is also available for this, with which the measurement data can be analyzed. As another special feature of the multi-parameter IoT sensor, the measurement data can be uploaded to a cloud using both variants and accessed from anywhere. This service for the multi-parameter IoT sensor is also free of charge.

- Up to 7 selectable parameters
- Bluetooth connection with app
- Exchangeable and lockable cuvette
- 503 nm / 570 nm / 620 nm LED
- Automatic shutdown when inactive
- Many different menu languages
- Light detector: photodiode
- Cuvette: 36 x ø 21 mm / 3.6 x ø 2.1 cm (10 ml)

Alkalinity
Measuring range	0… 30 mg / l
	30… 60 mg / l
	60… 100 mg / l
	100… 200 mg / l

Accuracy	3 mg / l
	7 mg / l
	12 mg / l
	18 mg / l

Resolution	1 mg / l

Chlorine
Measuring range	0.00 ... 2.00 mg / l
	2.00 ... 3.00 mg / l
	3.00 ... 4.00 mg / l
	4.00 ... 8.00 mg / l

Accuracy	0.10 mg / l
	0.23 mg / l
	0.75 mg / l
	1.00 mg / l

Resolution	0.01 mg / l

Cyanuric acid
Measuring range	0… 15 mg / l
	15… 50 mg / l
	50… 120 mg / l
	120… 160 mg / l

Accuracy	1 mg / l
	5 mg / l
	13 mg / l
	19 mg / l

Resolution	1 mg / l

pH
Measuring range	6.50 ... 8.40 pH
Accuracy	0.11 pH
Resolution	0.01 pH

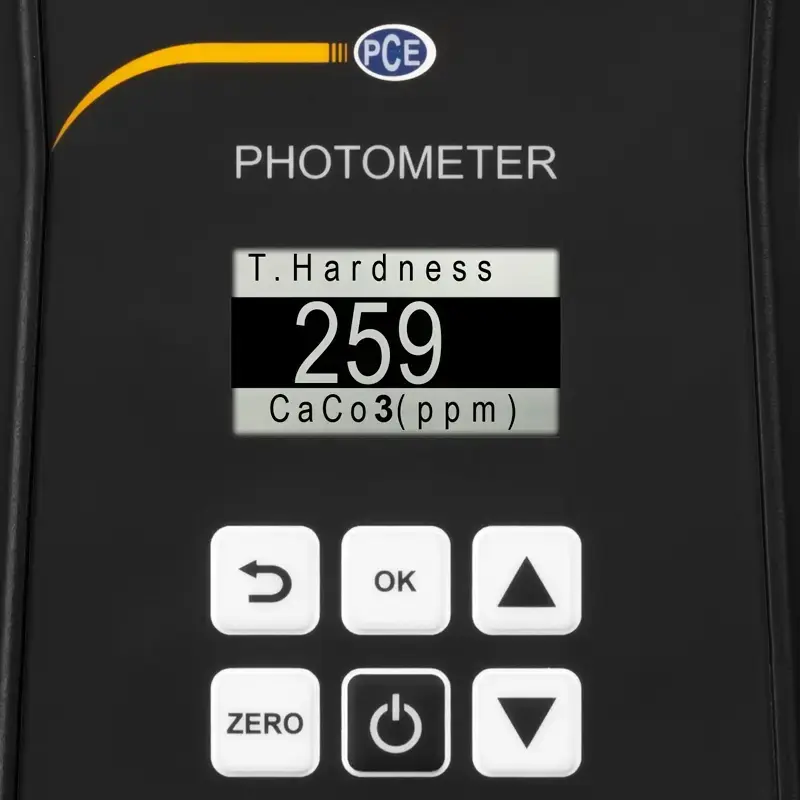

Total hardness
Measuring range	0… 30 mg / l
	30… 60 mg / l
	60… 100 mg / l
	100… 200 mg / l
	200 ... 300 mg / l
	300 ... 500 mg / l

Accuracy	3 mg / l
	5 mg / l
	10 mg / l
	17 mg / l
	22 mg / l
	58 mg / l

Resolution	1 mg / l

Calcium hardness
Measuring range	0… 25 mg / l
	25… 100 mg / l
	100 ... 300 mg / l
	300 ... 500 mg / l

Accuracy	8 mg / l
	22 mg / l
	34 mg / l
	45 mg / l

Resolution	1 mg / l

Further specification

Calibration	Zero point calibration
Light source	503 nm / 570 nm / 620 nm LED
Light detector	Photodiode
Power supply	4 x 1.5V AA batteries
Dimensions of the cuvette	36 x ø 21 mm / 3.6 x ø 2.1 cm (10 ml)
Menu languages	English, German, French, Spanish and Italian
Storage	Automatic storage of measured values and readout
Storage space	256 values
Interface	Bluetooth connection with app and PC software
Automatic shutdown	After 300 seconds of inactivity
Operating conditions	5… 45°C, 20 ... 90% RH non-condensing
Storage conditions	5… 45°C, 20 ... 90% RH non-condensing
Dimensions	165 x 95 x 50 mm / 6.5 x 3.7 x 2 in
Weight	230 g / < 1 lb

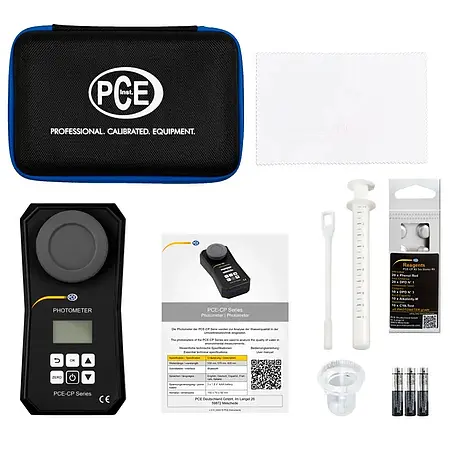

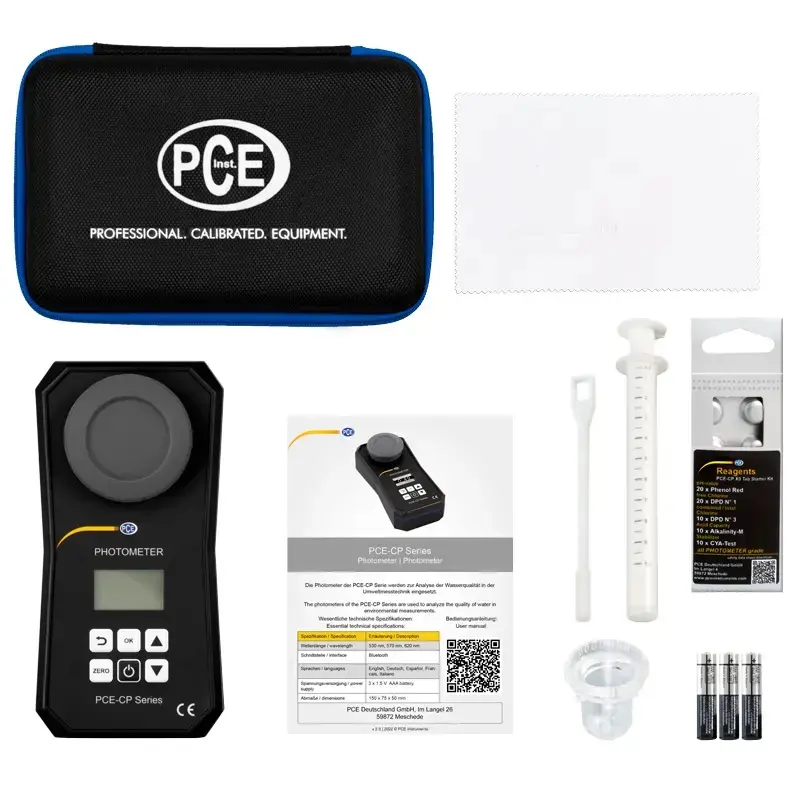

1 x Multi-parameter IoT Sensor PCE-CP 20 incl. Cuvette
1 x Replacement cuvette
1 x Light protection cover
1 x Microfiber cloth
1 x Plunger
1 x 10 ml dosing pipette
4 x AA batteries
1 x Quick start guide
1 x Service bag
1 x Free app
1 x Free PC software
1 x Free cloud service
1 x Reagent starter kit (20x pH, 20x free chlorine, 10 x combined / total chlorine, 10x alkalinity, 10 x cyanuric acid)
