Inspection Camera PCE-VE 200

Order no.: PCE-VE 200
Topseller
US$ 521.00
PCE-VE 200
ex. VAT, ex. delivery costs
1600 x 1200 pixels
Video borescope
Image, Video
Yes (Micro SD)
Yes (Micro USB, TV out)
Available in: 1-2 days

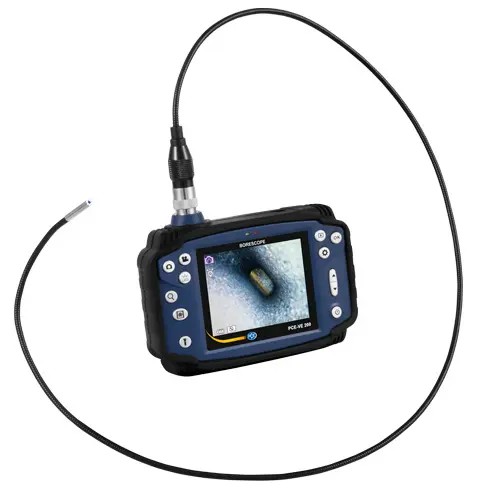

PCE-VE 200 Inspection Camera
Small diameter (ø 4.5 mm) industrial endoscopic video inspection camera with 1 m / 3.28 ft long cable provides excellent image quality at an affordable price





PCE-VE 200 is an industrial inspection camera, endoscope or borescope for the non-destructive evaluation (NDE) of engines, machines and more. This industrial borescope provides excellent image quality at an affordable price. An ideal tool for diagnosing issues in hard-to-reach places, the waterproof camera head features 6 LED lights with adjustable intensity for optimal illumination. In addition, digital image magnification or zoom of up to 4 times is available.

The borescope stores the recorded images and videos directly to a micro SD card memory. The 1 m / 3.28' cable length and 4.5 mm / 0.18" diameter allow the video inspection camera unique access to view the insides of walls, pipes, vents, ducts, engines and machinery, thus eliminating the need for costly and time-consuming dismantling. Mechanical engineering, manufacturing, automotive, aviation, construction, plumbing and heating, ventilation, air conditioning and refrigeration (HVACR) professionals alike find this video inspection camera useful in a variety of applications.

***Not for medical use***




- Waterproof camera head (IP67 protection class)
- 4.5 mm / 0.18 in diameter, semi-rigid
- 1 m / 3.28 ft cable length
- 180° image rotation

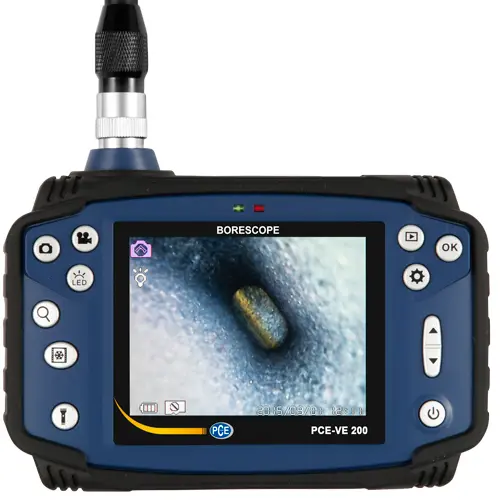

- 3.5" LCD display
- CMOS chip image sensor
- 1600 x 1200 pixels JPEG image / 640 x 480 pixels AVI video resolution
- Micro SD card memory
- Micro USB 2.0 and TV outputs
Technical Specification
Display 3.5" LCD
Resolution video function AVI (640 x 480)
Resolution image function JPEG (1600 x 1200)
Image rotation 180° rotation and mirror function
Freeze function yes
Zoom up to 4-times
Storage medium Micro SD card
Menu languages German
English
Spanish
French
Russian
Japanese
simplified Chinese
traditional Chinese

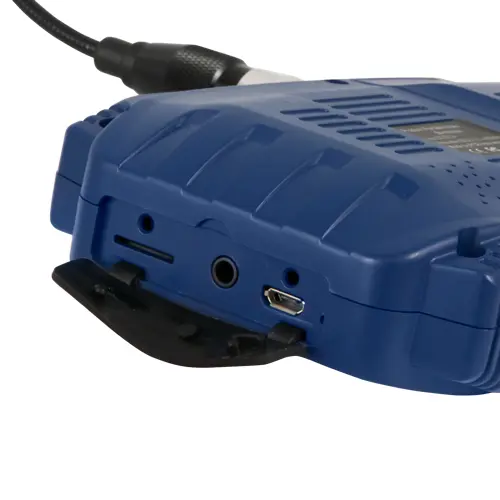

Interfaces Micro USB 2.0, TV-output, Micro SD card slot
TV-output PAL
Power supply Li-Ion battery
Battery capacity 2600 mAh
Operating conditions -10 ... +40 °C / 14 ... 104 °F, rel. humidity <75 %
Technical Specification of Video Borescope PCE-VE 200 (Borescope cable)
Cable diameter 4.5 mm / 0.17"
Image sensor 1/8" CMOS chip
Resolution camera 640 x 480 pixel
Camera lighting 6 white LEDs (intensity can be set)
Field of view / angle of view 90 °
Field of view depth 15 ... 100 mm / 0.59 ... 3.94"
Length of camera hose 1 m / 3ft 3"
Pushcable semi-flexible (semi-rigid spiral)
Environmental conditions of Video Borescope PCE-VE 200

Operating temperature

Probe

In air: -10 … +50 °C  / 14 ... 122 °F
In water: +5 … +50 °C  / 41 ... 122 °F

Main unit

In air: -10 … +50 °C   / 14 ... 122 °F

Relative humidity

Probe and main unit

15 ... 90 %

Fluid resistance

Probe and main unit

Machine oil, light oil or cooking salt solution 5 %

Protection against penetration

Probe

Water, oil and dust, according to protection class IP67

Main unit

Rain and wind (battery compartment must be closed)
Not under water

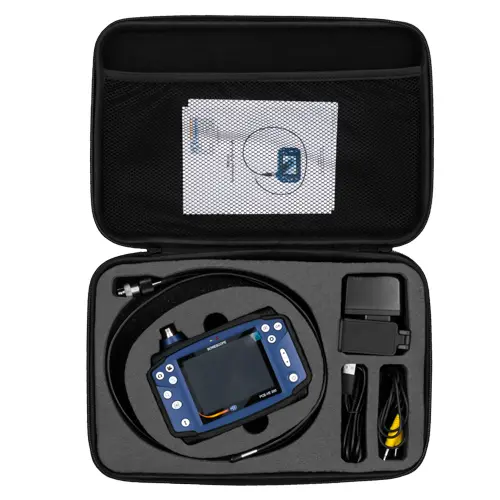

1 x PCE-VE 200 inspection camera
1 x Wall charger with detachable USB to Micro USB cable
1 x Video output cable
1 x User manual


Accessories

Order no.: PCE-VE 200-SCSV1
Camera cable with front and side camera 9 mm PCE-VE 200-SCSV1 Length: 1 m
Replacement camera cable for PCE-VE 200 borescope

- Cable length: 1 m / 3.3 ft
- Camera head diameter: 9 mm / 0.4 in
- Front and side view camera
Catalogue: Measuring Instruments / Test Meters / Industrial Borescope
Manufacturer: PCE Instruments
US$ 310.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: PCE-VE 200-SCSV3
Camera cable with front and side camera 9 mm PCE-VE 200-SCSV3 Length: 3 m
Replacement camera cable for PCE-VE 200 borescope

- Cable length: 3 m / 9.9 ft
- Camera head diameter: 9 mm / 0.4 in
- Front and side view camera
Catalogue: Measuring Instruments / Test Meters / Industrial Borescope
Manufacturer: PCE Instruments
US$ 409.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: PCE-VE 200-SCS3
Camera cable 3.7 mm PCE-VE 200-SCS3 Length: 3 m
PCE-VE 200-SCS3 is a 3-meter or 10-foot long semi-flexible camera cable for PCE-VE 200 Series industrial endoscopes, borescopes, videoscopes, and inspection cameras.

- IP67 rating - dust tight, protected against liquid immersion
- 3.7 mm / 0.14" diameter
- 3 m / 9.8' long
- 6 LED lights with adjustable intensity for optimal illumination
Manufacturer: PCE Instruments
US$ 623.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: PCE-VE 200-SCS1
Camera cable 3.7 mm PCE-VE 200-SCS1 Length: 1 m
PCE-VE 200-SCS1 is a semi-flexible camera cable for PCE-VE 200 Series industrial endoscopes, borescopes, videoscopes and inspection cameras.

- IP67 rating - dust tight, protected against liquid immersion
- 3.7 mm / 0.14" diameter
- 1 m / 3.28' long
- 6 LED lights with adjustable intensity for optimal illumination
Manufacturer: PCE Instruments
US$ 486.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: PCE-VE 200-BAT
Spare Battery for PCE-VE 200 Series
PCE-VE 200-BAT is a spare battery for PCE-VE 200 Series industrial endoscopes, borescopes, videoscopes and inspection cameras.

- Rechargeable 18650 Li-ion battery
- 2600 mAh capacity
- Offers up to 5 hours of continuous use from full charge
Manufacturer: PCE Instruments
US$ 46.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: PCE-VE 200-SC
Semi-Flexible Camera Cable for PCE-VE 200 Series
PCE-VE 200-SC is a semi-flexible camera cable for PCE-VE 200 Series industrial endoscopes, borescopes, videoscopes and inspection cameras.

- IP67 rating - dust tight, protected against liquid immersion
- 4.5 mm / 0.18" diameter
- 1 m / 3.28' long
- 6 LED lights with adjustable intensity for optimal illumination
Manufacturer: PCE Instruments
US$ 257.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
