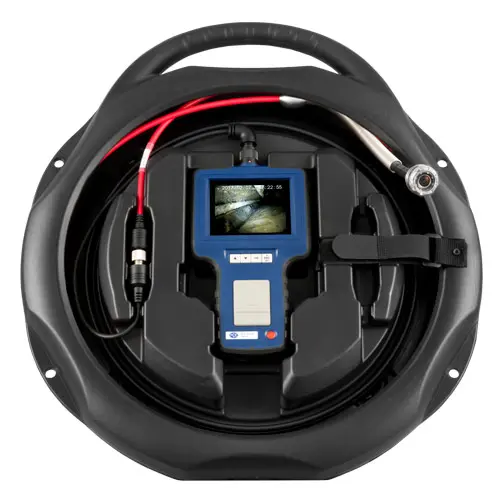

Industrial Borescope PCE-VE 390N

Industrial Borescope PCE-VE 390N [zoom]
Industrial Borescope PCE-VE 390N

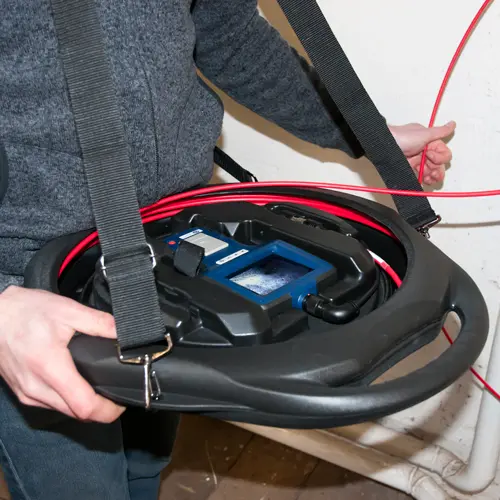

Industrial Borescope PCE-VE 390N application
Industrial Borescope PCE-VE 390N application

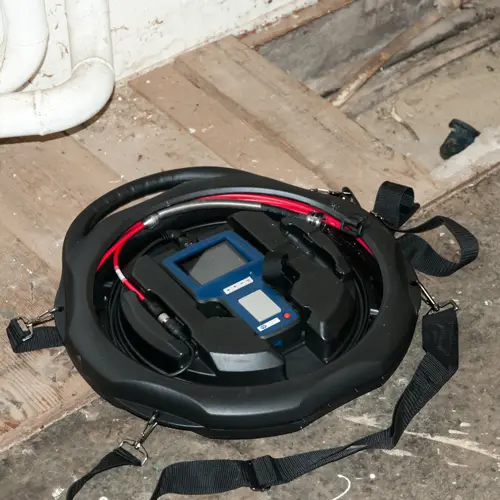

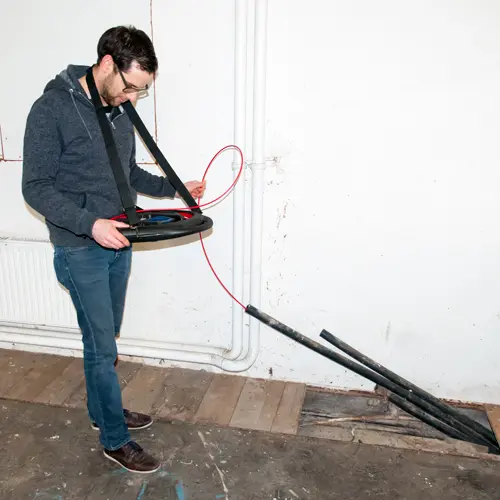

Industrial Borescope PCE-VE 390N in construction work
Industrial Borescope PCE-VE 390N in construction work

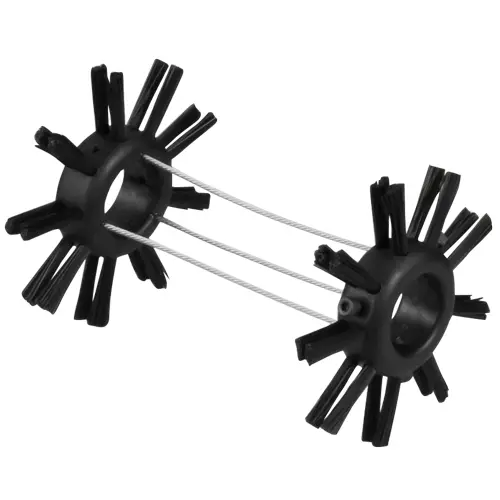

Industrial Borescope PCE-VE 390N centering star / guidance for the borescope

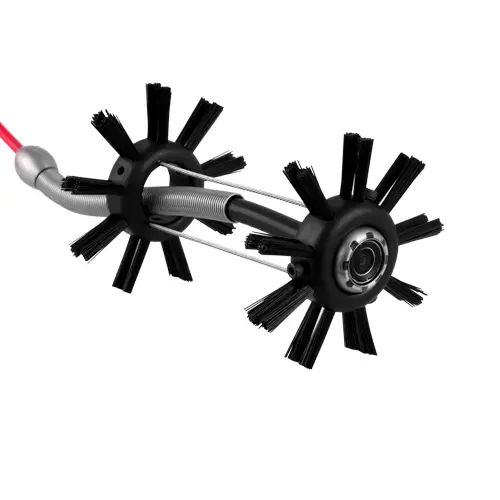

Industrial Borescope PCE-VE 390N centering aid mounted on the borescope head

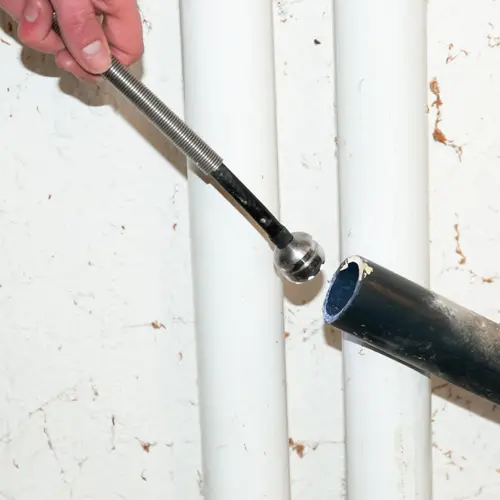

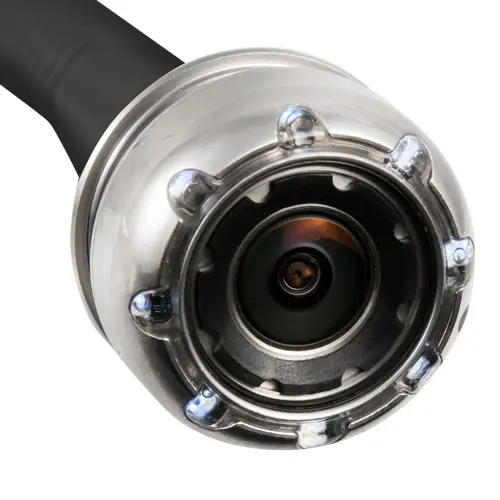

Industrial Borescope PCE-VE 390N borescope head

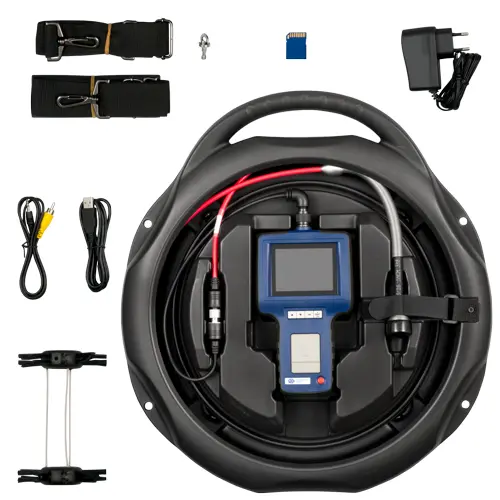

Industrial Borescope PCE-VE 390N delivery

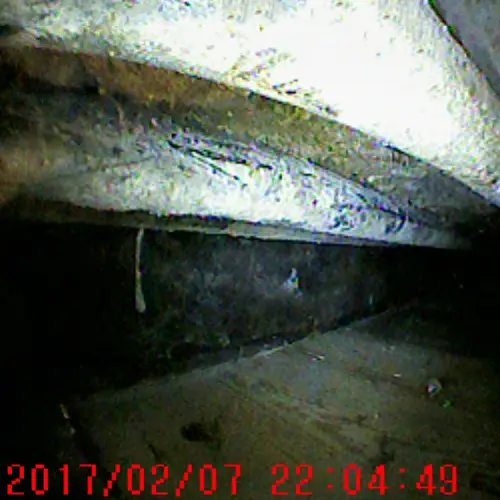

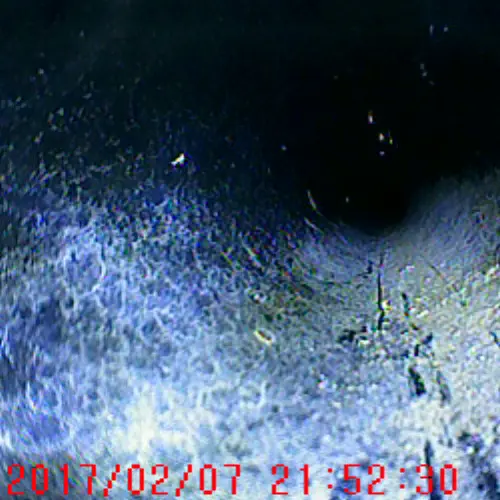

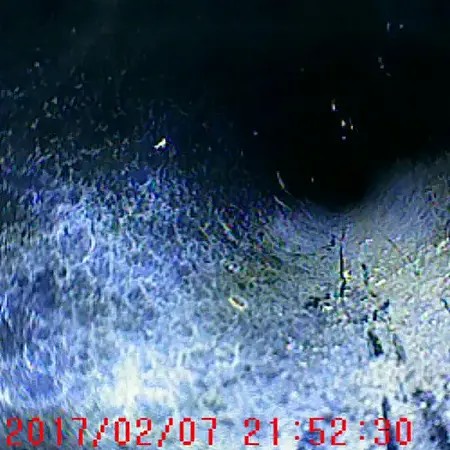

Industrial Borescope PCE-VE 390N application image
Industrial Borescope PCE-VE 390N application image

Industrial Borescope PCE-VE 390N

Order no.: PCE-VE 390N
GTIN (EAN): 4250348718761
US$ 1,848.00
ex. Sales Tax, ex. delivery costs
:
4250348718761
PCE-VE 390N
Available in:1-2 working days
Flexible
No
28 mm
10 m
320 x 240 / 640 x 480 pixels
Digital
No
Image, Video
Yes (SD card)
Yes (Mini USB, AV out)
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Accessory

Description

PCE-VE 390N Industrial Borescope
Includes semi-flexible / semi-rigid, 28 mm / 1.1 in diameter, 10 m / 32.8 ft long cable and SD card memory for saving pictures and videos
PCE-VE 390N is the ideal industrial borescope or snake inspection camera for the analysis of buildings (walls, supports, eaves, gutters, attics, crawl spaces), plumbing (pipes, drains, sewers, wells) and heating, ventilation, air conditioning and refrigeration (HVACR) systems (ducts, furnaces, chimneys, boiler and condenser tubes). The IP68-rated cable of this inspection camera is waterproof and heavy duty, making the PCE-VE 390N well suited for use in tough environments like construction sites and industrial installations.

*** Not suitable for medical use ***

Highlights

- Camera cable length 10 m / 32 ft 9"
- Camera head diameter 28 mm / 1.1"
- Storage of images and videos
- 8 GB SD memory card incl.
- LED lighting
- With centering brush
- Robust carrying case incl.
- Additional camera cables optional

Specification

Cable diameter

28 mm / 1.11 in

Cable length

10 m / 32.8 ft

Depth of field

10 mm … ∞ / 0.4 in to infinity

Field of view

150.8°
Bending radius 90 mm / 3.54 in.
Illumination 8 LEDs
Image sensor CMOS / 640 x 480
Picture rate 30 / sec.
Display
 88.9 mm / 3.5 in TFT LCD monitor
Interface Mini USB 1.1 / AV out
Storage options Image or video
Storage 8 GB memory card (can be increased to 32 GB)
Compression format MPEG 4
Picture format JPEG (640 x 480)
Video output format NTSC / PAL
Video format ASF (320 x 240)
Operation and storage temperature -10 ... 60°C / 14 ... 140°F
Voltage supply Rechargeable 3.7V lithium-ion battery
Dimensions, handheld device 207 x 118 x 37 mm / 8.15 x 4.65 x 1.46 in
Weight, incl. carrying case 9.98 kg / 22 lbs
Protection type, camera IP 68 = No ingress of dust; complete protection against contact (dust tight) and waterproof; meaning it can be underwater for 30 minutes at depths of up to 1.5 m / 4.92 ft





Delivery Scope

1 x Industrial Borescope PCE-VE 390N
1 x 8 GB SD memory card
1 x USB cable
1 x Carrying case
1 x Carrying straps
1 x Mains power adapter
1 x User manual

Please note: Not to be used for medical applications!
