Camera Head with Transmitter PCE-PIC-TCH

Order no.: PCE-PIC-TCH
US$ 741.00
PCE-PIC-TCH
ex. VAT, ex. delivery costs
Available in: 1-2 days

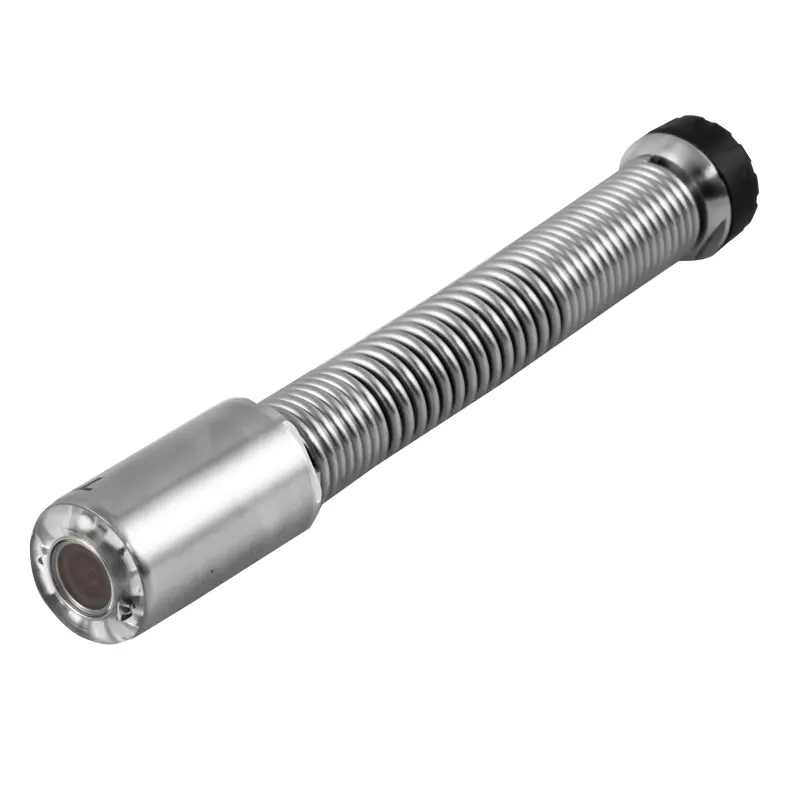

The camera head for the PCE-PIC series can be used to locate the endoscope cable in a pipeline. The camera head sends out a constant signal at 512 Hz. This signal can be located using the Locator PCE-VE-LOC. This feature ensures that in addition to the optical inspection, the course of a line over days can be found out.

- 23 mm camera head
- Camera head with 512 Hz transmitter
- For use with PCE-VE-LOC
Dimensions of camera head        23 mm x 45 mm
Camera length 150 mm / 5.9 in
Water resistance Up to 20 m / 65.6 ft
Material Stainless steel
Weight About 150 g / < 1 lb
Focus distance About 20 cm
Field depth About 100 cm
Resolution 720 x 576 Px
Transmission frequency 512 Hz
Sendo mode Constant
Transmission depth Max. 5 m / 16.4 ft in the ground


1 x Camera head PCE-PIC-TCH
