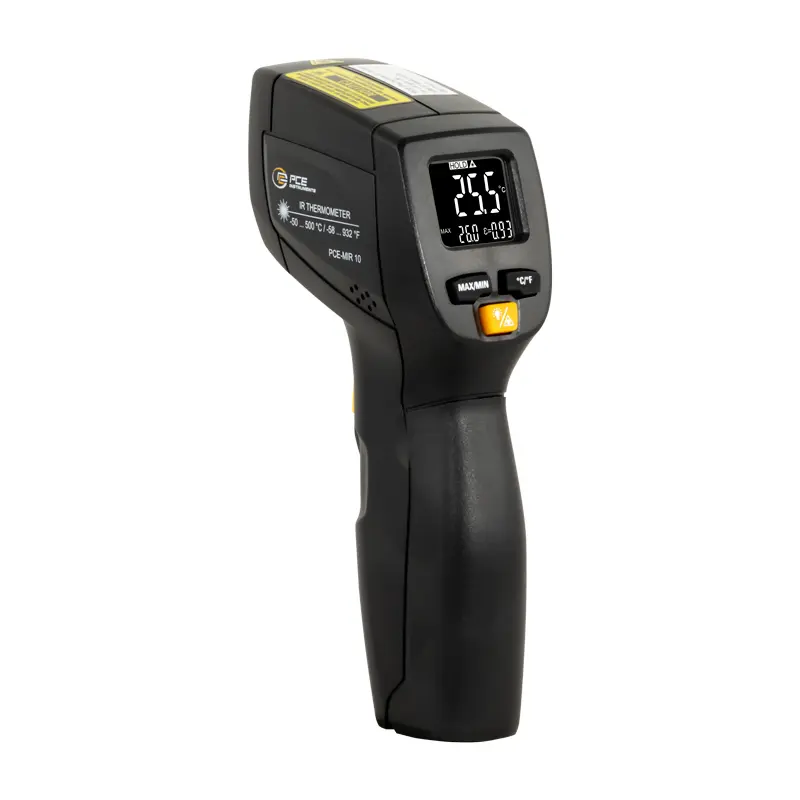

IR HVAC Meter PCE-MIR 10

IR HVAC Meter PCE-MIR 10 [zoom]
IR HVAC Meter PCE-MIR 10

IR HVAC Meter PCE-MIR 10

Order no.: PCE-MIR 10
GTIN (EAN): 4250348732149
US$ 47.00
ex. Sales Tax, ex. delivery costs
:
4250348732149
PCE-MIR 10
Available in:5-7 working days
Heating Systems
Handheld
N/A
-20 ... 380 °C / -4 ... 716 °F
Yes (Micro SD)
Yes (USB)
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Description

HVAC measuring device with a measuring range of -50 ... +500 °C / emission value 0.95 /
Display of largest and smallest measured value / backlit display /
measuring spot 12:1 / quickly ready for use / optionally with ISO calibration certificate

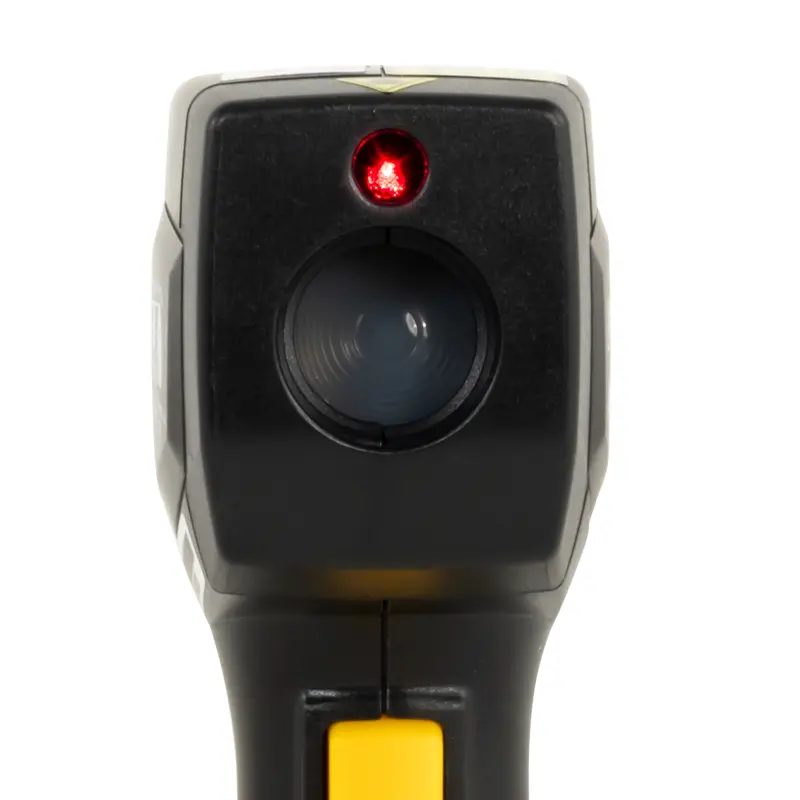

The HVAC measuring instrument has a measuring range of -50 ... +500 °C and covers a wide temperature range. With an accuracy of ±2 % ±2 °C at 20 ... 500 °C, the HVAC measuring device is a very precise measuring instrument. For better orientation of the measuring spot, a laser pointer is built into the HVAC measuring device. This laser on the HVAC measuring device has an output power of <1 mW. The emission value of the HVAC measuring device is fixed at 0.95.

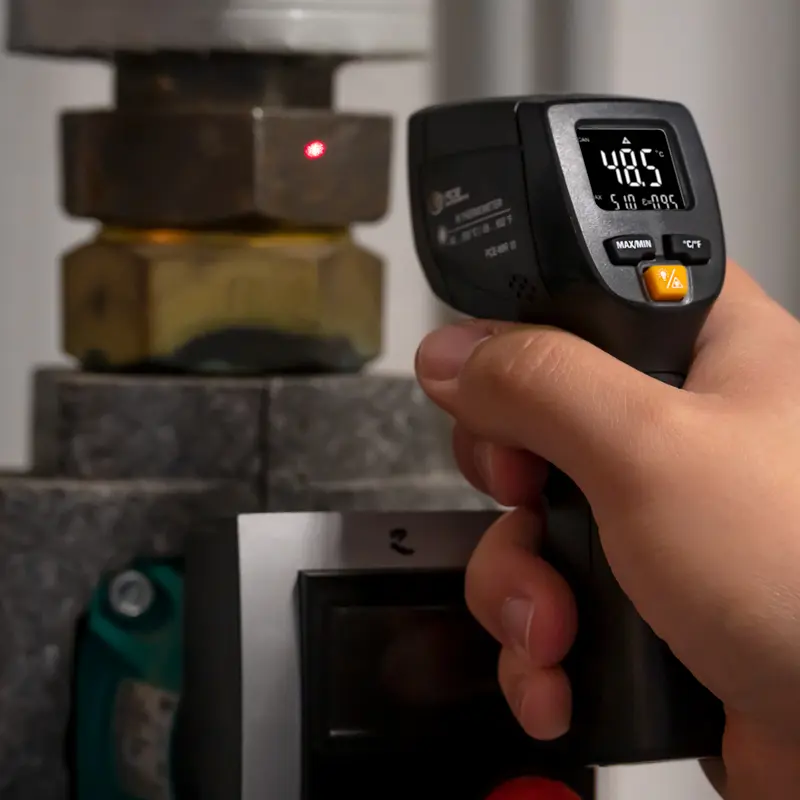

The HVAC measuring device is used, for example, for surface temperature testing of electric motors, combustion engines or heat sinks. Thanks to its compact design, the HVAC measuring device is handy and can be easily stowed away.

To switch on the HVAC measuring device, the measuring button must be pressed. The measurement is then immediately taken by the HVAC measuring device. When the button is released, the last value remains on the display of the HVAC measuring device until a new measurement is carried out. Optionally, the HVAC meter can be equipped with an ISO calibration certificate.

Highlights

- Measuring range -50 ... 500 °C
- automatic switch-off
- immediate operating range
- Measuring ratio 12:1
- Max / Min function
- optionally with ISO calibration certificate

Specification


Measuring range -50 … +500 °C / -58 … +932 °F
Resolution 0,1 °C / 0,1 °F
Accuracy ±3 °C / 5,4 °F bei -50 … +20 °C / -58 … +68 °F
  ±2 % ±2 °C / 3,6 °F bei 20 … 500 °C / 68 … 932 °F
Repeatability ±1 °C / ±1,8 °F

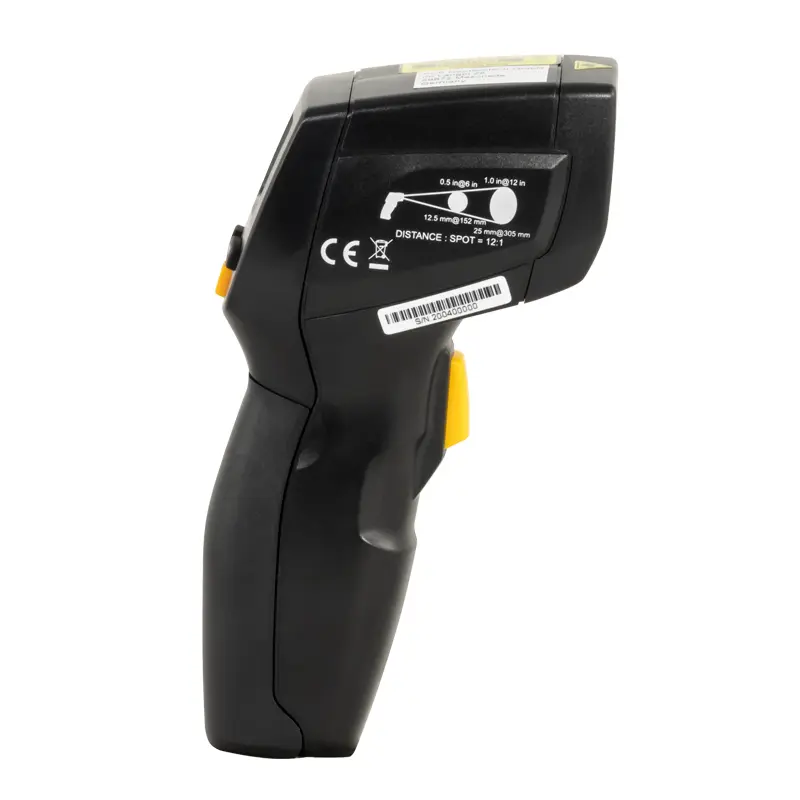

Spot ratio 12:1
Emission value 0,95 fixed
Measuring rate 2 Hz
Spectral range 8 … 14 µm
Overload indicator „ - - - - „
Laser output power: <1 mW; wavelength: 630 ... 670 mm;
  Laser class: 2
Power supply 9 V block battery
Operating conditions 00 ... 50 °C / 32 ... 122 °F, <90 % r. h.
Storage conditions -10 ... 60 °C / 14 ... 140 °F, <80 % r. h.
Dimensions 175 x 75 x 35 mm
Weight 132 g

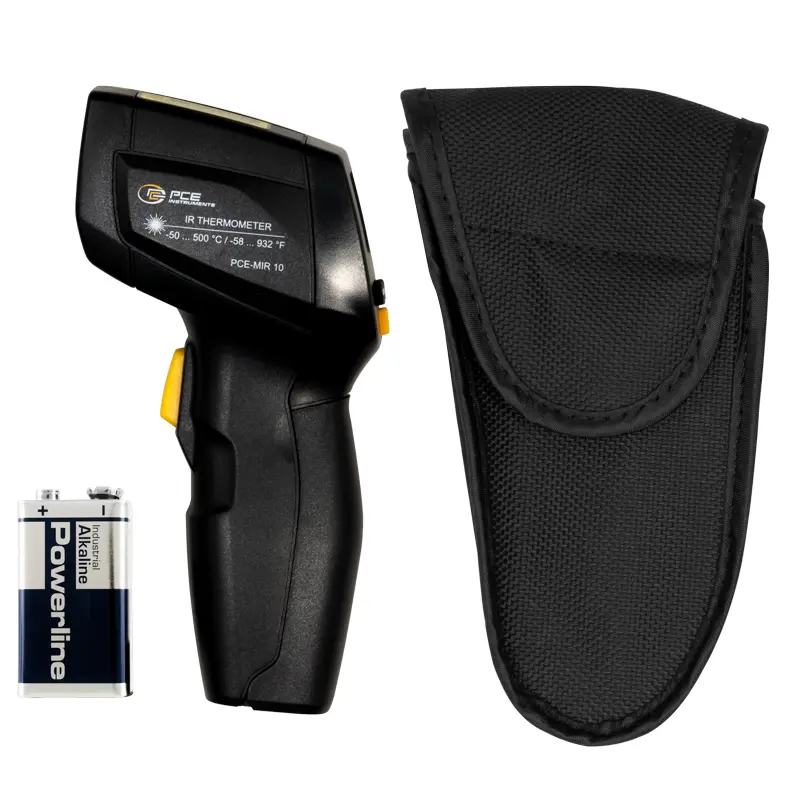

Delivery Scope

1 x IR HVAC Meter PCE-MIR 10
1 x Carrying bag
1 x instruction manual
