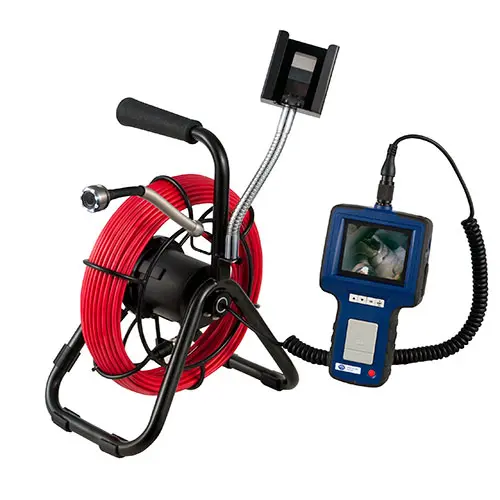

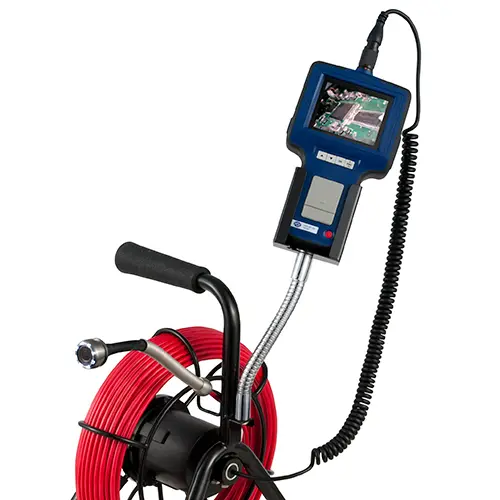

HVAC Meter PCE-VE 380
Waterproof downhole video inspection camera or industrial endoscope with 30 m / 98 ft long cable on reel
The HVAC meter, industrial borescope or inspection camera with a handheld monitor that allows you to gain valuable visual insight into the inner workings of machines and other small spaces such as ventilation ducts, drainpipes and downpipes, sewer pipes, chimneys and more.

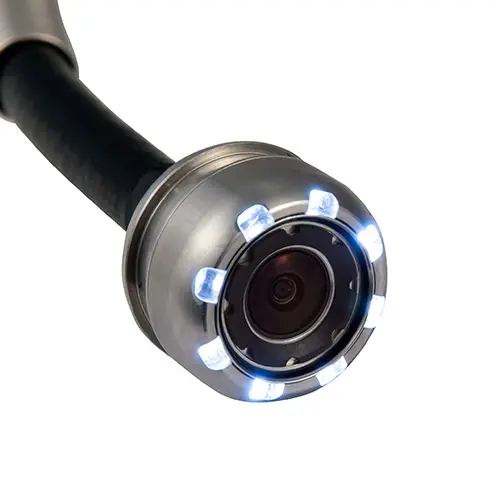

This semi-flexible / semi-rigid waterproof inspection camera is ideal for a variety of industrial and trade applications. With a sleek 28 mm / 1.11 in diameter waterproof camera head, the HVAC meter is a user-friendly inspection scope that can handle bends in pipes with diameters of only 90 mm / 3.54 in. Images and video can be stored directly on the device or on the memory card.
Cable diameter |
28 mm / 1.11 in |
Cable length |
30 m / 98 ft |
Depth of field |
10 mm … ∞ / 0.4 in to infinity |
Field of view |
150.8° |
| Bending radius | 90 mm / 3.54 in |
| Illumination | 8 LEDs |
| Image sensor | CMOS / 640 x 480 |
| Picture rate | 30 / sec. |
| Display |
88.9 mm / 3.5 in TFT LCD monitor |
| Interface | Mini USB 1.1 / AV out |
| Storage options | Image or video |
| Storage | 8 GB memory card (can be increased to 32 GB) |
| Compression format | MPEG 4 |
| Picture format | JPEG (640 x 480) |
| Video output format | NTSC / PAL |
| Video format | ASF (320 x 240) |
| Operation and storage temperature | -10 ... 60°C / 14 ... 140°F |
| Voltage supply | Rechargeable 3.7V lithium-ion battery |
| Dimensions, handheld device | 207 x 118 x 37 mm / 8.15 x 4.65 x 1.46 in |

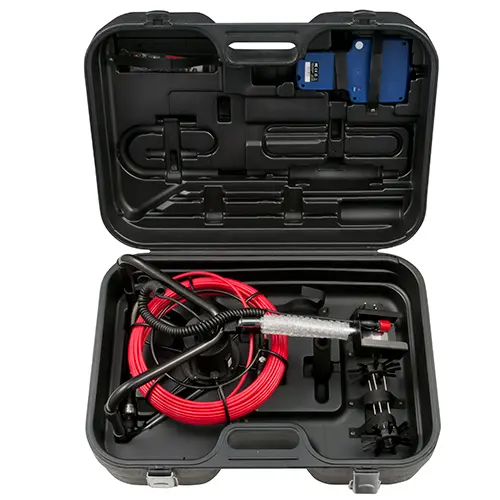

| Weight, incl. carrying case | 9.98 kg / 22 lbs |
| Protection type, camera | IP 68 = No ingress of dust; complete protection against contact (dust tight) and waterproof; meaning it can be underwater for 30 minutes at depths of up to 1.5 m / 4.92 ft |
|
|
|
ex. VAT, ex. delivery costs
***Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
***Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
***Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
***Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
***Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
***Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
***Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
PCE-VE-N-SCS includes two semi-flexible camera cables for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras.
- 3.9 mm diameter
- 1 meter long
- 320 x 240 pixel resolution
- 1 cable with front view camera
- 1 cable with side view camera
***Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
***Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
***Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
***Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
***Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
***Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
PCE-VE-N-SC10 is a flexible camera cable for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras.
- 5.5 mm diameter
- 10 meters long
- 320 x 240 pixel resolution
- Integrated LED light
***Attention: NOT compatible wit the VE 200 Series!***
ex. VAT, ex. delivery costs
