ex. VAT, ex. delivery costs
Screw-on temperature sensor. The sensor is connected to a measuring instrument via a miniature plug.
- Tmax.: 200 °C / 392 °F
- Accuracy: ± 1.5 °C
- Length: 1 m
- Washer interior: 8 mm
- Thermocouple: Type K
Air temperature | |
Measuring range | -20 … 60 °C(-4 … 140 °F) |
Resolution | 0.01 °C/°F |
Accuracy | ±0.5 °C @ 0 … 45 °C,±1.0 °C |
in remaining range | |
±1.0 °F @ 32 … 113 °F,±2.0 °F | |
in remaining range | |
Measuring rate | 3 Hz |
Relative humidity | |
Measuring range | 0 … 100 % RH |
Resolution | 0.1 % RH |
Accuracy | ±2.2 % RH (10 … 90 % RH) |
@ 23 °C (73.4 °F) | |
±3.2 % RH (<10,>90 % RH) | |
@23 °C (73.4 °F) | |
Response time | <10 s (90 % RH, 25 °C (77 °F), with no wind) |
Thermoelement | |
Sensor type | Thermoelement Type K |
Measuring range | -100 … 1372 °C(-148 … 2501 °F) |
Resolution | 0.01 °C/°F, 0.1 °C/°F, 1 °C/°F |
Accuracy | ±(1 % ±1 °C) |
Calculated values | |
Wet bulb temperature | -20 … 60 °C (-4 … 140 °F) |
Dew point temperature | -50 … 60 °C (-58 … 140 °F) |
Further specifications | |
Internal memory | 99 measuring points |
(redundant, only readable on the measuring device) | |
32,000 measuring points | |
(only readable on the PC) | |
Power supply | 3.7 V Li-ion battery |
Operating conditions | 0 … 40 °C (32 … 104 °F) <80 % RH, |
non-condensing | |
Storage conditions | -10 … 60 °C (14 … 140 °F) <80 % RH, |
non-condensing | |
Dimensions | 162 mm x 88 mm x 32 mm / 6.3 x 3.4 x 1.2" |
Weight | 248 g / 8.74 oz |

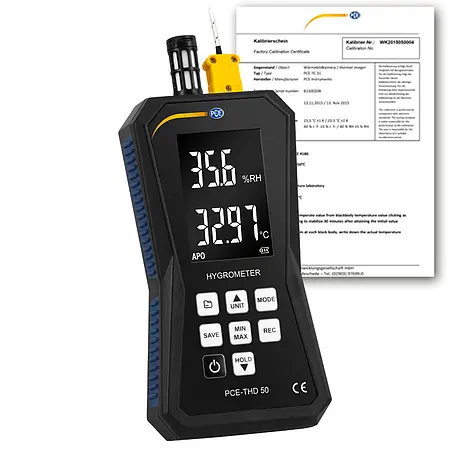

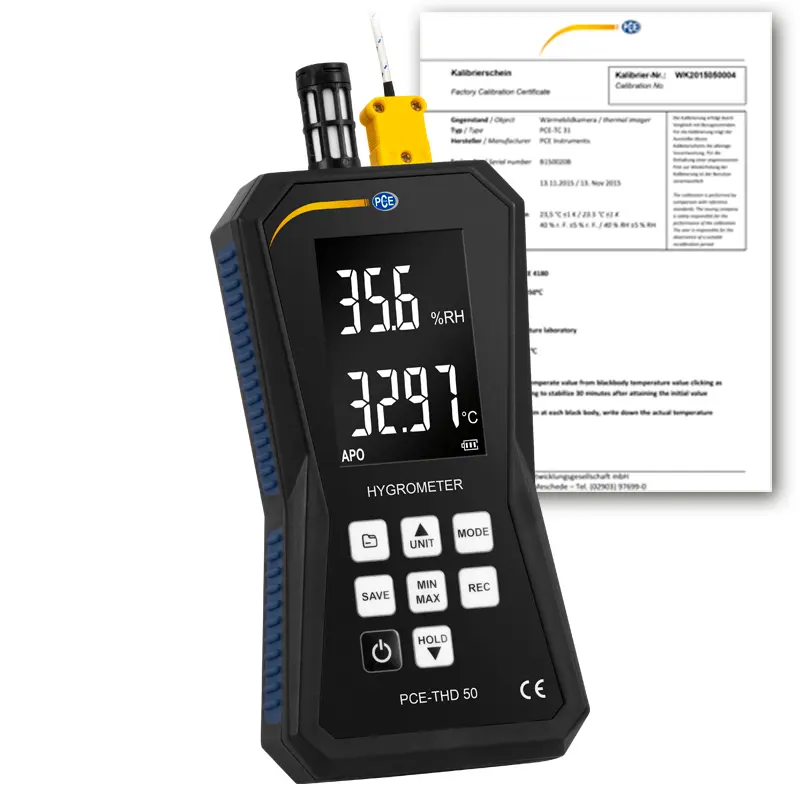

1 x HVAC Meter PCE-THD 50
1 x Type K thermocouple
1 x USB cable
1 x PC software
1 x Instruction manual
1 x ISO Calibration Certificate
N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
ex. VAT, ex. delivery costs
Screw-on temperature sensor. The sensor is connected to a measuring instrument via a miniature plug.
ex. VAT, ex. delivery costs
Magnetic surface sensor for secure fixation on metallic surfaces
ex. VAT, ex. delivery costs
Self-adhesive surface sensor with fiberglass insulation for permanent fixation (with adhesive patch) at a specific measuring point
ex. VAT, ex. delivery costs
High-temperature surface sensor with resilient tip, angled 90° on a 1 m cable
ex. VAT, ex. delivery costs
Temperature sensor with resilient plate tip and 1m cable
ex. VAT, ex. delivery costs
Stainless steel penetration / immersion sensor with handle and 1m spiral cable for liquids, semi-solid media and air
ex. VAT, ex. delivery costs
Flexible sensor for air and liquids
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
An ISO calibration certificate is often required to comply with DIN ISO 9000. Each calibration certificate is issued specifically for the customer and instrument. Therefore, calibration certificates are excluded from the right of return.
