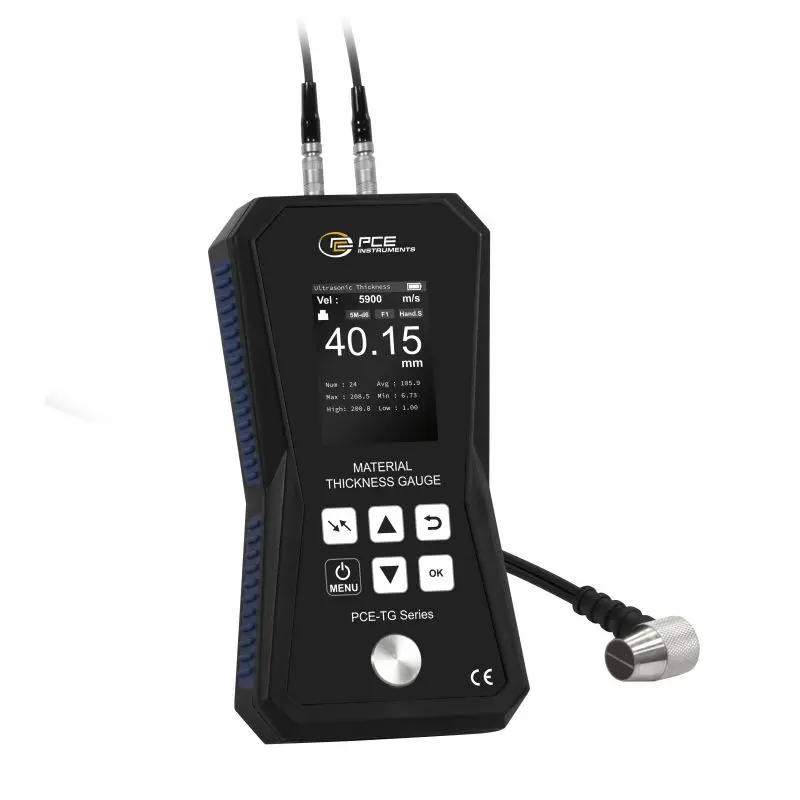

HVAC Meter PCE-TG 75

Order no.: PCE-TG 75

US$ 521.00
ex. VAT, ex. delivery costs
Available in: 1-2 days
HVAC thickness meter with data memory / Adjustable speed of sound /
Calibration reference mounted on the housing / Material thickness measurement up to 225 mm /
Limit alarm / Optional ISO calibration certificate

The HVAC thickness meter can measure material thicknesses up to 225 mm / 8.85". So that the material thickness of a wide variety of homogeneous materials can be measured, it is possible to store the corresponding speed of sound in the HVAC thickness meter. For materials such as steel, aluminum, zinc, silver and gold, the appropriate sound speeds are already stored in the device library. This means that the HVAC thickness meter can be used universally.

With the limit value function in the HVAC thickness meter, individual maximum and minimum values ​​can be stored. If the measured value of the test piece is outside the limits, the HVAC thickness meter signals this visually. If necessary, the signaling can also be done acoustically by the HVAC thickness meter in addition to the visual display. This is why the HVAC thickness meter is used, for example, in quality assurance and in incoming goods inspections.

The HVAC thickness meter has a data memory on which the measured values ​​can be recorded. After a measurement sequence, the stored measurement values ​​can be analyzed directly on the HVAC thickness meter. The stored data are graphically displayed by the HVAC thickness meter. In addition, each individual measuring point can be approached and read in the graphics of the HVAC thickness meter. For a simplified analysis of the measured values, the average, the largest and smallest measured value is displayed on the HVAC thickness meter. The HVAC thickness meter can optionally be equipped with an ISO calibration certificate.

- Measured value memory
- Calibration reference on the housing
- Automatic shutdown
- Material thickness measurement up to 225 mm / 8.85"
- Battery status indicator
- Optionally with ISO calibration certificate
Measuring range 1.00 ... 225.0 mm  / 0.04 ... 8.85"
Resolution 0.01 mm at ≤99.99 mm
  0.1 mm at ≥100.0 mm
Accuracy ±0.5 % of measured value + 0.05 mm
Storage space 500 measured values
Probe frequency 5 MHz

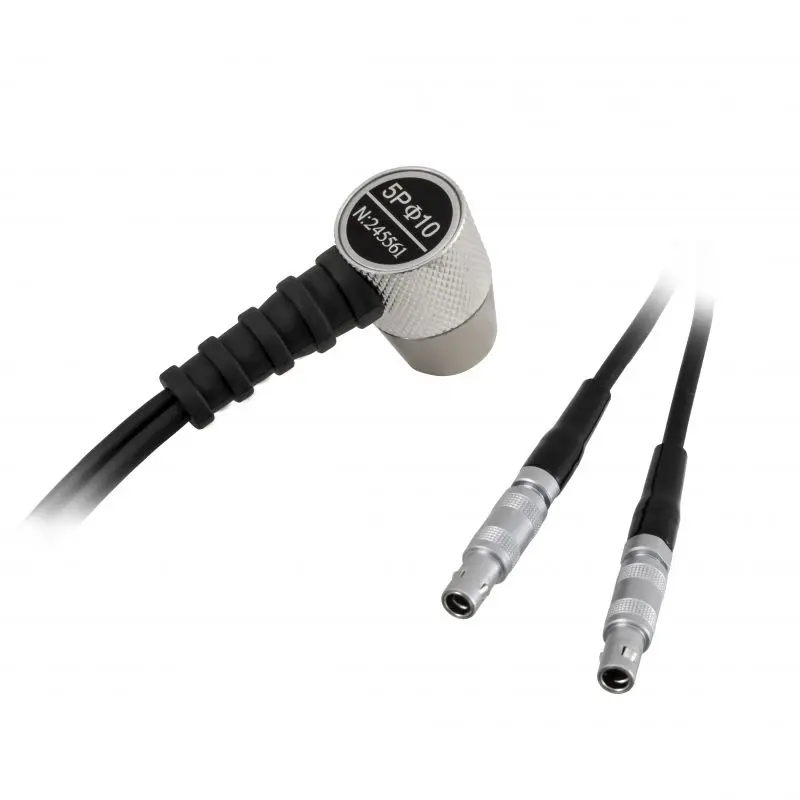

Standard sensor sensor PCE-TG 5M10d
Further specifications
Adjustable speed of sound
1000 ... 9999 m/s
Smallest pipe diameter Ø20 x 3 mm (steel)
Material library 15 memory locations
Calibration reference 4 mm
Display 2.4 inch TFT LCD color display
  with brightness adjustment
Power supply 3 x 1.5 V AA batteries
Automatic switch-off switched off, 2, 5, 10, 30 minutes
Ambient conditions 0 ... 40 °C / 32 ... 104 °F, <90 % RH, non-condensing
Dimensions 163 x 82 x 38 mm / 6.4 x 3.2 x 1.5"
Weight 320 g / 11.2 oz

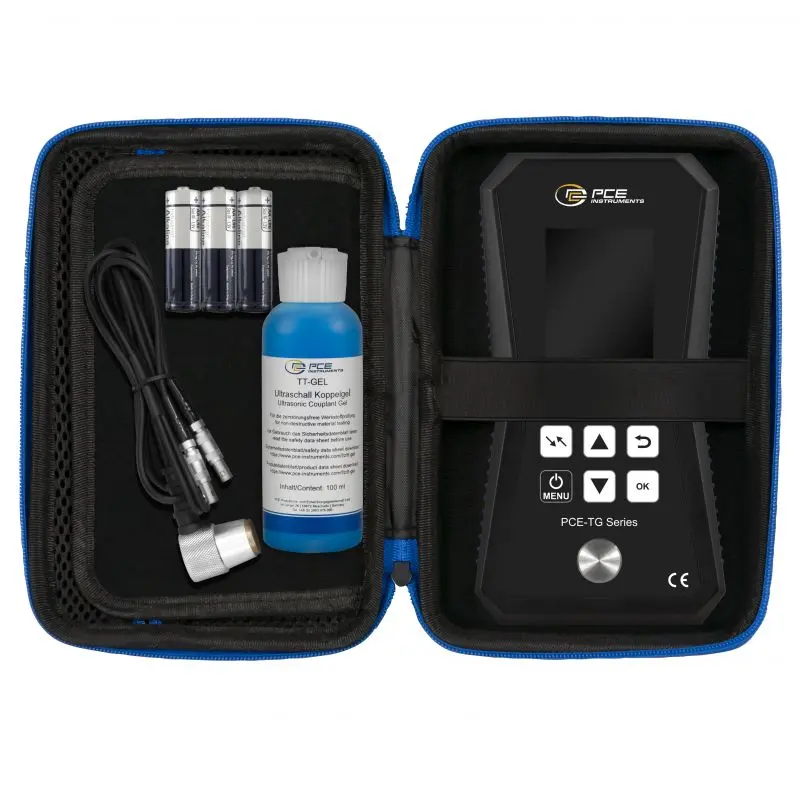

1 x HVAC Meter PCE-TG 75
1 x Sensor PCE-TG 5M10d
1 x Coupling gel (TT-GEL)
1 x Transport bag
3 x 1.5 V AA batteries
1 x Quick start guide
