Order no.: PCE-P18-0A0E0

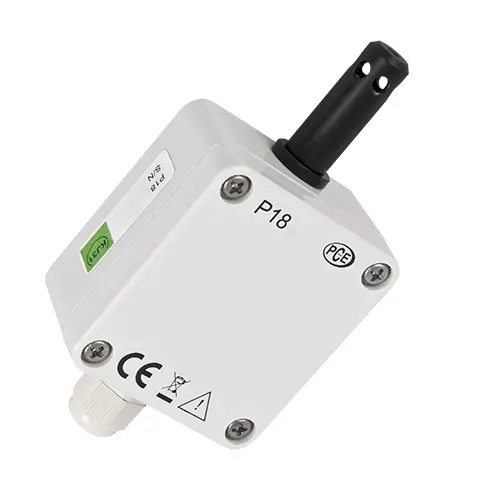

HVAC Meter PCE-P18 Modbus RTU

US$ 198.00
ex. VAT, ex. delivery costs
Available in: 1-2 days


Measures temperature and humidity / output as standard signal / compact

Modbus RTU interface / wall mounting

The HVAC meter is used in HVAC technology to monitor humidity and temperature. The measured values ​​are output by the HVAC meter via the RS485 interface. In this compact HVAC meter, air humidity and temperature are precisely determined using a semiconductor component. For commissioning, the HVAC meter is supplied via a DC voltage. The measured variables are output via a two-wire line. All connections are made via screw contacts in the waterproof IP 65 housing. This function is particularly useful if several measuring points are to be linked to one another during your home surveillance.


- Humidity and temperature sensors
- simple wall mounting
- RS-485 interface
- for permanent monitoring
- various filters available
- small dimensions


Technical data humidity sensor PCE-P18
measuring range0 ... 100% RH

± 2% (in the range 10% .... 90% RH)

3% (remaining area)
hysteresis± 1% RH
measuring range- 20 ... 60 ° C
± 0.7% of the measuring range
temperature effect± 25% / 10 ° C
Humidity sensor output
Data InterfaceRS-485 Modbus RTU
transfer mode8N1, 8N2, 8E1, 8O1
baud rate

4800 bps

9600 bps

19200 bps

38400 bps

57600 bit / s

General technical data for humidity sensors
supply voltage19 V ... 30 V DC
power<1.5 W
ambient temperature- 30 ° C ... 85 ° C
Max. humidity≤ 95% RH
preheat15 minutes
degree of protectionIP 65
Assemblywall mounting
Dimensions (wxhxd)35 x 58 x 118 mm
Weight125 g

Delivery Scope

1 x HVAC Meter PCE-P18 Modbus RTU
1 x instruction manual
