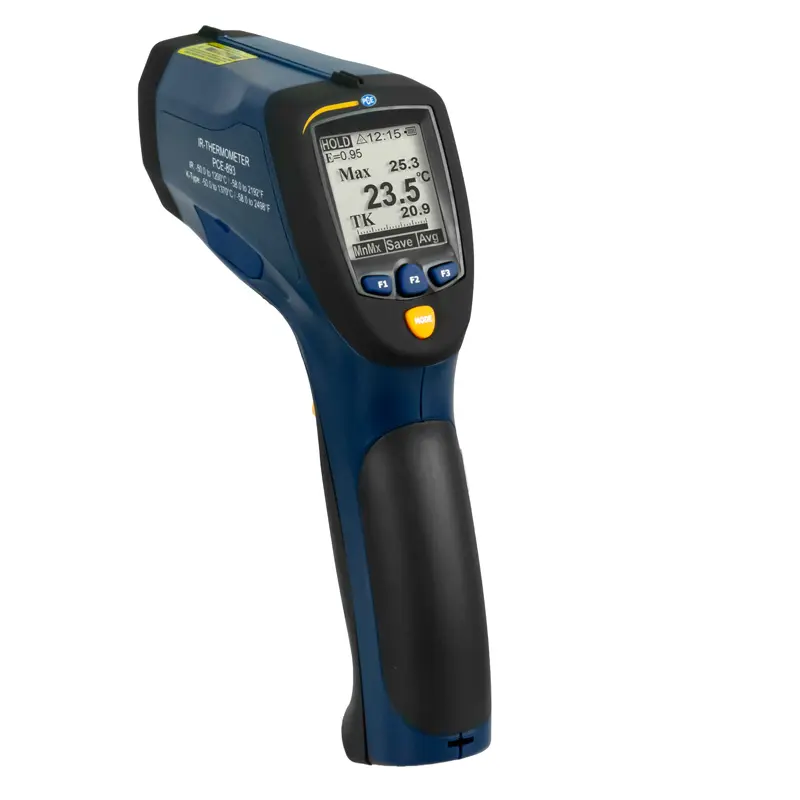

HVAC Meter PCE-893
Laser temperature meter for easy measurement of surface temperatures /
Fast response time / Adjustable emissivity / Max-Min function / Alarm
function / Measuring range up to 1200 °C / 2192 °F / Thermocouples type K connectable
/ Software for PC connection

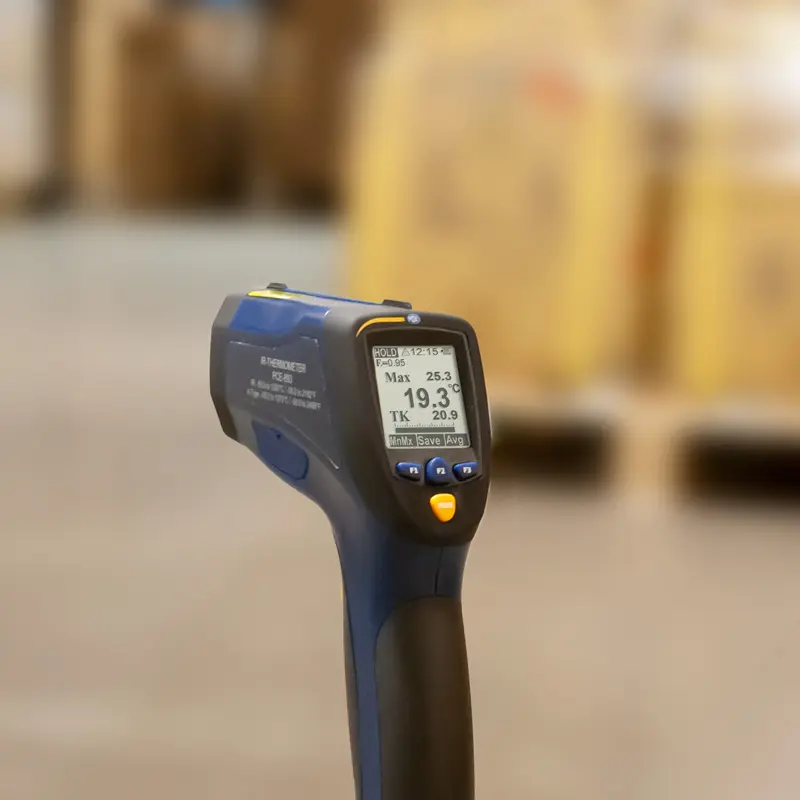

The HVAC meter PCE-893 is suitable for simple temperature measurements. The emissivity of the surface can be adjusted on the PCE-893 HVAC meter.
Thus, the HVAC meter PCE-893 is suitable for almost all surfaces. The dual laser of the HVAC meter PCE-893 marks the exact center of the measurement spot.

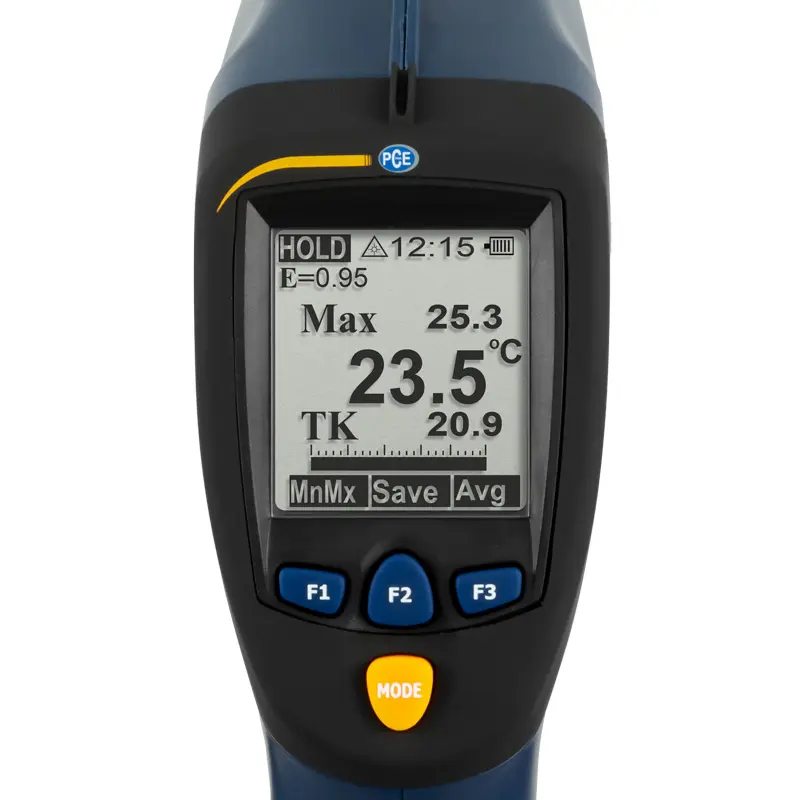

This helps the user considerably with non-contact temperature measurement. The HVAC meter PCE-893 has a backlit display.
In addition to the emissivity setting, the user can set limit value alarms over the entire measuring range of the PCE-893 HVAC meter.
The measuring range is from -50 °C to + 1200 °C / -58 ... 2192 °F. The measuring spot ratio of the HVAC meter PCE-893 is 50:1.
In addition to the infrared measurement, a variety of thermocouples Type-K can be connected to the HVAC meter.

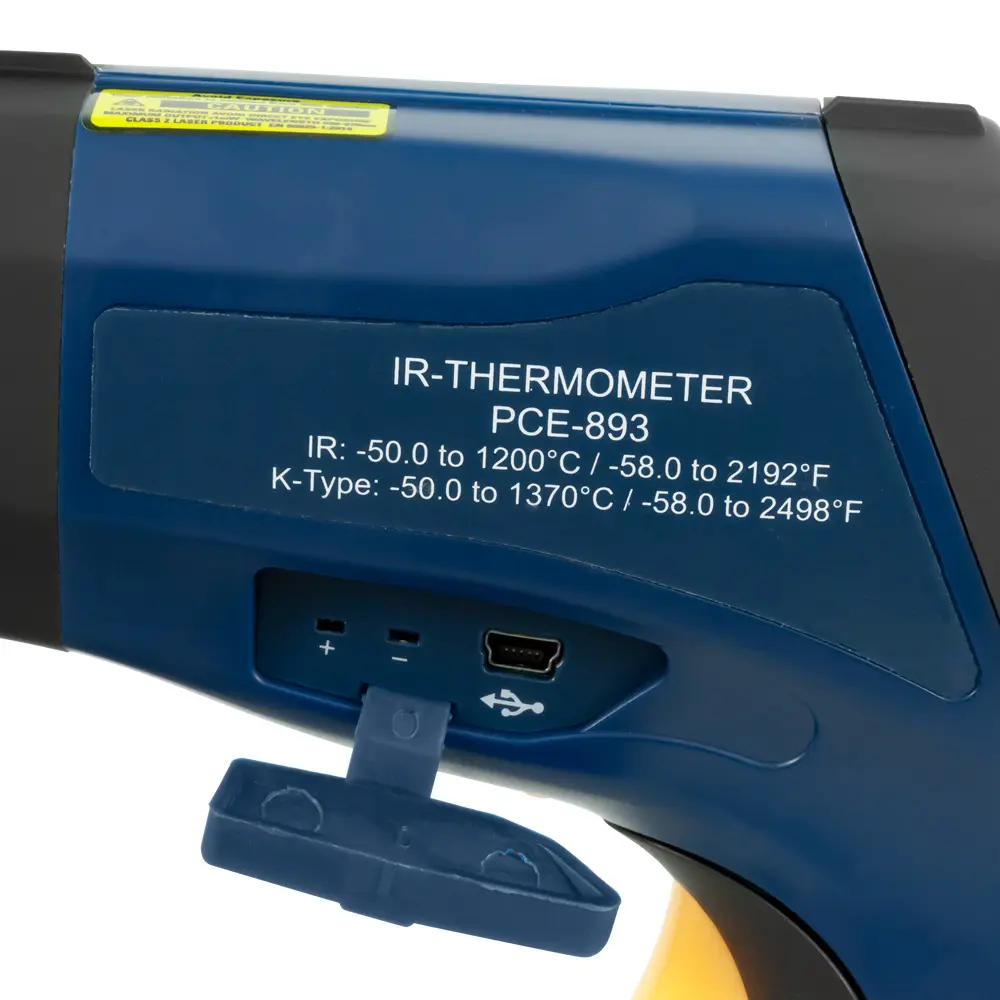

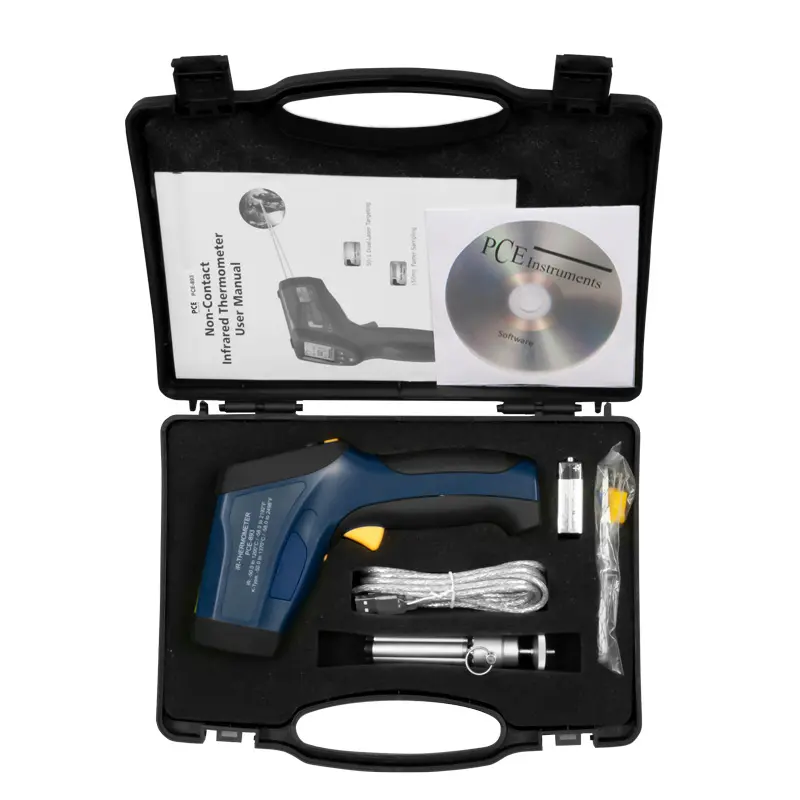

Here measurements up to 1370 °C / 2498 °F are possible. The included software and the USB port on the HVAC meter allow the operator to analyze and store all measurement data on the PC both graphically and in a table.

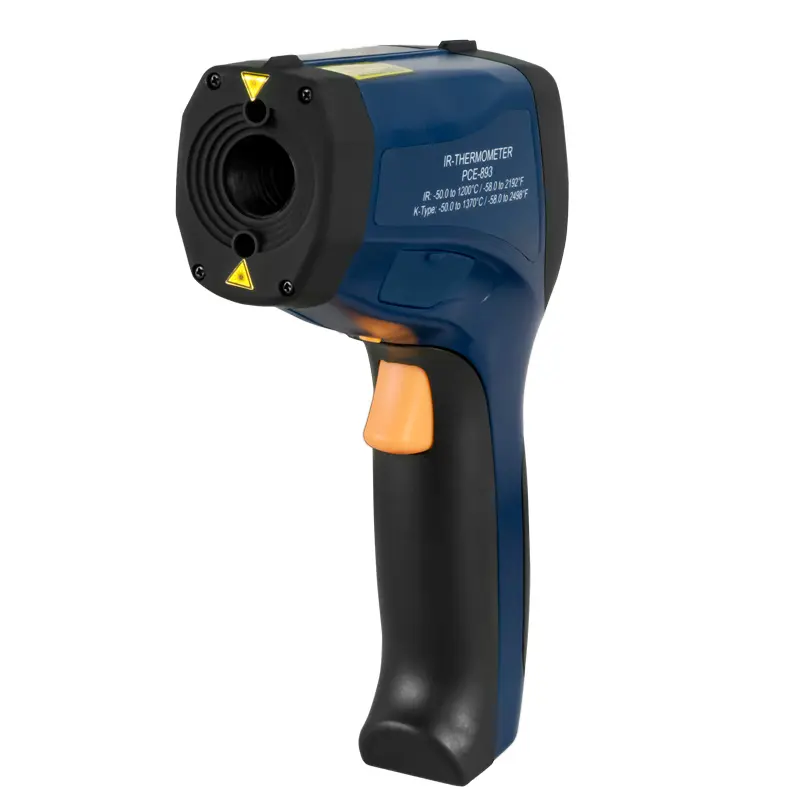

- Dual laser shows the spot center
- Adjustable emissivity

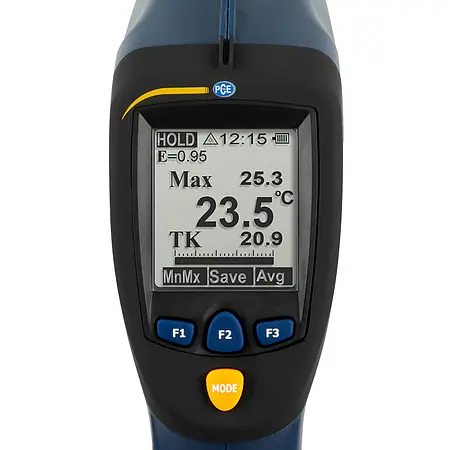

- Illuminated LCD
- Measured value transmission to a PC
- Non-contact temperature measurement
- Measurement spot ratio 50: 1 infrared optics
- Temperature measurement up to 1200 °C / 2192 °F
***ATTENTION*** Our temperature sensors are designed for industrial and laboratory surface temperature measurement ONLY. They are not designed or certified for body temperature measurement or for medical use.
- Thermocouple type-K can be connected
Typical applications of the HVAC meter PCE-893
- Food monitoring
- Hygiene tests
- Road construction
- Control cabinet monitoring

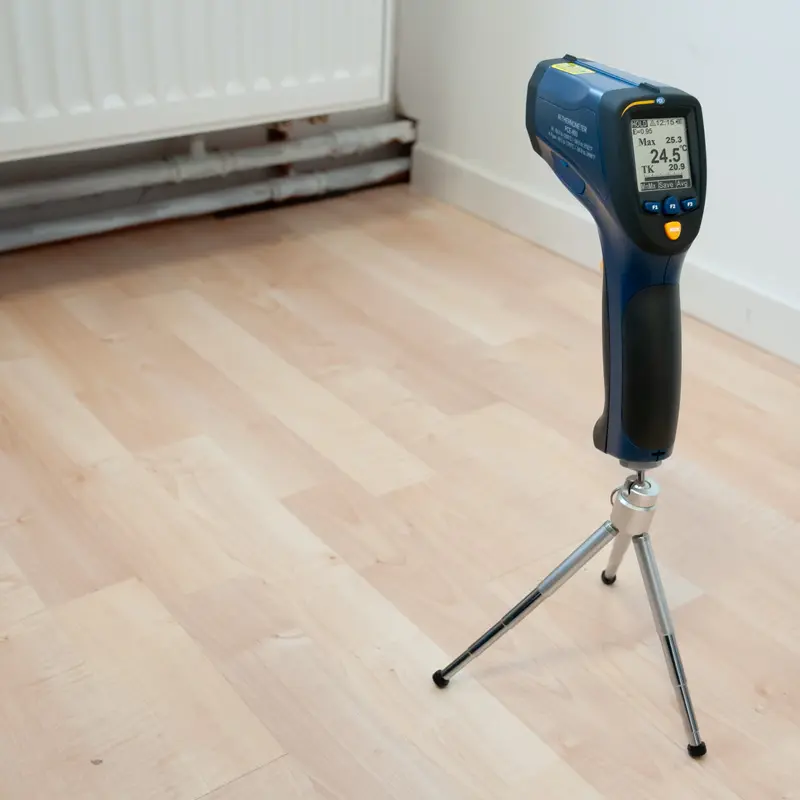

- Heating and air conditioning technology
- Production monitoring

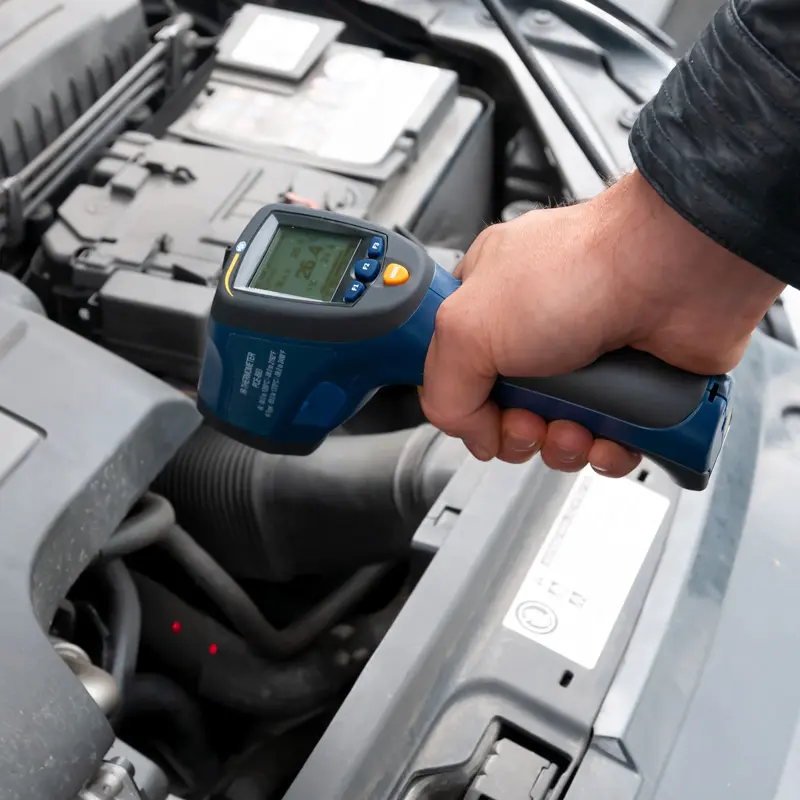

- Temperature measurement on motors
- Electronic components
- Fuse box
