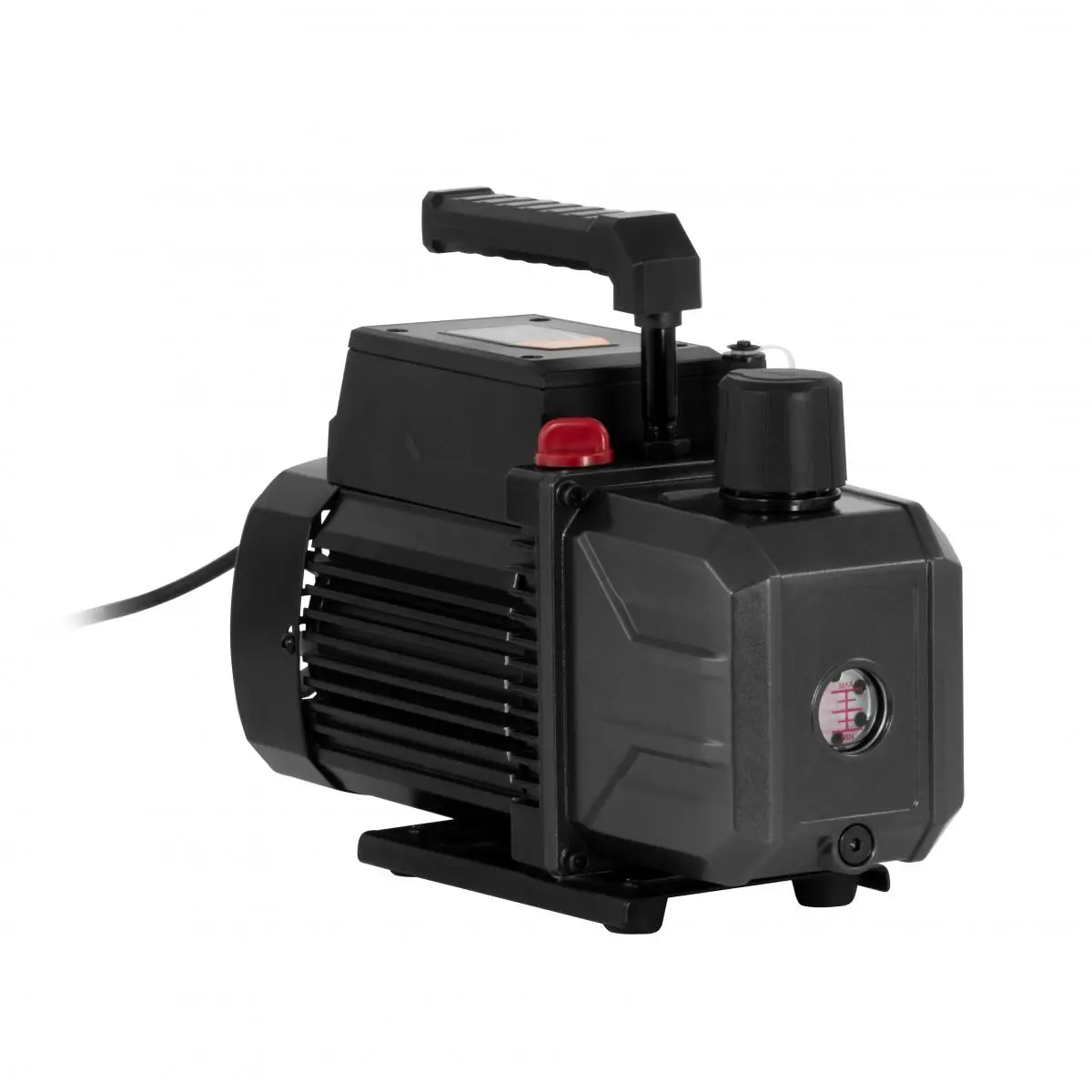

The HVAC Meter / HVACR Tester is equipped with a reliable motor that provides sufficient torque for stable operation. The motor power is 0.25 hp (approx. 180W) and ensures efficient and reliable performance. With a flow rate of 56 ... 68 l/min, the HVAC Meter / HVACR Tester can quickly evacuate air and moisture from air conditioning systems, cooling systems or heat pumps.

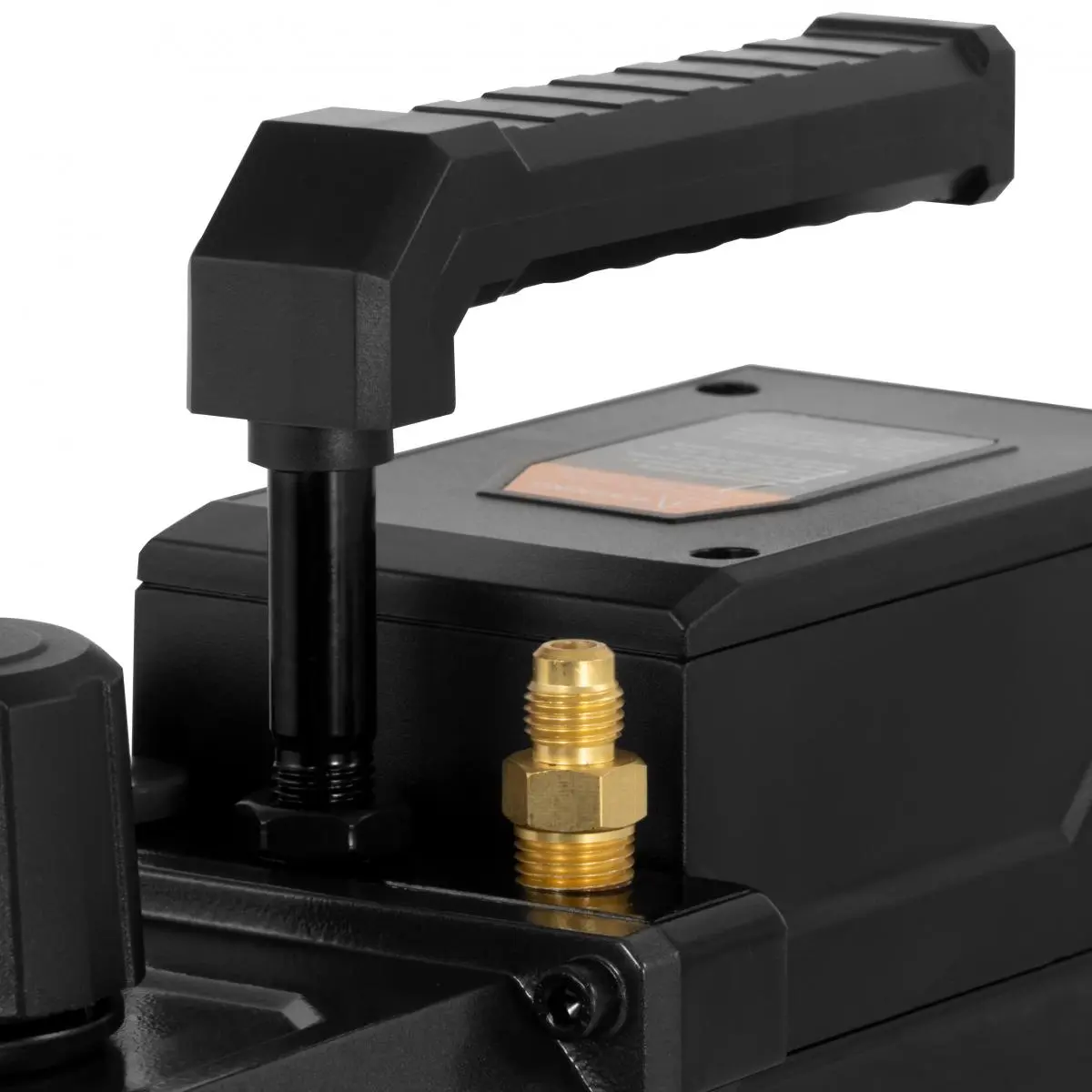

The pump has a 1/4-inch connection that allows it to be used with various refrigerant hoses. An integrated filter element reduces oil mist, extends the service life of the HVAC Meter / HVACR Tester and ensures a cleaner working environment. The ergonomic rubber handle facilitates transport and handling.
The HVAC Meter / HVACR Tester removes air and moisture from the system before refrigerant is charged, improving the efficiency and service life of the system.
| General technical data | |
| Cable length | 130 cm / 51.2 in |
| Connections | 1/4 inch SAE |
| Motor power | 0.25 PS |
| Oil capacity | 280 ml |
| Ultimate vacuum | 0.2 mbar |
| Flow rate | 56 ... 68 l/min |
| Protection class (device) | IP20 |
| Power supply | 220V AC | 50 Hz |
| Connector type | Schuko plug |
| Operating conditions | 5 ... 40°C / 41 … 104°F, 20 ... 80% RH |
| Storage conditions | 5 ... 40°C / 41 … 104°F, 20 ... 80% RH |
| Dimensions ( L x W x H ) | 288 x 120 x 225 mm / 11.3 × 4.7 × 8.9 in |
| Weight | 5830 g / 12.85 lb |
