The HVAC Meter / HVACR Tester is a compact, battery-operated measuring device for non-contact temperature measurement in the range from -50°C ... 400°C / -58 ... 752°F. It offers a resolution of 0.1°C / 0.18°F and measures with an accuracy of ± 3°C / 5.4°F in the range -50°C ... 0°C / -58 ... 32°F and ±(1.5% of the measured value + 2°C / 3.6°F) in the range from 0°C ... 400°C / 32 ... 752°F. The measured value display can be switched between °C and °F, and the emissivity can be adjusted in the range 0.1 to 1.0.

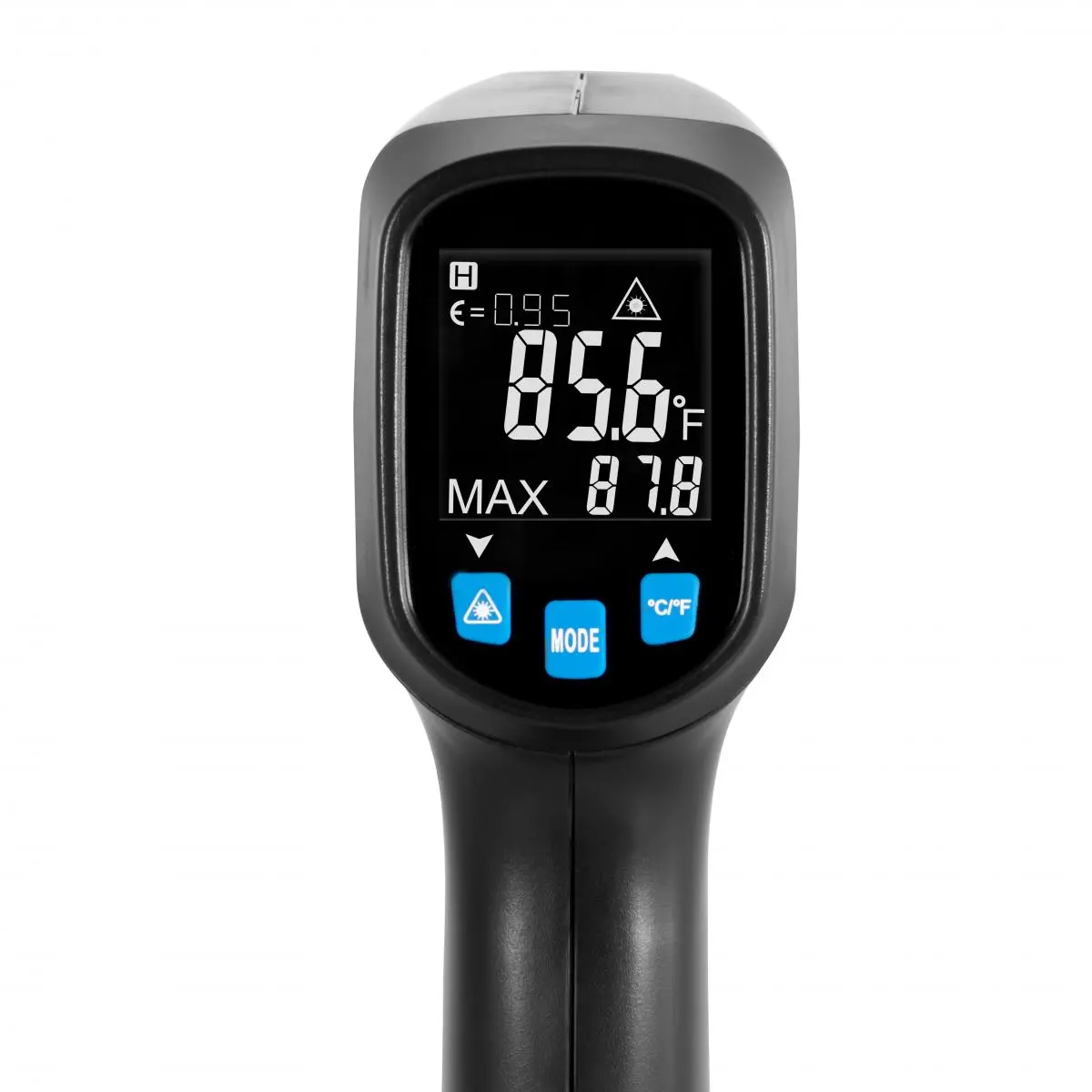

An optical temperature alarm can be freely set within the usable measuring range and supports a rapid response when defined limit values are exceeded or not reached. The measuring device has a measuring spot ratio of 12:1 and a fast response time of just 0.5 seconds. Additional functions such as hold and maximum value display facilitate handling and increase practicality. The HVAC Meter / HVACR Tester switches off automatically after 50 seconds of inactivity to save battery power. The measurement results are shown on a 1.5-inch color LCD display.
The HVAC Meter / HVACR Tester is used wherever non-contact temperature measurements are useful or necessary - for example in electrical engineering, in heating, ventilation and air conditioning systems, in food inspection, in vehicle maintenance or for monitoring machines and systems. The HVAC Meter / HVACR Tester is therefore a versatile instrument for industry, trade and technology that enables precise measurements to be taken in a short space of time.
| Infrared temperature | |
| Measurement range up to | -50 ... 0 °C |
| Resolution | 0,1 °C |
| Accuracy | ±3 °C |
| Infrared temperature | |
| Measurement range up to | 0 ... 400 °C |
| Resolution | 0,1 °C |
| Accuracy | ±(1.5% v.Mw. +2°C) |
| Infrared temperature | |
| Measurement range up to | -58 ... +32 °F |
| Resolution | 0,1 °F |
| Accuracy | ±5.4 °F |
| Infrared temperature | |
| Measurement range up to | 32 ... 752 °F |
| Resolution | 0,1 °F |
| Accuracy | ±(1.5% v.Mw. +4°F) |
| General technical data | |
| Measuring functions | HOLD, ALARM |
| Units | °C, °F |
| Display type | LC colour display with backlight |
| Display size | 1,5 Inch |
| Response time | 0,5 s |
| Automatic power-off | 50 s |
| Measurement spot | 12:1 |
| Laser | Class 2 <1mW |
| Alarm | optical |
| Emissivity from/to | 0.1 ... 1 |
| Spectral range | 8 ... 14 µm |
| Alarm settings | -50 ... 400 °C |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |

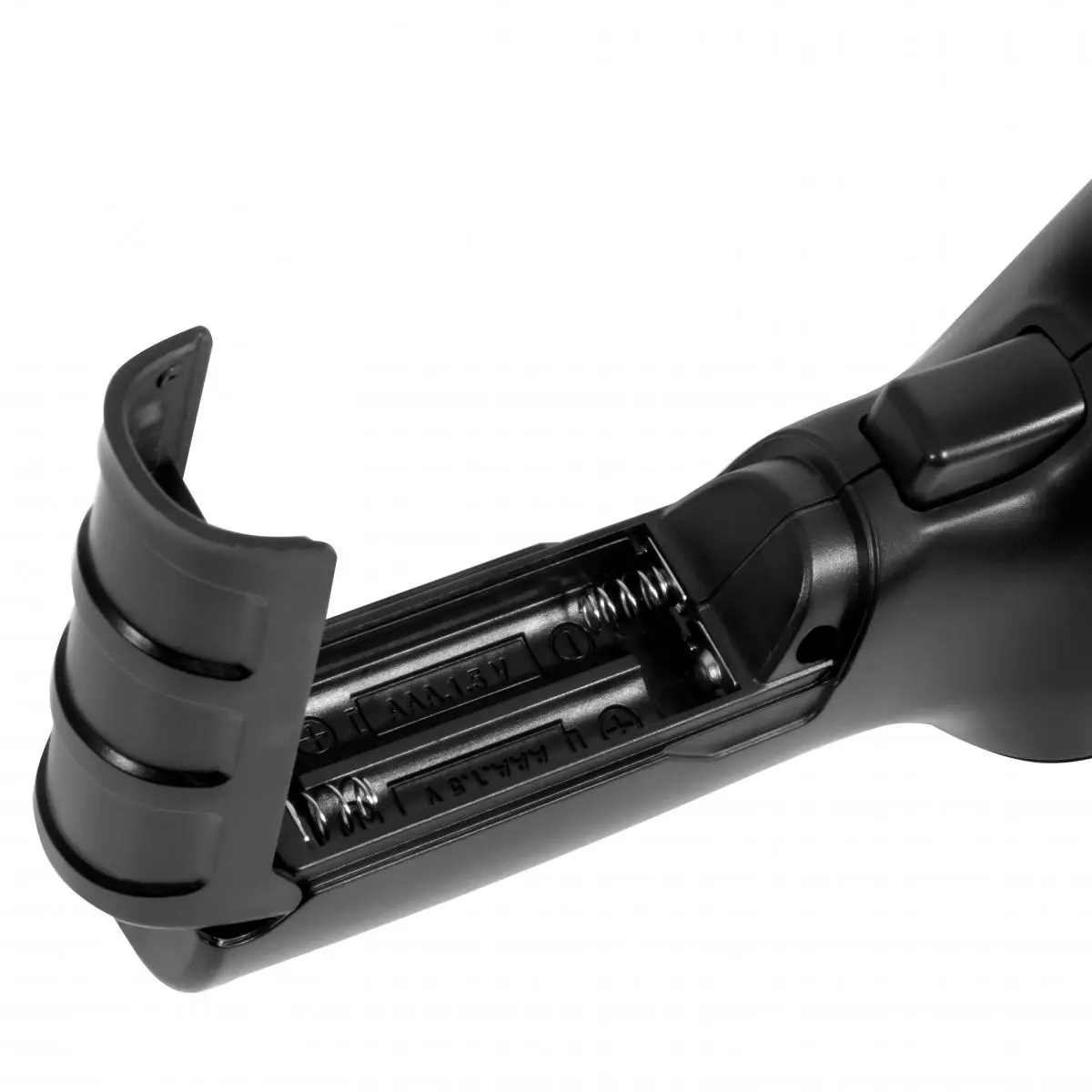

| (Rechargeable) battery | 2 x 1,5 V AAA battery , Zinc carbon |
| Capacity | 500 mAh |
| Operating conditions | 0 ... 40 °C , 0 ... 90 % RH |
| Storage conditions | -10 ... 60 °C , 0 ... 90 % RH |
| Dimensions ( L x W x H ) | 150 x 45 x 80 mm |
| Weight | 114 g |
