Order no.: PCE-555

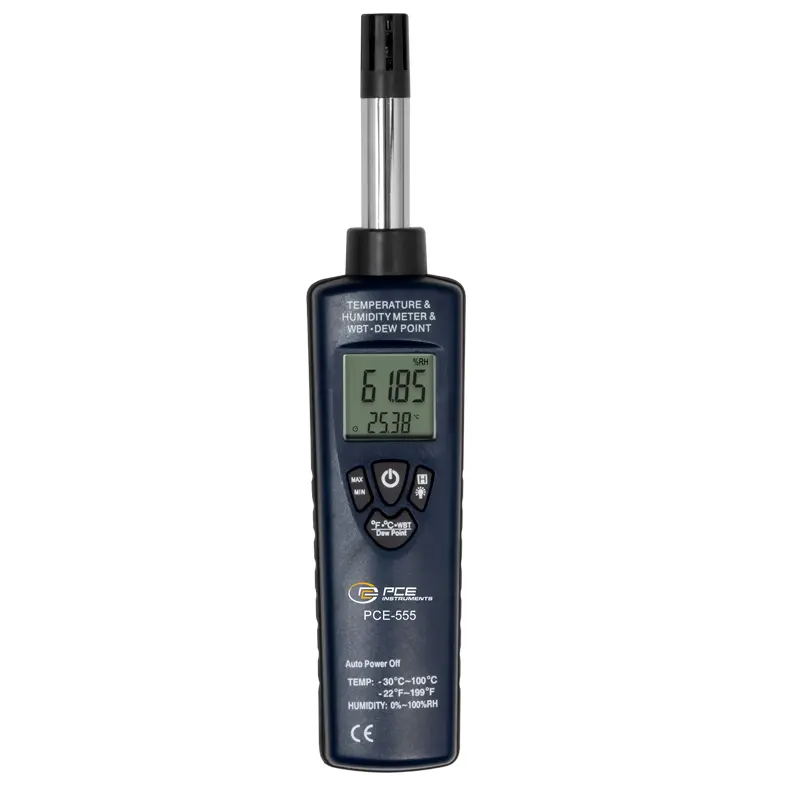

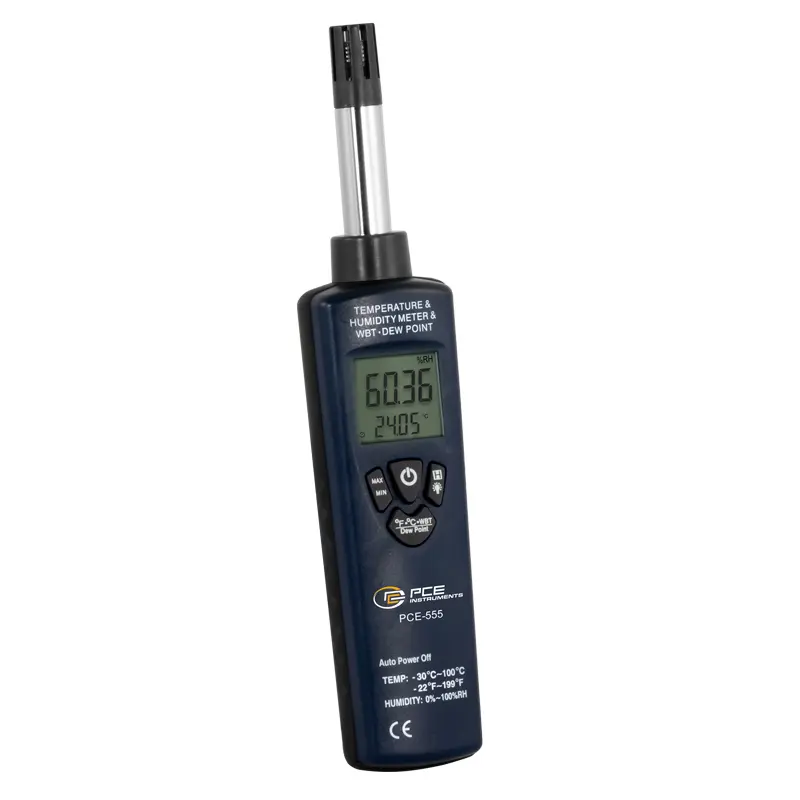

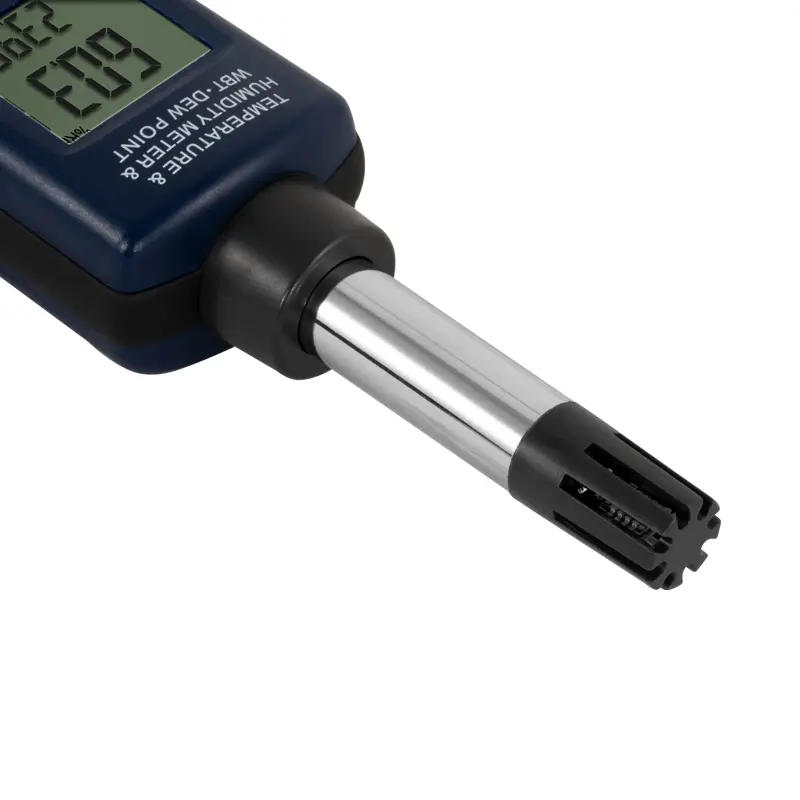

Handheld Humidity Detector PCE-555

US$ 129.00
:
4250348700384
PCE-555
ex. VAT, ex. delivery costs
Available in: 1-2 days

Description

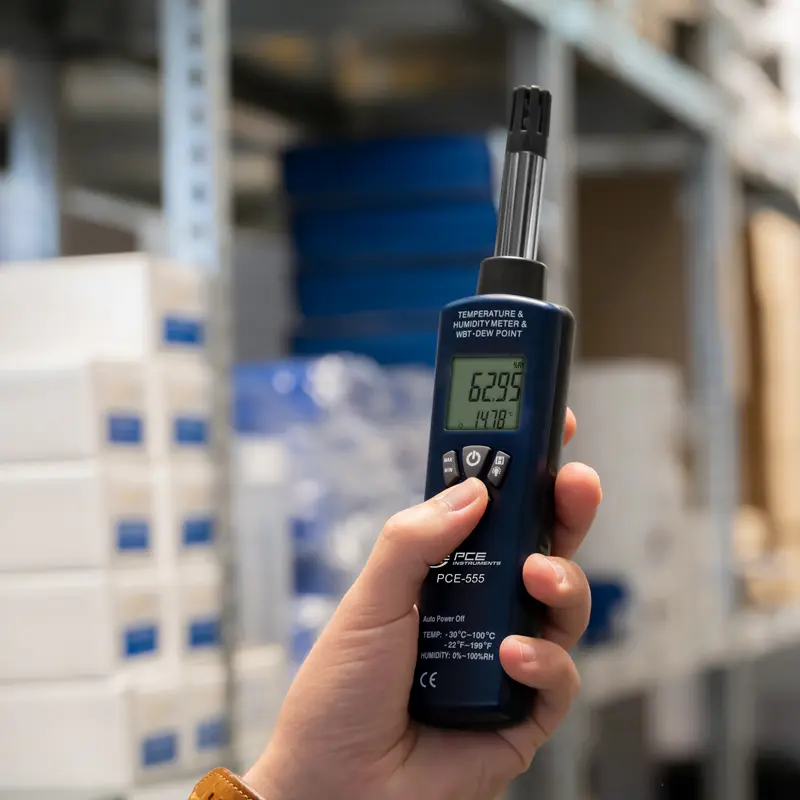

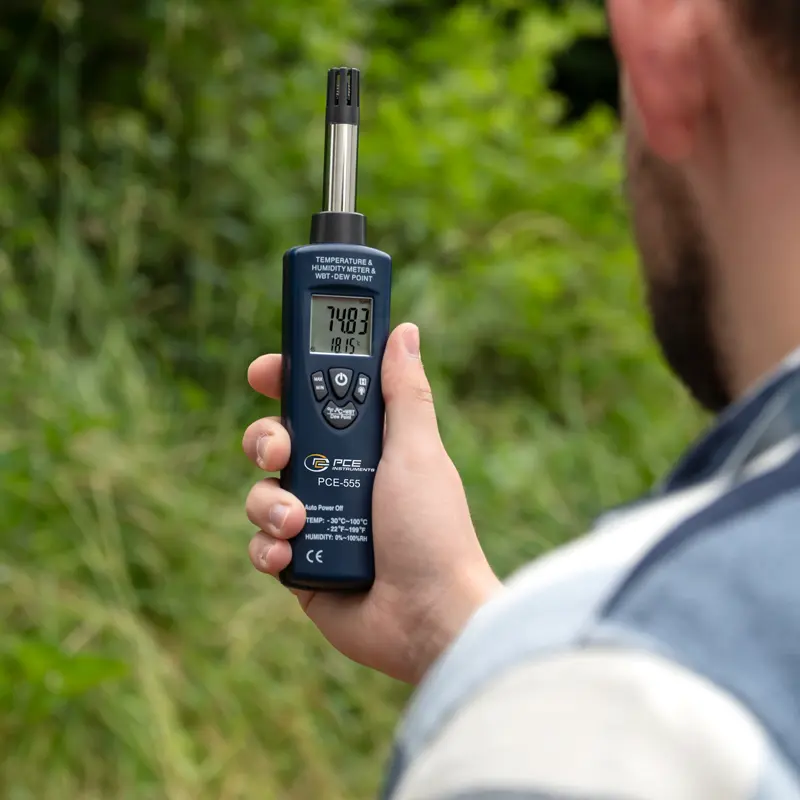

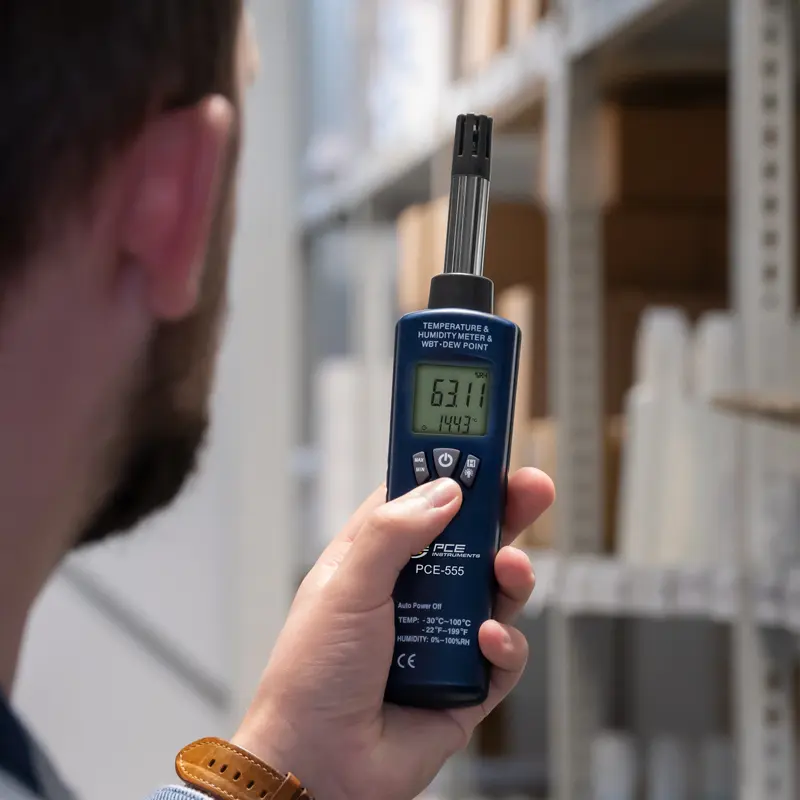

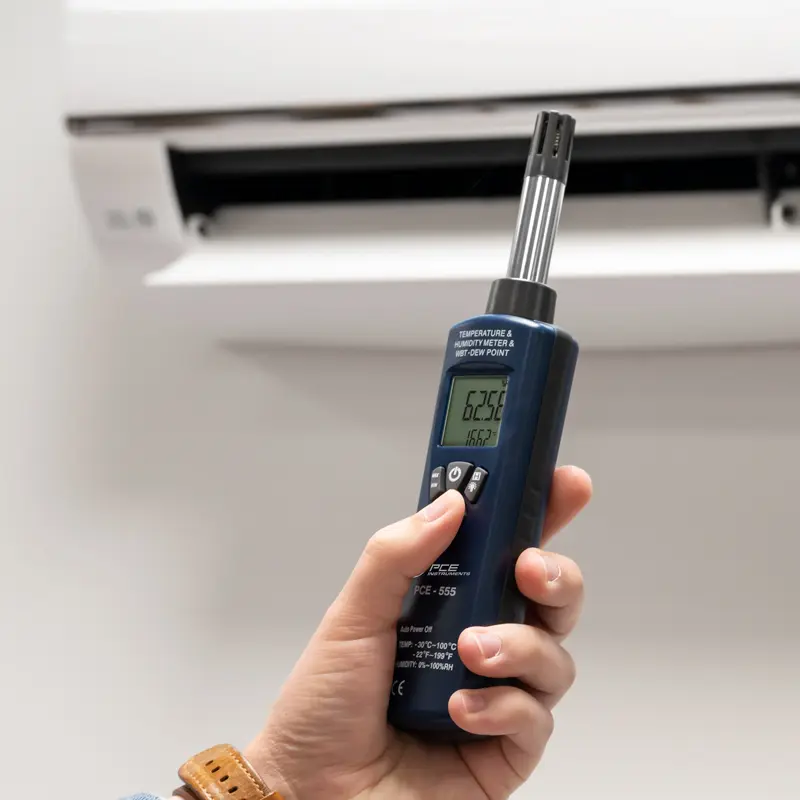

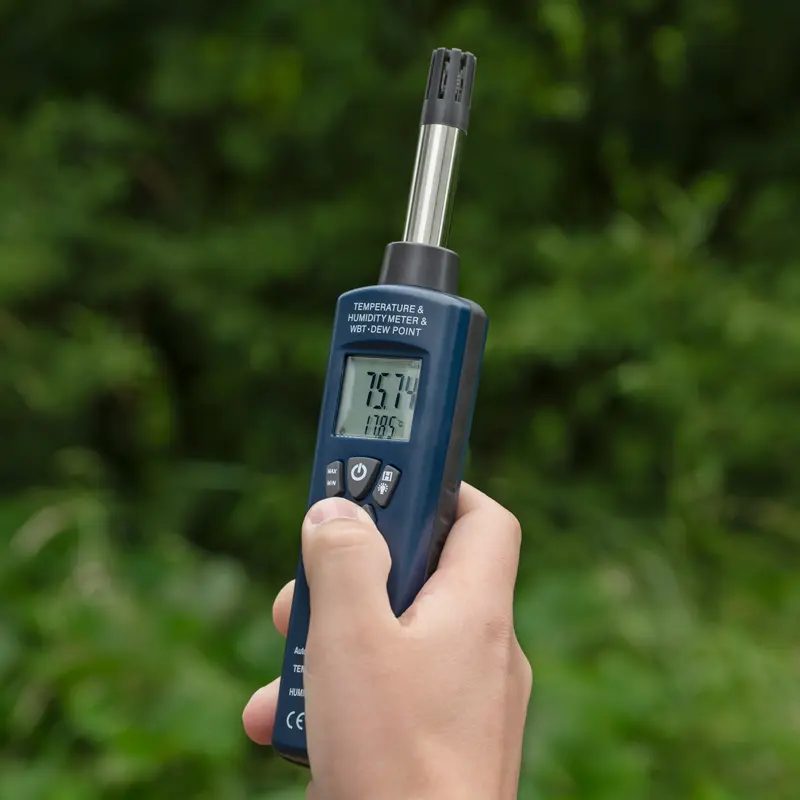

PCE-555 is a combination digital hygrometer and digital thermometer used to measure relative humidity as well as air temperature, dew-point temperature and wet-bulb temperature. This handheld multifunctional meter allows for quick and easy analysis of environmental conditions indoors and outdoors. Applications include monitoring of refrigerated trucks, warehouses, construction sites and heating, ventilation and air conditioning (HVAC) systems. PCE-555 is ideal for use anywhere excess moisture, condensation and uneven temperatures can create mold, spoilage and health hazards due to heat stress or poor indoor air quality (IAQ).


Highlights

- Offers a compact design, high precision and a fast response time
- Displays temperature and humidity measurement results simultaneously
- Features backlight, automatic power off, max hold and data hold functionality

Specification

Measuring ranges

Humidity

0 ... 100% relative humidity (rh)

Temperature

-30 ... 100°C / -22 ... 212°F

Dew point temperature

-30 ... 100°C / -22 ... 212°F

Wet-bulb temperature

0 ... 80°C / 32 ... 176°F



General specifications



Accuracy ± 2% rh at 25°C / 77°F and 20 ... 80% rh, otherwise ± 2.5% ± 0.5°C / ± 0.9°F (at 25°C / 77°F), otherwise ± 0.8°C / ± 1.5°F
Resolution 0.01% rh, 0.01°C / 0.018°F
Response time (% rh) Approx. 10 sec. (90% at ambient temperature of 25°C / 77°F)
Sampling rate 2.5 times per sec.
Display 4.5-digit dual LCD with backlight
Energy efficiency Automatic power off after 15 min. inactivity (To deactivate, turn device off. Press and hold Hold key and On/Off key at same time. When display comes on, release both keys.)
Storage conditions -10 … 60°C / 14 … 140°F, ˂ 80% rh, noncondensing
Operating conditions 0 … 40°C / 32 … 104°F, ˂ 80% rh, noncondensing
Power supply 1 x standard 9V battery, NEDA1604 or 6F22
Approx. dimensions 225 x 45 x 34 mm / 8.9 x 1.8 x 1.3 in
Approx. weight 200 g / < 1 lb

See user manual for complete technical specifications and operating instructions.

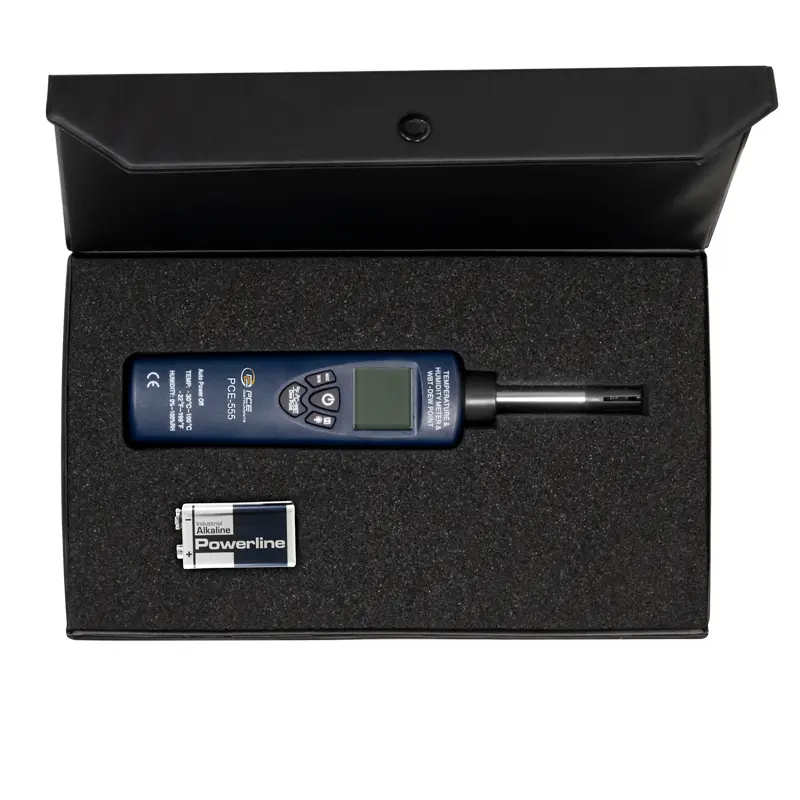

Delivery Scope

1 x PCE-555 multifunction humidity detector
1 x Carrying case
1 x Battery
1 x User manual
