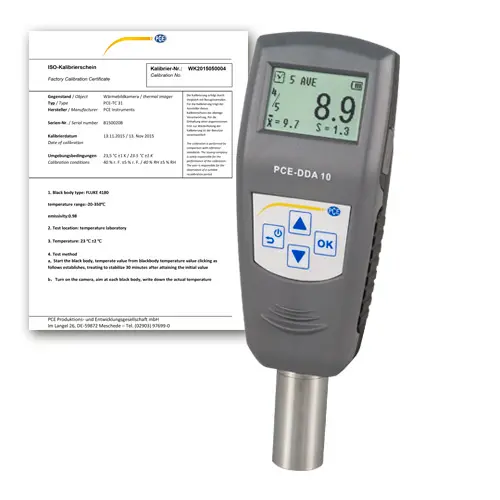

Hardness Tester PCE-DDA 10-ICA incl. ISO Calibration Certificate

Order no.: PCE-DDA 10-ICA

GTIN (EAN):

Your PCE Instruments Benefits

Bilingual Technical Support (EN / ES)

Special Promotions

Public Service, Military and First Responder Discount

30 Day Return Policy

2 Year Warranty

Free Standard Shipping (US)

Accessory

Test stand STAND-PCE-DDx10

US$ 888.00

Description

Digital Hardness Tester to measure Shore A hardness in shoft gums, rubber and elastomers with USB-Port and downloadable software

The PCE-DDA 10 hardness tester is an ergonomic device to check Shore hardness in gum, plastic and other non-metallic materials. It has been designed with a very high quality. The PCE-DDA 10 hardness tester is mainly used for soft gums, elastomers, natural rubber, neoprenes, casting resin, white PVC, leather, etc. If the material thickness is not enough, it should be layered and tightened on the back with the same material in order to increase its thickness.

Highlights

- Handheld device
- Digital display
- Plastic case included
- For Shore A measurements
- Large display
- Single and Serial Measurements
- Data transfer to pc
- Incl. ISO Calibration Certificate

Specification

Measurement range	0 ... 100 Shore A
Resolution	0.1
Accuracy	< ± 1
Indenter	35°± 0.25°
Memory	Saves up to 500 measurements
Dimensions	153 x 50 x 29 mm / 6 x 1.9 x 1.1 in (main body)
Weight	Approx. 300 g / < 1 lb
Power supply	3.6V rechargeable Ni-MH battery
Max. operating time	Up to 20 h continuous use at full charge
Charging time	Approx. 3 h
Standards	GB/T 531.1, ISO 7619-1, ASTM D 2240

Delivery Scope

1 x PCE-DDA 10 Hardness Tester
1 x Power Supply
1 x Standard calibration plate
1 x Case
1 x Battery
1 x User's manual
1 x ISO Calibration Certificate

Calibration certificates are issued specifically for the customer and are excluded from the right of return.

Downloads

Manual

Datasheet

Software
