Handheld Tachometer PCE-DSX 15

Handheld Tachometer PCE-DSX 15

Order no.: PCE-DSX 15
GTIN (EAN): 4250348738134
US$ 357.00
ex. VAT, ex. delivery costs
:
4250348738134
PCE-DSX 15
Available in:1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Description

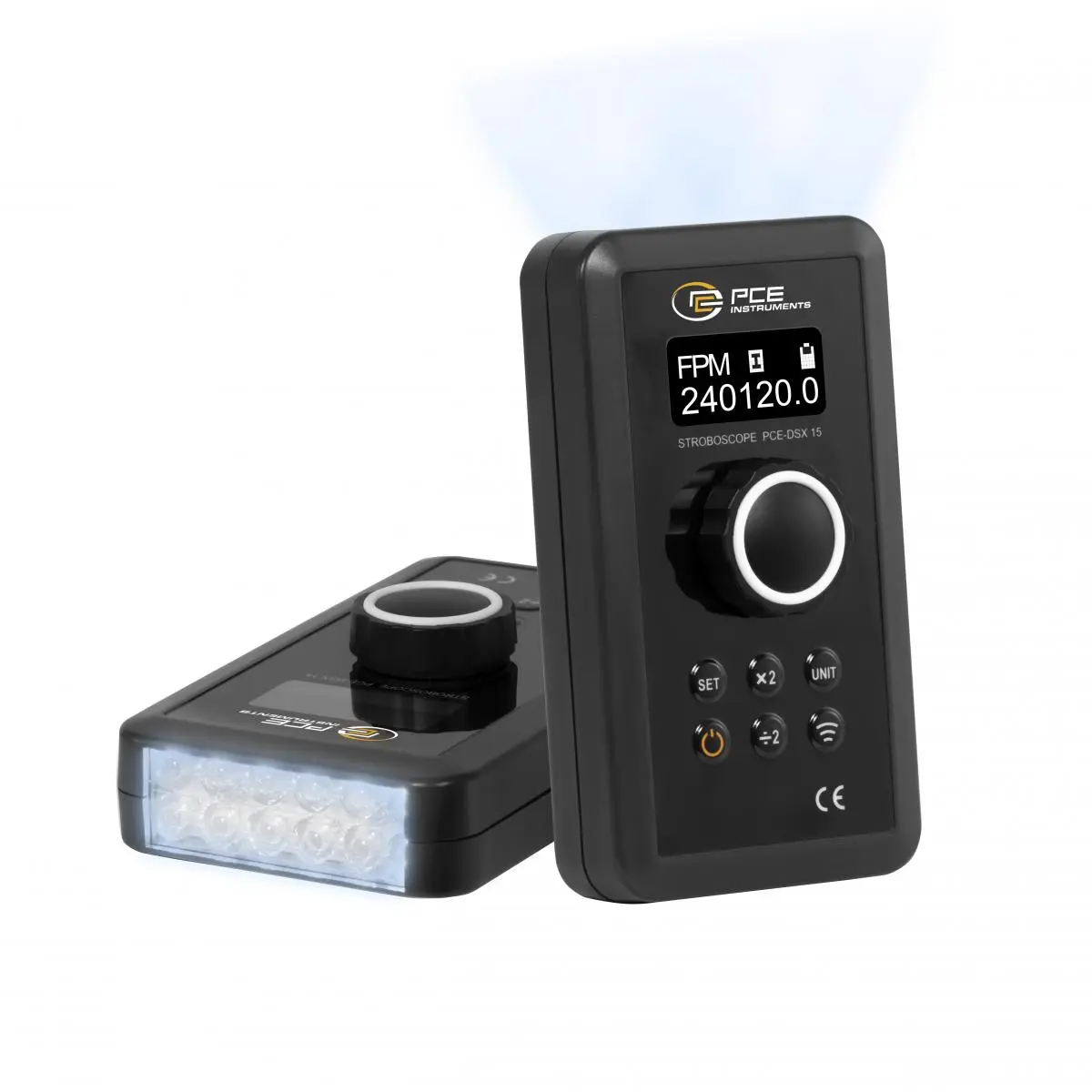

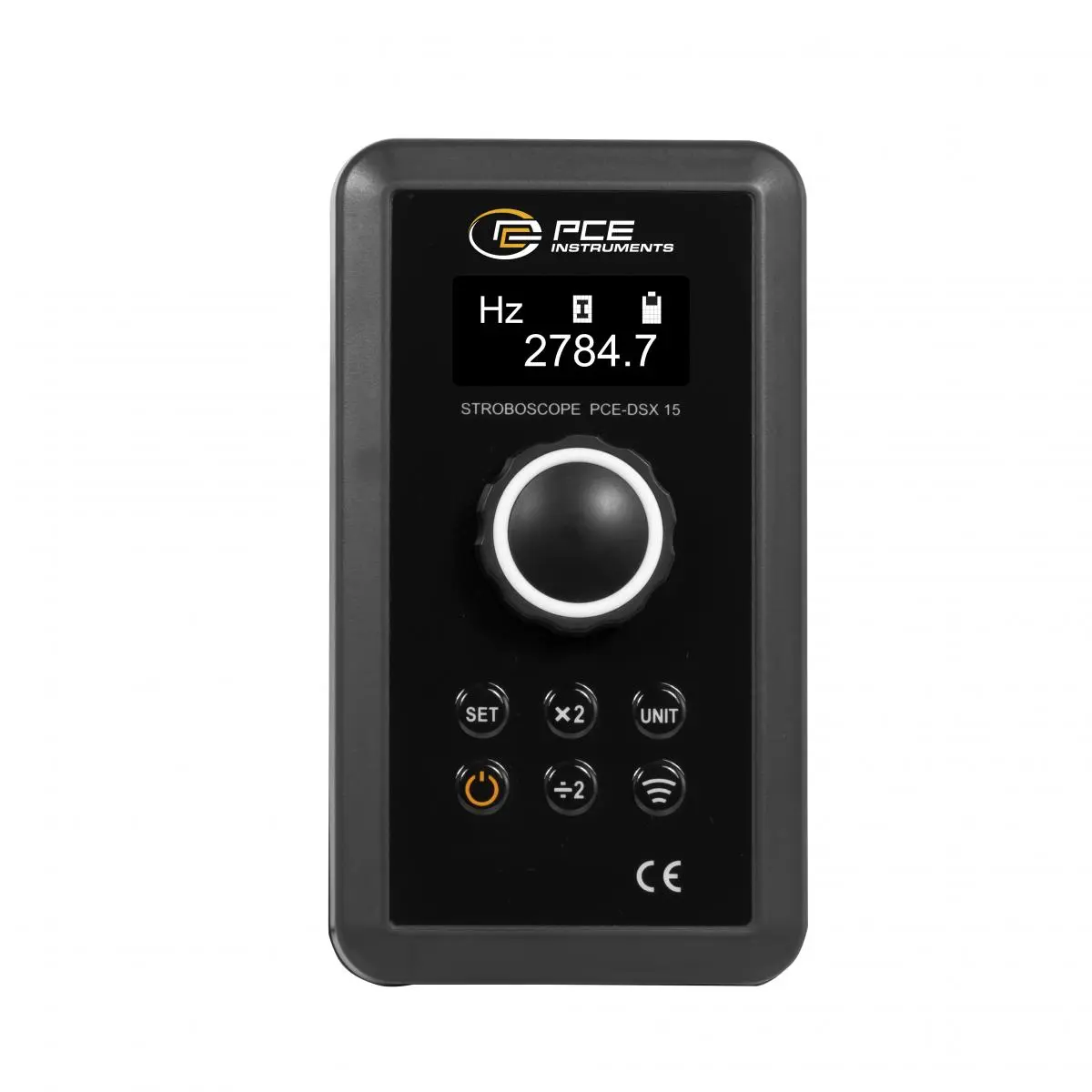

Digital Handheld Tachometer with 12 white LEDs / Flash frequency in FPM and Hz / Doubling/division of FPM / Quick one-hand operation with rotary control

A Handheld Tachometer is used wherever fast movements need to be visualized or speeds need to be measured without contact. Typical applications include the inspection of rotating machines, motors, conveyor belts or other vibrating and moving objects. The portable Handheld Tachometer is particularly practical for outdoor use or mobile applications.

Thanks to the variably adjustable flash frequency, movements can be precisely observed both at slow and very fast speeds. The flash duration can be flexibly adjusted so that the target object is evenly and brightly illuminated. Powerful LEDs are used as the light source, which ensure high brightness with a short flash duration and do not require a lamp change.

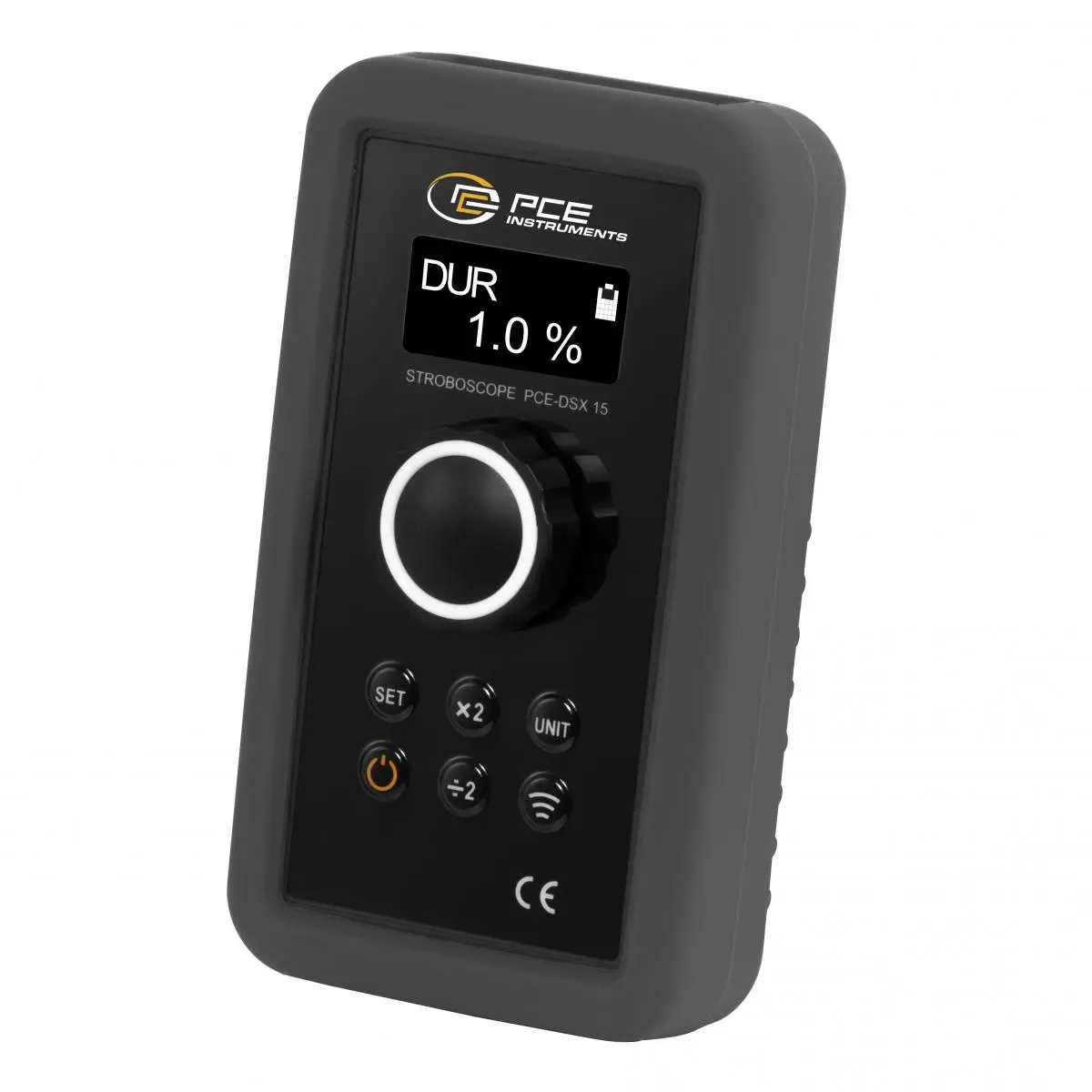

Operation is particularly user-friendly: the flash frequency can be fine-tuned using a rotary knob and can also be multiplied or divided at the touch of a button. The flash duration and brightness can also be easily adjusted. Power is conveniently supplied by batteries, and as there is no noise during the flash, the Handheld Tachometer is also suitable for use in quiet working environments.

The functional principle is based on fast flashes of light being directed at a rotating or vibrating object. If this appears optically stationary, the flash frequency matches the actual movement or part of it. This allows the speed to be determined without contact. This makes the Handheld Tachometer an indispensable tool for maintenance, quality assurance and precise measurements on machines and mechanical systems.


Highlights

- Doubling/dividing the FPM by pressing a button

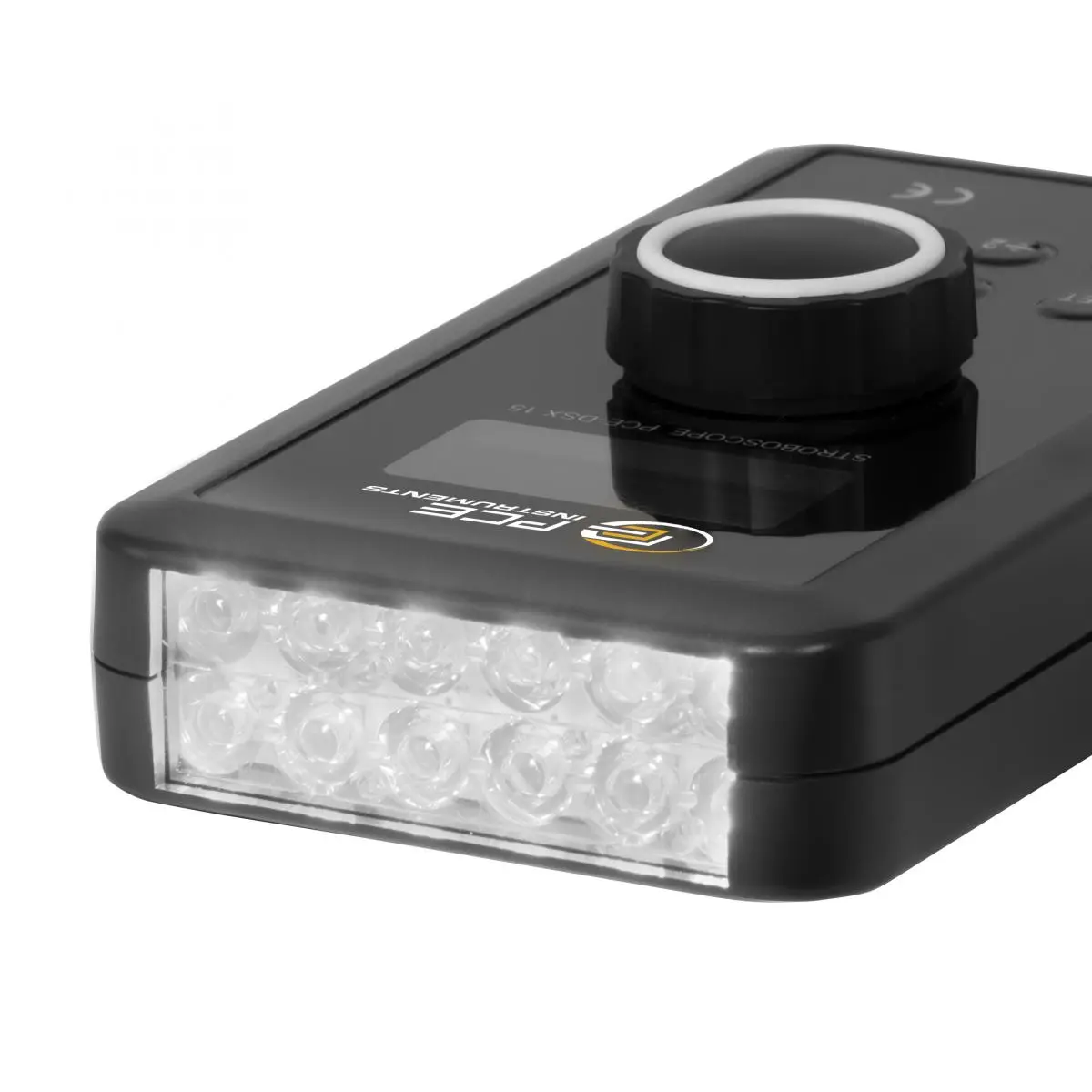

- Light source 12 white LEDs
- Flash duration adjustable as duty cycle (%) or time (µs)
- 1.6 inch LCD display
- No lamp replacement required
- Quick one-handed operation
- Automatic switch-off

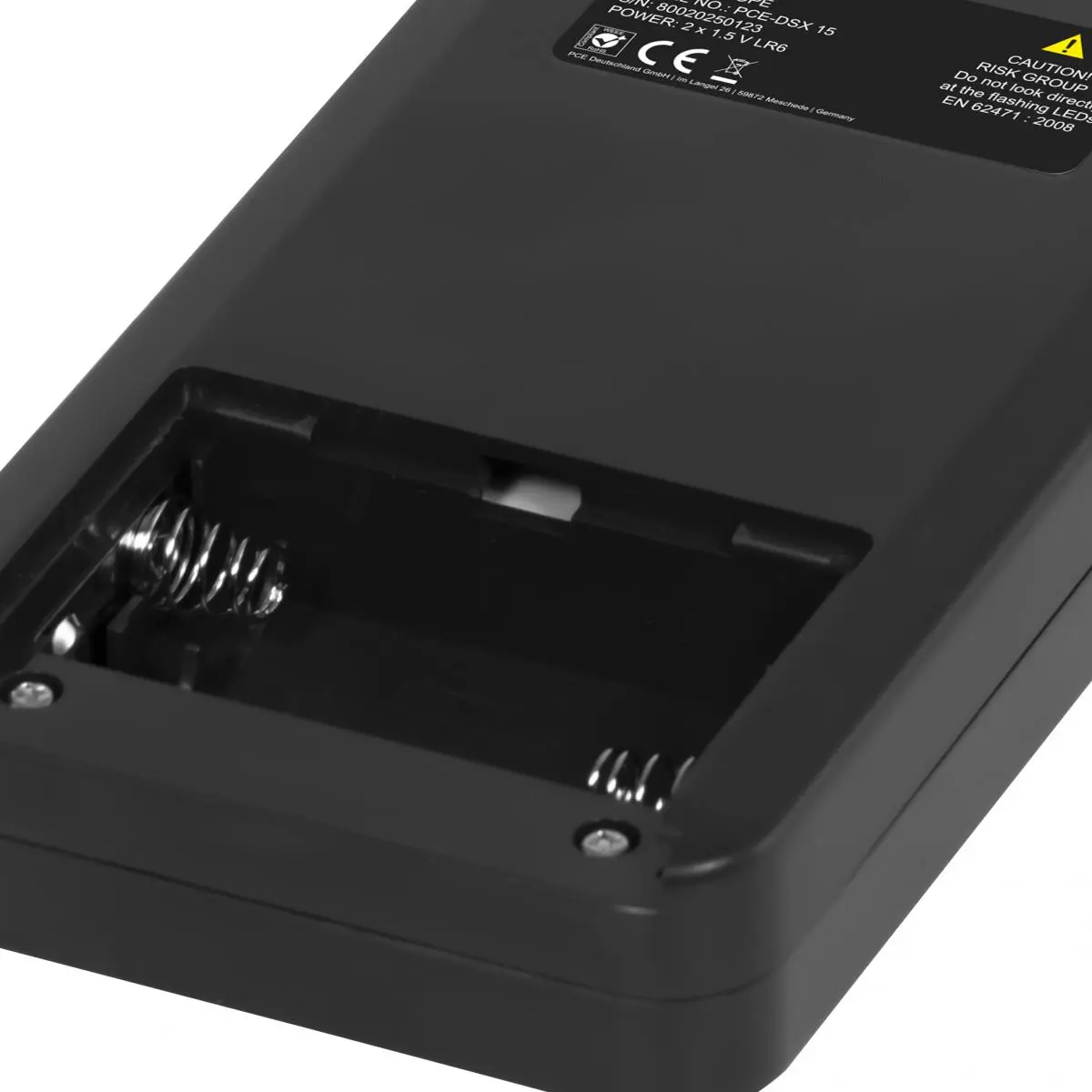

- Power supply: 1.5V AA batteries

Specification

Frequency
Measurement range up to  30 ... 120000 FPM
Resolution  0,1 FPM
Accuracy  ±0.01%

Frequency
Measurement range up to  120000 ... 240000 FPM
Resolution  0,1 FPM
Accuracy  ±0.02%

Frequency
Measurement range up to  240000 ... 360000 FPM
Resolution  0,1 FPM
Accuracy  ±0.03%

Frequency
Measurement range up to  0,5 ... 6000 Hz
Resolution  0,1 Hz
Accuracy  0.5 ... 2000 (±0.01%) 2000 ... 4000 (±0.02 %) 4000 ... 6000 (±0.03%)

General technical data
Display type  LCD with backlight
Display size  1,6 Inch
Operating time  2 h
Operating time additional information  at 6000 FPM and 1% pulse duration
Automatic power-off from...to  1 ... 10 min.
Automatic power-off can be deactivated  Yes
Luminous intensity  5400 lux @ 20 cm @ 1000 Hz 1%
2600 lux @ 30 cm @ 1000 Hz 1%
1050 lux @ 50 cm @ 1000 Hz 1%
Pulse width  0.1 ... 1% of pulse duration
Resolution: 0.1 %

0.1 ... 3.7 µs of pulse duration
Resolution: 0.1 µs
Menu language  English, English (GB)
Protection class (device)  IP20
(Rechargeable) battery  2 x 1,5 V AA battery , Alkali-manganese
Capacity  3000 mAh
Operating conditions  0 ... 40 °C , 30 ... 90 % RH
Storage conditions  0 ... 50 °C , 10 ... 90 % RH
Dimensions ( L x W x H )  135 x 76 x 39 mm
Weight  224 g

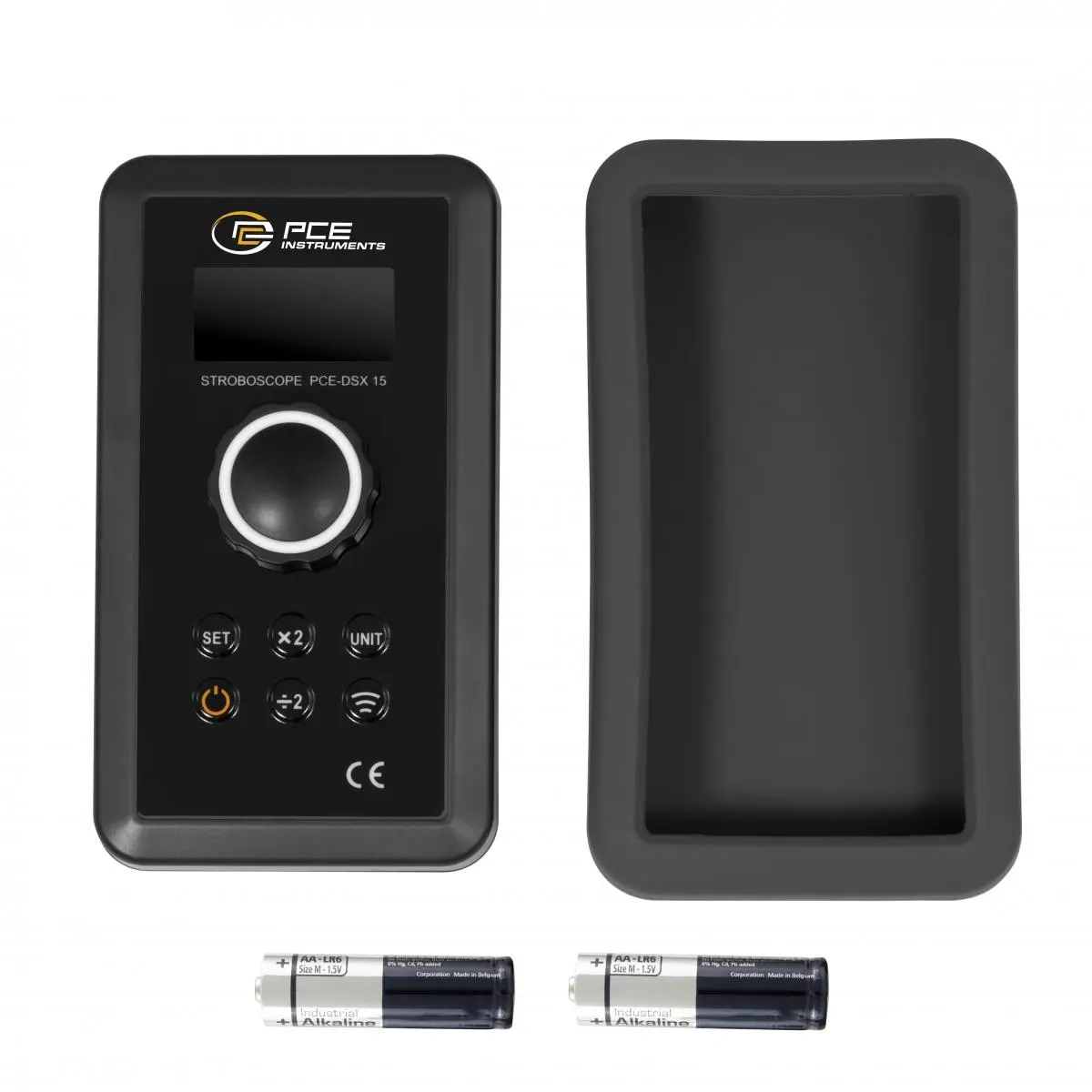

Delivery Scope

1 x Handheld Tachometer PCE-DSX 15
1 x Silicone cover
2 x 1.5V AA batteries
1 x Instruction manual
