The Multimeter / TRMS Multimeter provides precise measurements for a variety of parameters, including AC and DC voltage, direct and alternating current, frequency, resistance, capacitance and temperature. Our Multimeter / TRMS Multimeter has a hold function for saving measurement results as well as non-contact voltage detection (NCV).

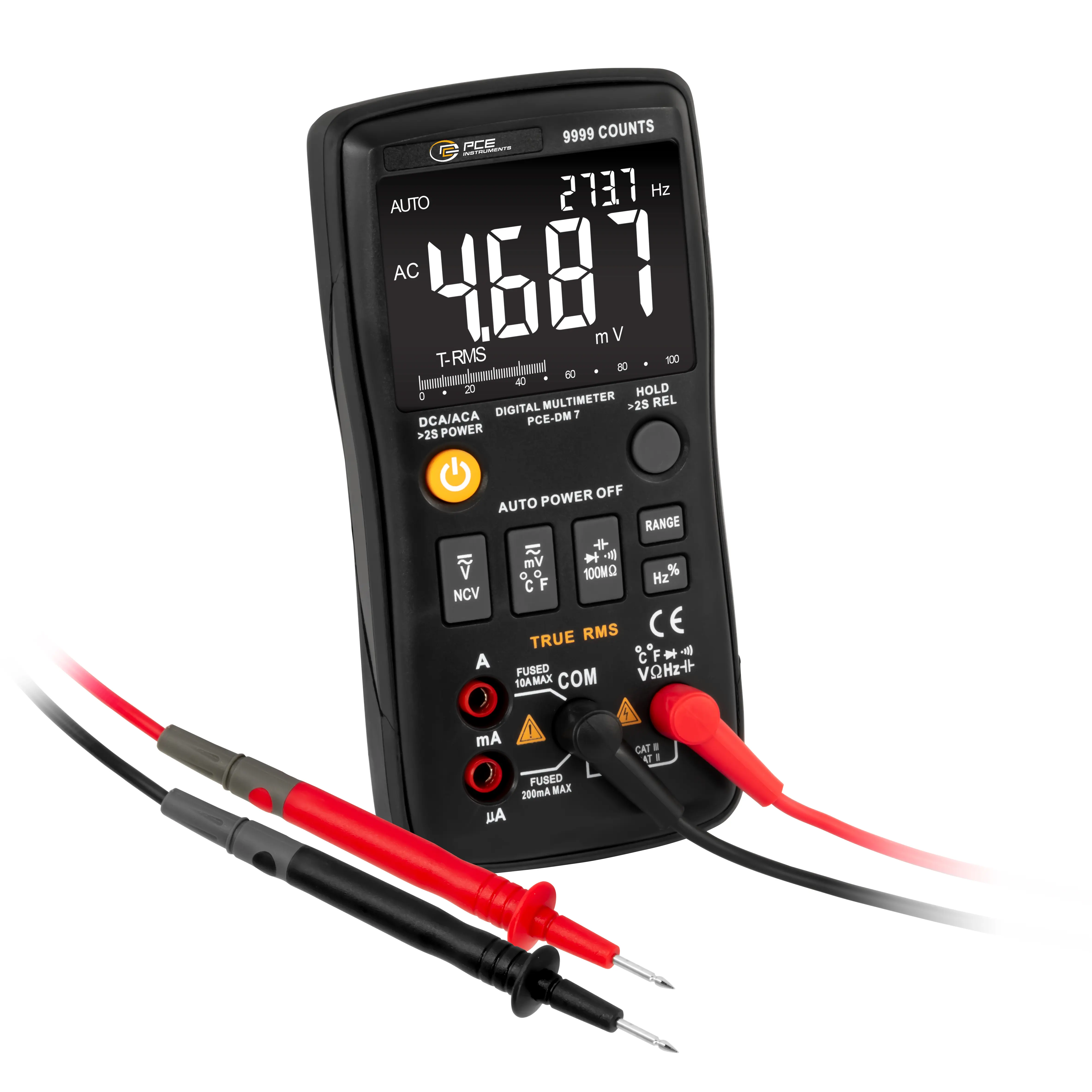

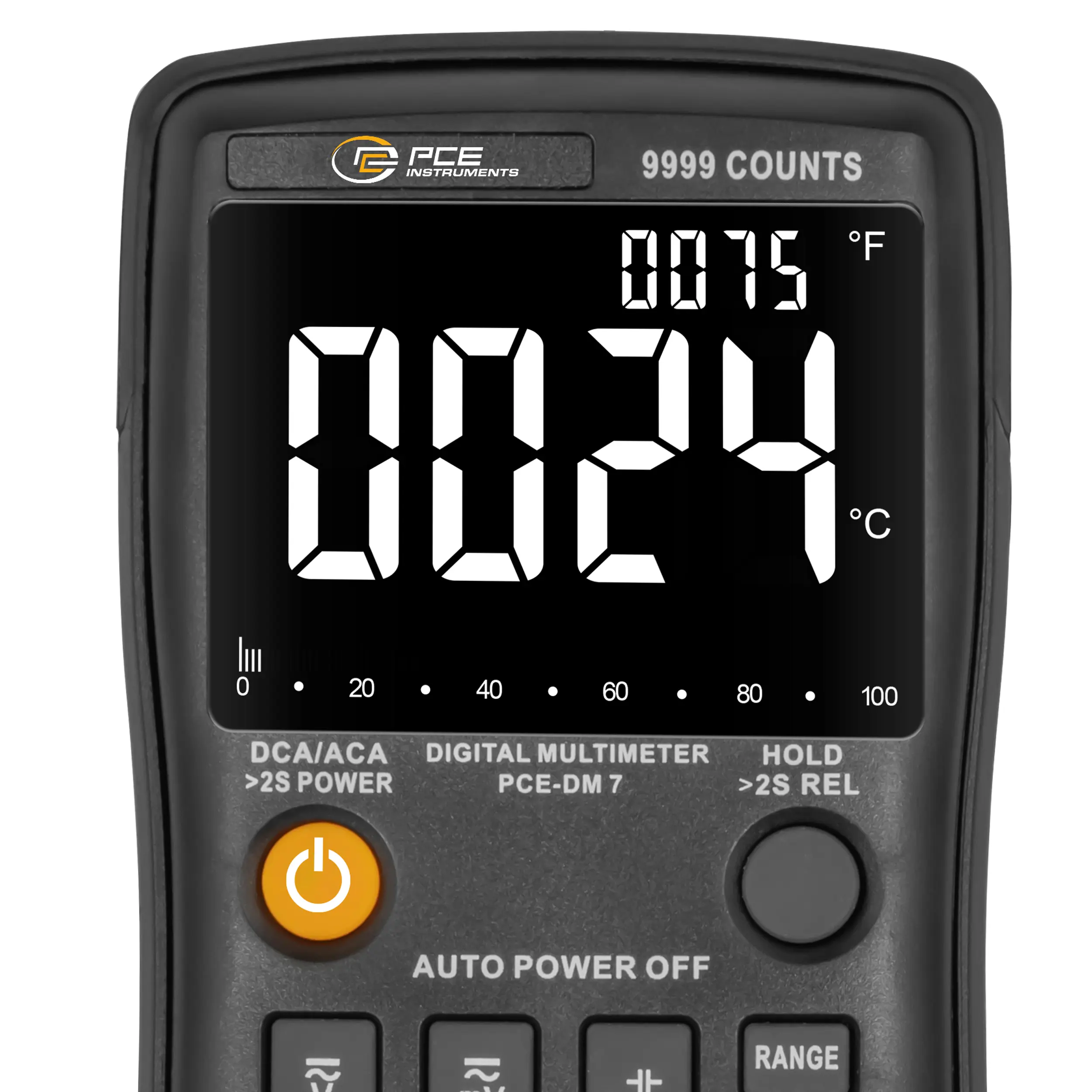

The device enables both automatic and manual measurement range selection and is equipped with an easy-to-read 2.8-inch LCD with backlight. With a sampling rate of three measurements per second, it delivers quick results and switches off automatically after five minutes of inactivity to extend the battery life. In addition, the Multimeter / TRMS Multimeter offers a dual display: a bar graph for quick visual assessments and a numerical display for precise readings.

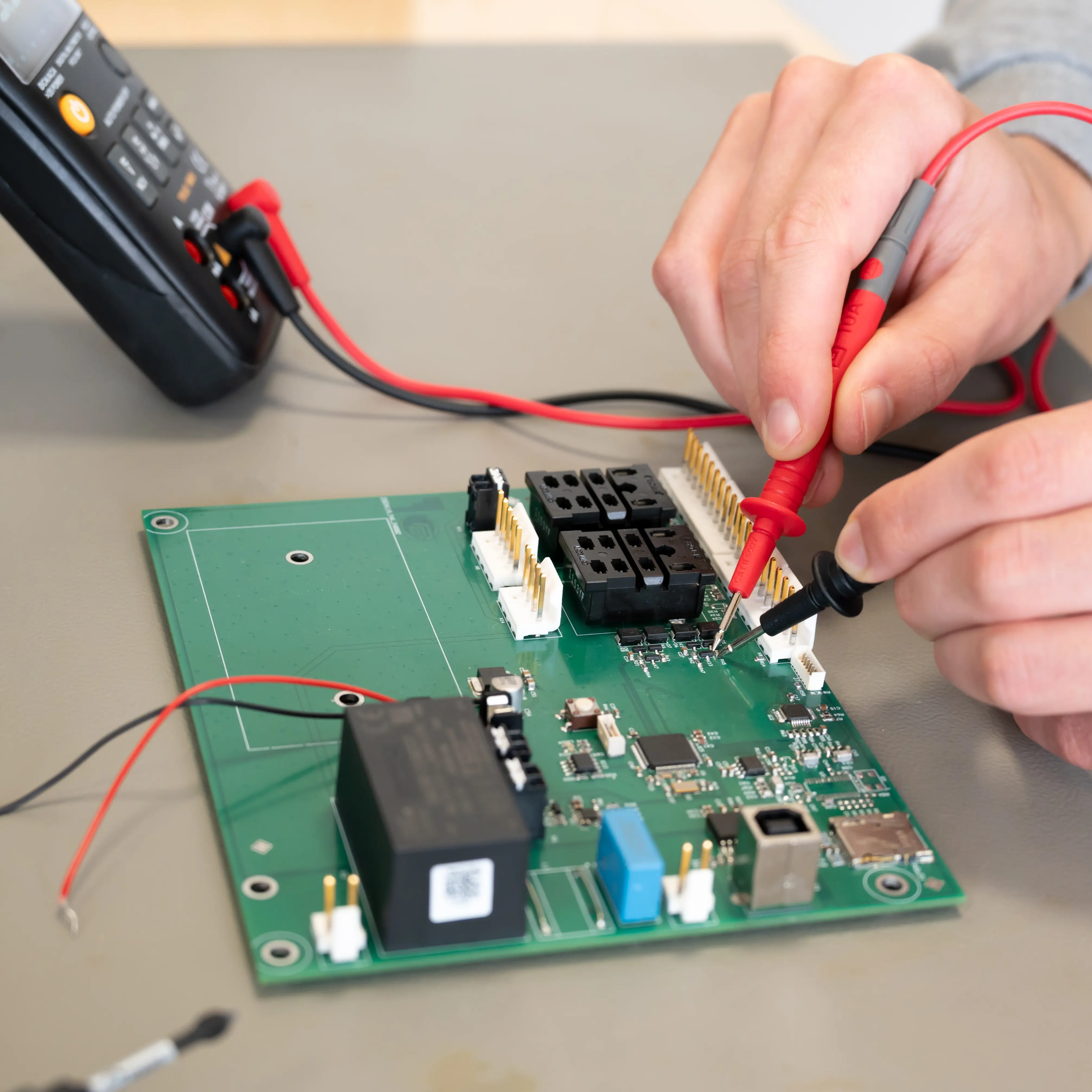

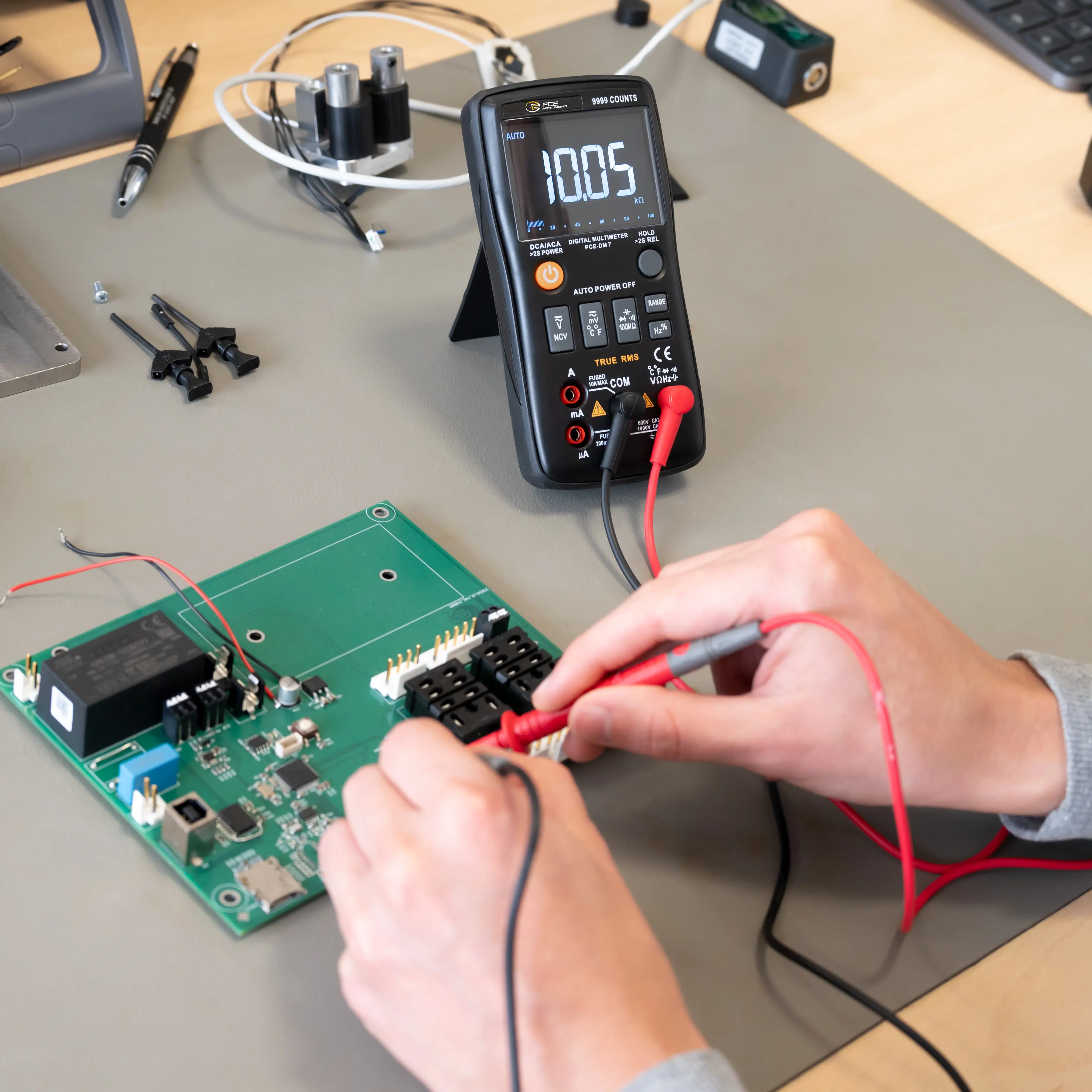

The Multimeter / TRMS Multimeter is powered by two 1.5 V batteries and is designed for easy one-handed operation. The compact dimensions of 140 x 70 x 35 mm make the Multimeter / TRMS Multimeter a practical tool for everyday use by electricians and hardware developers as well as in other technical applications.
| Direct voltage DC | |
| Measurement range up to | 0 ... 9,999 mV |
| Resolution | 0,001 mV |
| Accuracy | ±(0.5 % of Rd +3 digits) |
| Direct voltage DC | |
| Measurement range up to | 10 ... 99,99 mV |
| Resolution | 0,01 mV |
| Accuracy | ±(0.5 % of Rd +3 digits) |
| Direct voltage DC | |
| Measurement range up to | 100 ... 999,9 mV |
| Resolution | 0,1 mV |
| Accuracy | ±(0.5 % of Rd +3 digits) |
| Direct voltage DC | |
| Measurement range up to | 1 ... 9,999 V |
| Resolution | 0,001 V |
| Accuracy | ±(0.5 % of Rd +3 digits) |
| Direct voltage DC | |
| Measurement range up to | 10 ... 99,99 V |
| Resolution | 0,01 V |
| Accuracy | ±(0.5 % of Rd +3 digits) |
| Direct voltage DC | |
| Measurement range up to | 100 ... 999,9 V |
| Resolution | 0,1 V |
| Accuracy | ±(0.5 % of Rd +3 digits) |
| Direct current DC | |
| Measurement range up to | 0 ... 9999 µA |
| Resolution | 1 µA |
| Accuracy | ±(0.8 % of Rd +3 digits) |
| Direct current DC | |
| Measurement range up to | 10 ... 99,99 mA |
| Resolution | 0,01 mA |
| Accuracy | ±(0.8 % of Rd +3 digits) |
| Direct current DC | |
| Measurement range up to | 100 ... 999,9 mA |
| Resolution | 0,1 mA |
| Accuracy | ±(1 % of Rd +3 digits) |
| Direct current DC | |
| Measurement range up to | 1 ... 9,999 A |
| Resolution | 0,001 A |
| Accuracy | ±(1 % of Rd +3 digits) |
| Capacity | |
| Measurement range up to | 0 ... 9,999 nF |
| Resolution | 0,001 nF |
| Accuracy | ±(5.0 % of Rd +20 digits) |
| Capacity | |
| Measurement range up to | 10 ... 99,99 nF |
| Resolution | 0,01 nF |
| Accuracy | ±(2.0 % of Rd +5 digits) |
| Capacity | |
| Measurement range up to | 100 ... 999,9 nF |
| Resolution | 0,1 nF |
| Accuracy | ±(2.0 % of Rd +5 digits) |
| Capacity | |
| Measurement range up to | 1 ... 9,999 µF |
| Resolution | 0,001 µF |
| Accuracy | ±(2.0 % of Rd +5 digits) |
| Capacity | |
| Measurement range up to | 10 ... 99,99 µF |
| Resolution | 0,01 µF |
| Accuracy | ±(2.0 % of Rd +5 digits) |
| Capacity | |
| Measurement range up to | 100 ... 999,9 µF |
| Resolution | 0,1 µF |
| Accuracy | ±(2.0 % of Rd +5 digits) |
| Capacity | |
| Measurement range up to | 1 ... 9,999 mF |
| Resolution | 0,001 mF |
| Accuracy | ±(5.0 % of Rd +5 digits) |
| AC voltage | |
| Measurement range up to | 0 ... 9,999 mV |
| Resolution | 0,001 mV |
| Accuracy | ±(1 % of Rd +3 digits) |
| Frequency range | 40 ... 1000 Hz |
| AC voltage | |
| Measurement range up to | 10 ... 99,99 mV |
| Resolution | 0,01 mV |
| Accuracy | ±(1 % of Rd +3 digits) |
| Frequency range | 40 ... 1000 Hz |
| AC voltage | |
| Measurement range up to | 100 ... 999,9 mV |
| Resolution | 0,1 mV |
| Accuracy | ±(1 % of Rd +3 digits) |
| Frequency range | 40 ... 1000 Hz |
| AC voltage | |
| Measurement range up to | 1 ... 9,999 V |
| Resolution | 0,001 V |
| Accuracy | ±(1 % of Rd +3 digits) |
| Frequency range | 40 ... 1000 Hz |
| AC voltage | |
| Measurement range up to | 10 ... 99,99 V |
| Resolution | 0,01 V |
| Accuracy | ±(1 % of Rd +3 digits) |
| Frequency range | 40 ... 1000 Hz |
| AC voltage | |
| Measurement range up to | 100 ... 750 V |
| Resolution | 0,1 V |
| Accuracy | ±(1 % of Rd +3 digits) |
| Frequency range | 40 ... 1000 Hz |
| Alternating current AC | |
| Measurement range up to | 0 ... 9999 µA |
| Resolution | 1 µA |
| Accuracy | ±(1 % of Rd +3 digits) |
| Frequency range | 40 ... 1000 Hz |
| Alternating current AC | |
| Measurement range up to | 10 ... 99,99 mA |
| Resolution | 0,01 mA |
| Accuracy | ±(1 % of Rd +3 digits) |
| Frequency range | 40 ... 1000 Hz |
| Alternating current AC | |
| Measurement range up to | 100 ... 999,9 mA |
| Resolution | 0,1 mA |
| Accuracy | ±(1.2 % of Rd +3 digits) |
| Frequency range | 40 ... 1000 Hz |
| Alternating current AC | |
| Measurement range up to | 1 ... 9,999 A |
| Resolution | 0,001 A |
| Accuracy | ±(1.2 % of Rd +3 digits) |
| Frequency range | 40 ... 1000 Hz |
| Resistance | |
| Measurement range up to | 0 ... 99,99 Ω |
| Resolution | 0,01 Ω |
| Accuracy | ±(1 % of Rd +3 digits) |
| Resistance | |
| Measurement range up to | 100 ... 999,9 Ω |
| Resolution | 0,1 Ω |
| Accuracy | ±(0.5 % of Rd +3 digits) |
| Resistance | |
| Measurement range up to | 1 ... 9,999 kΩ |
| Resolution | 0,001 kΩ |
| Accuracy | ±(0.5 % of Rd +3 digits) |
| Resistance | |
| Measurement range up to | 10 ... 99,99 kΩ |
| Resolution | 0,01 kΩ |
| Accuracy | ±(0.5 % of Rd +3 digits) |
| Resistance | |
| Measurement range up to | 100 ... 999,9 kΩ |
| Resolution | 0,1 kΩ |
| Accuracy | ±(0.5 % of Rd +3 digits) |
| Resistance | |
| Measurement range up to | 1 ... 9,999 M Ω |
| Resolution | 0,001 M Ω |
| Accuracy | ±(1.5 % of Rd +3 digits) |
| Resistance | |
| Measurement range up to | 10 ... 99,99 M Ω |
| Resolution | 0,01 M Ω |
| Accuracy | ±(3.0 % of Rd +5 digits) |
| Duty cycle | |
| Measurement range up to | 1 ... 99 % |
| Resolution | 0,1 % |
| Accuracy | ±(0.1 % of Rd +2 digits) |
| Frequency | |
| Measurement range up to | 0 ... 99,99 Hz |
| Resolution | 0,01 Hz |
| Accuracy | ±(0.1 % of Rd +2 digits) |
| Frequency | |
| Measurement range up to | 100 ... 999,9 Hz |
| Resolution | 0,1 Hz |
| Accuracy | ±(0.1 % of Rd +2 digits) |
| Frequency | |
| Measurement range up to | 1 ... 9,999 kHz |
| Resolution | 0,001 kHz |
| Accuracy | ±(0.1 % of Rd +2 digits) |
| Frequency | |
| Measurement range up to | 10 ... 99,99 kHz |
| Resolution | 0,01 kHz |
| Accuracy | ±(0.1 % of Rd +2 digits) |
| Frequency | |
| Measurement range up to | 100 ... 999,9 kHz |
| Resolution | 0,1 kHz |
| Accuracy | ±(0.1 % of Rd +2 digits) |
| Frequency | |
| Measurement range up to | 1 ... 5 MHz |
| Resolution | 0,001 MHz |
| Accuracy | ±(0.1 % of Rd +2 digits) |

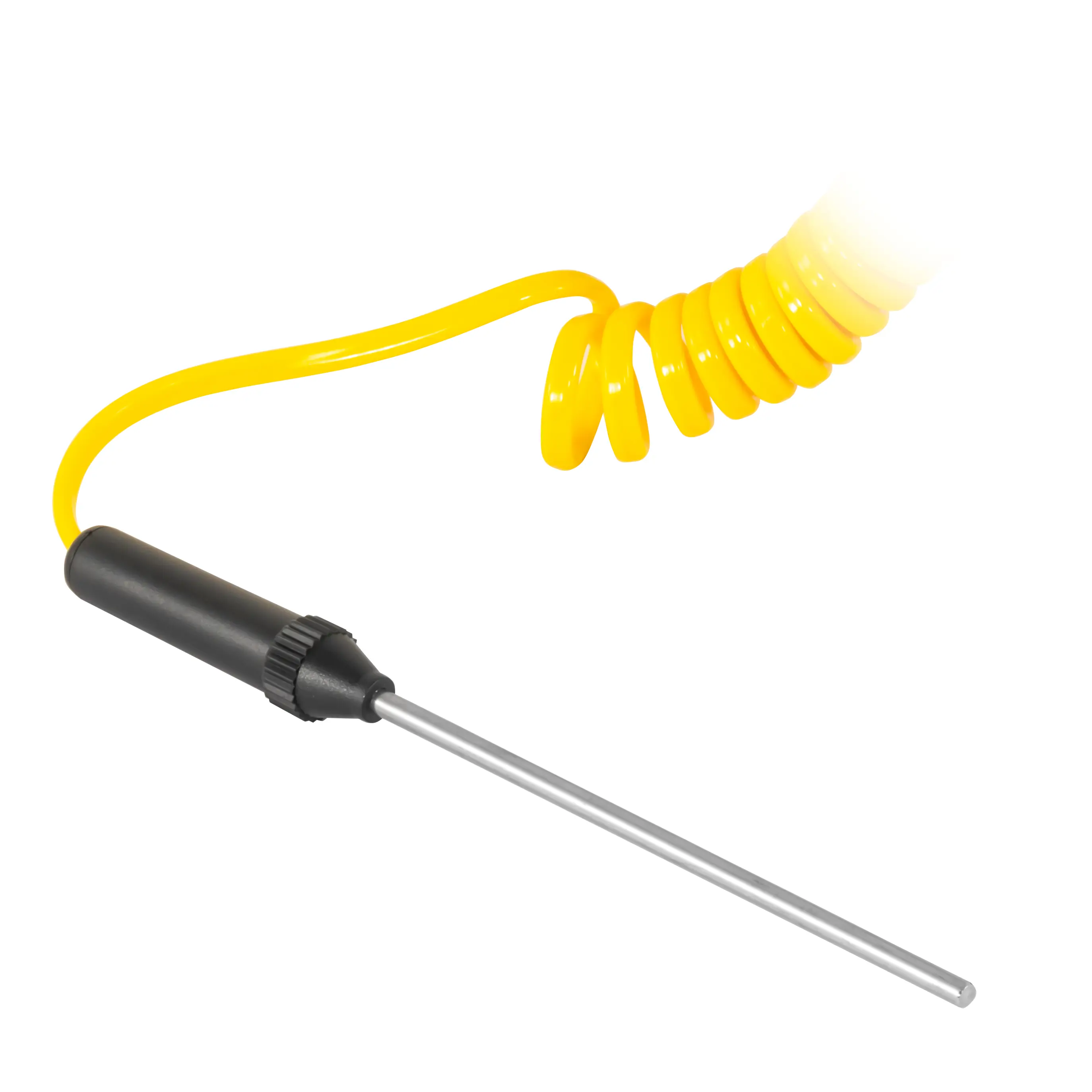

| Temperature | |
| Measurement range up to | -20 ... +1000 °C |
| Resolution | 1 °C |
| Accuracy | ±(2.5 % of Rd +5 digits) |
| Temperature | |
| Measurement range up to | -4 ... +1832 °F |
| Resolution | 1 °F |
| Accuracy | ±(2.5 % of Rd +5 digits) |
| General technical data | |
| Measuring functions | HOLD |
| Display type | LCD with backlight |
| Display size | 2,8 Inch |
| Measuring rate | 3 x per second |
| Automatic power-off | 5 min |

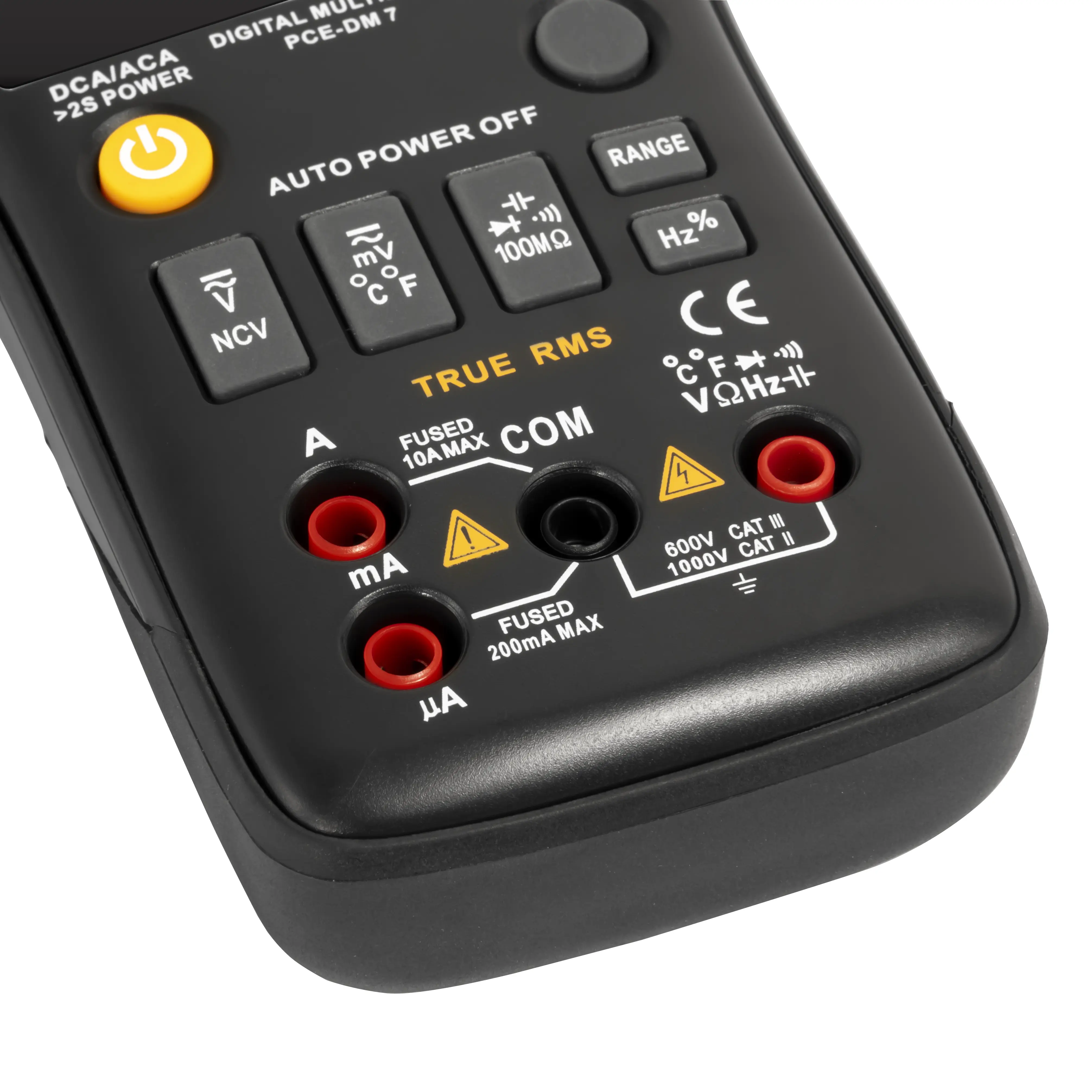

| Safety standard | CAT II 1000 V, CAT III 600 V |
| Measurement range selection | Automatic, Manual |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| Weight | 175 g |
| Operating conditions | 0 ... 40 °C , 0 ... 75 % RH |
| Storage conditions | -20 ... 60 °C , 0 ... 80 % RH |

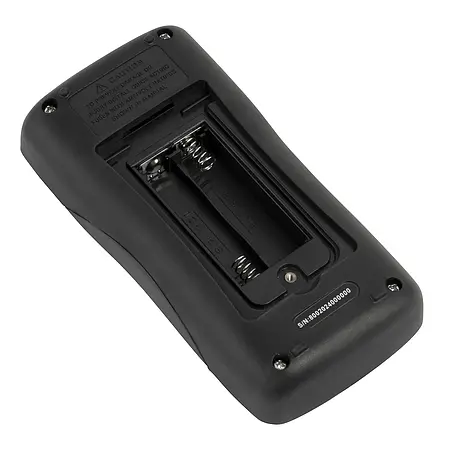

| (Rechargeable) battery | 2 x 1,5 V AA battery , Alkali-manganese |
| Capacity | 3000 mAh |
| Dimensions ( L x W x H ) | 140 x 70 x 35 mm |
