Force Gage PCE-DDM 5WI-ICA Incl. ISO Calibration

Name: Force Gage PCE-DDM 5WI-ICA Incl. ISO Calibration
Brand: PCE Instruments
SKU: 5956316
Price: 1724 USD
Availability: InStock

Order no.: PCE-DDM 5WI-ICA

GTIN (EAN):

Your PCE Instruments Benefits

Bilingual Technical Support (EN / ES)

Special Promotions

Public Service, Military and First Responder Discount

30 Day Return Policy

2 Year Warranty

Accessory

ISO Calibration Certificate CAL-P-5T

US$ 333.00

DAkkS calibration certificate for tensile/compressive force DIN ISO 376

US$ 1,881.00

DAkkS calibration certificate for tensile/compressive force DAkkS-DKD-R 3-3 Process A

DAkkS calibration cert. for tensile/compressive force DAkkS-DKD-R 3-3 Process A

US$ 1,798.00

Description

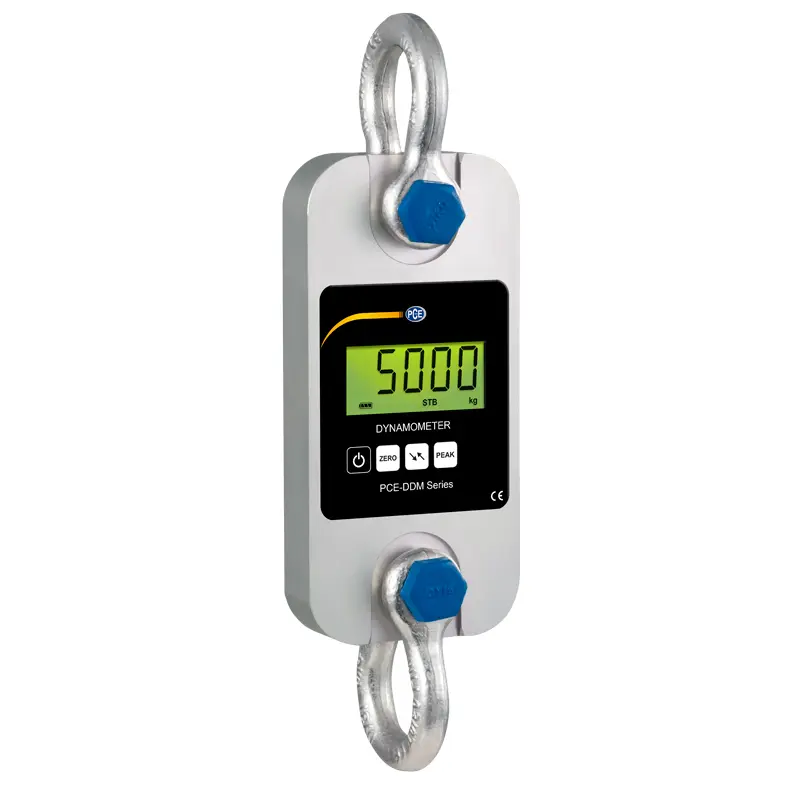

Mobile Force Gage / Measuring range up to 5 t /
PEAK hold function / incl. shackles and transport case

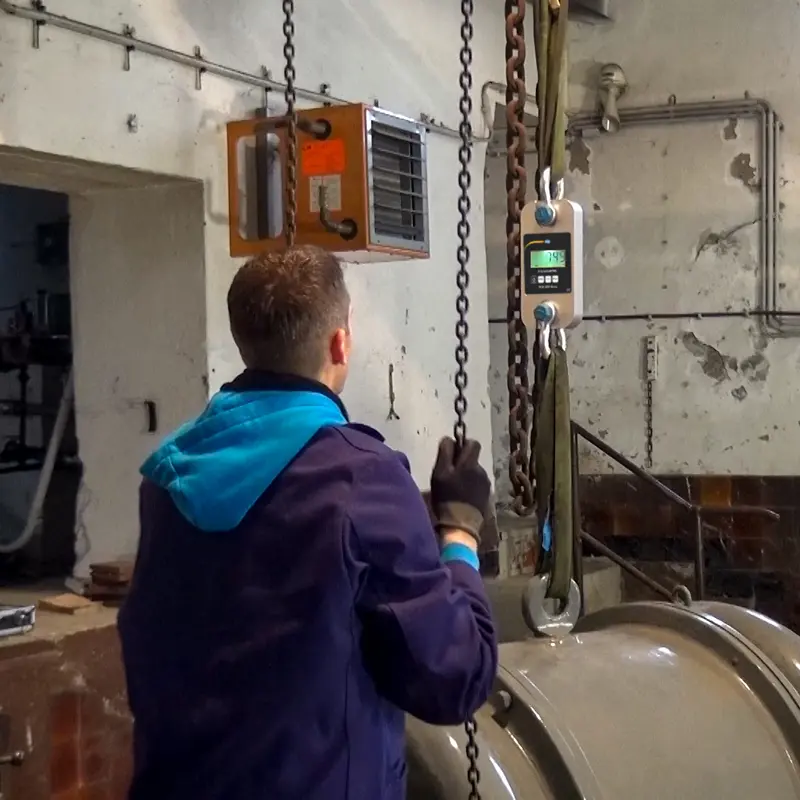

The force gage is ideal for carrying out mobile tension measurements such as those made by surveyors. Quality materials are used for the manufacture of the tension force gage. Despite the high measuring capacity, these materials enable a compact design with a low weight. The tension force gage is supplied with two shackles in a transport case.

Interesting functions of the force gage are the PEAK hold function, summation function and the various units of measurement such as kg / t / lb / N or kN. The tensile force gage is only suitable for tensile measurements; other force measuring devices must be used for pressure tests, such as our PCE-FB series force measuring gauges.

Highlights

- Measuring range up to 5,000 kg / 50 kN
- Low device weight
- Compact design
- Long battery life
- PEAK Hold function
- Summing function
- Measurement units: kg / t / lbs / N / kN
- Adjustable gravitation range
- Shackles and transport case incl.

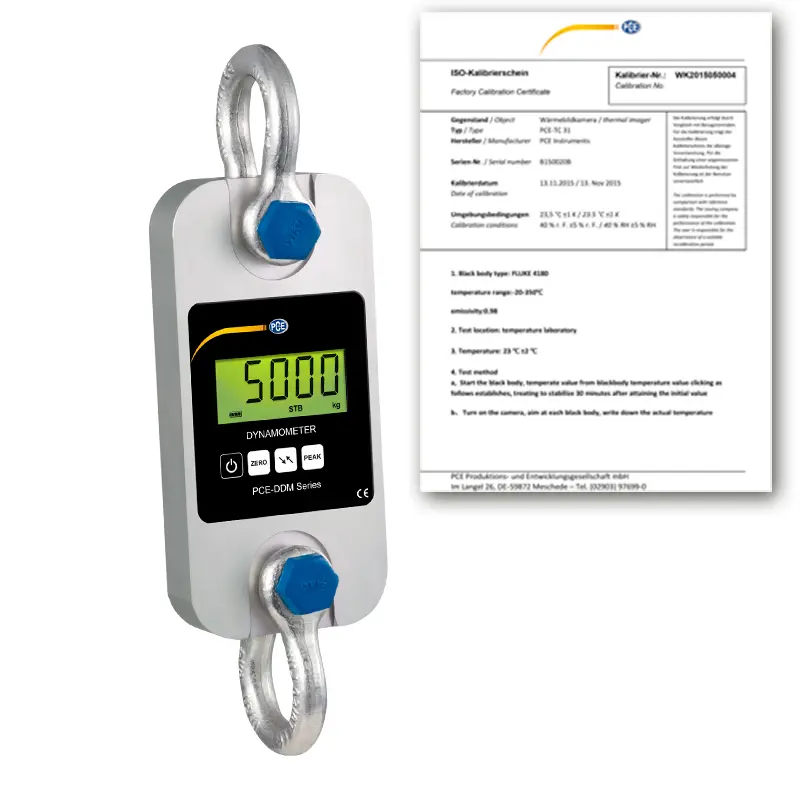

- incl. ISO calibration certificate

Specification

Measuring range	5000 kg / 50 kN / 11023 lbs
Resolution	2 kg / 20 N / 4 lbs
Min. range	40 kg / 88 lbs
Weight (with shackle)	3 kg / 6.6 lbs (6 kg / 13 lbs)
Accuracy	±0.1 % of measurement range
Tare range	Max. 20 % of measurement range
Display	LCD with 22 mm / 0.9 in digit height
Units of measurement	kg / t / lb / N / kN
Sampling rate	2.5 Hz
Operating temperature	-10 °C ... +40 °C / +14 °F ... +104 °F
Power supply	3 x 1.5 V AA batteries
Operating time	Approx. 50 hours

Technical drawing

A	B	C	D	Ø E	H	Material
285 mm 11.2 in	123 mm 4.8 in	57 mm 2.2 in	210 mm 8.3 in	58 mm 2.3 in	405 mm 15.9 in	Aluminium

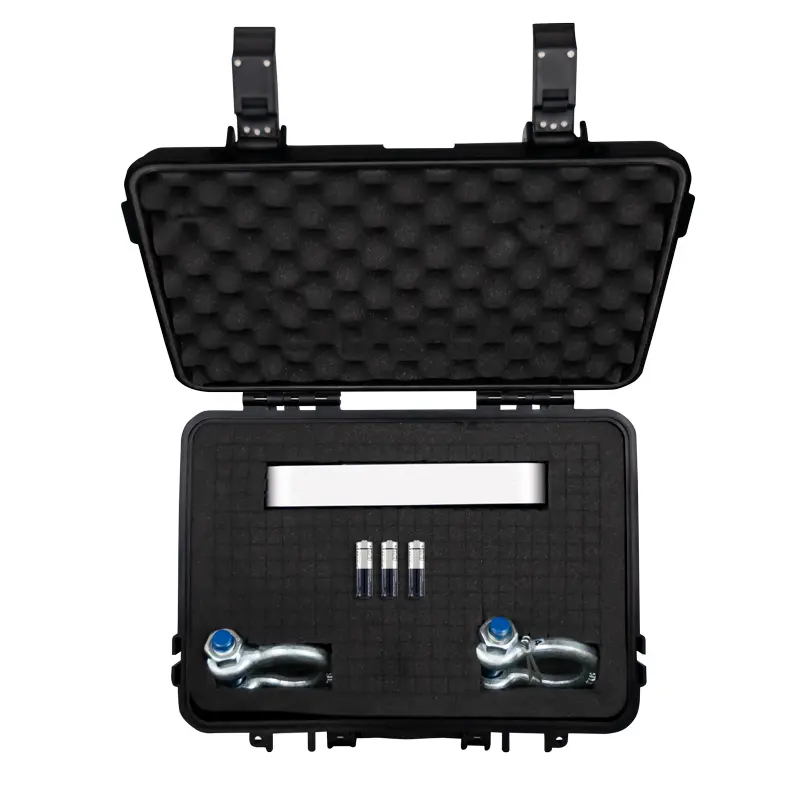

Delivery Scope

1 x Force Gage PCE-DDM 5WI-ICA
2 x Shackles
1 x Carrying case
3 x AA 1.5 V batteries
1 x User manual
1 x ISO calibration certificate

N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return
