Order no.: PCE-DDM 5WI

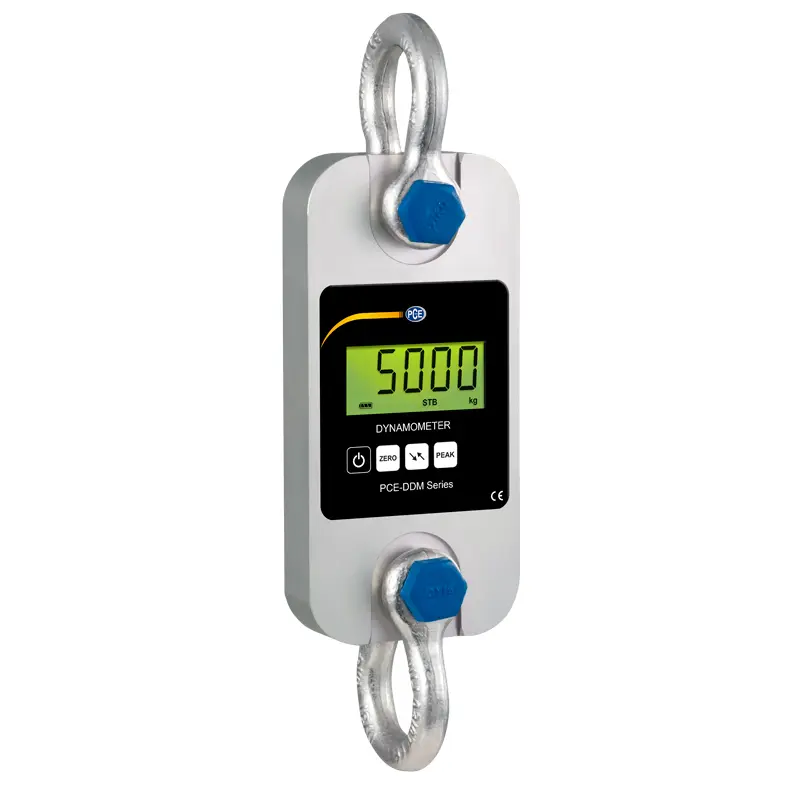

Force Gage PCE-DDM 5WI


US$ 1,416.00
PCE-DDM 5WI
ex. VAT, ex. delivery costs
Available in: 1-2 days

Description

Mobile Force Gage / Measuring range up to 5 t /
PEAK hold function / incl. shackles and transport case

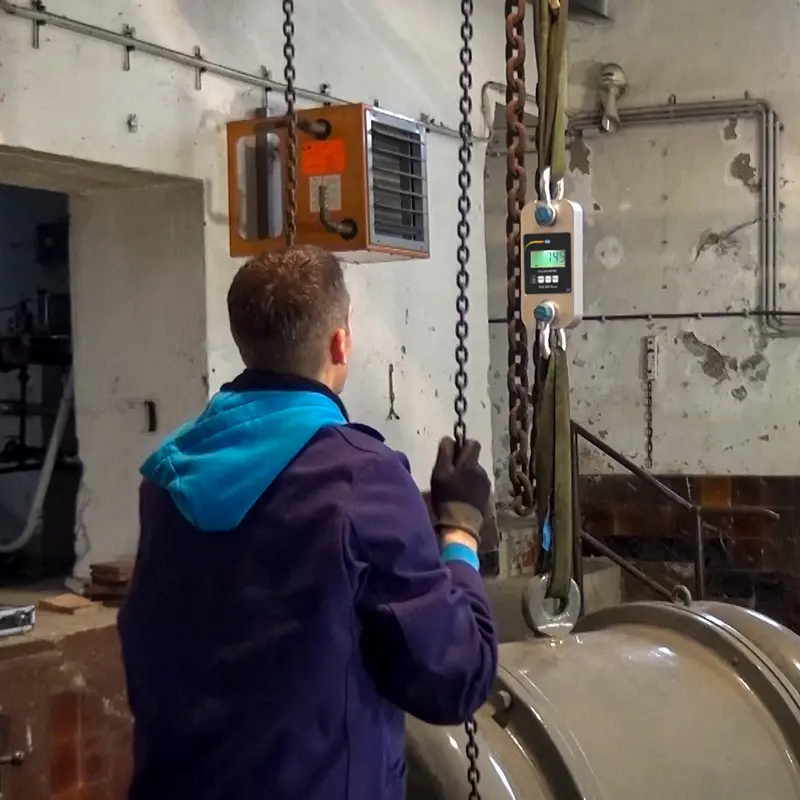

The force gage is ideal for carrying out mobile tension measurements such as those made by surveyors. Quality materials are used for the manufacture of the tension force gage. Despite the high measuring capacity, these materials enable a compact design with a low weight. The tension force gage is supplied with two shackles in a transport case.

Interesting functions of the force gage are the PEAK hold function, summation function and the various units of measurement such as kg / t / lb / N or kN. The tensile force gage is only suitable for tensile measurements; other force measuring devices must be used for pressure tests, such as our PCE-FB series force measuring gauges.

Highlights

- Measuring range up to 5,000 kg / 50 kN
- Low device weight
- Compact design
- Long battery life
- PEAK Hold function
- Summing function
- Measurement units: kg / t / lbs / N / kN
- Adjustable gravitation range
- Shackles and transport case incl.

Specification

Measuring range 5000 kg / 50 kN / 11023 lbs
Resolution 2 kg / 20 N / 4 lbs
Min. range 40 kg / 88 lbs
Weight (with shackle)
3 kg / 6.6 lbs
(6 kg / 13 lbs)
Accuracy ±0.1 % of measurement range
Tare range Max. 20 % of measurement range
Display LCD with 22 mm / 0.9 in digit height
Units of measurement kg / t / lb / N / kN
Sampling rate 2.5 Hz
Operating temperature   -10 °C ... +40 °C / +14 °F ... +104 °F
Power supply 3 x 1.5 V AA batteries
Operating time Approx. 50 hours



Technical drawing
Technical drawings of the tension dynamometer/ force gauge PCE-DDM
A B C D Ø E H Material
285 mm
11.2 in
123 mm
4.8 in
57 mm
2.2 in
210 mm
8.3 in
58 mm
2.3 in
405 mm
15.9 in
Aluminium

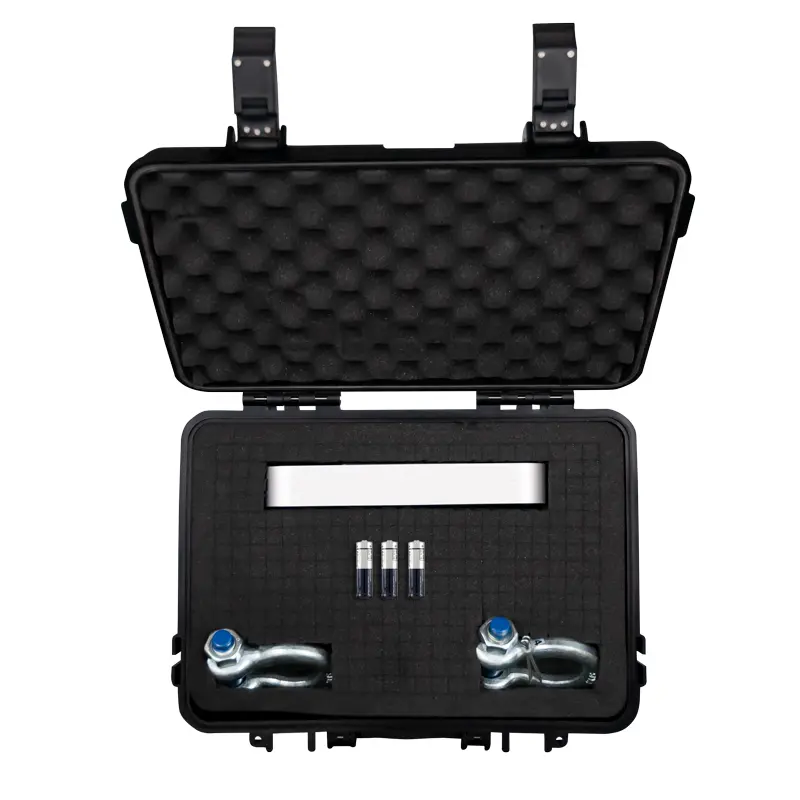

Delivery Scope

1 x Force Gage PCE-DDM 5WI
2 x Shackles
1 x Carrying case
3 x AA 1.5 V batteries
1 x User manual
