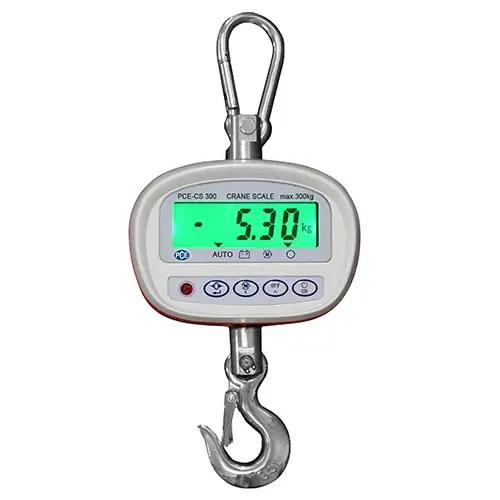

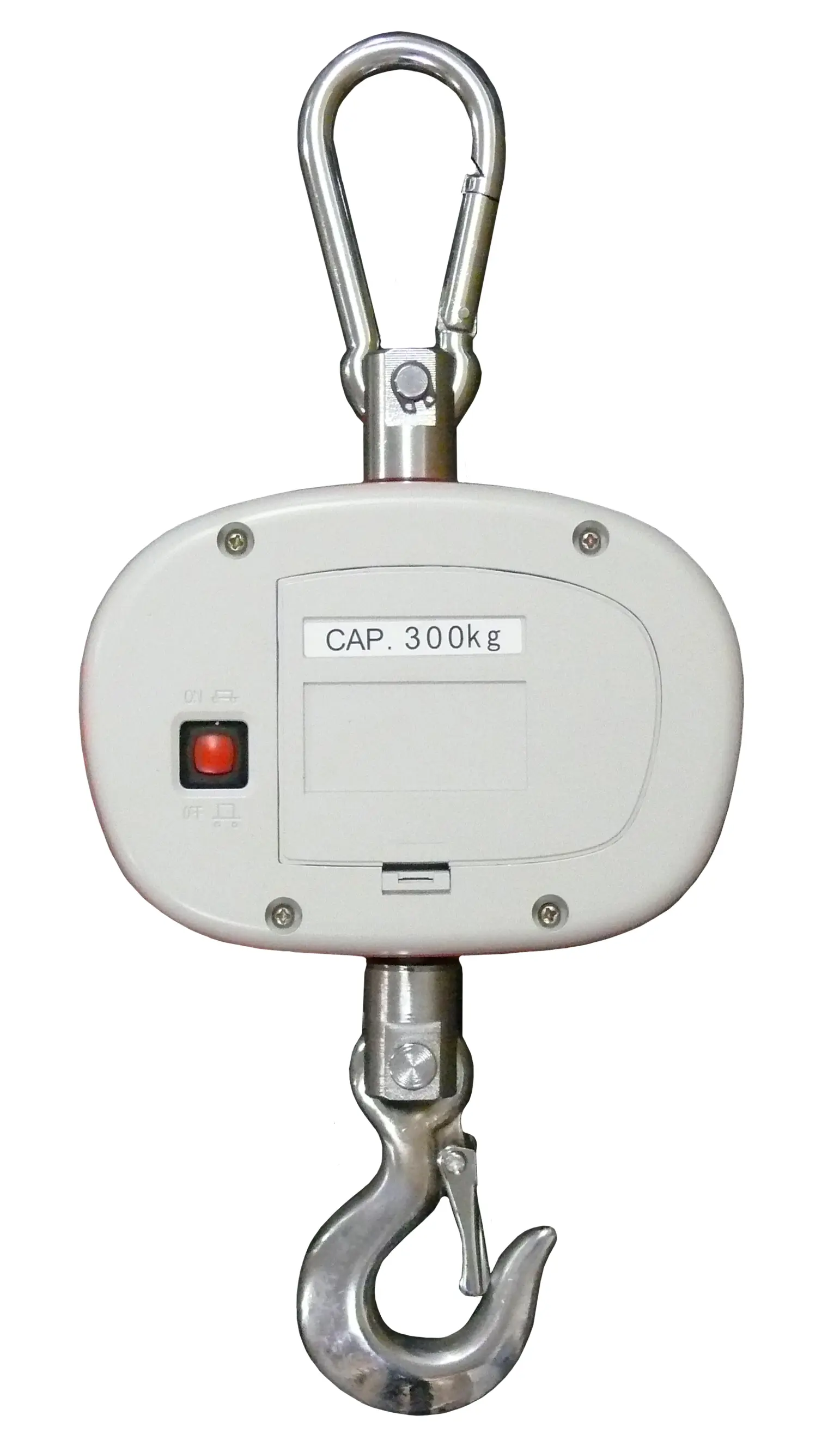

PCE-CS 300 Force Gage
hanging hook / shackle / remote control
PCE-CS 300 is a digital, battery-powered force gage for indoor use. The rugged design of the force gage accommodates applications in rough industrial conditions as well as in fields such as food and hygiene. A stainless-steel, carabiner-style shackle, a zinc-coated hook, and an infrared remote control are included with the force gage, as are six 1.5 V AA batteries. The force gage comes factory calibrated, and, for an additional fee, it can be calibrated according to ISO standards.
| Technical specifications | |
| Weighing capacity | 300 kg / 661.39 lbs |
| Readability | 0.05 kg / 0.11 lbs |
| Repeatability | 0.1 kg / 0.22 lbs |
| Min. weight | 2 kg / 4.41 lbs |
| TARE | Full range |
| Protection | IP54 (dust and splash proof) |
| Settling time | < 10 s |
| Max. overload | 50 % |
| Units of weight | kg / lbs |
| LCD Display | Character height of 20 mm / 0.78 in |
| Power supply | 4 x 1.5 V AA batteries 2 x 1.5 V AA batteries (for remote control) |
| Operating temperature | -10°C … +40°C / +14°F … +104°F |
| Operating humidity | 30% … 90% |
| Net weight | 1.2 kg / 2.65 lbs incl. batteries |
| Remote control | Infrared, for distances up to 10 m / 32.80 ft |
Delivery contents
1 x PCE-CS-300 Force Gage
6 x 1.5 V AA batteries
1 x infrared remote control
1 x stainless-steel, carabiner-style shackle
1 x zinc-coated hook
1 x user manual
