Order no.: PCE-T 330

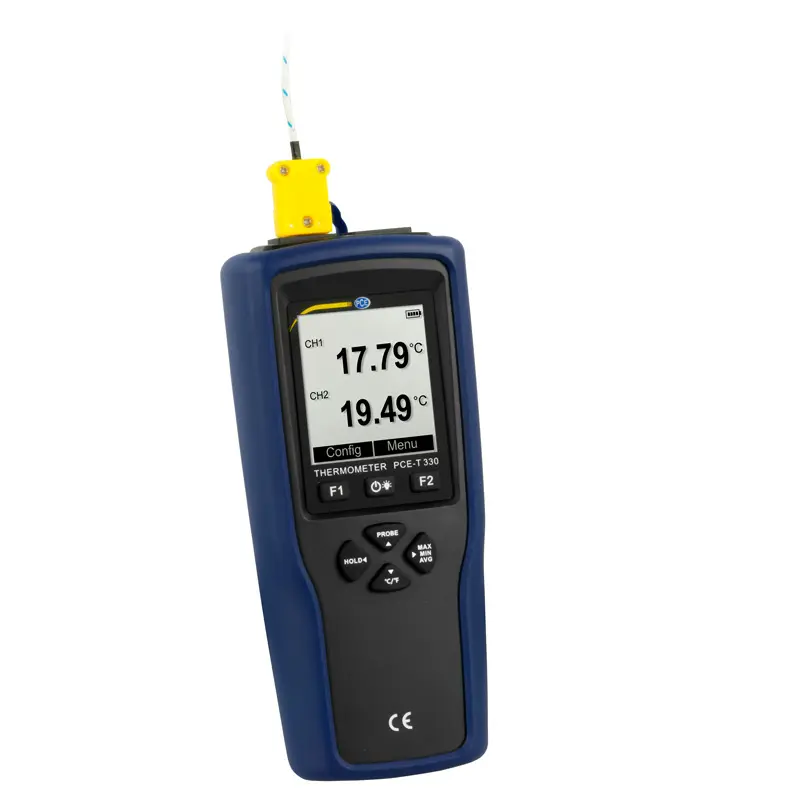

Food Thermometer PCE-T 330

US$ 317.00
:
4250348722720
PCE-T 330
ex. VAT, ex. delivery costs
Available in: 1-2 days

Description

Two-channel Food Thermometer / Battery life of approx. 190 hours /
Different file formats / No software required / Storage for 20,000 data points

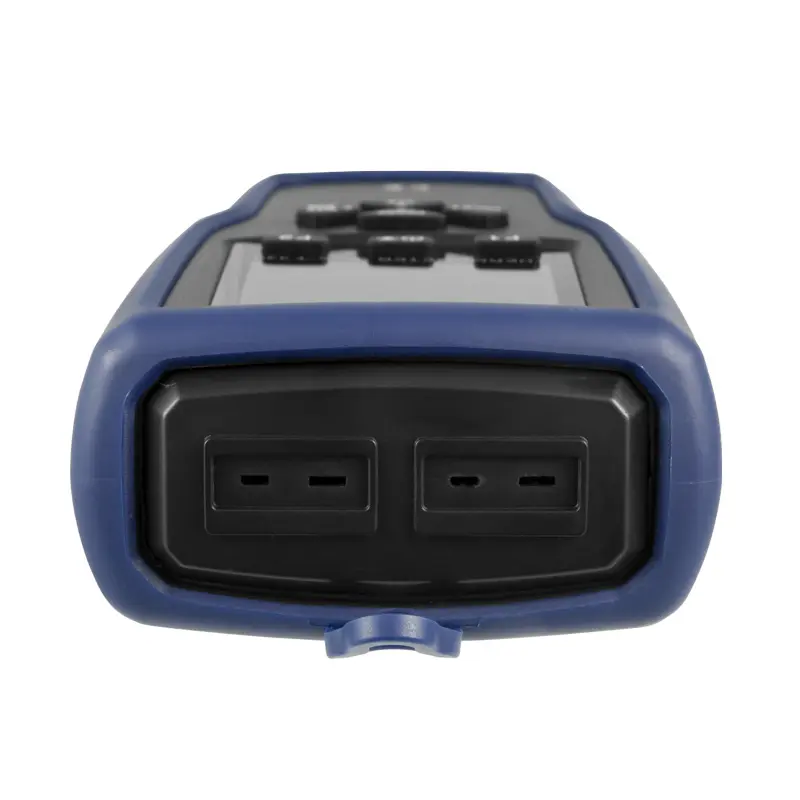

The Food Thermometer has two measuring inputs. Each measuring input from the Food Thermometer can be connected to a thermocouple of type K, T and J. With a measuring rate of 2 Hz, the Food Thermometer shows rapid temperature fluctuations. With the high accuracy and a resolution of 0.01 °C, these rapid temperature fluctuations can also be displayed precisely by the Food Thermometer.

With a data memory of 20,000 measuring points, the Food Thermometer can be used for a long period of time. A data point on the Food Thermometer contains a measured value per channel and date as well as the current time. When the Food Thermometer is connected to a computer, it is recognized as a removable disk. This allows the Food Thermometer to be connected to computers with different operating systems, as no additional software is required for further analysis. The measurement data from the Food Thermometer can be saved as TXT, CSV, XLS and DLG format.

Highlights

- Two-channel temperature data logger
- For thermocouples type K, T and J
- Long battery life
- Data storage for 20,000 measuring points
- File format TXT, CSV, XLS and DLG
- Rubberized protective cover

Specification

Temperature Sensor    Measuring range
Resolution
Accuracy
Type K-200 ... 1370 °C / -328 … +2498 °F
   0.01 °C±0.3 % of rdg. +0.4 °C
Type T-200 ... 400 °C / -328 … 752 °F
   0.01 °C±0.3 % of rdg. +0.4 °C
Type J-200 ... 1200 °C / -328 … 2192 °F
   0.01 °C±0.3 % of rdg. +0.4 °C

Units°C / °F
Number of channels2
Measuring rate2 Hz
Data storage15,328 kB for 20,000 data points
File formatsTXT, CSV, XLS, DLG
Storage interval1 .... 86,399 s

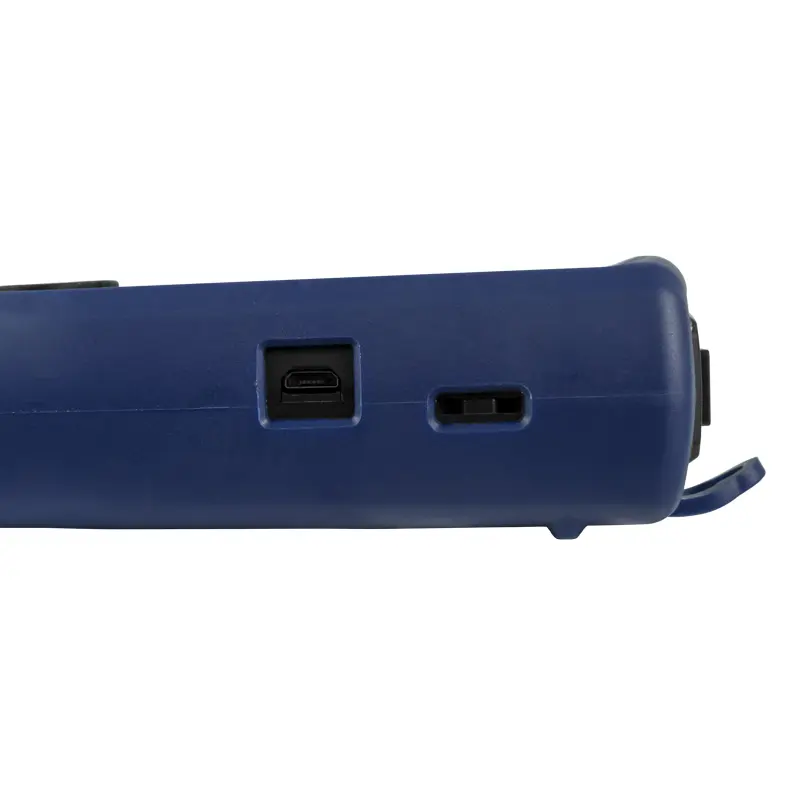

InterfaceMicro-USB
Power supply
3 x 1.2 V AAA rechargeable batteries
 3 x 1.5 V AAA batteries
Battery lifeca. 190 hours
 (without backlight, battery capacity
 1200 mAh, ambient temperature 25 °C)
Operating conditions-10 ... 50 °C / 14 … 122 °F
Storage conditions-20 ... 60 °C / -4 … +140 °F (without batteries)
Dimensions173 x 71 x 38 mm / 6.8 x 2.8 x 1.5"
Weightca. 226 g /  7.9 oz

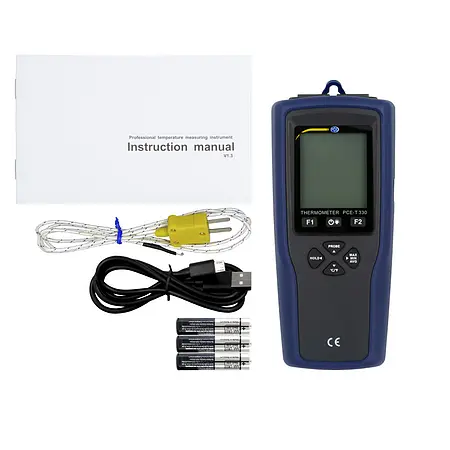

Delivery Scope

1 x Food Thermometer PCE-T 330
1 x Thermocouple Type K
1 x Micro-USB cable
3 x 1.5 V AAA batteries
1 x User manual

Downloads

Accessories

Accessories

Temperature Sensor
Temperature Contact Sensor TF-RA330-5
US$ 66.00

ex. VAT, ex. delivery costs

Temperature contact sensor with Velcro tape

- Measuring range Tmax.: 400 °C / 752 °F
- Accuracy: ± 0.5 °C
- Ø 2 mm
- Length: 5 m / 16.4 ft
- Thermocouple: Type T
Test Instruments manufacturer
Temperature Sensor
Screw-in Sensor TF-119
US$ 191.00

ex. VAT, ex. delivery costs

Screw-in sensor with T-handle for solid or frozen materials with 1m cable (removable)

- Tmax: 200 °C / 392 °F
- Accuracy: ± 1.5 °C
- Diameter: Ø 6.0 mm
- Length: 130 mm
- Thermocouple Type K
Test Instruments manufacturer
Temperature Sensor
HT Surface Sensor TF-110A
US$ 105.00

ex. VAT, ex. delivery costs

High-temperature surface sensor with resilient tip, angled 90° on a 1 m cable

- Tmax.: 900 °C / 1652 °F
- Accuracy: ± 1.5 °C
- Diameter: Ø 8.0 mm
- Length: 130 mm / 50 mm
- Thermocouple Type K
Test Instruments manufacturer
Temperature Sensor
Crocodile Clip Sensor TF-109
US$ 53.00

ex. VAT, ex. delivery costs

Crocodile clip sensor for pipes with 1 m cable

- Tmax.: 200 °C / 392 °F
- Accuracy: ± 1.5 °C
- Opening max. Ø 35 mm
- Thermocouple Type K
Test Instruments manufacturer
Temperature Sensor
Air Sensor TF-108
US$ 63.00

ex. VAT, ex. delivery costs

Stainless steel air sensor with handle and 1 m cable for air and gases with fast response time

- Tmax.: 600 °C / 1112 °F
- Accuracy: ± 1.5 °C
- Diameter: Ø 6 mm
- Length: 130 mm
- Thermocouple Type K
Test Instruments manufacturer
Temperature Sensor
Penetration / Immersion Sensor TF-106
US$ 66.00

ex. VAT, ex. delivery costs

Stainless steel penetration / immersion sensor with handle and 1m spiral cable for liquids, semi-solid media and air

- Tmax: 600 °C / 1112 °F
- Accuracy: ± 1.5 °C
- Diameter: Ø 3.0 mm
- Length: 130 mm
- Thermocouple Type K
Test Instruments manufacturer
Temperature Sensor
High Temperature Sensor TF-104B (extra long)
US$ 131.00

ex. VAT, ex. delivery costs

Extra long flexible high temperature sensor, handle and 1m spiral cable

- Tmax.: 1100 °C / 2012 °F
- Accuracy: ± 1.5 °C
- Diameter: Ø 3.0 mm
- Length: 1000 mm
- Thermocouple Type K
Test Instruments manufacturer
Temperature Sensor
High Temperature Sensor TF-104A
US$ 66.00

ex. VAT, ex. delivery costs

Flexible high temperature sensor, handle and 1 m coiled cable

- Tmax.: 1100 °C / 2012 °F
- Accuracy: ± 1.5 °C
- Diameter: Ø 3.0 mm
- Length: 300 mm
- Thermocouple Type K
Test Instruments manufacturer
Temperature Sensor
Insulated Surface Temperature Sensor TF-102A
US$ 73.00

ex. VAT, ex. delivery costs

Electrically insulated probe for measuring live surfaces

- Tmax.: 200 °C / 392 °F
- Accuracy: ± 1.5 °C
- Diameter: Ø 3.5 mm
- Length: 130 mm
- Type K thermocouple
Test Instruments manufacturer
Temperature Sensor
Temperature Sensor TF-101
US$ 90.00

ex. VAT, ex. delivery costs

Temperature sensor with resilient plate tip and 1m cable

- Ø3 mm
- Length: 120 mm
- Temperature Max: 450 °C / 842 °F
- Accuracy: ±1.5 °C
- Thermo couple: Type K
Test Instruments manufacturer
Temperature Sensor
Flexible Sensor TF-120
US$ 43.00

ex. VAT, ex. delivery costs

Flexible sensor for air and liquids at higher temperatures

- Tmax.: 480 °C / 896 °F
- Accuracy: ± 1.5 °C
- Diameter: Ø 2 mm
- Length: 1 m
- Cable type: fiber optic
- Thermocouple Type K
Test Instruments manufacturer
Temperature Sensor
High Temperature Wire Sensor TF-121
US$ 92.00

ex. VAT, ex. delivery costs

Flexible ceramic-insulated wire probe for highest temperatures

- Measuring range: Tmax. 1150 °C / 2102 °F (according to IEC584-2)
- Accuracy: ± 1.5 °C
- Diameter: Ø 4 mm
- Length: 1 m
- Cable type ceramic insulated max.: 1430 °C / 2606 °F
- Thermocouple: Type K
Test Instruments manufacturer
Temperature Sensor
Temperature Contact Sensor TF-RA330-3
US$ 61.00

ex. VAT, ex. delivery costs

Temperature contact sensor with Velcro tape

- Measuring range Tmax.: 400 °C / 752 °F
- Accuracy: ± 0.5 °C
- Ø 2 mm
- Length: 3 m / 9.8 ft
- Thermocouple: Type T
Test Instruments manufacturer
Temperature Sensor
Temperature Contact Sensor TF-RA330
US$ 53.00

ex. VAT, ex. delivery costs

Temperature contact sensor with Velcro tape

- Measuring range Tmax.: 400 °C / 752 °F
- Accuracy: ± 0.5 °C
- Ø 2 mm
- Length: 1 m / 3.2 ft
- Thermocouple: Type T
Test Instruments manufacturer
Temperature Sensor
Miniature Connector TF-551
US$ 9.00

ex. VAT, ex. delivery costs

Female miniature flat connector for K-Type thermocouples, e.g. for our compensation cables AGL-90, AGL-260 and AGL-400
Test Instruments manufacturer
Miniature-Connector TF 550
US$ 9.00

ex. VAT, ex. delivery costs

• Male miniature flat connector for K-Type Thermocouples, e.g. for our compensation cables AGL-260 and AGL-1100
Test Instruments manufacturer
Temperature Sensor
Screw-on Sensor TF-524
US$ 59.00

ex. VAT, ex. delivery costs

Screw-on temperature sensor. The sensor is connected to a measuring instrument via a miniature plug.

- Tmax.: 200 °C / 392 °F
- Accuracy: ± 1.5 °C
- Length: 1 m
- Washer interior: 8 mm
- Thermocouple: Type K
Test Instruments manufacturer
Temperature Sensor
Extension Cable TF-520
US$ 78.00

ex. VAT, ex. delivery costs

Extension cable for K-type temperature sensors with plug and socket for standard miniature connector

- Length: 10 meters / 32.8 ft
- For temperature sensors K-type
Test Instruments manufacturer
Temperature Sensor
Magnetic Surface Sensor TF-513
US$ 112.00

ex. VAT, ex. delivery costs

Magnetic surface sensor for secure fixation on metallic surfaces

- Tmax.: 200 °C / 392 °F
- Accuracy: ± 1.5 °C
- Magnet: 5 x 5 x 2 mm
- Thermocouple: Type K
Test Instruments manufacturer
Temperature Sensor
Surface Sensor TF-509 (self-adhesive)
US$ 62.00

ex. VAT, ex. delivery costs

Self-adhesive surface sensor with fiberglass insulation for permanent fixation (with adhesive patch) at a specific measuring point

- Tmax.: 250 °C / 482 °F
- Accuracy: ± 1.5 °C
- Area: 50 x 25 x 2 mm
- Thermocouple: Type K
Test Instruments manufacturer
Temperature Sensor
Flexible Temperature Sensor TF-500
US$ 14.00

ex. VAT, ex. delivery costs

Flexible sensor for air and liquids

- Tmax.: -40 to 200 °C / -40 to 392 °F
- Accuracy: ± 1.5 °C
- Diameter: Ø2 mm
- Length: 1m, 3m, 5m, 7m or 10m (selectable)
- Cable type: PTFE
- Thermocouple: Type K

Note: Please select the desired length of the temperature sensor!
Test Instruments manufacturer
Digital Thermometer
Calibration certificate for 2-channel thermometer
US$ 189.00

ex. VAT, ex. delivery costs

ISO calibration certificate, e. g. to fulfil your DIN ISO 9000. Your meter is calibrated at our in-house calibration laboratory. Your or your customer’s contact details, the readings and the serial number will be specified in this ISO calibration certificate.

- one channel
- 4 points per channel between -10 °C bis 140 °C
- Calibration for thermometers with external sensors up to dia = 12 mm in a dry block calibrator

Calibration certificates are issued customer-specific and excluded from the right of return.
Test Instruments manufacturer
Temperature Sensor
Surface temperature roller sensor PCE-SP-101
US$ 111.00

ex. VAT, ex. delivery costs

Surface temperature roller sensor for use on moving or rotating, smooth surfaces

- Measuring range: -50 to 250 °C / -58 to 482 °F
- Response time: <5 seconds
- Type: K
- Sensor length: 360 mm / 14.1" (without handle)
- Sensor length: 480 mm / 18.9" (with handle)
- Sensor head width: 45 mm / 1.7"
- Sensor head length: 40 mm / 1.5"
- Accuracy class: Class Ⅰ
Test Instruments manufacturer
Temperature Sensor
Surface temperature sensor PCE-SP-202
US$ 79.00

ex. VAT, ex. delivery costs

Ideal for measuring surface temperature

- Measuring range: up to 500 °C / 932 °F
- Type: K
- Spiral cable: 2000 mm / 78.7"
- Handle: ABS / rubber
- Length: 160 mm / 6.3"
- Sensor head diameter: 30 mm / 1.1"
Test Instruments manufacturer
