Order no.: PCE-IR 80

Food Thermometer PCE-IR 80

Question / Callback

Available in: 1-2 days

Description

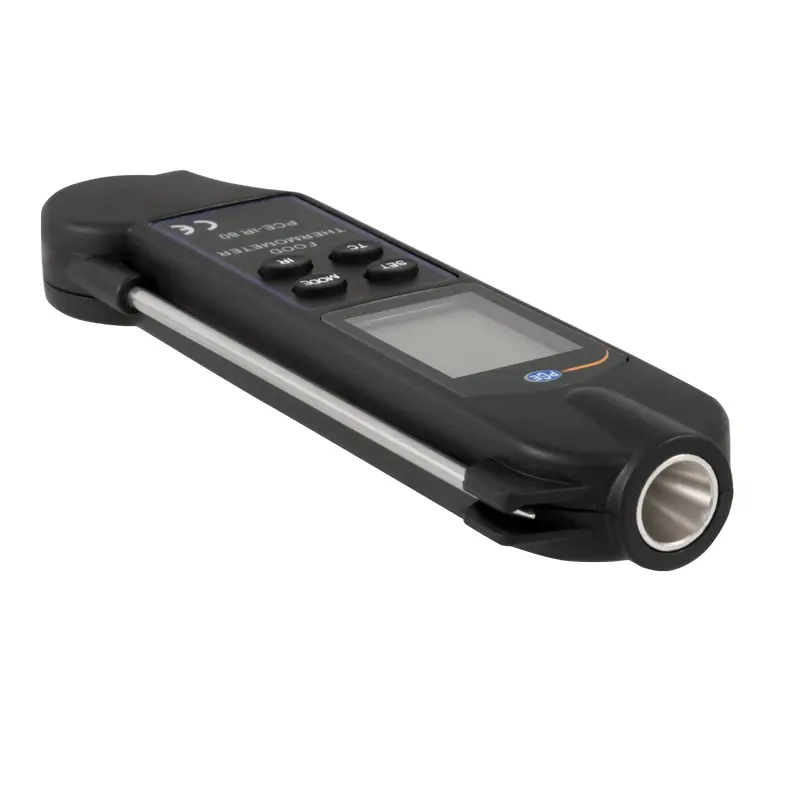

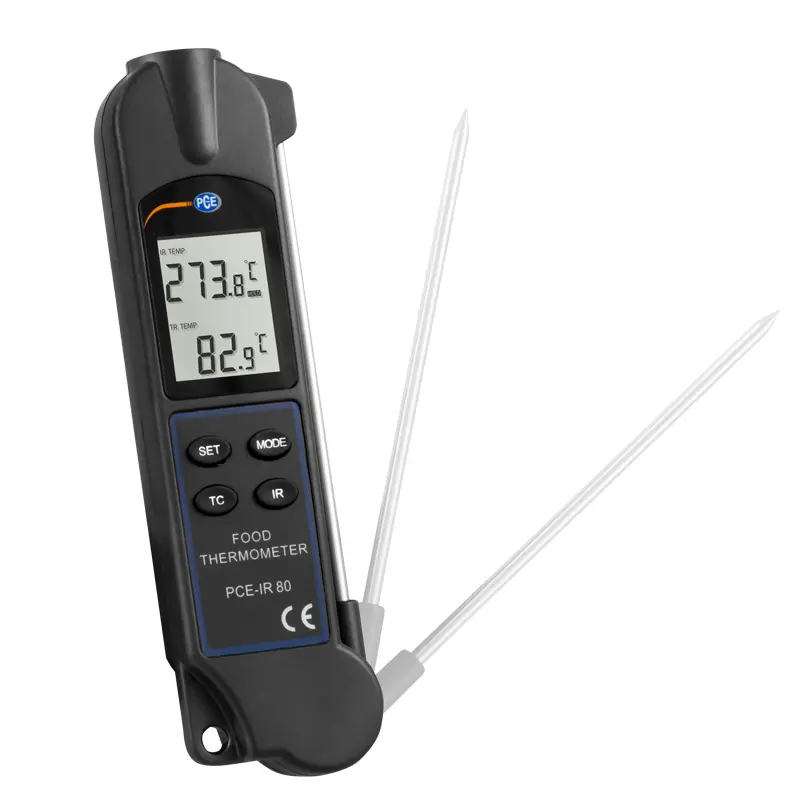

PCE-IR 80 Food thermometer
Food thermometer for non-contact and contact measurement / Up to 330°C (626°F) / Probe made of stainless steel / Simple operation

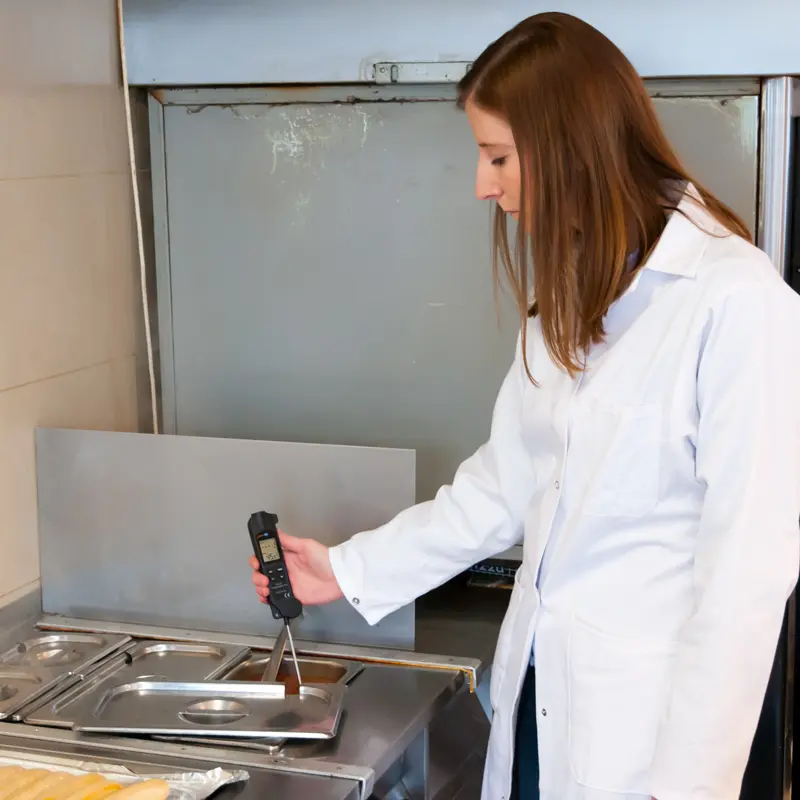

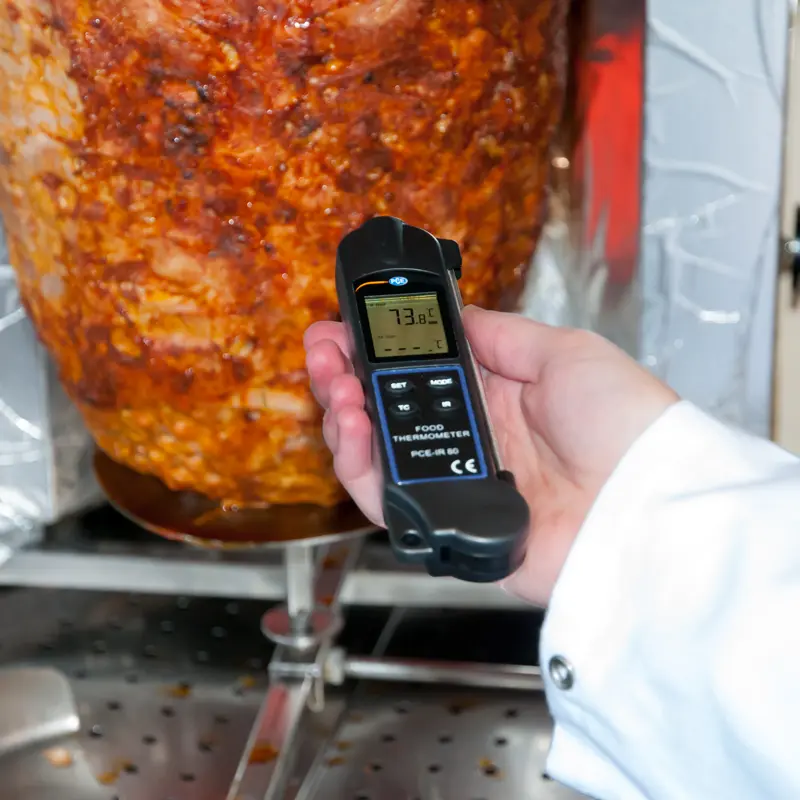

The food thermometer PCE-IR 80 is used to quickly control the temperature of food. The food thermometer is used in the area of canteen kitchens, catering services, refrigerated warehouses and warehouses. The food thermometer has two types of measurement. On the one hand, the PCE-IR 80 food thermometer can measure the temperature of the object without contact via infrared. Here the measuring range is -35 ... 330°C / -31 ... 626°F. The emissivity of the food thermometer is adjustable, so that always best measuring results can be achieved.

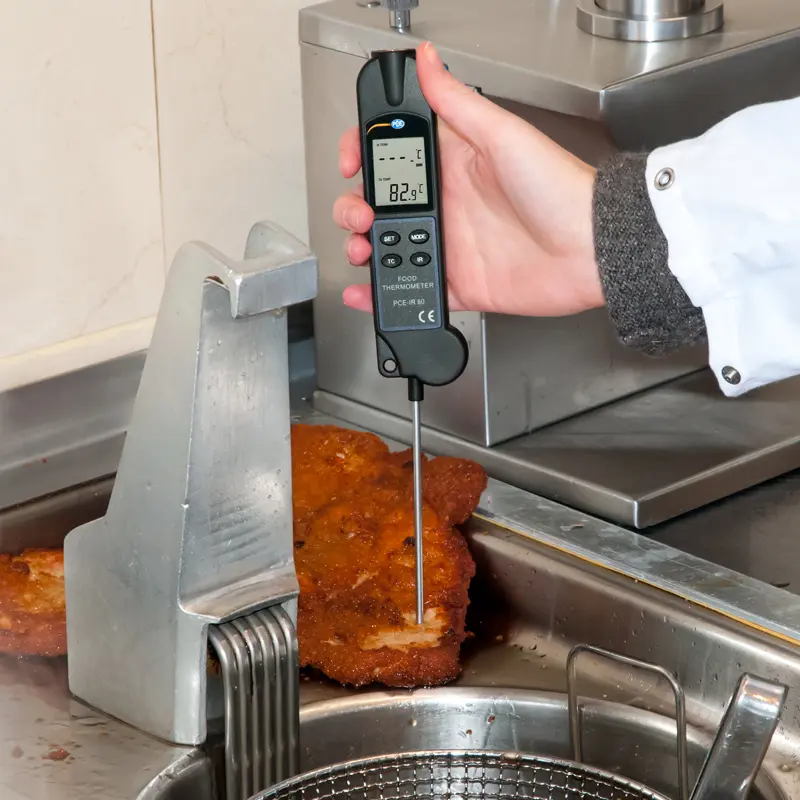

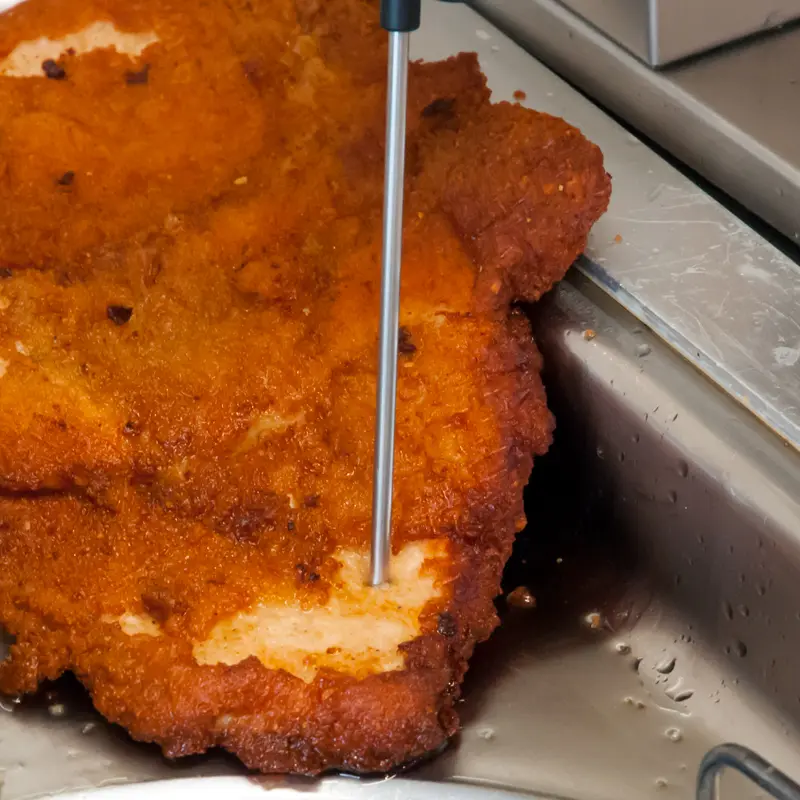

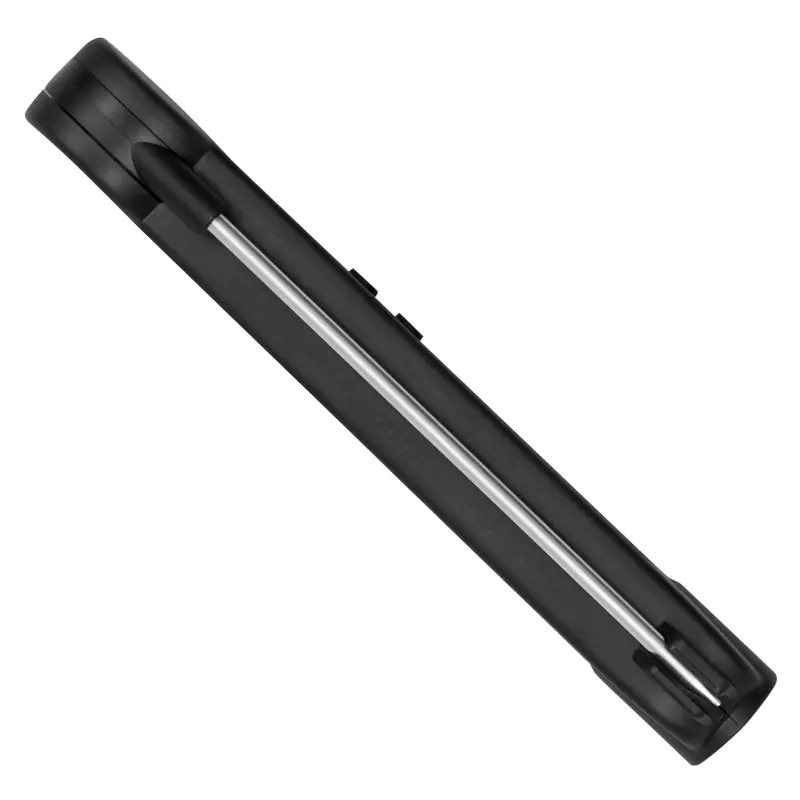

On the other hand, the food thermometer has a stainless steel needle sensor, so that the meter can also be used as a puncture, food thermometer. If the core temperature is measured by this method, the food thermometer can measure in the range between -20 ... 260°C / -4 ... 500°F. The unit of the penetration thermometer can be switched between °C and °F. The fast response time of 10 ms and high resolution of 0.1°C / 1.8°F complete the scope of the food thermometer. The thermometer is supplied with a CR2032 battery.

Highlights

- Non-contact and contacting temperature measurement combined in one measuring device only
- Large measuring range
- Suitable for use in the food industry according to HACCP
- Emissivity adjustable (pre-set for food)
- Low response time
- Measurement hold function (Min./Max.)
- Continuous measurement function
- Waterproof, thus simple hygienic cleaning (flushable housing)

Specification

Measurement type infrared
Measuring range	-35 ... 330°C / -31 ... 626°F
Resolution	0.1°C / 0.18°F
Accuracy	-35 ... 0°C / -31 ... 32°F : ± 4°C / 7.2°F > 0°C / 32°F : ± 2% of rdg. ± 2°C / 3.6°F

Type of measurement Penetration sensor
Measuring range	-20 ... 260°C / -4 ... 500°F
Resolution	0.1°C / 0.18°F
Accuracy	± 1% of of rdg. ± 1.5°C / 2.7°F

Optical resolution	4: 1
Emissivity	Adjustable 0.1 ... 1.0
Response time	10 ms
Spectral	8 ... 14 μm
Power supply	3.0V CR2032 battery
Operating conditions	0 ... 50°C / 32 ... 122°F, max. 80% rh
Weight	About 100 g / < 1 lb
Dimensions	151 x 41 x 20 mm / 6 x 1.6 x 0.8 in

Delivery Scope

1 x PCE-IR 80 food thermometer
1 x User manual

Downloads

Manual

Datasheet

Accessories

Infrared Thermometer

ISO Calibration Certificate for Infrared Thermometer

US$ 160.00

ex. VAT, ex. delivery costs

ISO calibration certificate, e.g. to comply with your DIN ISO 9000. For this purpose, we give the measuring device to our in-house calibration laboratory. As the client, the measured values and the serial number are recorded in this ISO calibration certificate.

4 measuring points evenly distributed over the measuring range
Calibration range: 30 … 500 °C
Calibration applies to infrared sensors onlyN.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.

PCE-MS 25 Measuring Point Sticker

US$ 20.00

ex. VAT, ex. delivery costs

Measuring point stickers for pyrometers with measuring surface for E = 0.95 (25 pieces)
