Order no.: PCE-T 330

Environmental Meter PCE-T 330

US$ 317.00
:
4250348722720
PCE-T 330
ex. VAT, ex. delivery costs
Available in: 1-2 days

Description

Environmental Meter PCE-T 330 / Two-channel thermometer / Battery life of approx. 190 hours /
Different file formats / No software required / Storage for 20,000 data points

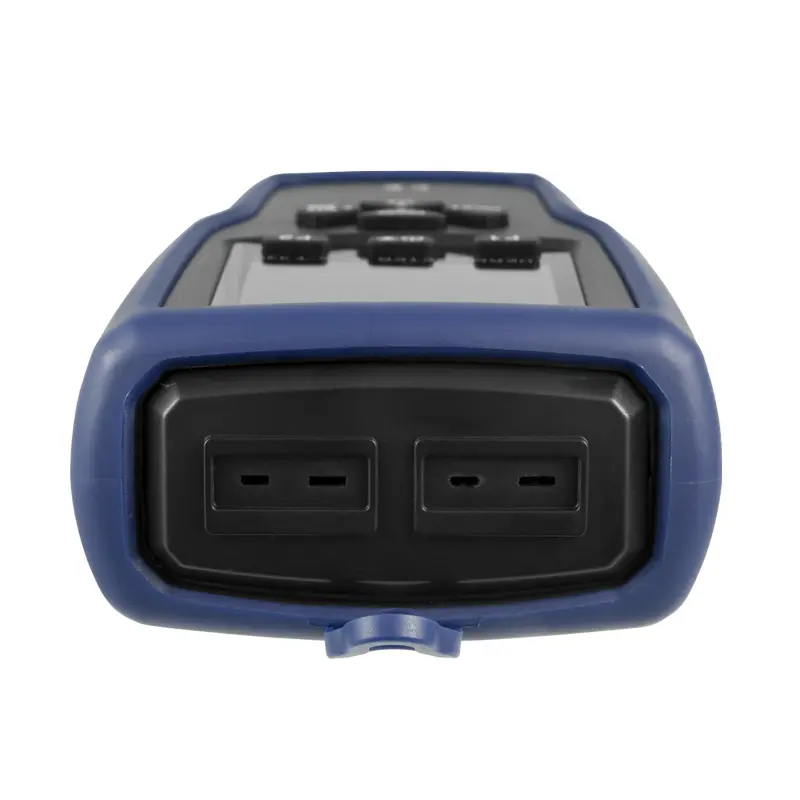

The environmental meter has two measuring inputs. Each measuring input from the environmental meter can be connected to a thermocouple of type K, T and J. With a measuring rate of 2 Hz, the environmental meter shows rapid temperature fluctuations. With the high accuracy and a resolution of 0.01 °C, these rapid temperature fluctuations can also be displayed precisely by the environmental meter.

With a data memory of 20,000 measuring points, the environmental meter can be used for a long period of time. A data point on the environmental meter contains a measured value per channel and date as well as the current time. When the environmental meter is connected to a computer, it is recognized as a removable disk. This allows the environmental meter to be connected to computers with different operating systems, as no additional software is required for further analysis. The measurement data from the environmental meter can be saved as TXT, CSV, XLS and DLG format.

Highlights

- Two-channel temperature data logger
- For thermocouples type K, T and J
- Long battery life
- Data storage for 20,000 measuring points
- File format TXT, CSV, XLS and DLG
- Rubberized protective cover

Specification

Temperature Sensor    Measuring range
Resolution
Accuracy
Type K-200 ... 1370 °C / -328 … +2498 °F
   0.01 °C±0.3 % of rdg. +0.4 °C
Type T-200 ... 400 °C / -328 … 752 °F
   0.01 °C±0.3 % of rdg. +0.4 °C
Type J-200 ... 1200 °C / -328 … 2192 °F
   0.01 °C±0.3 % of rdg. +0.4 °C

Units°C / °F
Number of channels2
Measuring rate2 Hz
Data storage15,328 kB for 20,000 data points
File formatsTXT, CSV, XLS, DLG
Storage interval1 .... 86,399 s

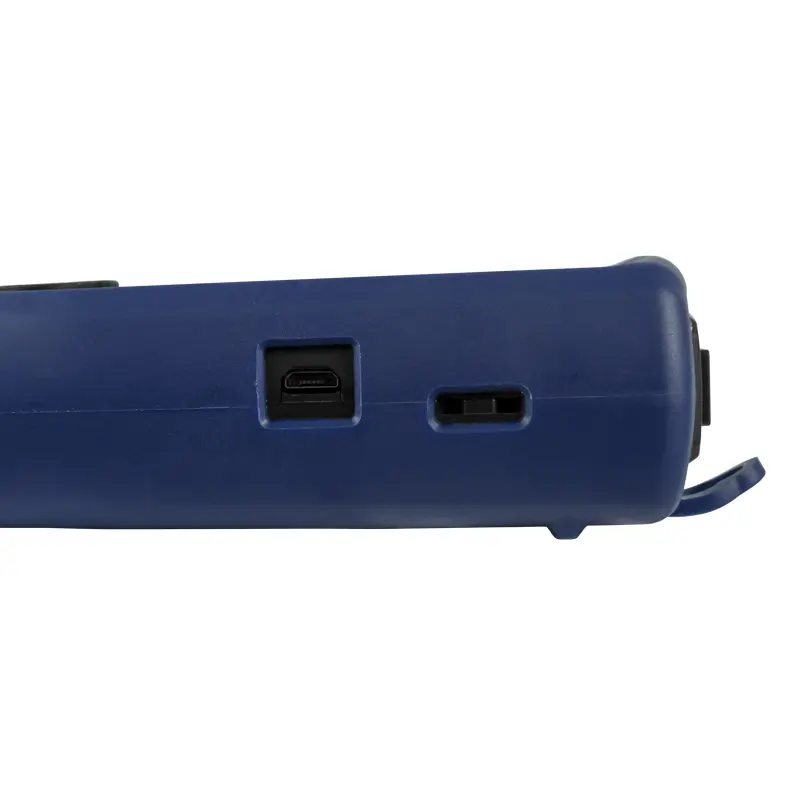

InterfaceMicro-USB
Power supply
3 x 1.2 V AAA rechargeable batteries
 3 x 1.5 V AAA batteries
Battery lifeca. 190 hours
 (without backlight, battery capacity
 1200 mAh, ambient temperature 25 °C)
Operating conditions-10 ... 50 °C / 14 … 122 °F
Storage conditions-20 ... 60 °C / -4 … +140 °F (without batteries)
Dimensions173 x 71 x 38 mm / 6.8 x 2.8 x 1.5"
Weightca. 226 g /  7.9 oz

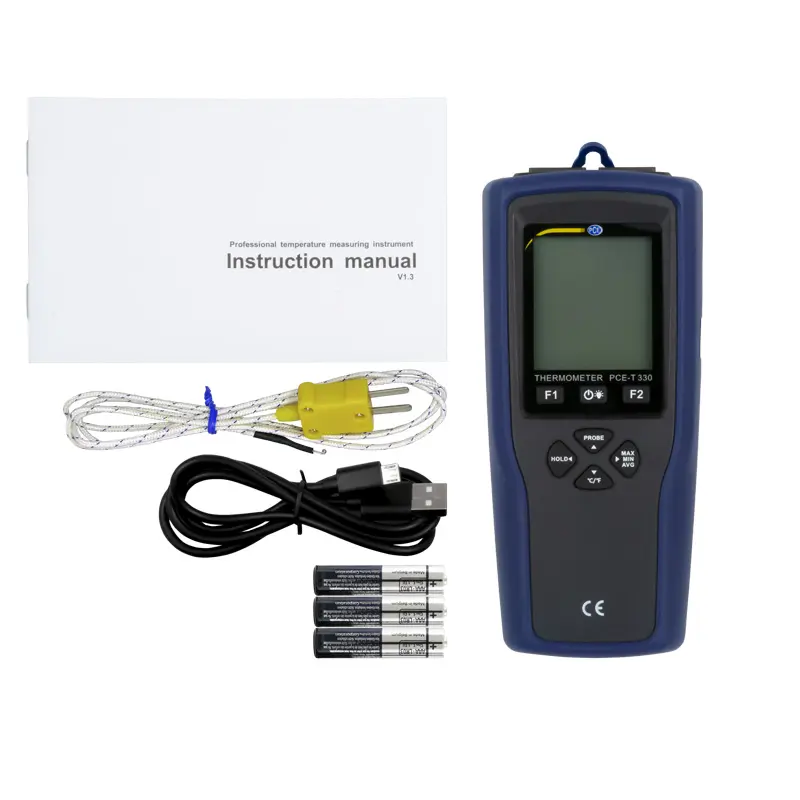

Delivery Scope

1 x Environmental Meter PCE-T 330
1 x Thermocouple Type K
1 x Micro-USB cable
3 x 1.5 V AAA batteries
1 x User manual
