Electromagnetic Field Meter LM-MP810A

Electromagnetic Field Meter LM-MP810A

Order no.: LM-MP810A
GTIN (EAN): 4262539312047
US$ 1,241.00
ex. VAT, ex. delivery costs
:
4262539312047
LM-MP810A
Available in:1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Description

Compact and precise Electromagnetic Field Meter / Magnetic field measurement in A/cm, Gauss or Tesla / With wireless interface / Axial measuring probe

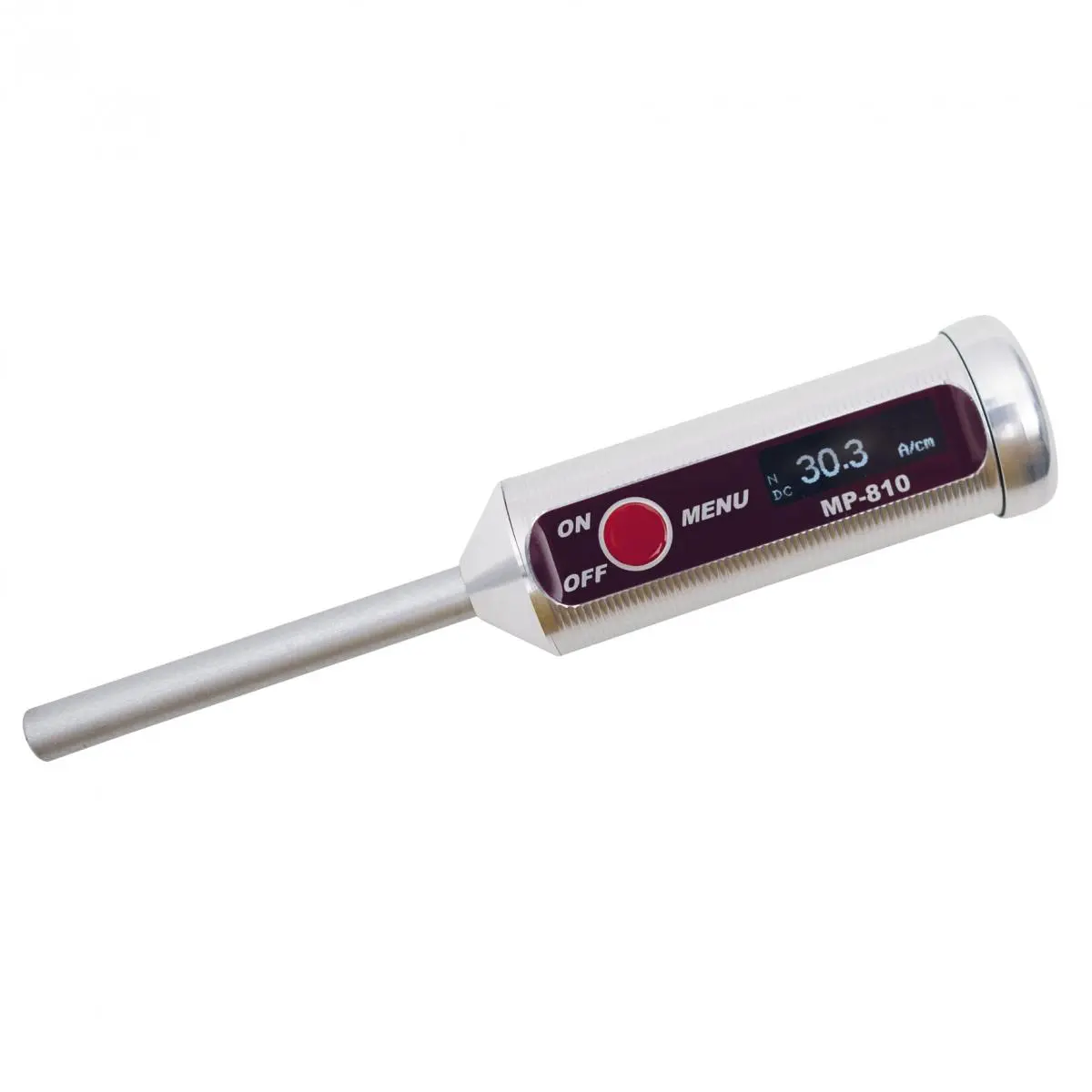

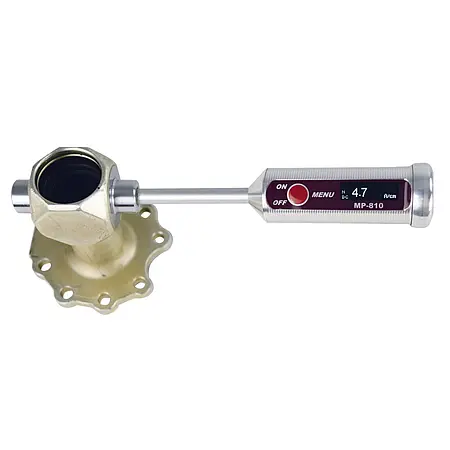

The handy Electromagnetic Field Meter is available as a single-handed device with an axial probe. This measures the magnetic field along the probe axis with a fixed measuring distance of 2.0 mm from the surface - ideal for precise measurements on flat surfaces or in boreholes. Despite its compact design, the Electromagnetic Field Meter delivers high-precision measurement results - from weak field values just above the earth's magnetic field to strong magnetic fields in the range of several thousand A/cm. Residual magnetism and remanence can also be reliably detected.

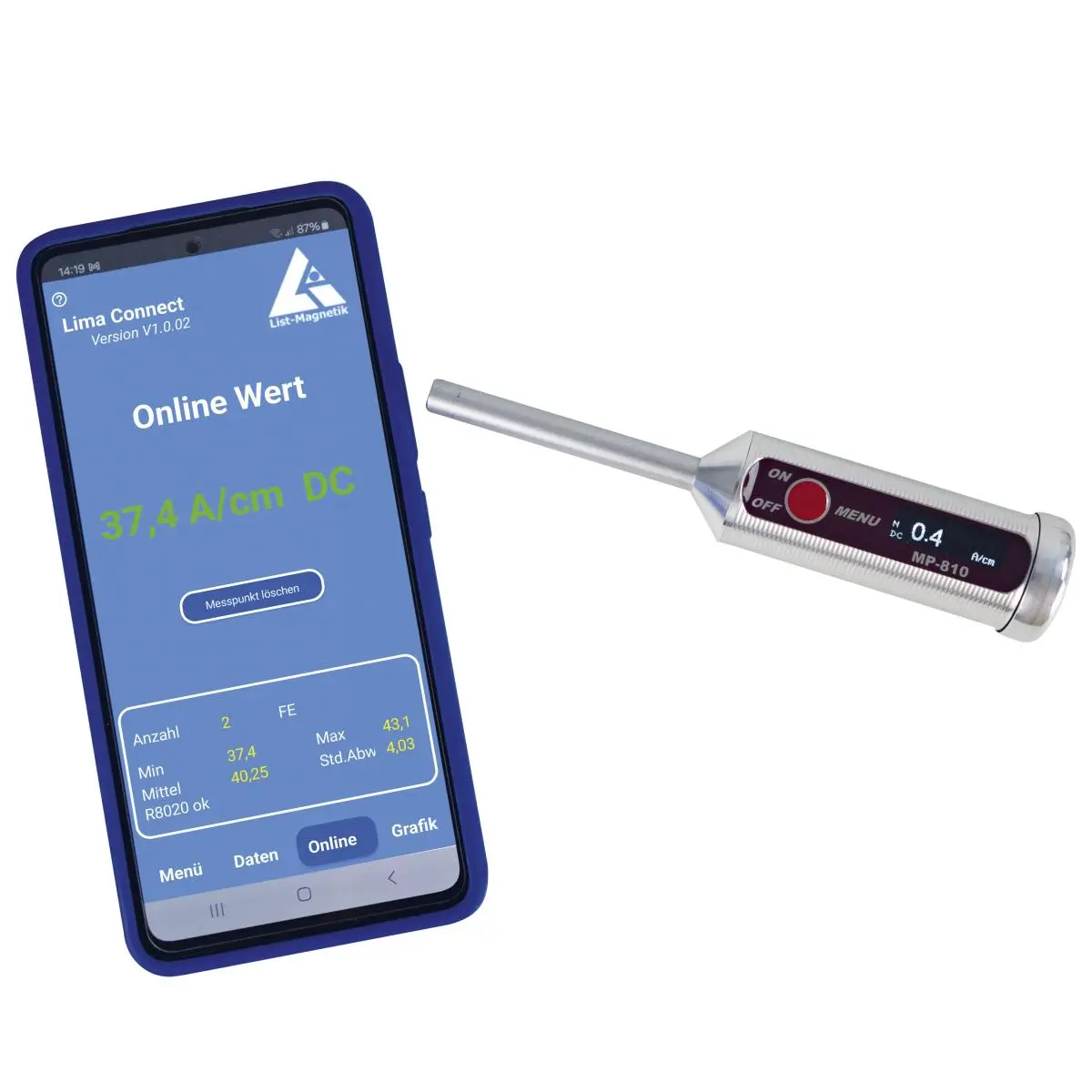

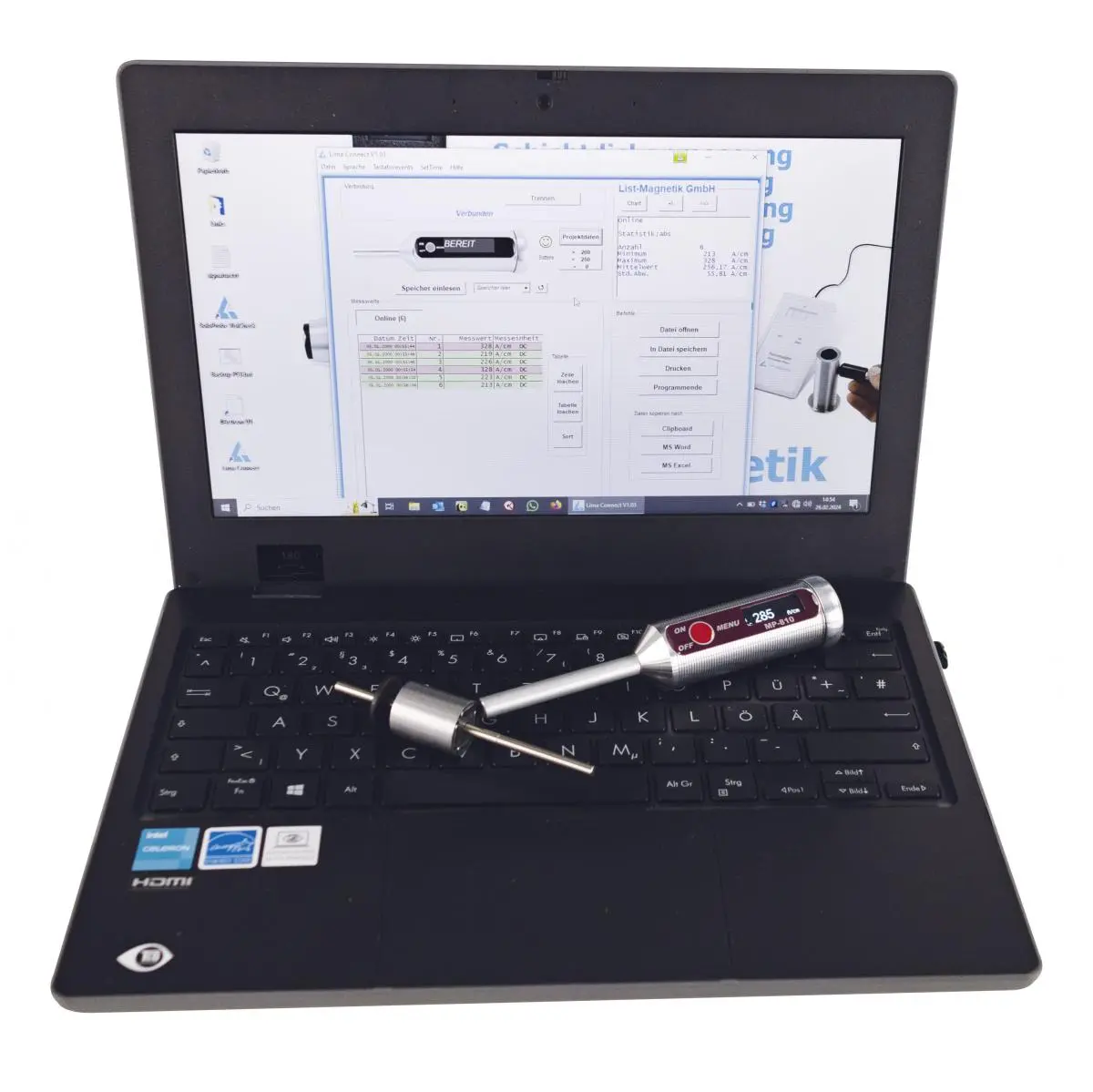

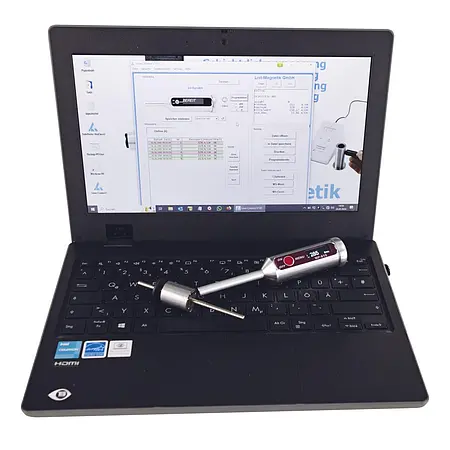

Whether as a Electromagnetic Field Meter, magnetometer, gaussmeter or tesla meter - the MP-810A fulfils all requirements for modern magnetic field measurements. The terms refer to the same device - the high measuring accuracy and reproducibility of the results are decisive. A calibration standard (reference magnet) is also available, allowing you to check and document the accuracy of your magnetic field tester at any time. The wireless interface enables convenient connection to mobile devices and PCs via the free Lima Connect app. There you can manage projects, mark measuring points on photos, analyze results statistically and display them graphically - ideal for industrial quality assurance and research.


Highlights

- Measurement of direct and alternating magnetic fields
- Axial field probe
- OLED display
- Measured value memory for 4000 measurements
- Wireless interface

Specification

Magnetic field AC
Measurement range up to  2 ... 20000 A/cm
Resolution  0,1 A/cm
Accuracy  in homogeneous field ± 1 A/cm up to 50 A/cm, ± 2% of measured value from 50 A/cm
Frequency range  20 ... 100 Hz

Magnetic field DC
Measurement range up to  0 ... 20000 A/cm
Resolution  0,1 A/cm
Accuracy  in homogeneous field ± 1 A/cm up to 50 A/cm, ± 2% of measured value from 50 A/cm

General technical data
Measuring functions  Quantity, MAX, MIN, Average value, Standard deviation
Units  A/cm, kA/m, g, Oersted, T
Units additional information  Units switchable (1 A/cm = 0.1 kA/m = 1.256 Gauss = 1.256 Oersted = 0.1256 mT)
Display type  OLED
Storage capacity  4000 Values
Memory capacity (additional information)  Peak value memory: Pulse time >= 0.25 sec
Interface  Wireless
Operating time  50 h
Menu language  German, English (GB), English, French, Italian, Spanish, Hungarian, Polish, Dutch
Power supply  1.5V AA Batterie
(Rechargeable) battery  1 x 1,5 V AA battery , Alkali-manganese
Capacity  3000 mAh
Dimensions ( L x W x D )  140 x 140 x 28 mm
Weight  73 g

Delivery Scope

1 x MP-810A Electromagnetic Field Meter
1 x Spare battery
1 x Case
1 x Calibration certificate
