Decibel Meter PCE-SLT-TRM-24V

Decibel Meter PCE-SLT-TRM-24V

Decibel Meter PCE-SLT-TRM-24V

Order no.: PCE-SLT-TRM-24V
GTIN (EAN): 4250348722614
US$ 442.00
ex. VAT, ex. delivery costs
:
4250348722614
PCE-SLT-TRM-24V
Available in: 1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

Decibel Meter / sound warning device
Sound warning device for fixed installation with analogue output 4 ... 20 mA

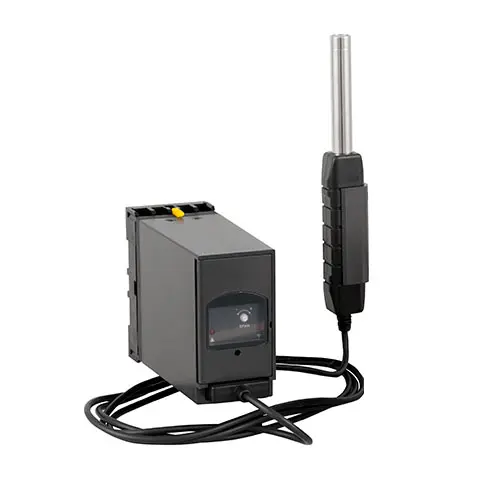

The Decibel Meter consists of a measuring microphone with a handle and a wall bracket on a 1.5 m cable, a sound transmitter. The main area of ​​application of this Decibel Meter is in the continuous sound measurement and sound monitoring of factory halls, production rooms and at large events (discotheques, folk festivals, cart tracks ...).



The analog output signal can also be used to control window flaps ... or the signals from the transmitter can be saved, evaluated and documented on a logger. The Decibel Meter is very easy to connect and can be operated via 24 V DC.



Specification

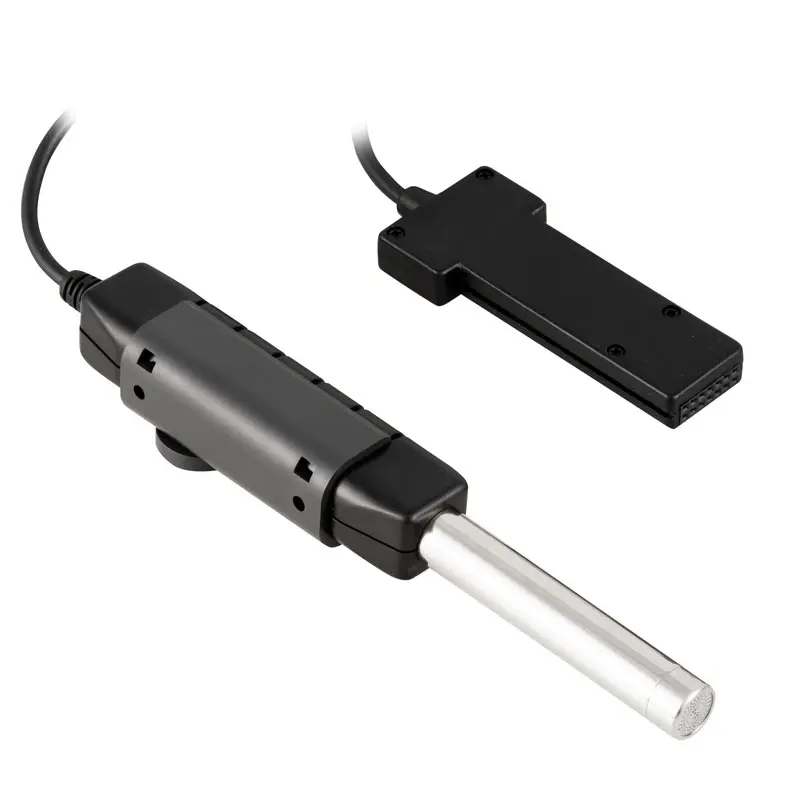

sound sensor
measuring range30 ... 130 dB in three ranges
I. 30 ... 80 dB (A)
II. 50 ... 100 dB (A)
III. 80 ... 130 dB (A)
resolution0.1 dB
accuracy± 1.5 dB
ratingA
power supplyvia transmitter
cable length1.5 m
wall mountto screw on (included)
Environmental conditions    Max. 85% relative humidity / 0 ... +50 ° C
microphone1/2 "precision electret microphone
standardIEC 61672 class II

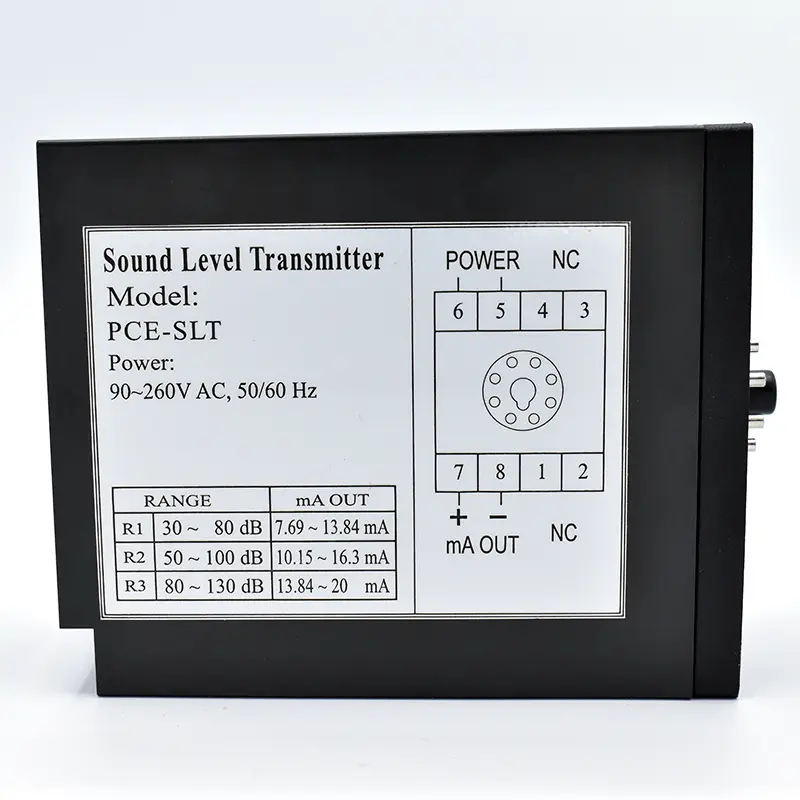

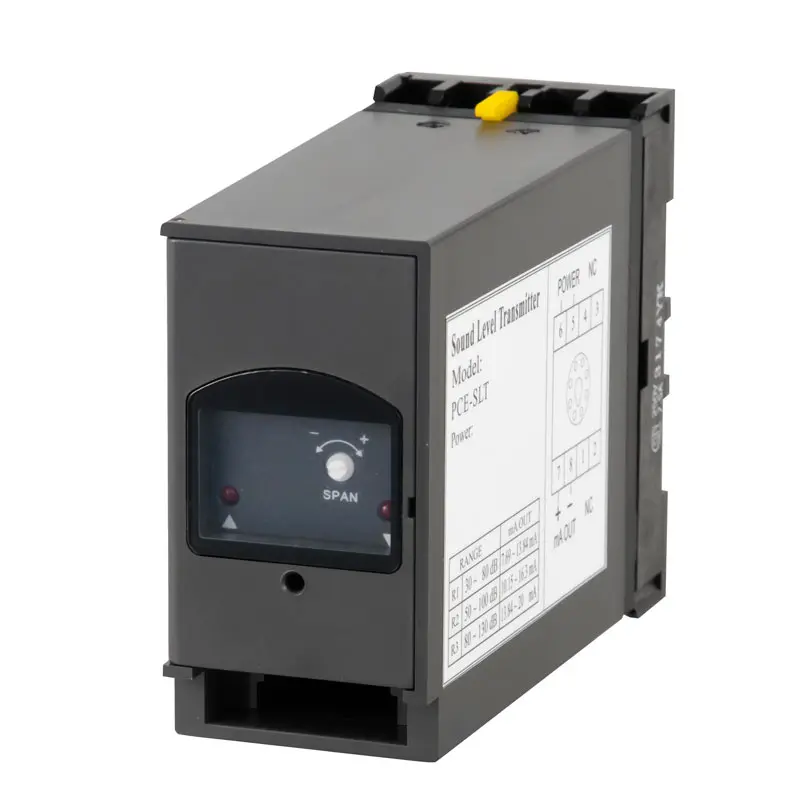

transmitter
casingABS plastic
power supply24 V DC
current consumption
approx. 31 ... 47 mA

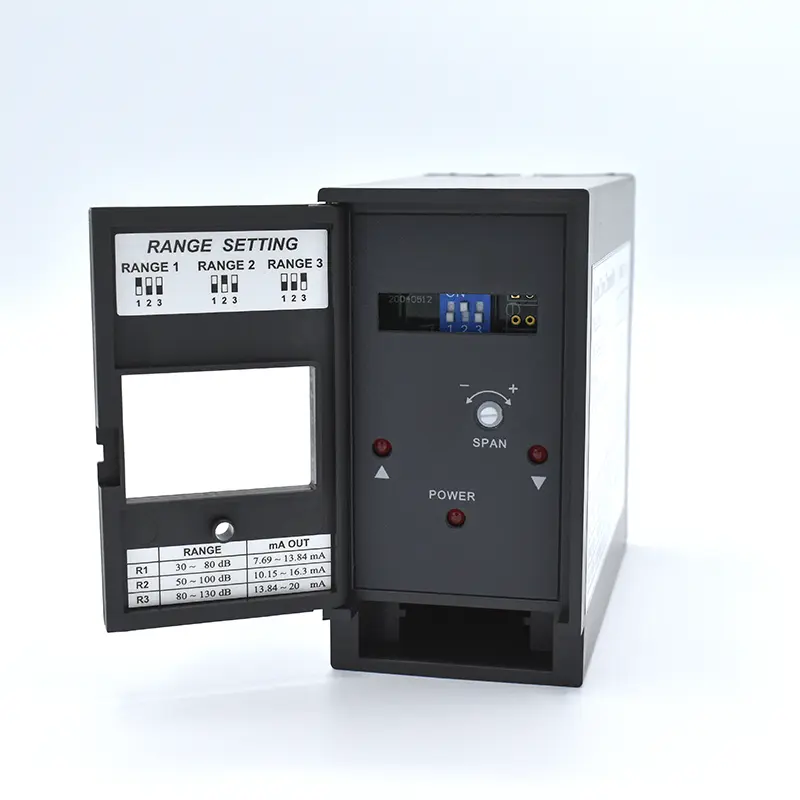

calibrationadjustable via grub screw
output4 ... 20 mA
protectionIP 54
Environmental conditionsMax. 85% relative humidity / 0 ... +50 ° C


Delivery Scope

1 x Decibel Meter PCE-SLT-TRM-24V

1 x sound sensor on 1.5 m cable

1 x sound transmitter

1 x sensor bracket for screwing on

1 x operating instructions
