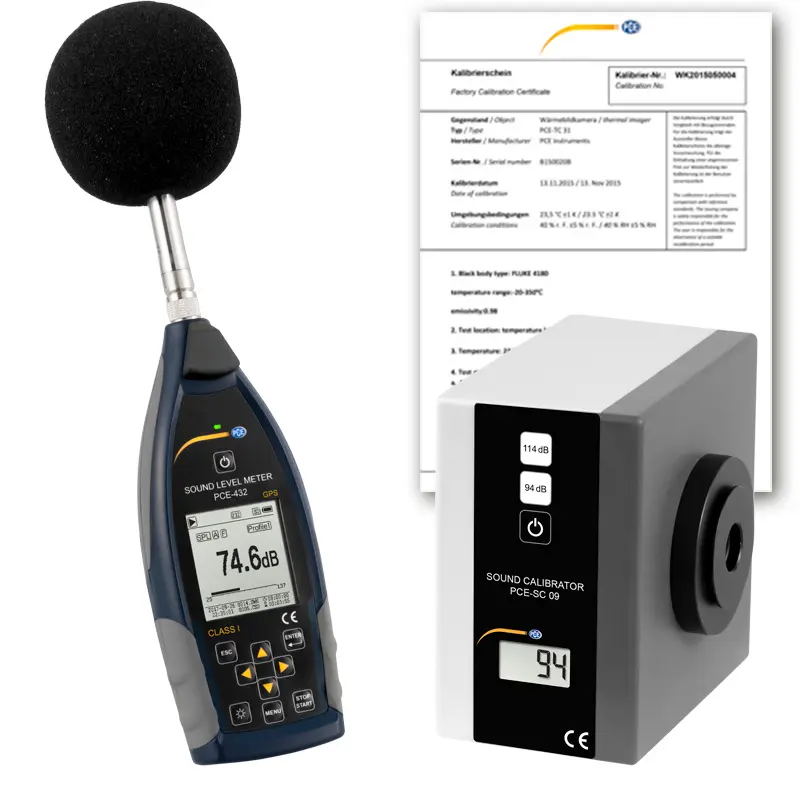

Class 1 Decibel Meter PCE-432-SC 09-ICA with Calibrator incl. ISO Cal. Cert.

Class 1 Decibel Meter PCE-432-SC 09-ICA with Calibrator incl. ISO Cal. Cert. [zoom]
Class 1 Decibel Meter PCE-432-SC 09-ICA with Calibrator incl. ISO Cal. Cert.

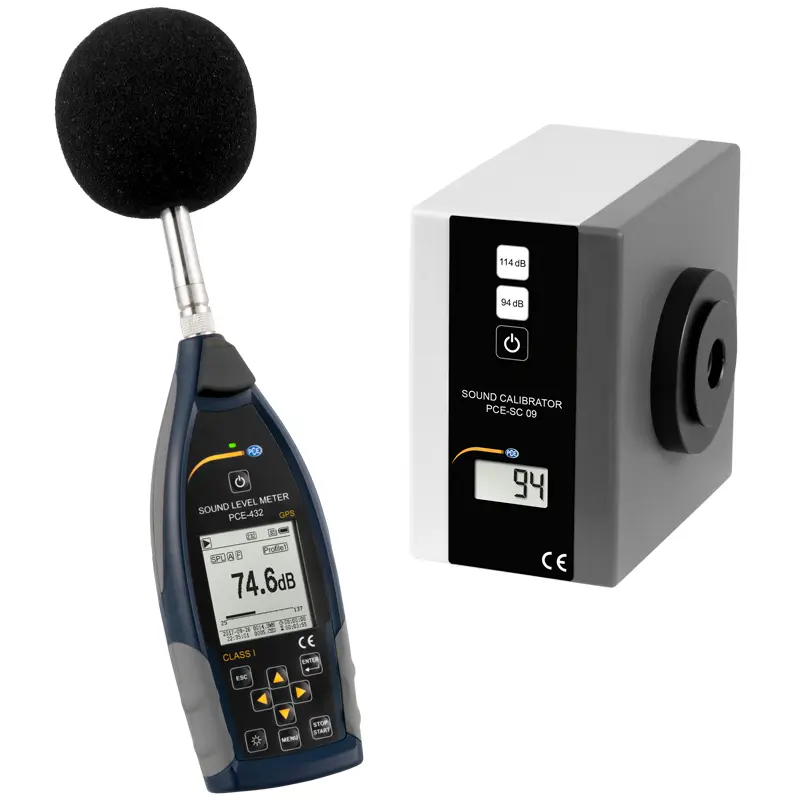

Class 1 Decibel Meter PCE-432-SC 09 with Calibrator

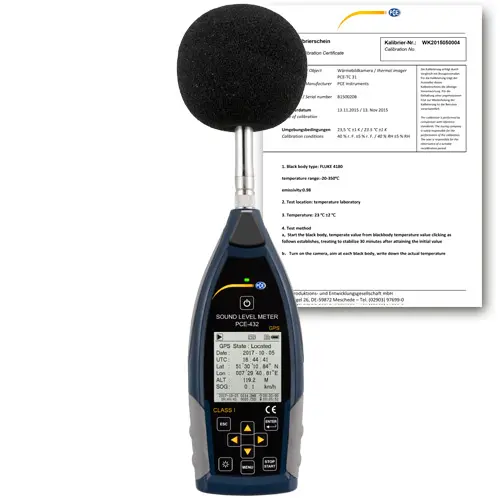

Class 1 Decibel Meter PCE-432-ICA incl. ISO Cal. Cert.
Connections of Class 1 Decibel Meter PCE-432-SC 09-ICA with Calibrator incl. ISO Cal. Cert.
Sensor of Class 1 Decibel Meter PCE-432-SC 09-ICA with Calibrator incl. ISO Cal. Cert.

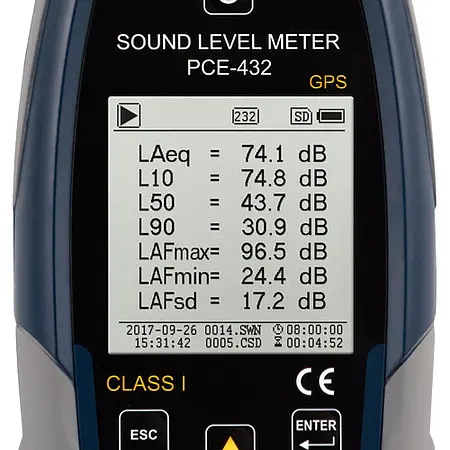

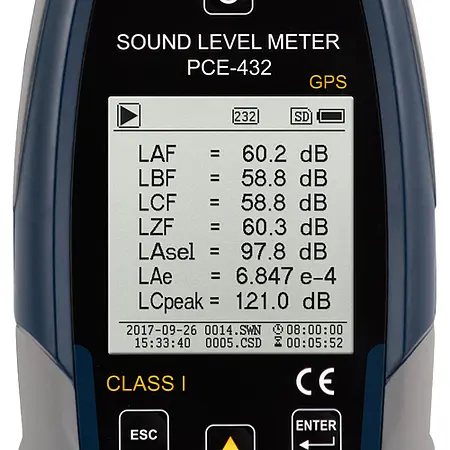

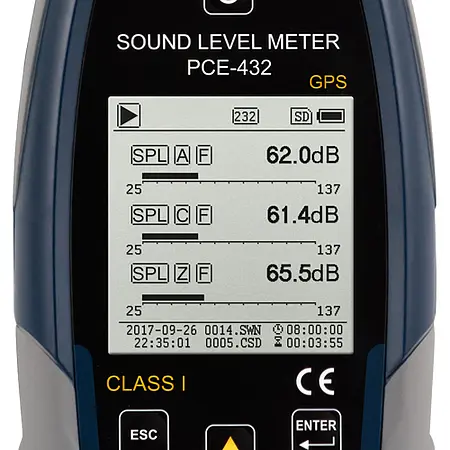

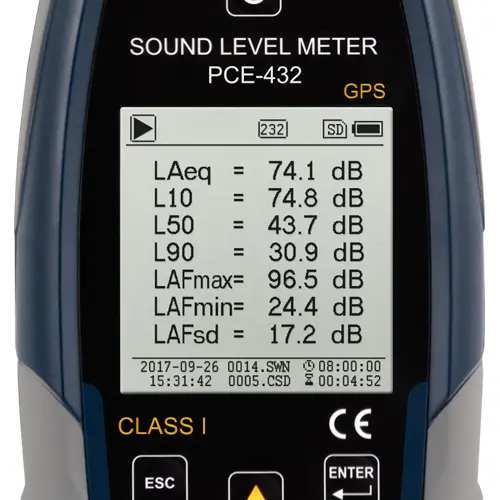

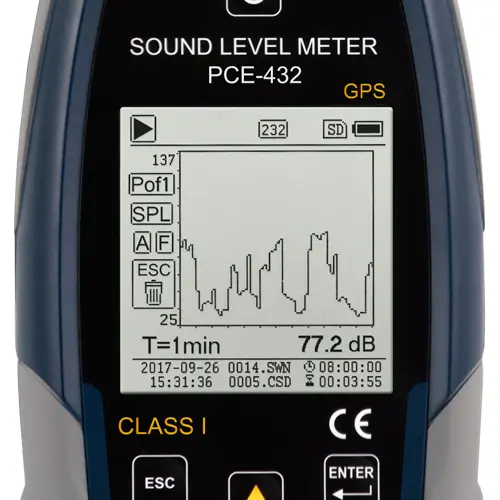

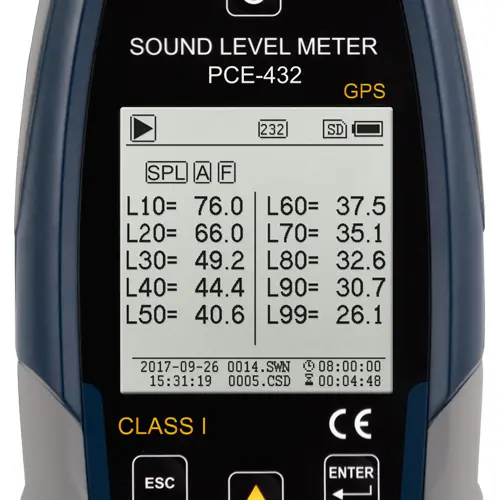

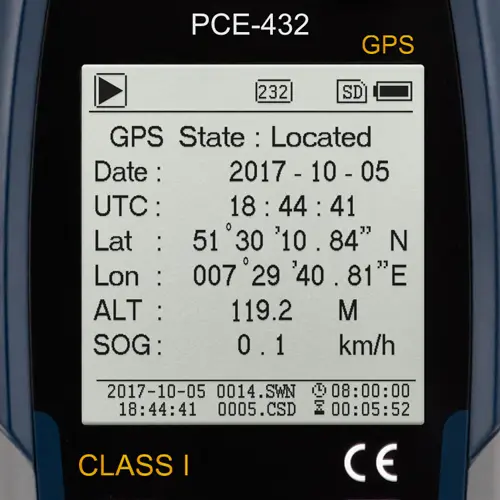

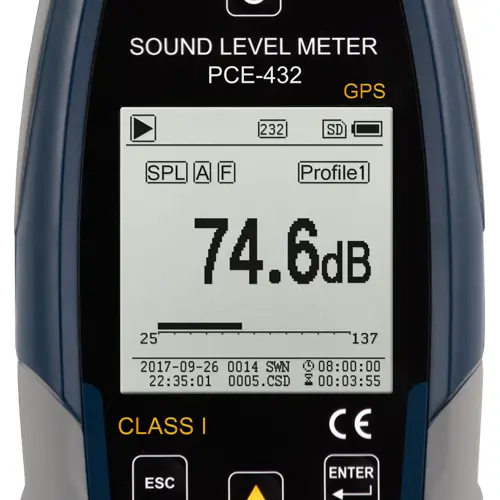

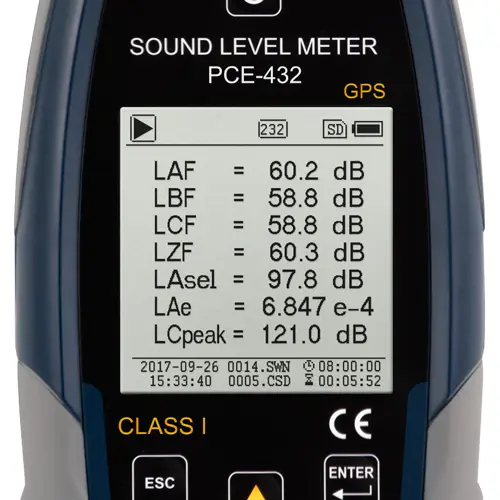

Display of Class 1 Decibel Meter PCE-432-SC 09-ICA with Calibrator incl. ISO Cal. Cert.
Display of Class 1 Decibel Meter PCE-432-SC 09-ICA with Calibrator incl. ISO Cal. Cert.
Display of Class 1 Decibel Meter PCE-432-SC 09-ICA with Calibrator incl. ISO Cal. Cert.
Display of Class 1 Decibel Meter PCE-432-SC 09-ICA with Calibrator incl. ISO Cal. Cert.
Display of Class 1 Decibel Meter PCE-432-SC 09-ICA with Calibrator incl. ISO Cal. Cert.
Display of Class 1 Decibel Meter PCE-432-SC 09-ICA with Calibrator incl. ISO Cal. Cert.
Display of Class 1 Decibel Meter PCE-432-SC 09-ICA with Calibrator incl. ISO Cal. Cert.

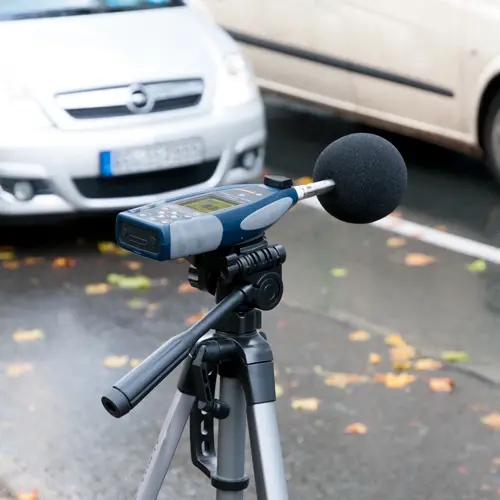

Application of Class 1 Decibel Meter PCE-432-SC 09-ICA with Calibrator incl. ISO Cal. Cert.
Application of Class 1 Decibel Meter PCE-432-SC 09-ICA with Calibrator incl. ISO Cal. Cert.
Application of Class 1 Decibel Meter PCE-432-SC 09-ICA with Calibrator incl. ISO Cal. Cert.
Software of Class 1 Decibel Meter PCE-432-SC 09-ICA with Calibrator incl. ISO Cal. Cert.
Software of Class 1 Decibel Meter PCE-432-SC 09-ICA with Calibrator incl. ISO Cal. Cert.
Software of Class 1 Decibel Meter PCE-432-SC 09-ICA with Calibrator incl. ISO Cal. Cert.
Delivery Content of Class 1 Decibel Meter PCE-432-SC 09-ICA with Calibrator incl. ISO Cal. Cert.

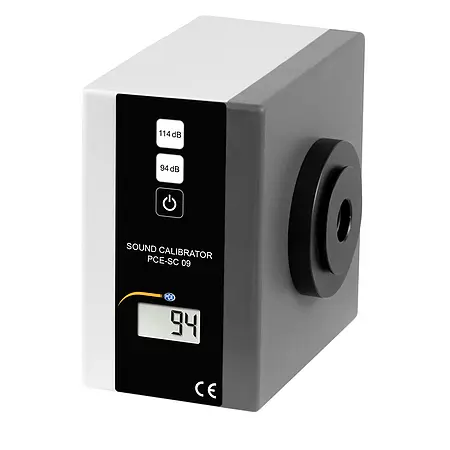

Class 1 Decibel Meter Calibrator PCE-SC 09
Class 1 Decibel Meter Calibrator PCE-SC 09

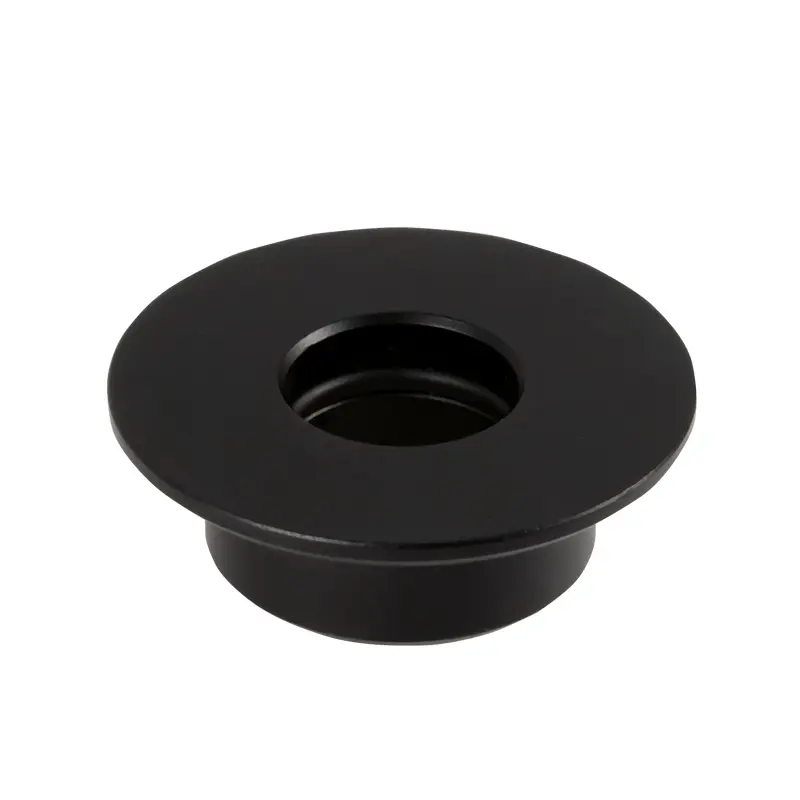

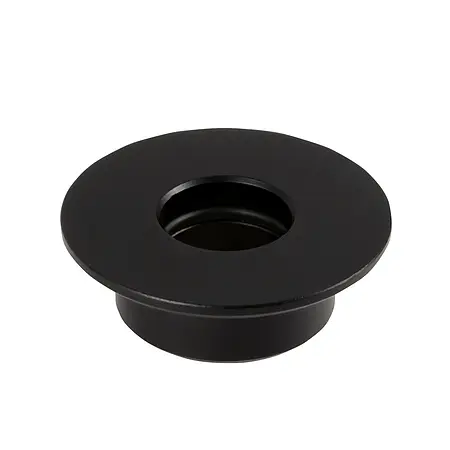

1/2 inch Adapter of Class 1 Decibel Meter Calibrator PCE-SC 09
1/2 inch Adapter of Class 1 Decibel Meter Calibrator PCE-SC 09
Application of Class 1 Decibel Meter PCE-432-SC 09-ICA with Calibrator incl. ISO Cal. Cert.

Class 1 Decibel Meter PCE-432-SC 09-ICA with Calibrator incl. ISO Cal. Cert.

Order no.: PCE-432-SC 09-ICA
GTIN (EAN): 4250348724984
US$ 3,775.00
ISO Calibration
ex. VAT, ex. delivery costs
:
4250348724984
PCE-432-SC 09-ICA
Available in: 10 - 14 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Accessory

Description

Handheld Decibel Meter with GPS (class 1) incl. Class 1 calibrator
Octave band filter / A, B, C and Z evaluation filter can be upgraded / Fast, slow and impulse evaluation / Data logger / USB / incl. ISO Calibration Certificate

The Class 1 Decibel Meter meets all the requirements for noise measurement and frequency analysis. In addition to the sound measurement function, the Decibel Meter is equipped with a GPS receiver. The GPS function allows the user to assign the measured values ​​to an exact position.

This integrating precision pulse Decibel Meter complies with all applicable standards and guidelines (Class 1 EN / IEC 61672, ANSI S1.4-1983, ANSI S1.43-1997 EN / IEC61260, etc.). The Decibel Meter has a very large illuminated display. The display of the Decibel Meter shows the sound pressure level numerically and graphically in real time. The professional Decibel Meter has an integrated data logger. The measurement data are saved on a micro SD card. This card can be read out directly on the PC.

The Decibel Meter can also be connected to the PC via USB and the memory can be read out. The post-processing software of the Decibel Meter allows convenient measurement data analysis. The typical areas of application for this device are the measurement of workplace noise, compliance with regulations, determination of environmental noise, selection of hearing protection Protector Selection, selection of suitable noise control measures and estimation of noise exposure.

The impulse function of the Decibel Meter enables short-term sound events to be recorded. Thanks to the integrated octave band function, even the slightest differences in the frequency band can be determined here. The frequency filter can be optionally upgraded. The measuring range of this professional Decibel Meter extends from 22 ... 136 db (A) at a frequency of 3 Hz ... 20 kHz.

Highlights

- 1/1 octave band included
- 1/3 octave band optional
- Accuracy class 1
- GPS receiver integrated
- A, B, C & Z frequency weighting
- Fast, Slow, Impulse and Peak time weighting
- Statistics function
- Display of the sound course as a graph
- 3 measurement profiles adjustable
- Low inherent noise
- ICCP microphone 40 mV / PA
- Adjustable alarm level
- Incl. class 1 sound calibrator
- Incl. ISO calibration certificate (for sound calibrator)

Specification

Measuring range

22 ... 136 db(A)

Accuracy

Class 1

Frequency range

3 Hz ... 20 kHz

Standards

GB/T 3785.1-2010
GB/T 3785.2-2010
IEC 60651:1979
IEC 60804:2000
IEC 61672-1:2013
ANSI S1.4-1983
ANSI S1.43-1997

Frequency analysis

1/1 Octave band filter: 8 Hz ... 16 kHz
1/3 Octave band filter: 6.3 Hz ... 20 kHz

Microphone

1/2"
Microphone Class: 1
Sensitivity: 40 mV/PA
Frequency range: 3 Hz ... 20 kHz
Connection: TNC
Power supply: ICCP Standard

Data-logging interval

1 s ... 24 h (adjustable)

Measuring functions

LXY (SPL), LXeq, LXYSD, LXSEL, LXE, LXYmax, LXYmin, LXPeak, LXN

X = Frequency weighting: A, B, C, Z
Y = Time weighting: F, S, I
N = Statistics in %: 1 ... 99 %

Frequency weightings

A, B, C, Z

Time weightings

Fast (F) 125ms, Slow (S) 1 sec, Impulse (I) 35 ms

Inherent noise

Microphone: 19 db(A), 25 db(C), 31 db(Z)
Electronics: 13 db(A), 17 db(C), 24 db(Z)

AD converter

24 Bit

Sample rate

Standard: 48 kHz
LN Mode: 20 ms

Measuring display

Numerical
Bar graph
Graphical

Display

160 x 160 pixel LCD with backlight

Memory

4 GB Micro SD card

Interface

USB (Memory readable via software or directly as mass storage)
RS-232

Voltage output

AC 5V RMS
DC 10 mV/db

Alarm

Adjustable
GPS Yes, GPS receiver for location determination

Power supply

4 x 1.5 V AA Batteries
12 V / 1 A Power plug
5 V / 1 A USB

Battery life

Min. 10 h continuous use

Dimensions

70 x 300 x 36 mm / 2.76 x 11.81 x 1.42" (W x H x D)

Weight

Approx. 620 g / 1.4 lbs incl. batteries

Delivery Scope

1 x Decibel Meter PCE-432-SC 09
1 x 1/2 "measuring microphone class 1
1 x Wind noise suppressor (foam ball)
1 x USB interface cable
1 x Software
1 x Power supply
1 x Carrying case
1 x Operating instructions
1 x Class I sound calibrator PCE-SC 09
1 x ISO calibration certificate (for sound calibrator)

Note: The Decibel Meter is supplied with an octave band filter. An upgrade with a 1/3 octave band filter is optionally possible (see selection option)
