Data Logger with USB Interface w/ ISO Calibration Certificate
2-channel data recorder with real-time LCD display and SD card memory

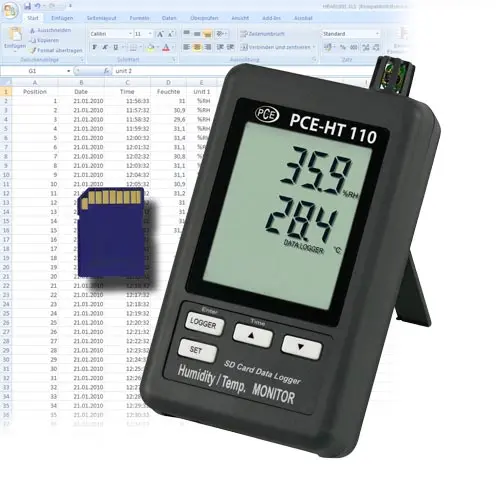

The Data Logger with USB Interface precisely measures air temperature and relative humidity. This accurate and reliable device shows the current measurements on the large LCD display and saves the measurement data directly to an SD card (included). The Data Logger with USB Interface is equipped with two channels, accommodates an SD card memory of up to 16 GB, offers an adjustable measurement rate / sampling interval, and includes a wall mount, making the device ideal for logging data over an extended period of time.
The Data Logger with USB Interface can be used to monitor climate-controlled environments such as supermarket refrigerators, refrigerated / reefer trucks and cold storage units. It is also useful for monitoring home HVAC systems, wood floor installations, cigar humidors, industrial heating and cooling processes, machine operating temperatures and product storage / warehouse conditions.

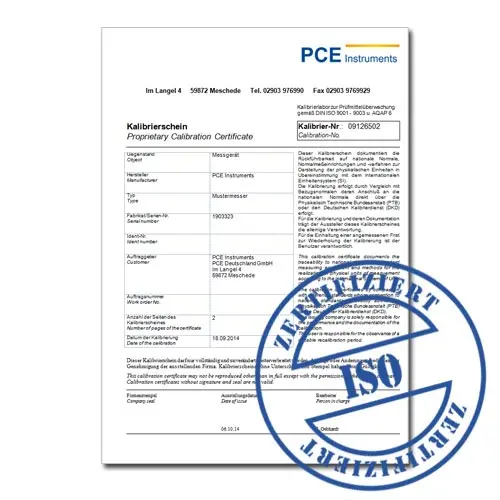

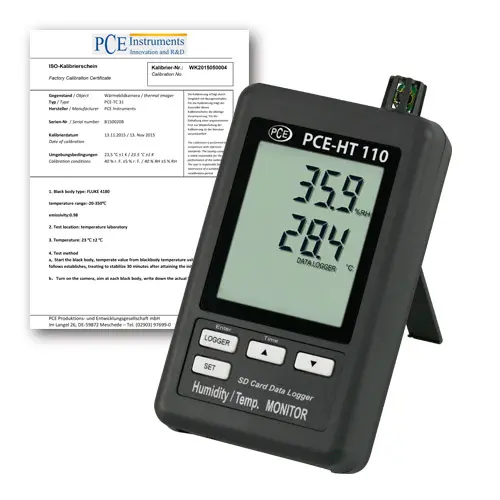

The Data Logger with USB Interface comes calibrated according to ISO standards. An ISO calibration certificate is included in the delivery contents.

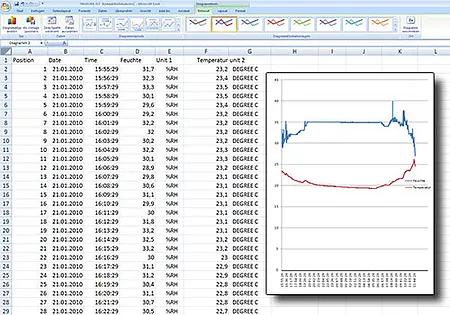

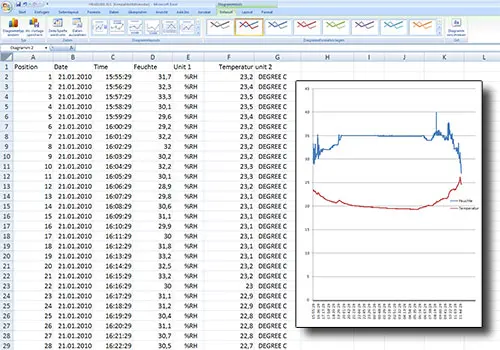

"We use a humidity / temperature monitor from the PCE Group, Model PCE-HT110-ICA. It logs both temperature and humidity on an ongoing basis at regular intervals. The measurements are stored on an SD card which allows one to download the data to a spreadsheet for reference. Prior to receiving the unit, PCE sent it to a certified calibration service to ensure the unit was recording accurately. This has been very helpful to our work. A bonus is, by having the unit mounted on the job site, everyone is constantly reminded of the environmental conditions and can correct as necessary."
— Jerry Wilson, Interior Architecture, Design and Certified General Contractor, Bespoke Design & Consulting, Juno Beach, Florida, USA
|Measurement ranges||0 … 50°C / 32 ... 122°F, 10 ... 90% r.H.|
|Accuracy||± 0.8°C / ± 1.4°F
± 4% r.H.
|Resolution||0.1°C / 0.18°F, 0.1% r.H.|
|Memory||SD card 1 ... 16 GB (2 GB SD card in delivery)|
|Measurement rate / sampling interval||Adjustable, 5, 10, 30, 60, 120, 300, or 600 seconds, or automatic (If the value changes by ± 1% r.H. Or ± 1°C / ± 1.8°F, the data record is automatically written to memory)|
|Date and time||Programmable|
|Power supply||6 x 1.5V batteries (AAA) / 9V power adapter (optional)|
|Operating conditions||0 ... 50°C / 32 ... 122°F, 0 ... 90% r.H.|
|Dimensions||132 x 80 x 32 mm / 5.2 x 3.1 x 1.3 in|
|Weight||282 g / < 1 lb|
1 x PCE-HT110 Data Logger with USB Interface
1 x SD memory card

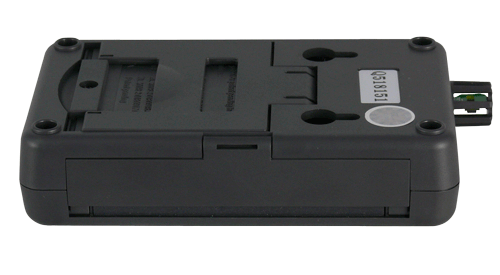

1 x Wall mount
6 x Batteries
1 x ISO calibration certificate
1 x User manual
Calibration certificates are issued specifically for the customer and are excluded from the right of return.
