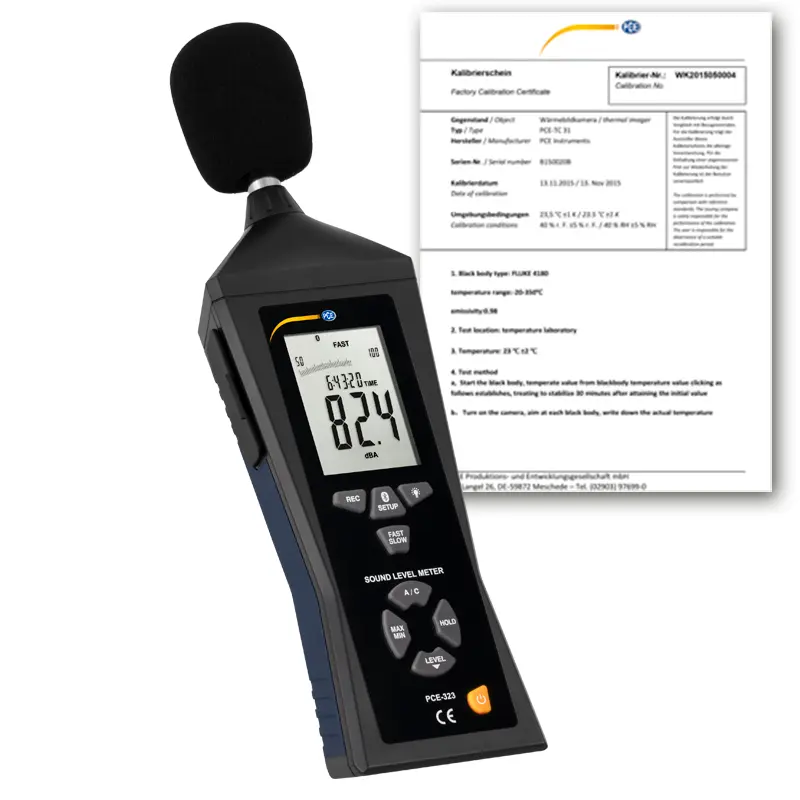

Data Logger with USB Interface PCE-323-ICA incl. ISO Calibration Certificate

Data Logger with USB Interface PCE-323-ICA incl. ISO Calibration Certificate [zoom]
Data Logger with USB Interface PCE-323-ICA incl. ISO Calibration Certificate

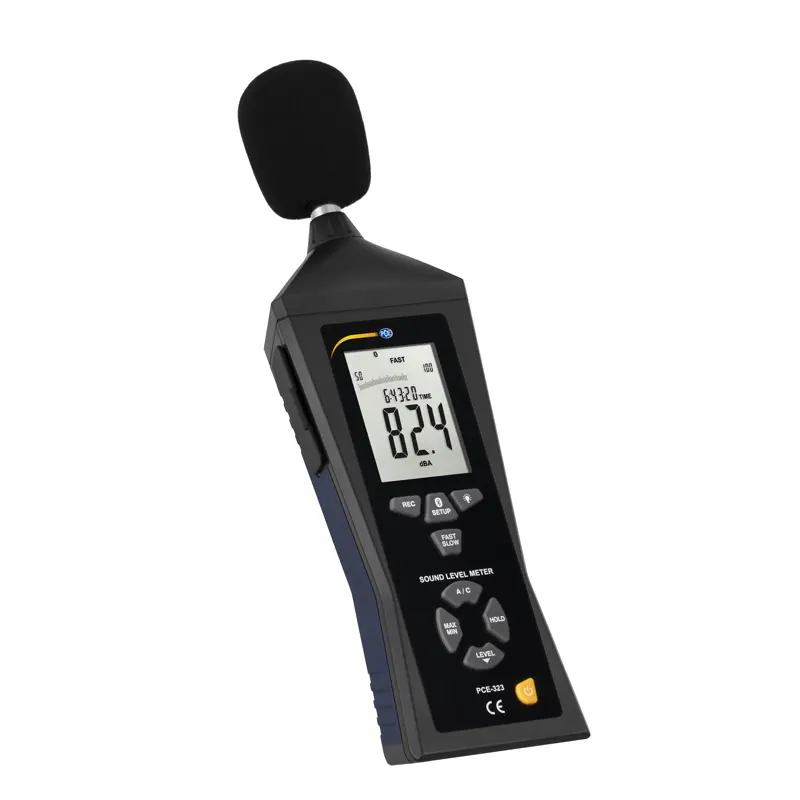

Data Logger with USB Interface PCE-323

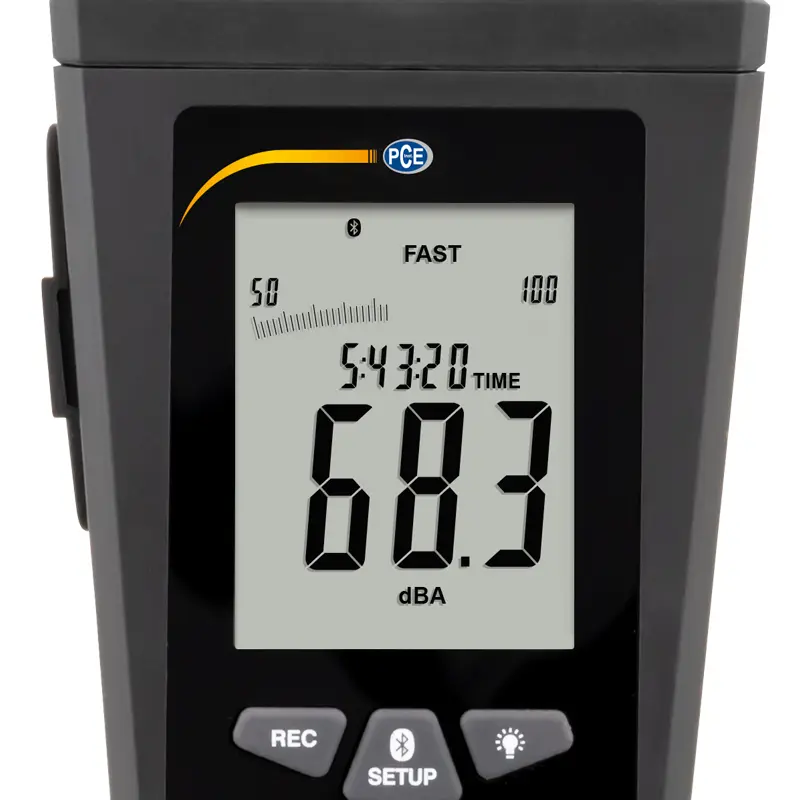

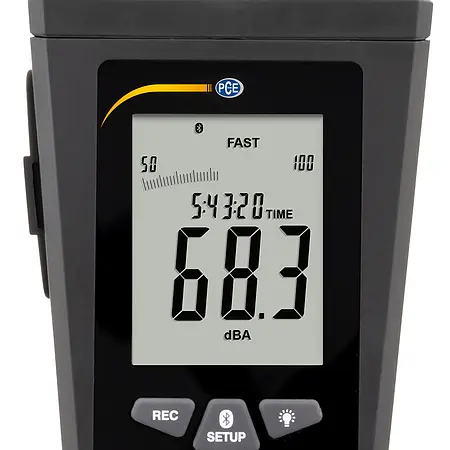

Data Logger with USB Interface PCE-323 Display

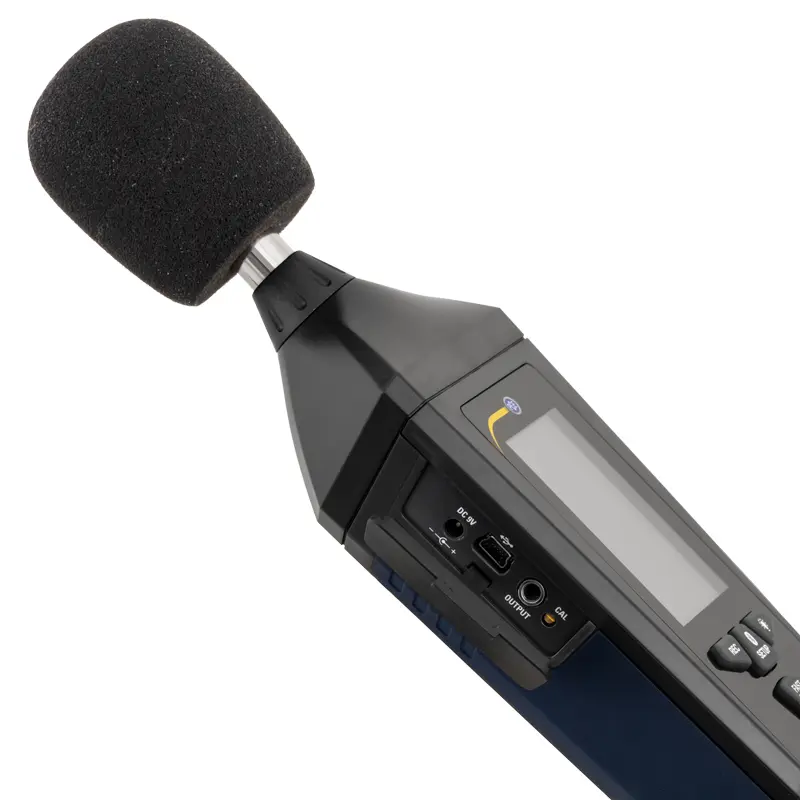

Data Logger with USB Interface PCE-323 connections

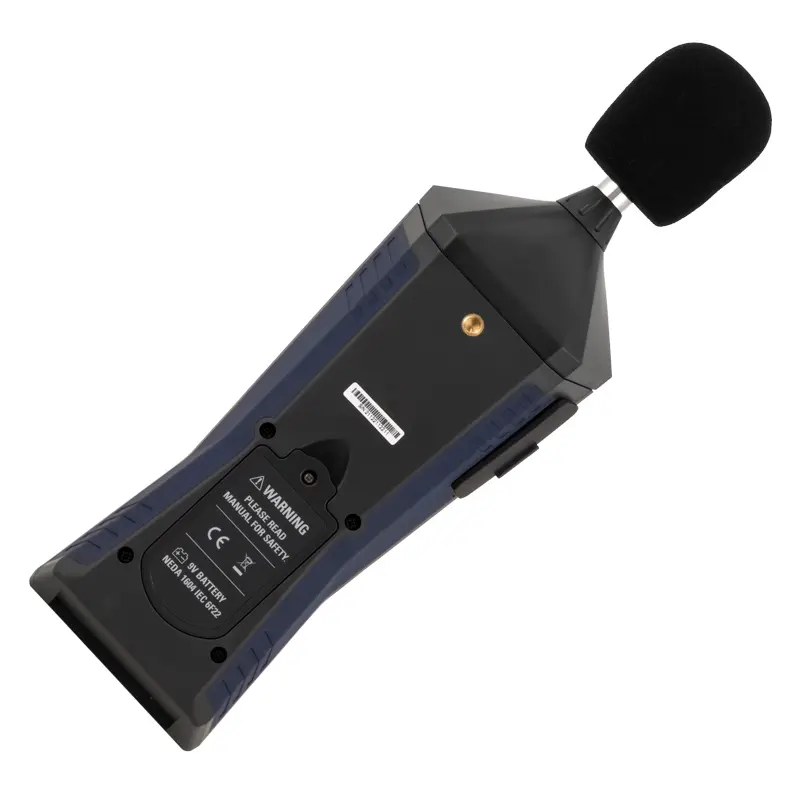

Data Logger with USB Interface PCE-323 tripod mount

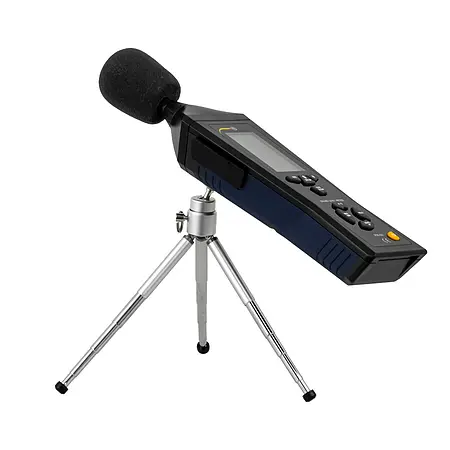

Data Logger with USB Interface PCE-323 tripod

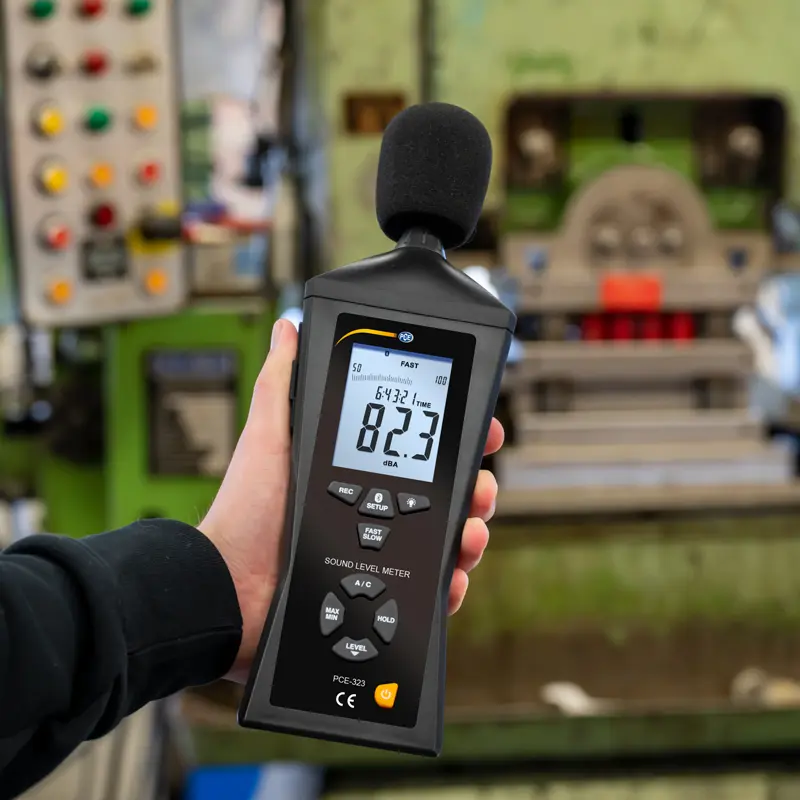

Data Logger with USB Interface PCE-323 application
Data Logger with USB Interface PCE-323 application
Data Logger with USB Interface PCE-323 application
Data Logger with USB Interface PCE-323 application

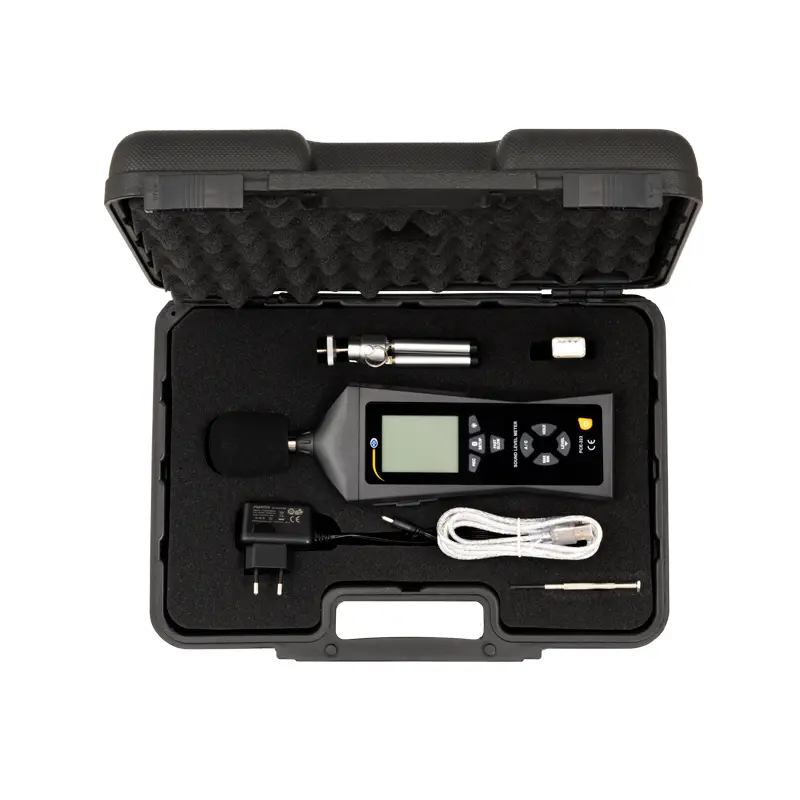

Data Logger with USB Interface PCE-323 delivery

Data Logger with USB Interface PCE-323-ICA incl. ISO Calibration Certificate

Order no.: PCE-323-ICA
GTIN (EAN): 4250348729842
US$ 484.00
ISO Calibration
ex. Sales Tax, ex. delivery costs
:
4250348729842
PCE-323-ICA
Available in:10 - 14 days
A / C
Fast / Slow
No
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Accessory

Description

Bluetooth data logger with USB interface for Android and iOS / Accuracy class 2 / Live view / Battery and power adapter / PC connection with software / Frequency weighting A and C / Tripod mount / Measuring range 30 ... 130 dB / Incl. ISO calibration certificate

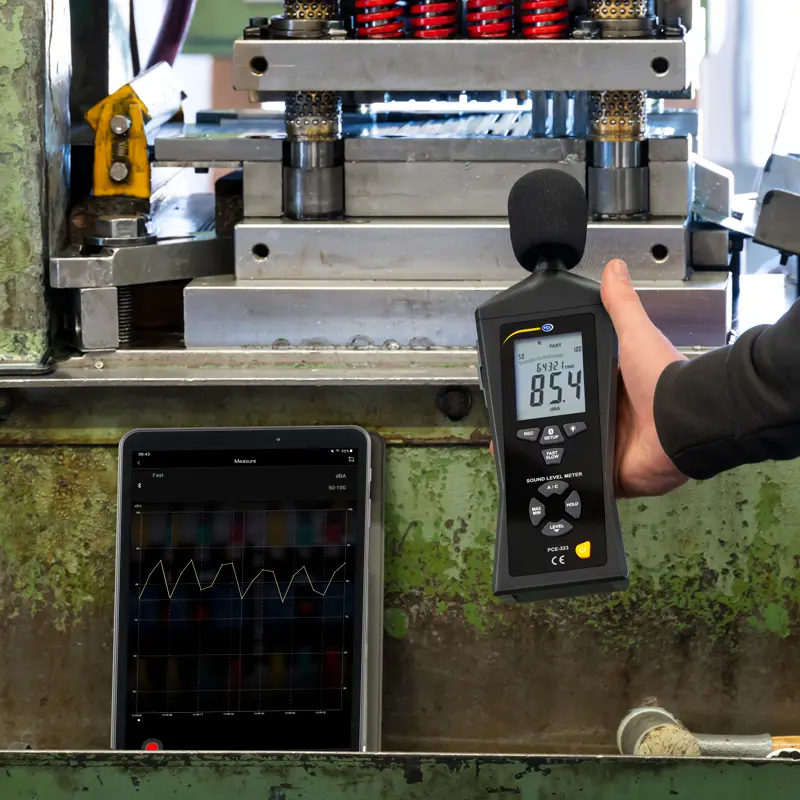

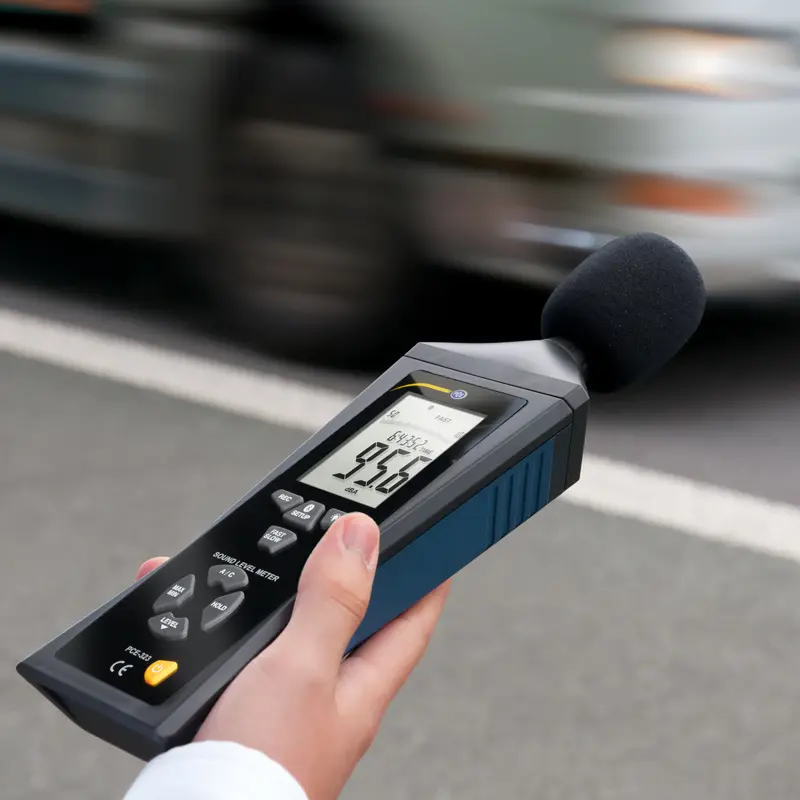

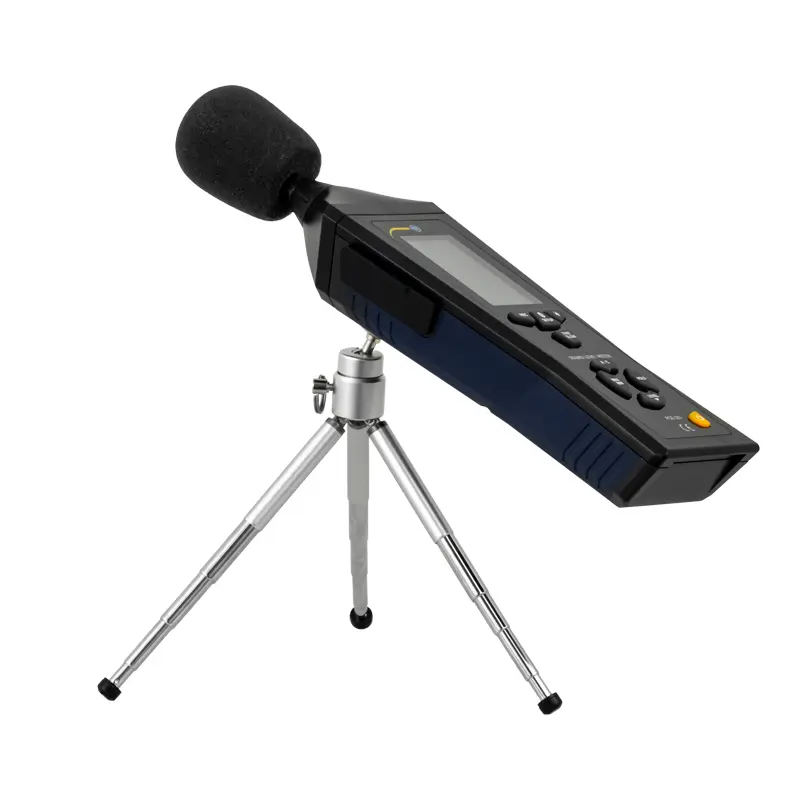

The data logger with USB interface has a measuring range of 30 … 130 dB and can be used where sources of noise are to be recorded. For example, the sound level meter is used to control the noise level on stamping presses, ventilation systems or on busy roads. With the push of a button, you can switch between the frequency ratings A and C on the Bluetooth sound level meter. With the data logger function of the sound level meter, up to 32700 readings can be recorded. For optimal positioning of the microphone, the sound level meter can also be mounted on a tripod.

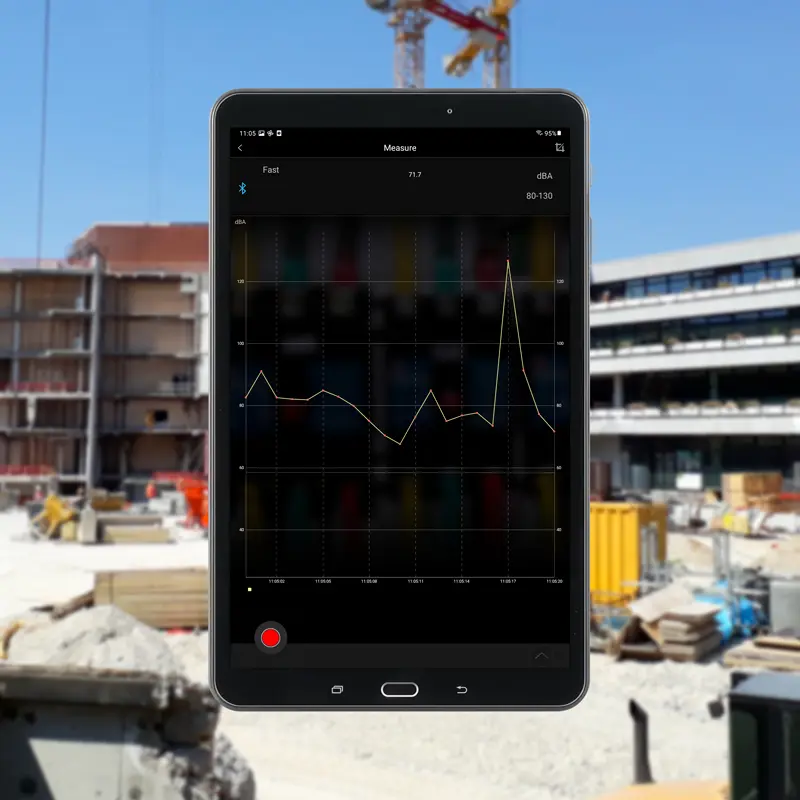

With the Bluetooth interface, the data logger with USB interface can be set up with an Android or iOS device. The measured values ​​from the Bluetooth sound level meter live can be transmitted and saved via the free app. The values ​​measured by the sound level meter can then be exported in CSV file format for further processing.

In addition to the Bluetooth interface, the data logger with USB interface also has a mini USB interface. This allows the Bluetooth sound level meter to be connected to a computer. With the software for the Bluetooth sound level meter, the measured values ​​can then be transmitted live to the PC and, if necessary, exported as a CSV for further processing.

With the included 12V DC power supply, the Bluetooth data logger with USB interface can be used stationary. For mobile use, the Bluetooth sound level meter can be operated with a 9V block battery. The transport case enables safe transport for the Bluetooth sound level meter for mobile use. The Bluetooth sound level meter is equipped with an ISO calibration certificate.

Highlights

- Accuracy class 2
- Measuring range 30 ... 130 dB
- Different noise level ranges
- Bluetooth interface with free app
- Battery and power adapter
- Frequency weighting A and C
- incl. ISO Calibration Certificate

Specification

Noise level ranges Auto 30 ... 130 dB
  High 80 ... 130 dB
  Medium 50 ... 100 dB
  Low 30 ... 80 dB
Dynamic range 50 dB
Resolution 0.1 dB
Accuracy ±1.4 dB (under reference conditions @ 94 dB, 1 KHz)
Accuracy class IEC61672-1 Class 2


Frequency range 31.5 Hz...8 kHz
Time rating FAST (125 ms), SLOW (1 s)

Frequency weighting A and C
Microphone type 1/2" electret condenser
Display 4-digit LCD display with background lighting
Display update 2 Hz
Data storage 32700 readings
Storage interval 1 ... 59 seconds
Analog output over 1 Vrms/dB AC (impedance 100)
3.5 mm jack connection       10 mV/dB DC (impedance 1k)
Data interface USB, Bluetooth 4.0
Bracket
3/8" connection
Functions MIN, MAX, HOLD
  Indication when noise level exceeds or falls below threshold
Shutdown Automatically after ca. 15 minutes of inactivity
Power supply 9 V block battery
Mains adapter Primary: 100 ... 240 V AC, 50 / 60 Hz, 0.2 A
  Secondary: 9 V DC, 0.5 A
Operating conditions 0 ... +40 °C / 32 .. 104 °F, 10 ... 90 % RH, non-condensing
  Altitude <2000 m / 6561 ft
Storage conditions -10 ... +60 °C / 14 ... 140 °F, 10 ... 75 % RH, non-condensing
Dimensions 278 x 76 x 50 mm / 10.9 x 3.0 x 2"
Weight 350 g / 12.3 oz

Delivery Scope

1 x Bluetooth Data Logger with USB Interface PCE-323-ICA
1 x Mini Tripod
1 x Screwdriver
1 x Software CD
1 x Carrying case
1 x 9V block battery
1 x Instruction Manual
1 x ISO Calibration Certificate


N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.

N.B. the free Apps are available at:
https://play.google.com/store/apps/details?id=com.cem.supermeterbox
https://apps.apple.com/de/app/meterbox-pro/id1231364276
