Data Logger for Temperature and Humidity PCE-EM 880

Data Logger for Temperature and Humidity PCE-EM 880 [zoom]

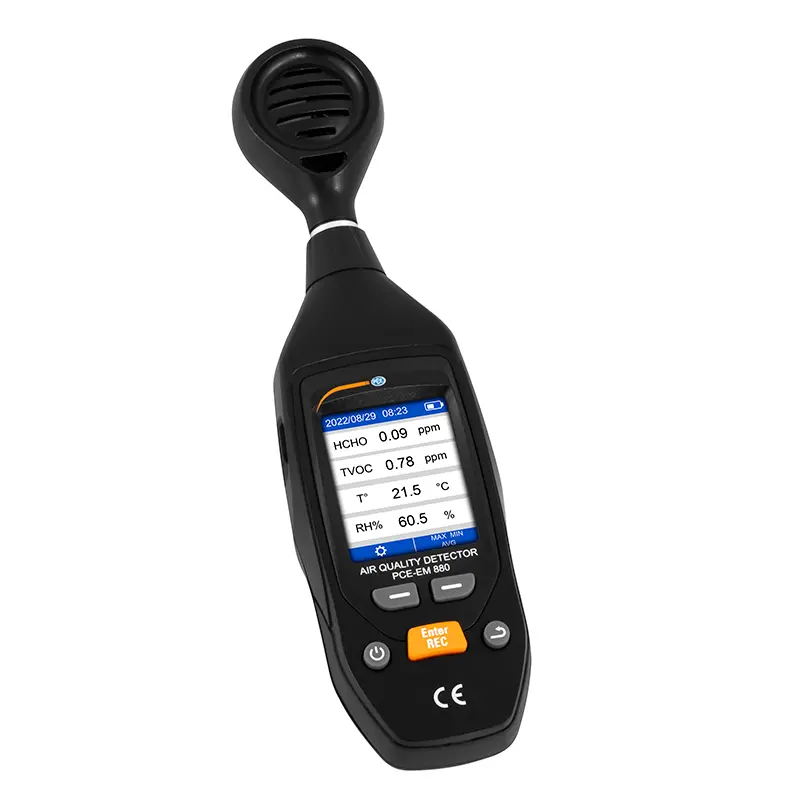

Data Logger for Temperature and Humidity PCE-EM 880

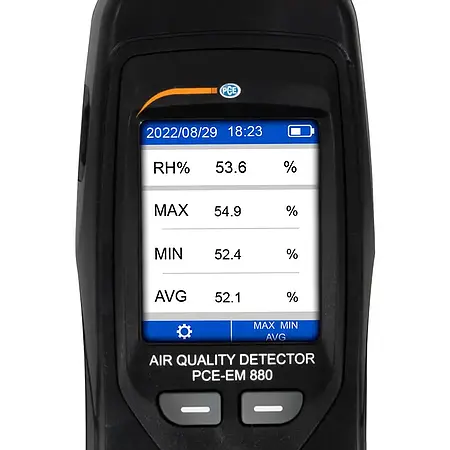

Data Logger for Temperature and Humidity PCE-EM 880 display

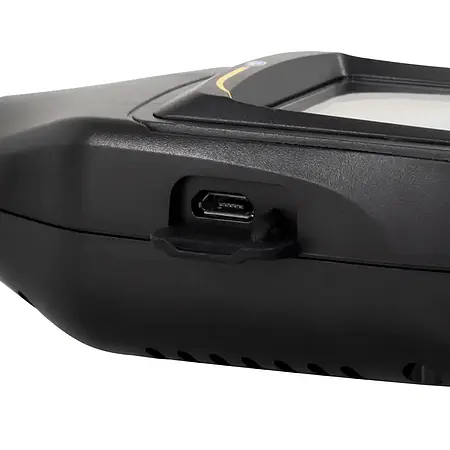

Data Logger for Temperature and Humidity PCE-EM 880 USB connection

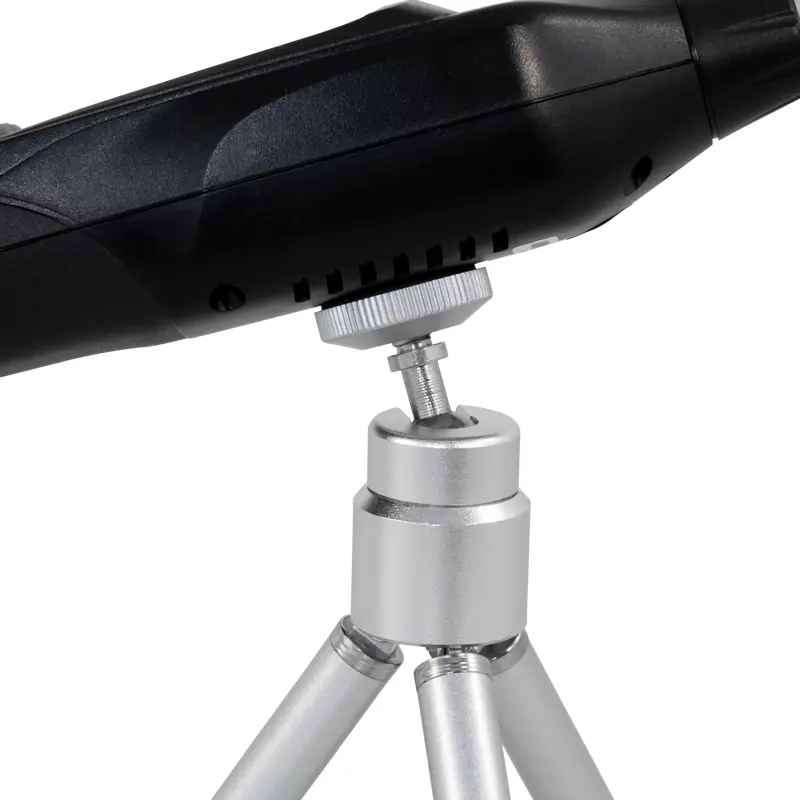

Data Logger for Temperature and Humidity PCE-EM 880 tripod

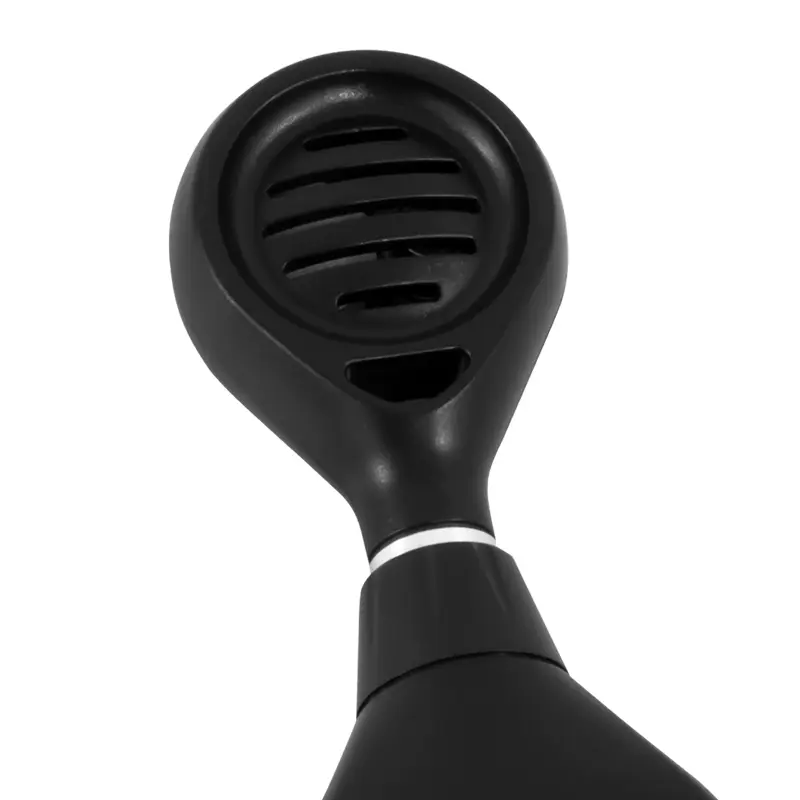

Data Logger for Temperature and Humidity PCE-EM 880 sensor

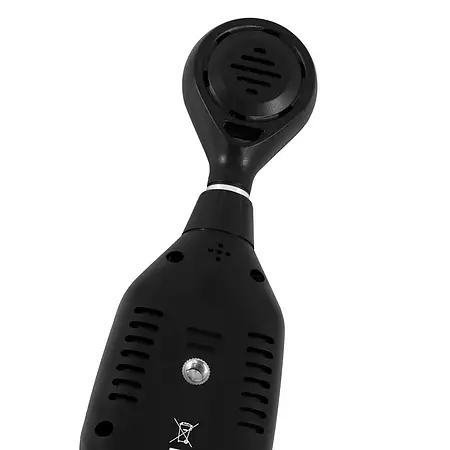

Data Logger for Temperature and Humidity PCE-EM 880 rear side

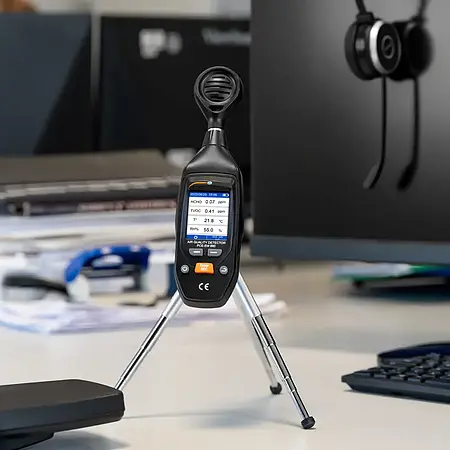

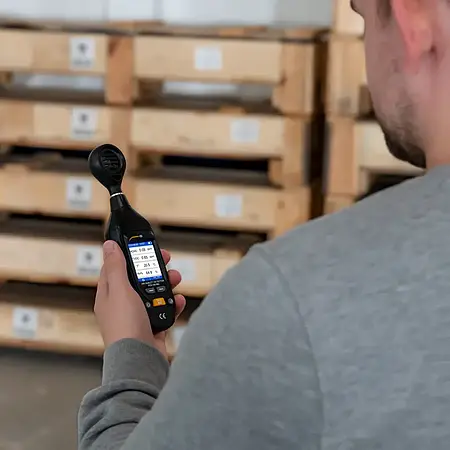

Data Logger for Temperature and Humidity PCE-EM 880 application

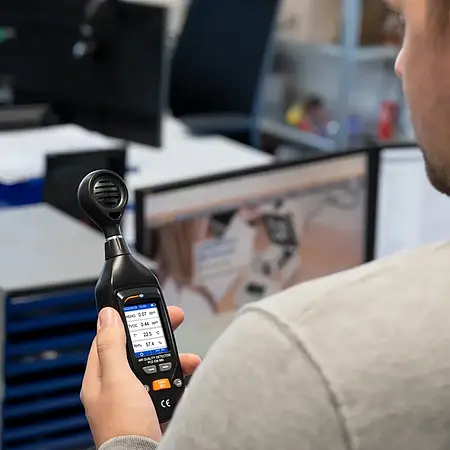

Data Logger for Temperature and Humidity PCE-EM 880 application

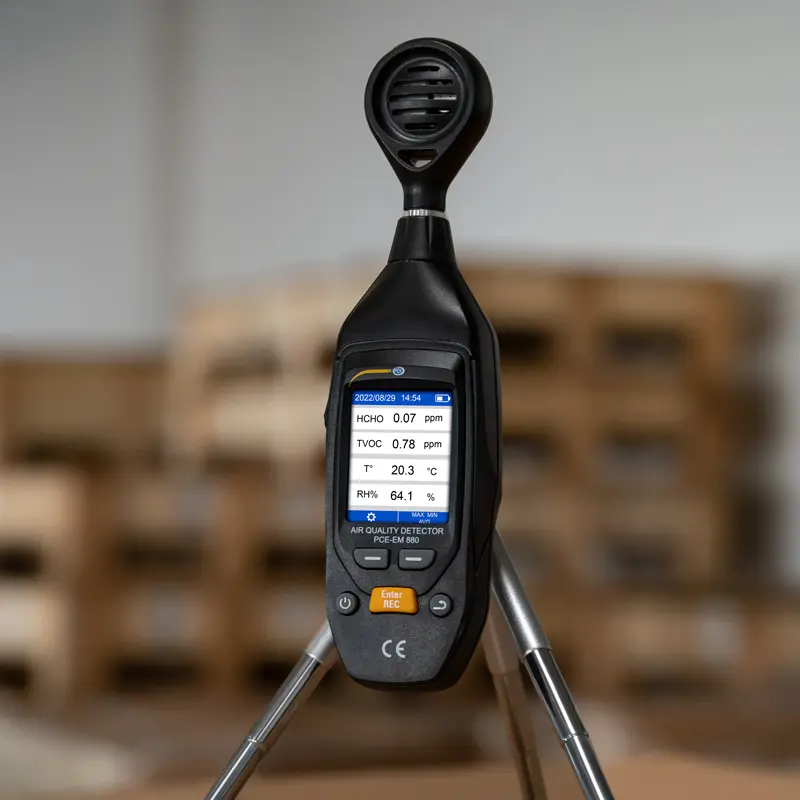

Data Logger for Temperature and Humidity PCE-EM 880 application
Data Logger for Temperature and Humidity PCE-EM 880 application

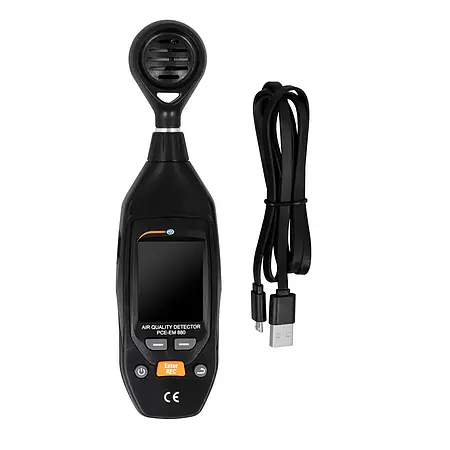

Data Logger for Temperature and Humidity PCE-EM 880 delivery

Data Logger for Temperature and Humidity PCE-EM 880

Order no.: PCE-EM 880
GTIN (EAN): 4250348727145
US$ 237.00
ex. Sales Tax, ex. delivery costs
:
4250348727145
PCE-EM 880
Available in:1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Description

Data logger for temperature and humidity / Export of the saved measurement data as CSV /
HCHO / TVOC / temperature / humidity / measuring range 0.00 ... 9.99 mg/m³ /
1500 mAh battery / Mobile and stationary use / Micro USB interface

The data logger for temperature and humidity is equipped with various sensors to determine HCHO, TVOC, ambient temperature and ambient humidity. This means that the air quality meter already covers a wide range of measurement tasks. The measuring range for the TVOC measurement is 0.00 … 9.99 mg/m³. With an accuracy of ±5% of the measuring range for HCHO and TVOC measurement, the air quality meter is the ideal measuring tool for indicative measurements.

Thanks to the built-in 1500 mAh battery, it is possible to operate the data logger for temperature and humidity as a mobile device. As soon as the battery is discharged, it can be recharged via the micro USB interface with a 5 V DC power supply.

The data logger for temperature and humidity is therefore used, for example, to check the air quality in offices, workshops, school facilities or in logistics to check the premises for volatile organic substances and formaldehyde.

The readings are stored directly on the data logger for temperature and humidity. A memory with 5000 measuring points is available for the air quality meter. After a measurement, the readings can be analyzed on the air quality meter. In addition, the readings from the air quality meter can be transferred to a PC. When connecting the air quality meter to a PC, the air quality meter is recognized as a mass data storage device. This has the particular advantage that the air quality meter works independently of the operating system. The measured values ​​are saved in CSV file format by the air quality meter.

Highlights

- Memory for 5000 measuring points
- Measuring range 0.00 ... 9.99 mg/m³ (TVOC)
- Easy operation by virtual keys
- Battery and mains operation
- Tripod mount for stationary use
- Individually adjustable alarm limits

Specification

HCHO
Measuring range 0.00 … 5.00 mg/m³
Resolution 0.01 mg/m³
Accuracy ±5 % of measuring range

TVOC
Measuring range 0.00 … 9.99 mg/m³
Resolution 0.01 mg/m³
Accuracy ±5 % of measuring range

Temperature
Measuring range 0 … 50 °C / 32 … 122 °F
Resolution 0.1 °C / 0.1 °F
Accuracy ±2 °C / ±4 °F

Humidity
Measuring range 0 … 100 % RH
Resolution 0.1 % RH
Accuracy ±3.5 % at (20 … 80 % RH)
  ±5 % at (0 … 20 %)
  ±5 % at (80 … 100 %)

Further specifications
Memory space for 5000 measuring points
File format CSV
Memory rate 1 minute, 15 minutes, 1 hour
Warm-up time HCHO: 10 seconds
  TVOC: 90 seconds

Units temperature: °C, °F
  HCHO / TVOC: ppm, mg/m3
Measuring rate 1 Hz
Alarm visual
Interface Micro USB interface
Power supply (battery) 3.7 V, 1500 mAh
Power supply (power pack)        5 V DC, 1 A
Operating conditions 0 … 45 °C / 32 … 113 °F, <90 % RH
Storage conditions -10 … 55 °C / 14 … 131 °F, <90 % RH
Dimensions 54 x 215 x 34 mm / 2.1 x 8.4 x 1.3"
Weight 143 g / 5.0 oz

Delivery Scope

1 x Data Logger for Temperature and Humidity PCE-EM 880
1 x Micro USB cable
1 x Instruction manual
