PCE-USM RS232 Data Logger

Name: PCE-USM RS232 Data Logger
Brand: PCE Instruments
SKU: 5886284
Price: 198 USD
Availability: InStock

Order no.: PCE-USM

GTIN (EAN): 4250348722164

Your PCE Instruments Benefits

Bilingual Technical Support (EN / ES)

Special Promotions

Public Service, Military and First Responder Discount

30 Day Return Policy

2 Year Warranty

Description

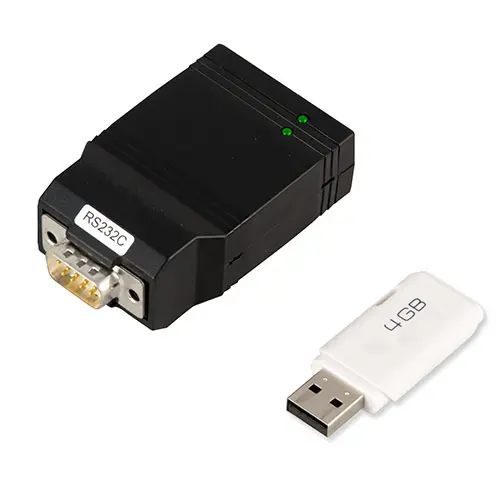

Data logger adapter RS232 to USB / TXT format / Time - Date Stamp /
Query function / external power / 4GB USB Stick incl.

This RS232 - USB data logger can be connected to the serial Sub-D 9 interface of a device and store the received data on a USB stick in TXT format. The power supply of the RS232 - USB data logger is carried out by an external power adapter which is included. The RS232 - USB data logger can store received data with time and date stamp, orautomatically query data in configurable time intervals.

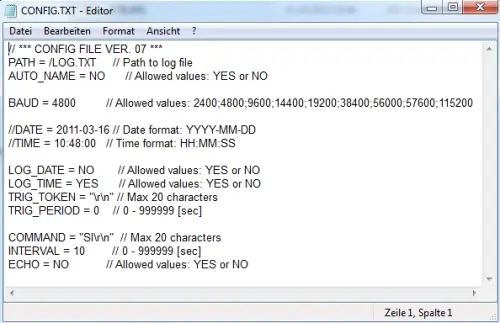

The query commands and other settings can be easily changed in a .txt format and with the help of a configuration file,transferred via the USB stick, andplayed on theRS232 - USB data logger. The RS232 - USB data logger can always save the data in the same folder or create a new folder but always after the USB flash drive has been removed from the adapter and is added again.

Highlights

- TXT Format
- Query commands adjustable
- Query cycle adjustable
- Internal clock for time / date stamp
- External power supply
- USB stick incl.

Specification

Entrance	Sub-D 9 Male Pin 2 - TxD transmit data Pin 3 - RxD receive data Pin 5 - Ground
Exit	USB A socket
Storage format	TXT
Memory function	Manual (stores received data) Automatic (queries data fromitself)
Memory	4 GB USB Flash Drive for up to 64,000,000 Records (date / time / weight / unit)
Power supply	12 V / 1.4 A power adapter included
Dimensions	65 x 45 x 25 mm (without USB Stick)
Weight	50 g (without power supply)
